Plan 51811HZ
3-Bed New American Ranch Home Plan - 1398 Sq Ft
Heated S.F.
1,398
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

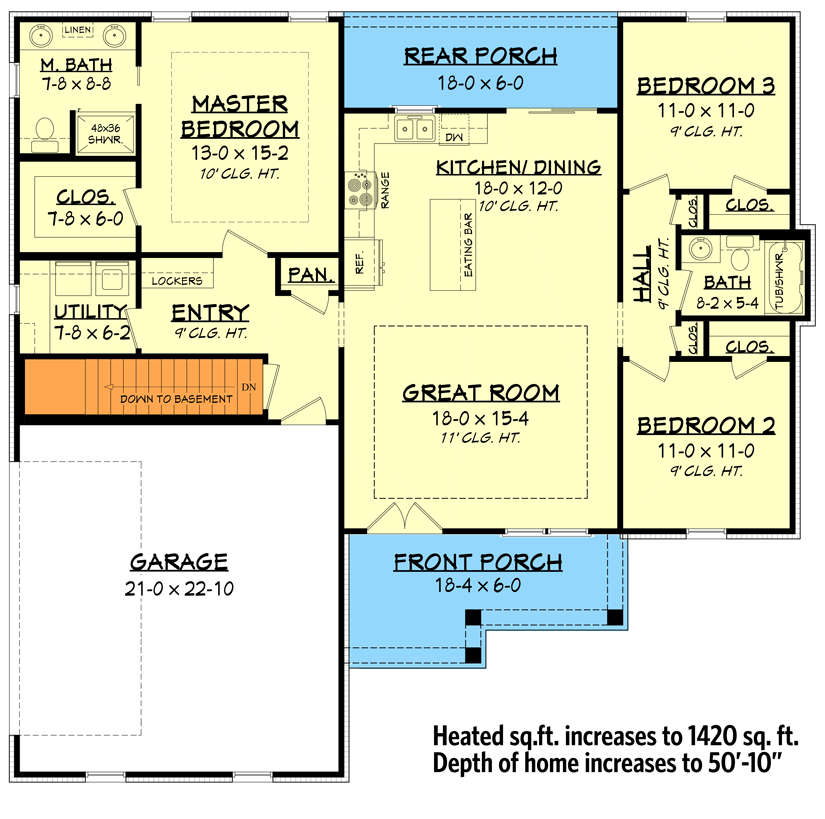

Main Level with Basement Option
Reverse Floor Plan
3-Bed New American Ranch Home Plan - 1398 Sq Ft - 51811HZ floor plan - Main Level with Basement Option

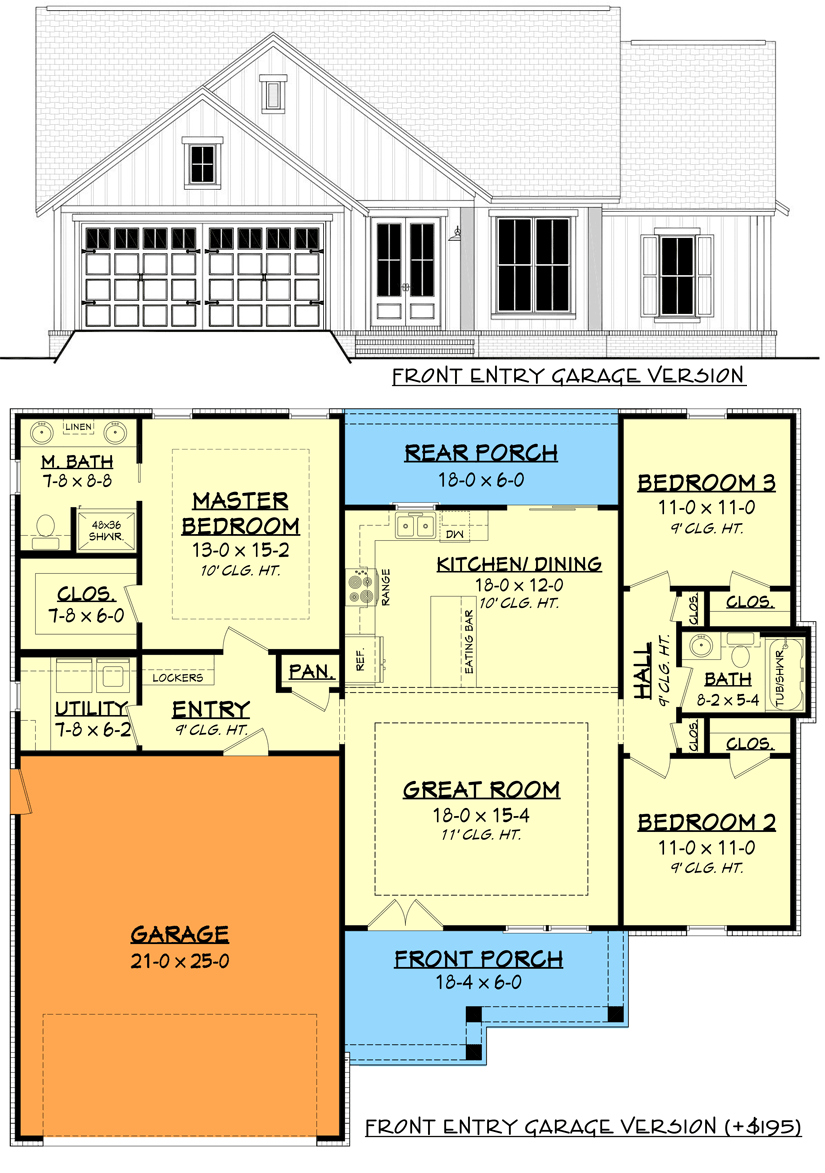

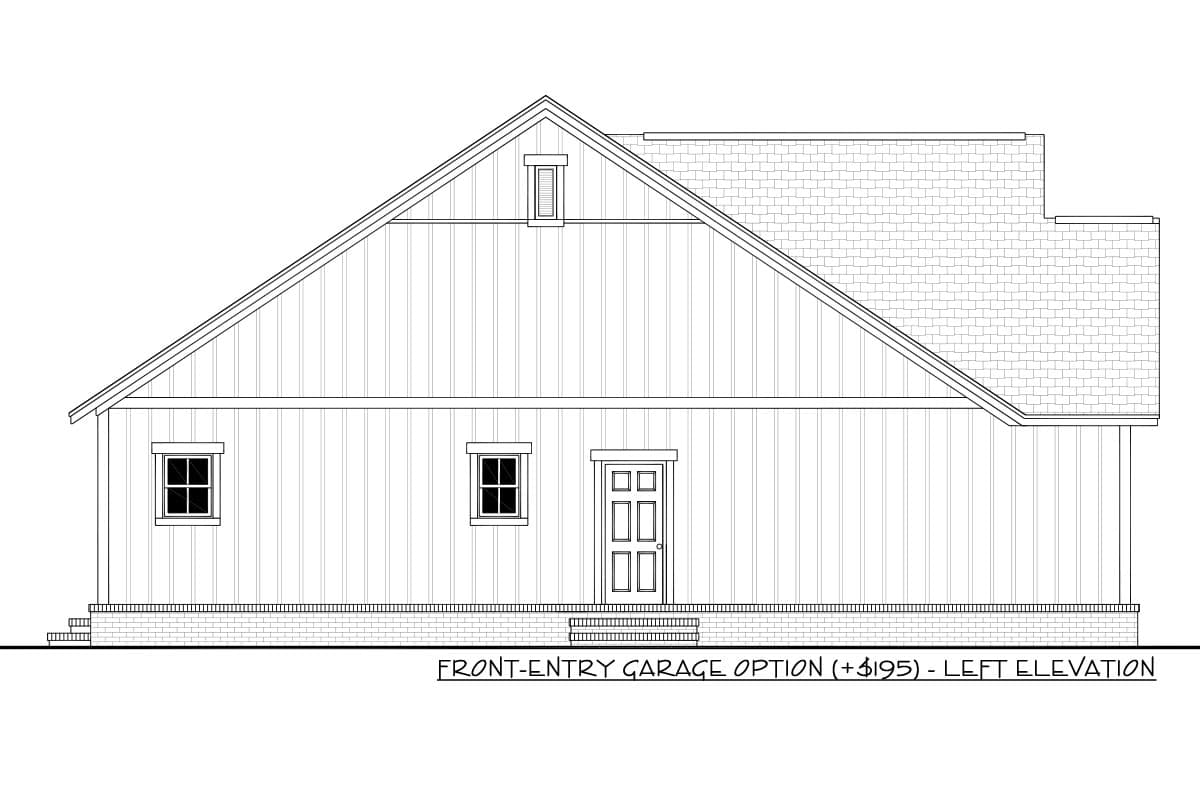

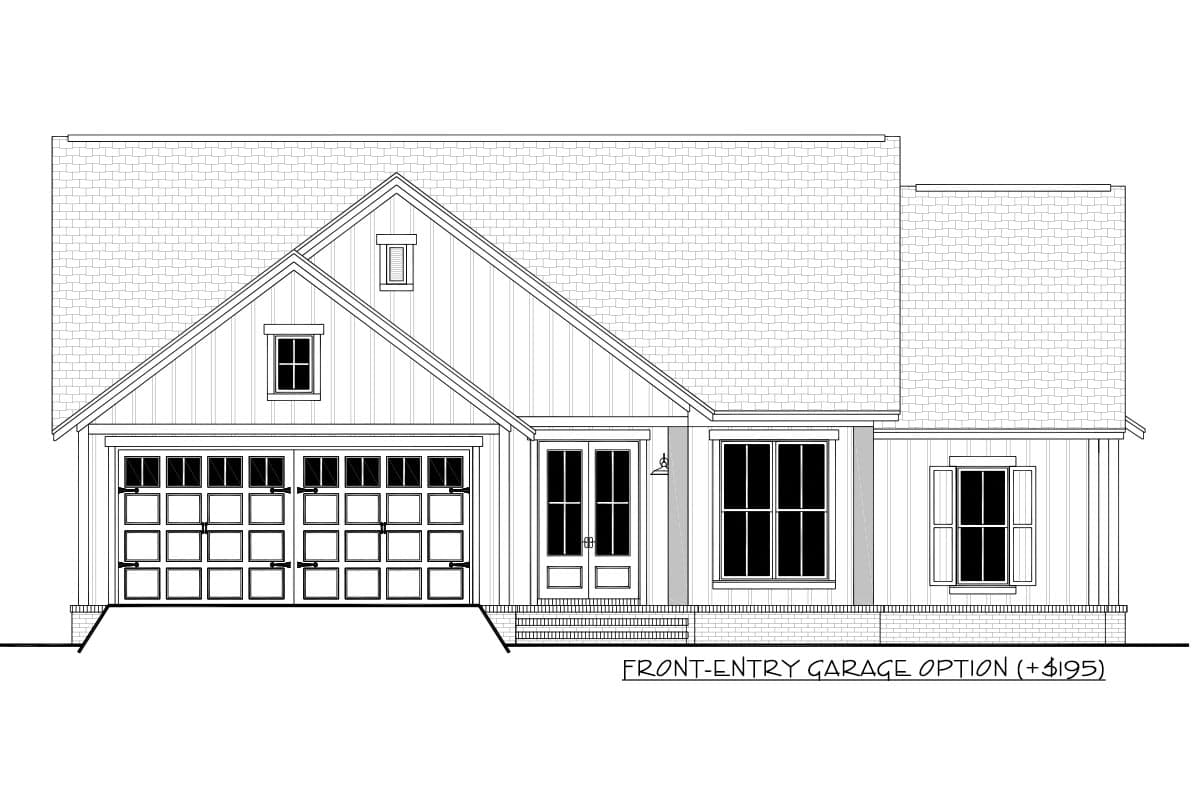

Front Entry Garage Option (+$195)
Reverse Floor Plan
3-Bed New American Ranch Home Plan - 1398 Sq Ft - 51811HZ floor plan - Front Entry Garage Option (+$195)
Plan Details

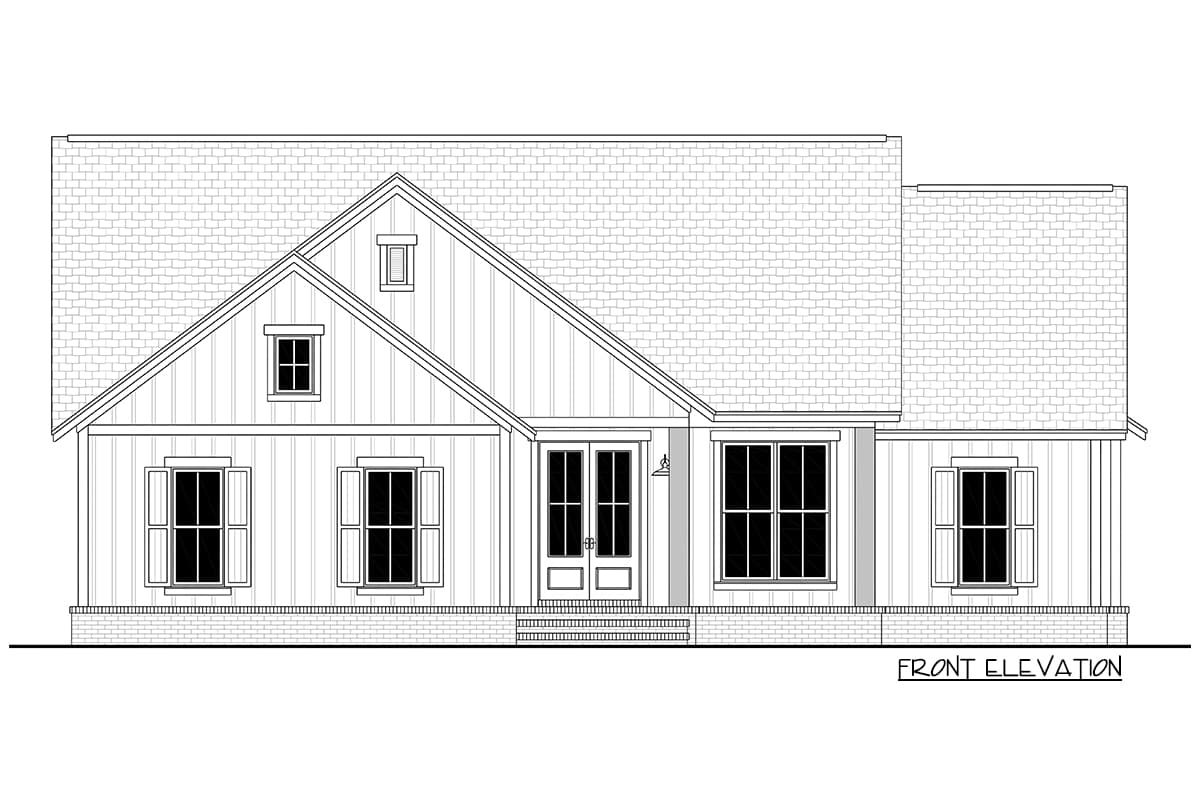

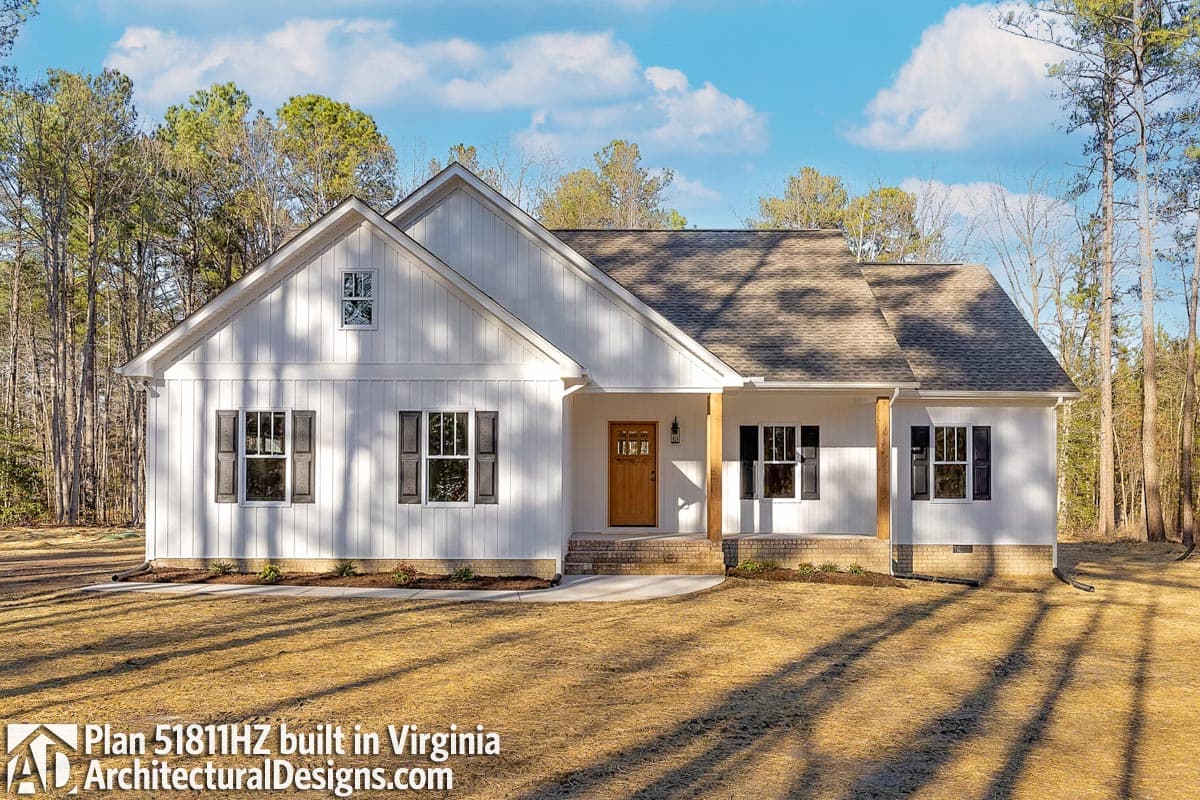

  • Board and batten with two timber accents on the front porch welcome you to this 3-bed New American ranch home plan. French doors welcome you inside to the great room with an 11' tray ceiling.
  • A split bedroom layout leaves the center portion of the home open for hanging out with friends and family.
  • The kitchen island gives you both work space as well as casual seating at the counter side. A sliding door takes you to the covered porch in back.
  • Laundry is located by the family entry off the garage.
  • Related Plan: Push the kitchen flush to the back of the home and get more room with house plan 51826HZ (1,512 sq. ft.) and a larger version with house plan 51747HZ (1,657 sq. ft.).
What's Included
This one-story house plan has 8 pages as follows:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Exterior views and other misc notes/ details
Page 5  Exterior views and other misc notes/ details
Page 6  Cross Sections & Kitchen Cabinet Views
Page 7  Roof Plan & Span Charts
Page 8  Electrical Plan & Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed New American Ranch Home Plan - 1398 Sq Ft

  • 1,398

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

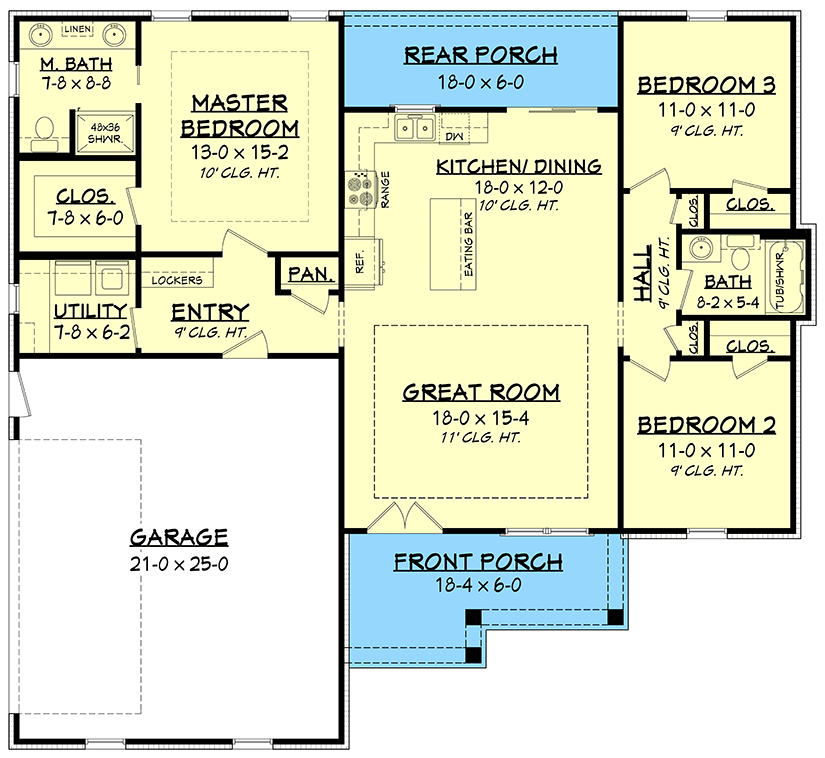

  • Main Level

  • Main Level with Basement Option

  • Front Entry Garage Option (+$195)

Plan Details

Square Footage Breakdown

  • Total: 1,398 sq. ft.
  • 1st Floor: 1,398 sq. ft.

Dimensions

  • Width: 52' 4"
  • Depth: 47' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 545 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
