Plan 51778HZ
Open-Concept 4-Bed Craftsman Home Plan with Bonus Over Garage - 2589 Sq Ft
Heated S.F.
2,589
Beds
4-5
Baths
2.5 - 3.5
Stories
1
Cars
2
Floor Plan
Bonus over Garage
Reverse Floor Plan

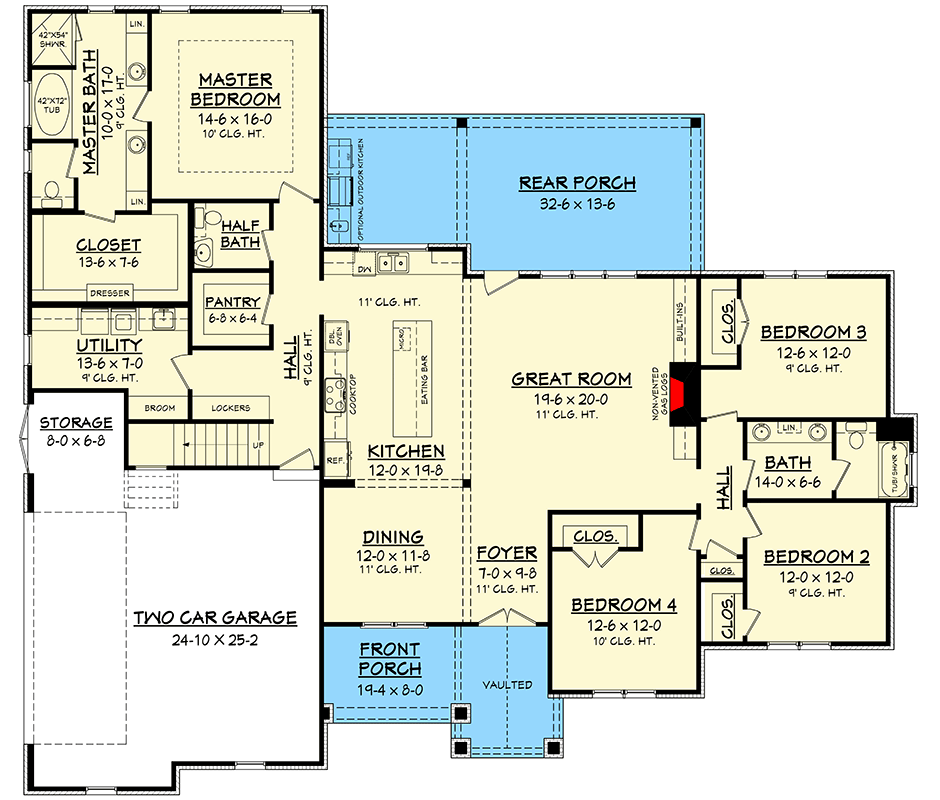

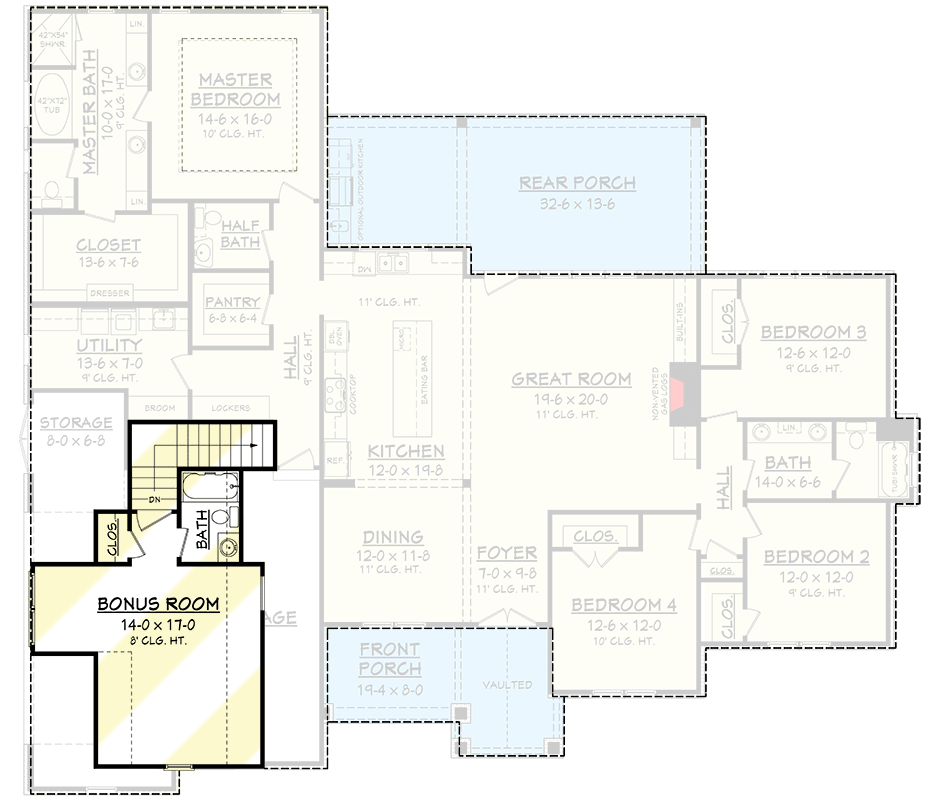

Open-Concept 4-Bed Craftsman Home Plan with Bonus Over Garage - 2589 Sq Ft - 51778HZ floor plan - Bonus over Garage
Basement Stair Location
Reverse Floor Plan

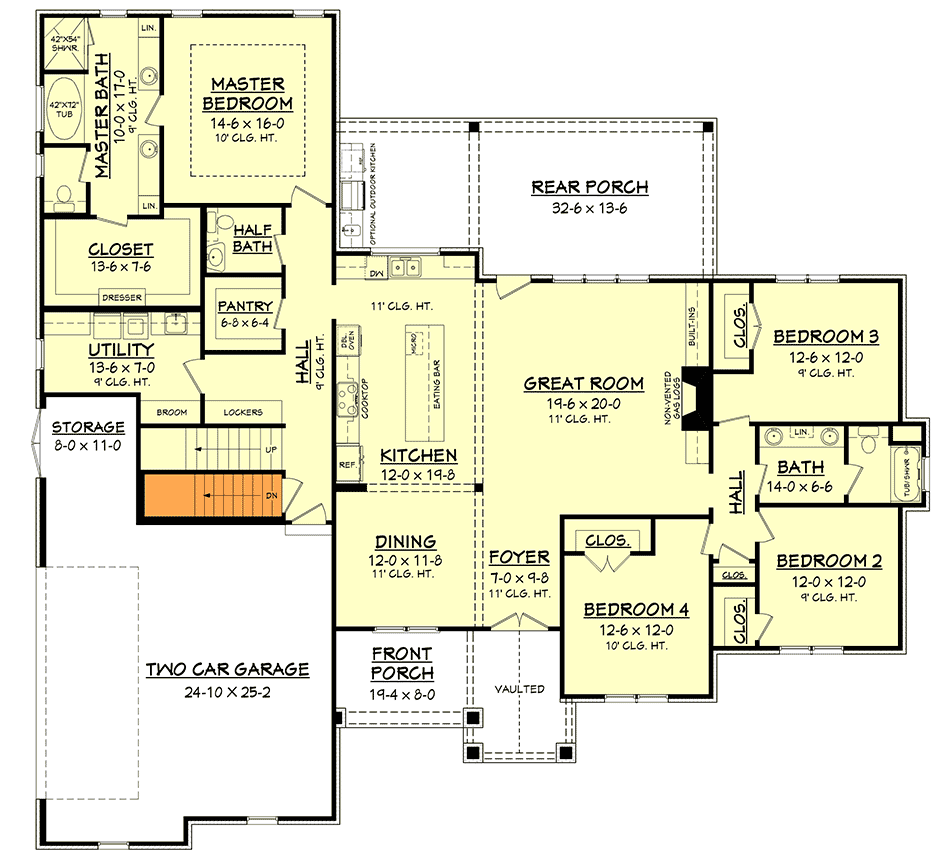

Open-Concept 4-Bed Craftsman Home Plan with Bonus Over Garage - 2589 Sq Ft - 51778HZ floor plan - Basement Stair Location
3-Car Side Garage Option
Reverse Floor Plan

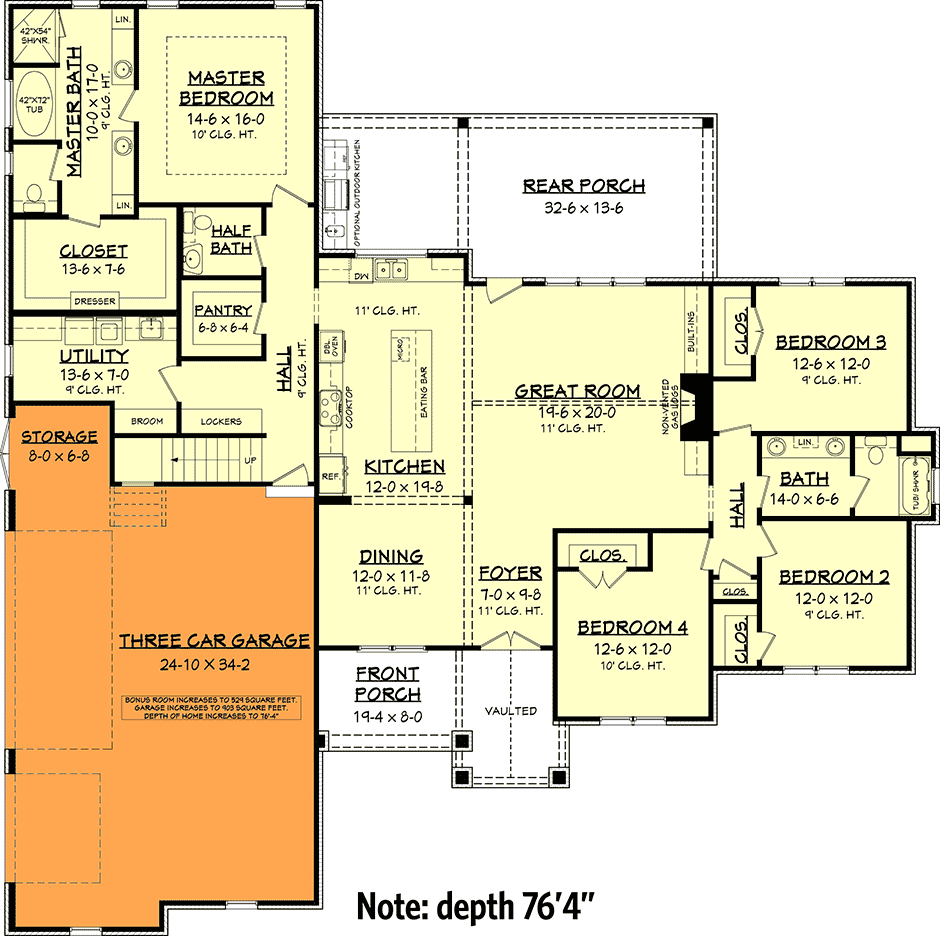

Open-Concept 4-Bed Craftsman Home Plan with Bonus Over Garage - 2589 Sq Ft - 51778HZ floor plan - 3-Car Side Garage Option
Plan Details
  • This beautiful 4 bedroom, Craftsman style home plan offers great rustic curb appeal.
  • The main living spaces also offer raised ceilings and large windows which offer great views to the exterior.
  • The well-equipped kitchen has everything you could want and is complete with a large island and eating bar.
  • The bedrooms are all well sized and the master suite features dual vanities, large shower, and huge walk-in closet.
  • The bonus space above also adds more flexibility to the design and can be used as an extra bedroom, media room, or office space.
  • Related Plan: Replace the dining room with an office and build in reverse with house plan 51753HZ.
What's Included
The plan set includes the following:

  • Page 1  Cover Page
  • Page 2  Foundation Plan and Details
  • Page 3  Floor Plans & Notes
  • Page 4  Exterior Elevations & Wall Sections
  • Page 5  Exterior Elevations & Wall Sections
  • Page 6  Cross Sections & Cabinet Elevations
  • Page 7  Roof Plan & Span Charts
  • Page 8  Electrical Plans & Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Open-Concept 4-Bed Craftsman Home Plan with Bonus Over Garage - 2589 Sq Ft

  • 2,589

    Heated s.f.

  • 4-5

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Bonus over Garage

  • Basement Stair Location

  • 3-Car Side Garage Option

Plan Details

Square Footage Breakdown

  • Total: 2,589 sq. ft.
  • 1st Floor: 2,589 sq. ft.

Dimensions

  • Width: 76' 4"
  • Depth: 67' 4"
  • Max ridge height: 28' 3"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 673 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 14 On 12; 12 On 12; 3 On 12; 4 on 12
  • Framing Type: Stick
