Plan 623354DJ
3-Bedroom Modern A-Frame House Plan with Master Bedroom Upstairs - 2073 Sq Ft
Heated S.F.
2,073
Beds
3
Baths
2
Stories
2
Plan Details
  • This A-frame home plan has a modern exterior with clapboard siding and a metal roof, with 3 bedrooms, 2 full baths, and 2,073 square feet of living space.
  • An airlock-type foyer welcomes you inside where a bench and coat closet offer convenient storage for you and your guests. To the right, a doorway leads into the open concept living area, with cathedral ceilings overhead.
  • An L-shaped kitchen includes a generous corner pantry, a large island with a snack bar, and ample counter space. Floor to ceiling glass makes up the rear wall of the home, flooding light and a connection to nature inside, with a pair of glass doors lead you outside. The dining room and great room lie under a soaring 2-story cathedral ceiling and is warmed by a two-sided fireplace that separates the dining and living room.
  • The master suite is privately located on the 2nd floor and features a cathedral ceiling for a bright and open space to retreat, and includes a private 3/4 bath with a large walk-in closet. The two other bedrooms on the main floor each have sliding door access to the outdoors. The laundry room is just across from the bedrooms, and a shared full bath lies at the end of the hall.
  • Related Plan: Get a s 2-Bedroom version with a loft upstairs with plan 623081DJ (2,007 Sq. Ft.).
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bedroom Modern A-Frame House Plan with Master Bedroom Upstairs - 2073 Sq Ft

  • 2,073

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

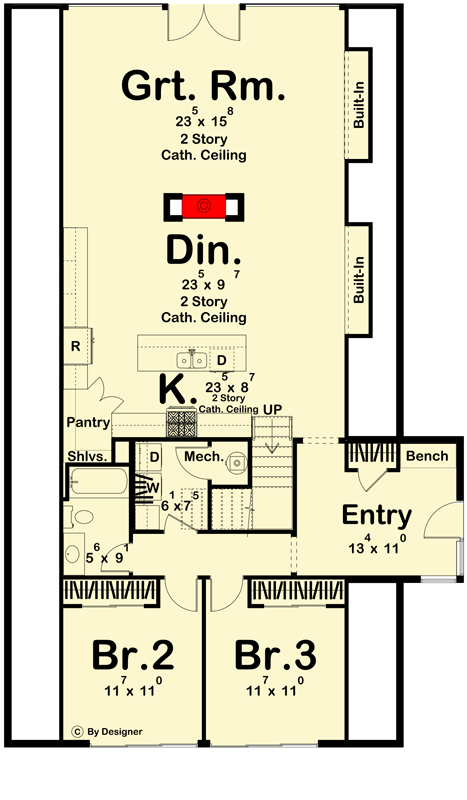

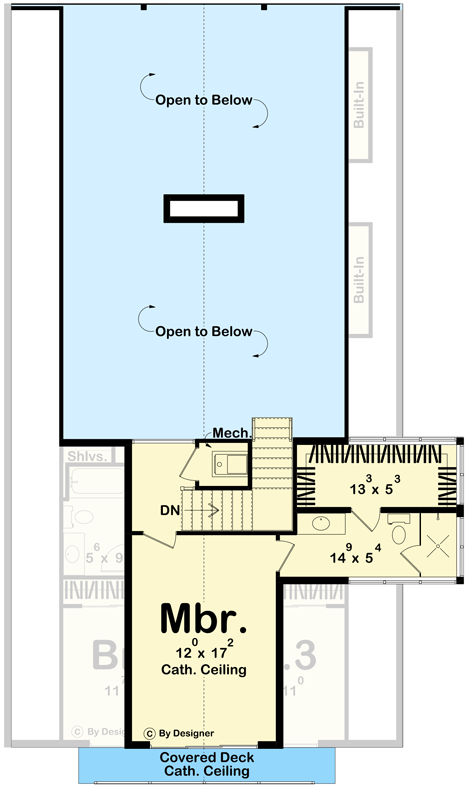

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,073 sq. ft.
  • 1st Floor: 1,621 sq. ft.
  • 2nd Floor: 452 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 61' 8"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 20 on 12
