Plan 765010TWN
Carriage House Plan with Open Living Area
Heated S.F.
650
Beds
1
Baths
1
Stories
2
Cars
2
Floor Plan
2nd Floor - Version 2 (included)
Reverse Floor Plan

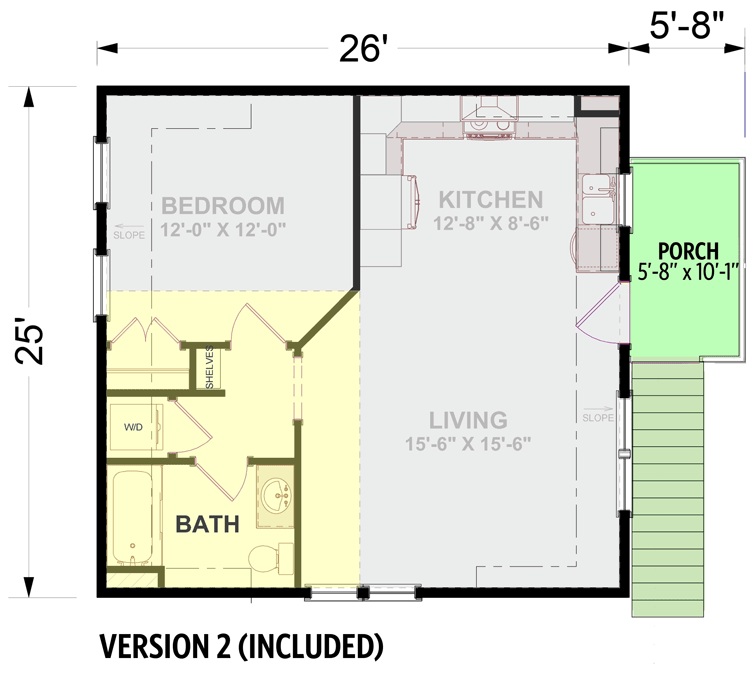

Carriage House Plan with Open Living Area - 765010TWN floor plan - 2nd Floor - Version 2 (included)
2nd Floor - Version 3 (included)
Reverse Floor Plan

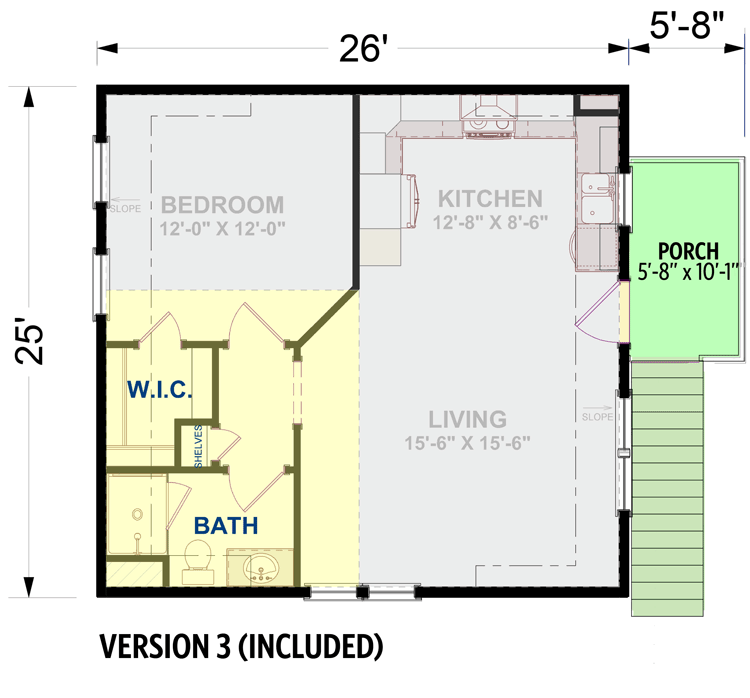

Carriage House Plan with Open Living Area - 765010TWN floor plan - 2nd Floor - Version 3 (included)
Plan Details

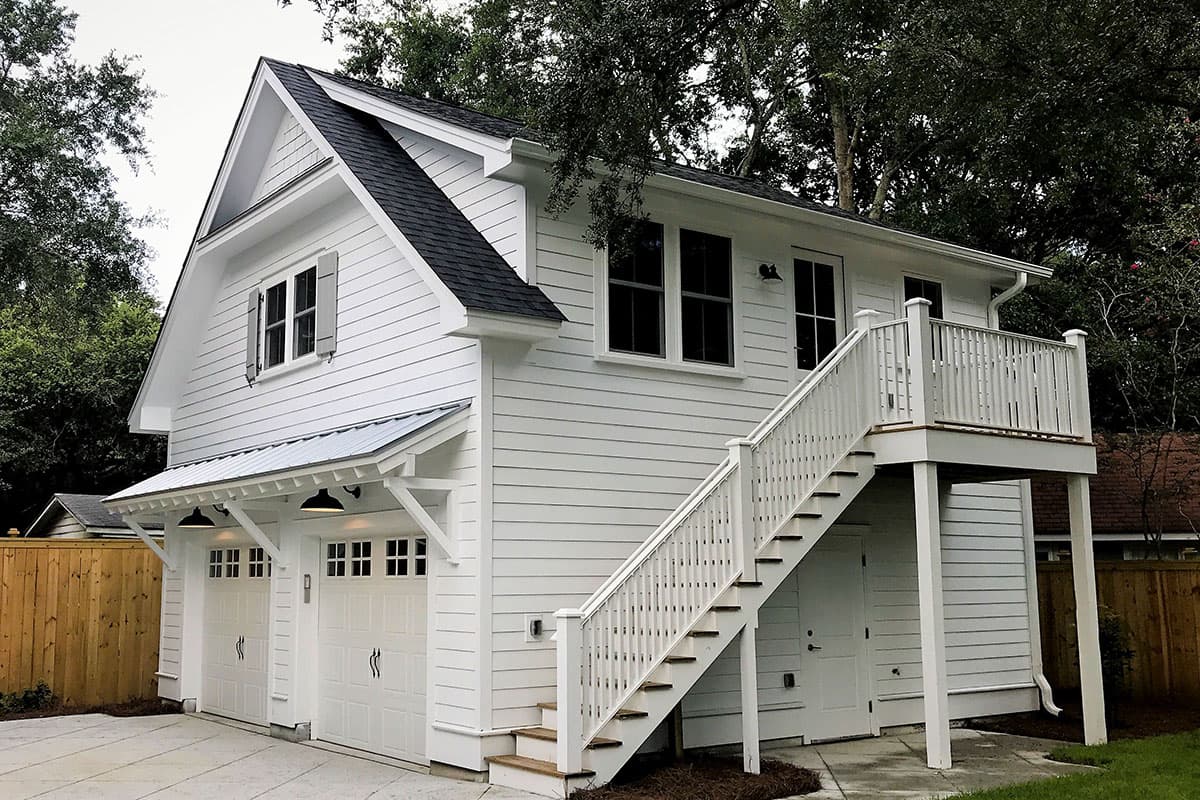

  • Designed to complement house plan 765001TWN, this 2-car carriage house plan makes a great addition to your garage-less home or as a standalone build.
  • The main level has parking for two cars. Exterior stairs take you to the living area above.
  • An open living area gives you a kitchen in back and a living room in front.
  • A bedroom with a full bath, walk-in closet and laundry complete the design.
  • Related Plans: Get alternate versions with plans 765018TWN, 765021TWN, 765034TWN and 765035TWN. See the matching home plan - 765001TWN -  and create your own home-plus-carriage house.
What's Included
This designer's plans include the following:
  • Cover sheet with general notes
  • Foundation Plan
  • Floor Plans with Dimensions

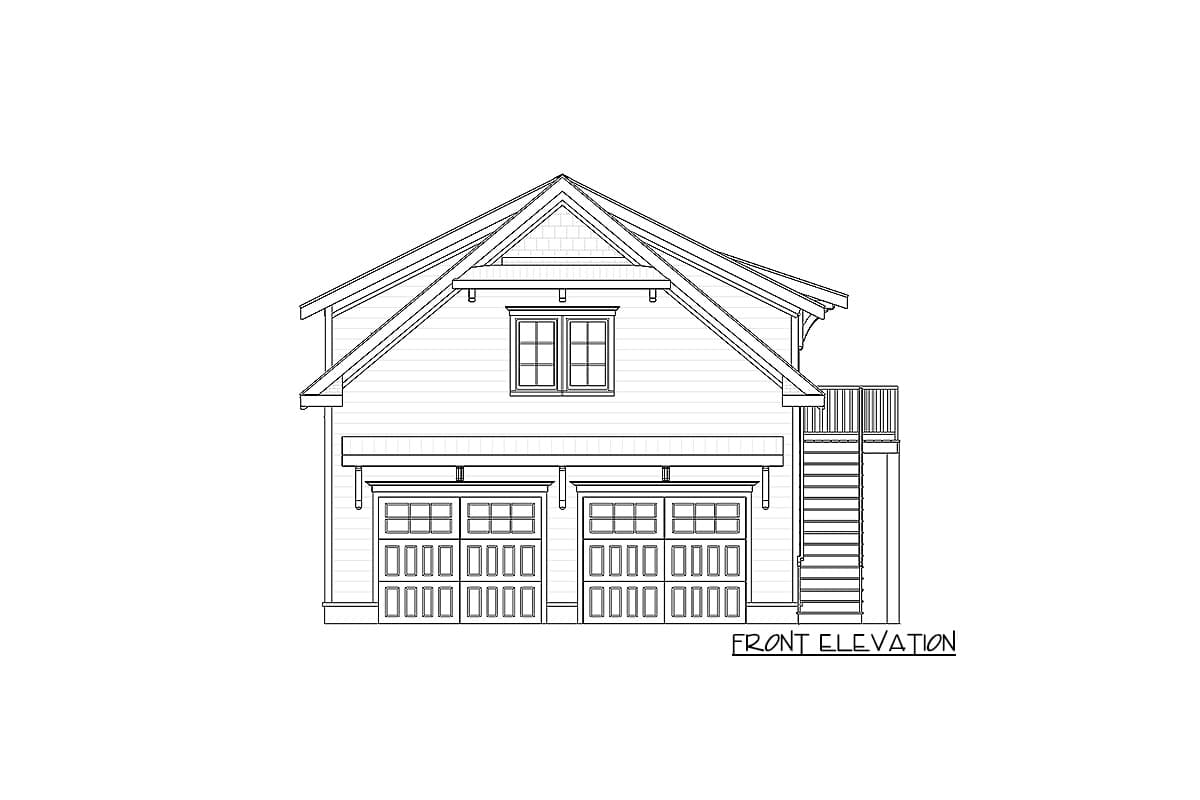

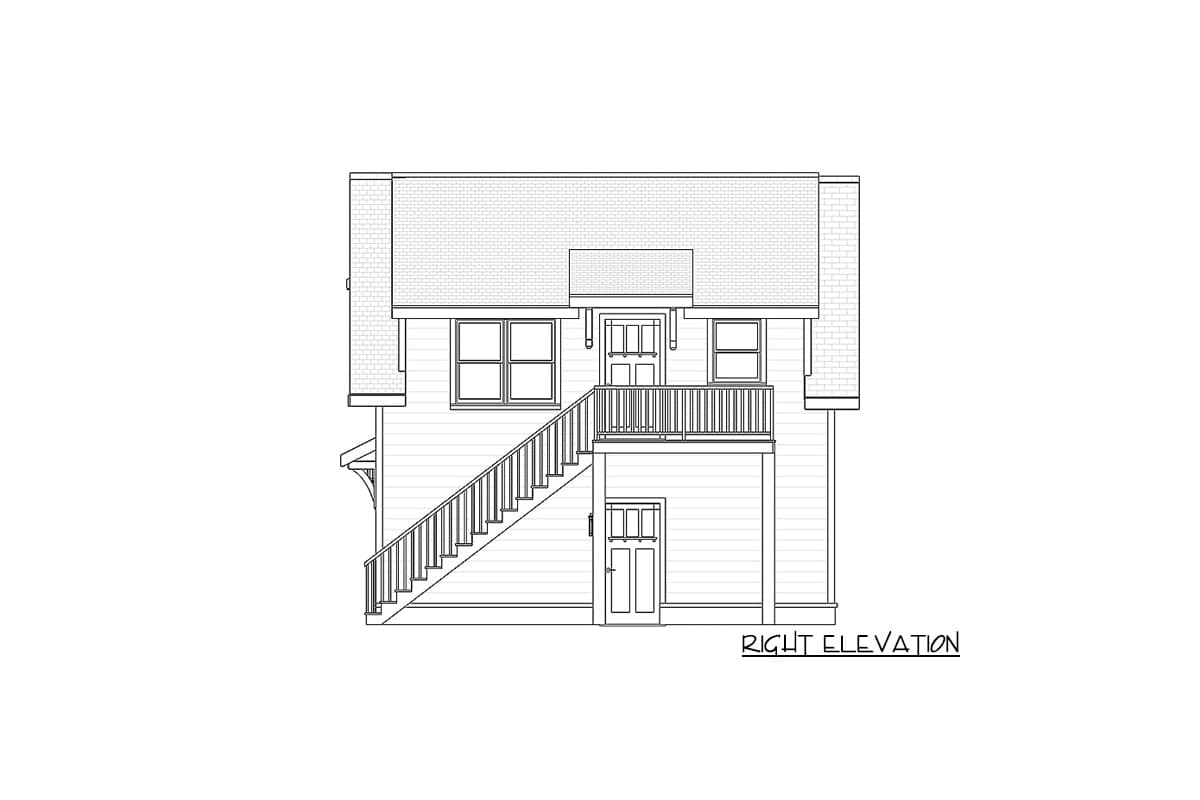

  • Exterior Elevations
  • Cross Section
  • Door & Window Schedules
  • Roof plan
  • Electrical Plans
  • Cabinetry Elevations
  • Floor Framing
  • Roof Framing
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Carriage House Plan with Open Living Area

  • 650

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • 2nd Floor - Version 2 (included)

  • 2nd Floor - Version 3 (included)

Plan Details

Square Footage Breakdown

  • Total: 650 sq. ft.
  • 2nd Floor: 650 sq. ft.

Dimensions

  • Width: 32' 0"
  • Depth: 25' 0"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 650 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
