Exclusive 3-Bed Country Cottage Plan with Split Bedrooms
Heated S.F.
1,676
Beds
3
Baths
2
Stories
1
Flyer
What's Included
Plan Details
  • Four pillars support the charming front porch of this 3-bedroom country cottage plan, which features board and batten siding that draws your eye upward to the cross-gable roof.
  • Inside, the shared living spaces are located in the center of the design in order to separate the master bedroom from the secondary rooms.
  • A gas fireplace adds warmth to the great room, while the spacious kitchen hosts an angled island and corner pantry. Enjoy grilling on the easily accessible back deck just off the dining area.
  • The master suite occupies the right side of the home, and is joined by a 4-fixture bath and walk-in closet. Across the great room, discover bedrooms 2 and 3 next to a full bath with dual sinks.
  • The laundry room is tucked in the back corner and offers access to the side yard.
What's Included
  • Cover sheet with notes
  • Foundation
  • Floor plans
  • Elevations
  • Sections
  • Framing plans
  • Electrical plans
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive 3-Bed Country Cottage Plan with Split Bedrooms

  • 1,676

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

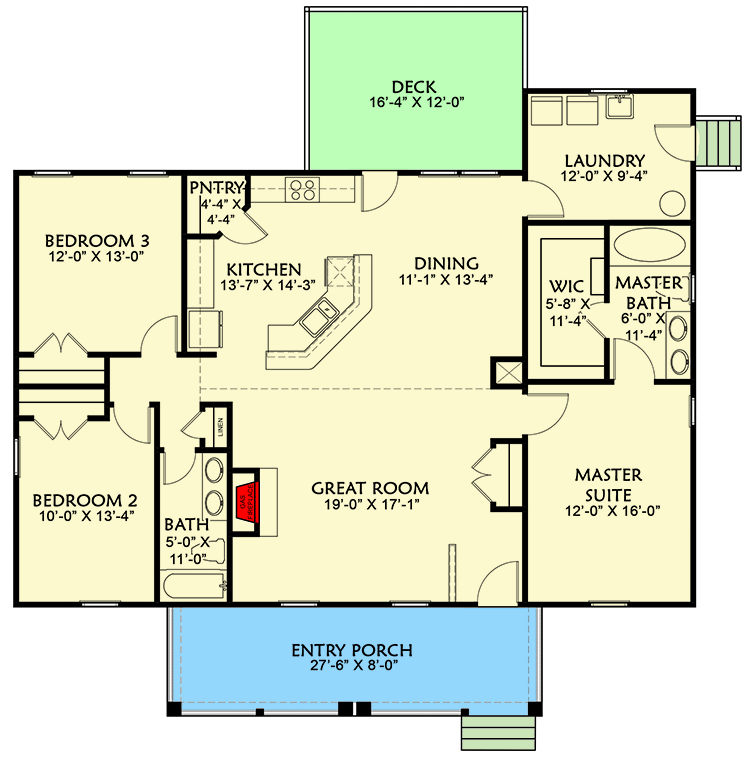

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,676 sq. ft.
  • 1st Floor: 1,676 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 52' 0"
  • Max ridge height: 23' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 18 on 12
  • Framing Type: Truss
