Plan 69080AM
Garage Cottage
Heated S.F.
908
Beds
2
Baths
1
Stories
2
Cars
3
Plan Details

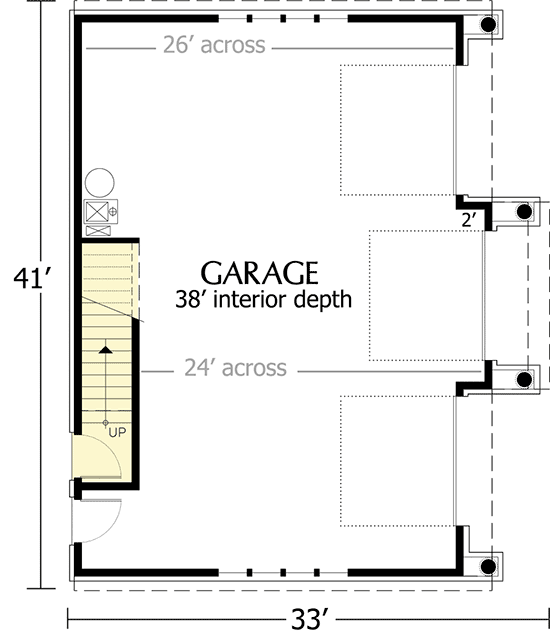

  • Doing double duty beautifully, this 3-car garage offers space for a two-bedroom apartment on its upper level. The exterior is reminiscent of the architecture of the Arts and Crafts movement and features sturdy columns on stone bases, lap siding and cedar shingles. The garage doors are 9'x8'.

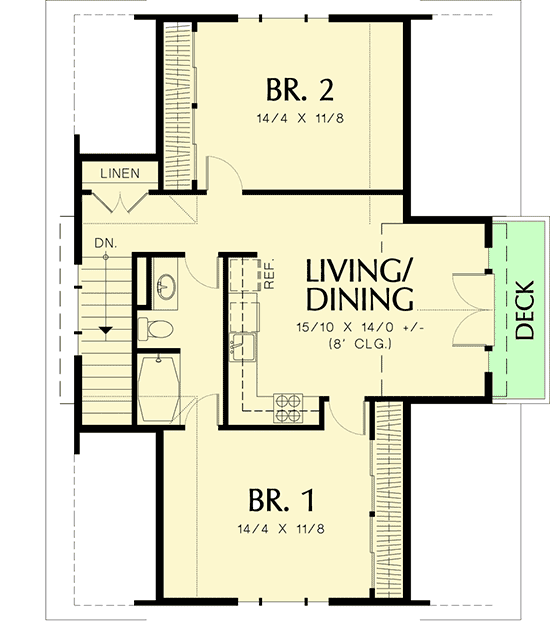

  • Stairs in the garage lead up to a thoughtfully arranged guest suite with two bedrooms and a large living/dining area. Both bedrooms have roomy closets and wide windows along one wall. Double doors in the living area open to a charming railed deck measuring 13' x 4'. An L-shaped kitchen offers a full complement of appliances. The full bath has access at either end and is near a large linen closet.
  • The bedrooms are roomy with high 5'10" knee walls rising to 8'.
  • The main roof pitch is 12 on 12.
  • Related Carriage House Plans: For a larger version, see 69394AM. And for a smaller version see 69395AM.
  • If you like this plan, you'll like the main house that goes with it - 69078AM.
What's Included
This plan includes the following pages:

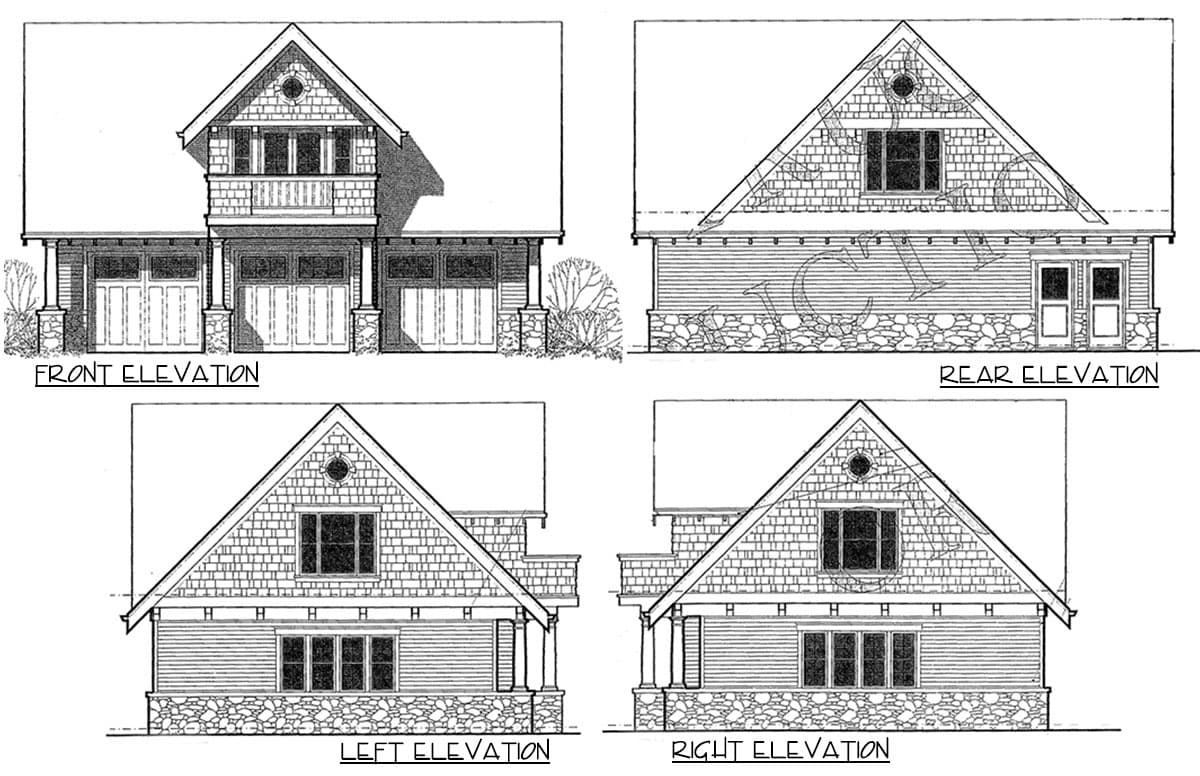

  • Elevations
  • Floor plans
  • Foundation plan
  • Building sections (2) and roof plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Garage Cottage

  • 908

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 908 sq. ft.
  • 1st Floor: 908 sq. ft.

Dimensions

  • Width: 41' 0"
  • Depth: 33' 0"
  • Max ridge height: 26' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 1079 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 6" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
