Gorgeous 5-Bed Home Plan with Ground Level Garage
Heated S.F.
3,492
Beds
5
Baths
4.5 - 5.5
Stories
2
Cars
2-3
Flyer
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

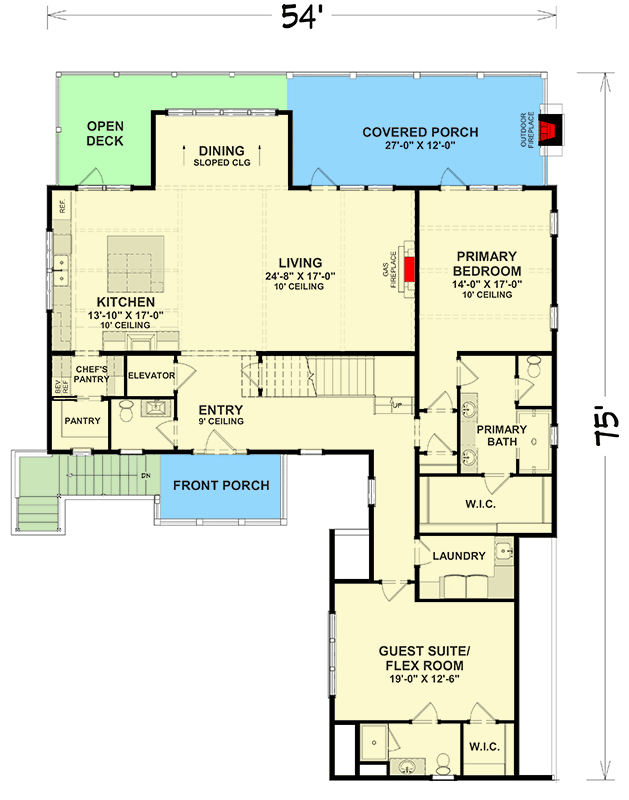

Gorgeous 5-Bed Home Plan with Ground Level Garage - 765041TWN floor plan - Main Level

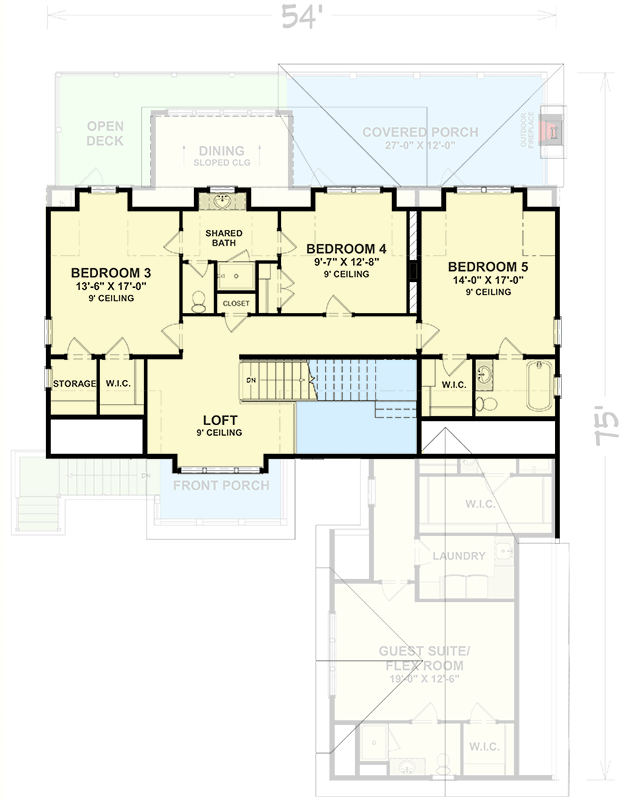

2nd Floor
Reverse Floor Plan
Gorgeous 5-Bed Home Plan with Ground Level Garage - 765041TWN floor plan - 2nd Floor
Ground Level
Reverse Floor Plan

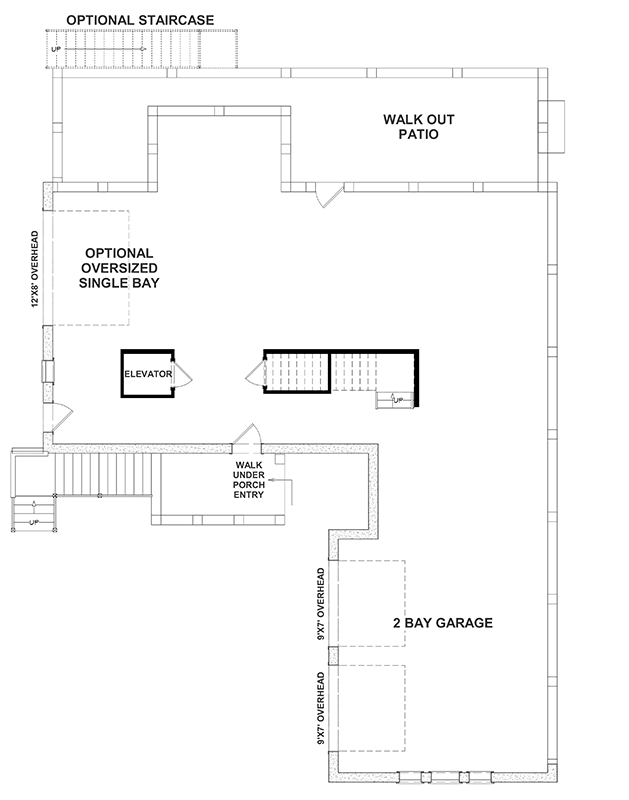

Gorgeous 5-Bed Home Plan with Ground Level Garage - 765041TWN floor plan - Ground Level
Optional Second Level Layout
Reverse Floor Plan

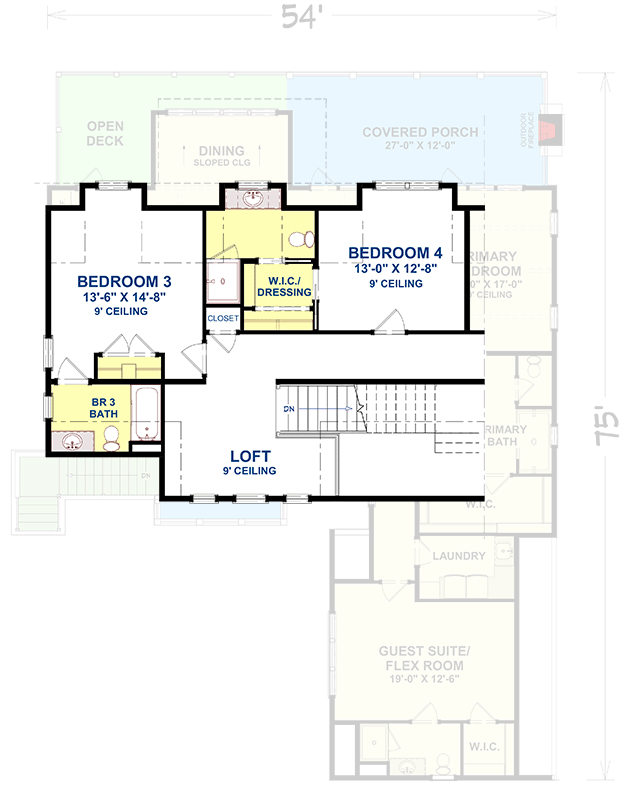

Gorgeous 5-Bed Home Plan with Ground Level Garage - 765041TWN floor plan - Optional Second Level Layout
Plan Details
  • The ground level of this gorgeous home plan is where you'll find a 2-car garage with an optional third bay. Plenty of additional space can be used for storage or a hobby shop, and an elevator makes the trek upstairs that much easier.
  • The main level is home to the open, shared living spaces that extends outdoors onto a partially-covered porch. Enjoy family and friends around the indoor or outdoor fireplaces.
  • A chef's pantry off the island kitchen includes a beverage center and additional workspace, while another walk-in pantry resides behind a pocket door.
  • The primary bedroom is conveniently located on the main level and features porch access and a 4-fixture bath with a walk-in closet. The laundry room and a guest suite complete the main level.
  • The second floor has options for ensuite bathrooms in all three bedrooms or for a Jack & Jill style between Bedroom 3 and Bedroom 4 and a private ensuite for Bedroom 5.
