Mediterranean House Plan with Expansive Layout and Two-Way Fireplace
Heated S.F.
2,192
Beds
3
Baths
3
Stories
1
Cars
2
Plan Details

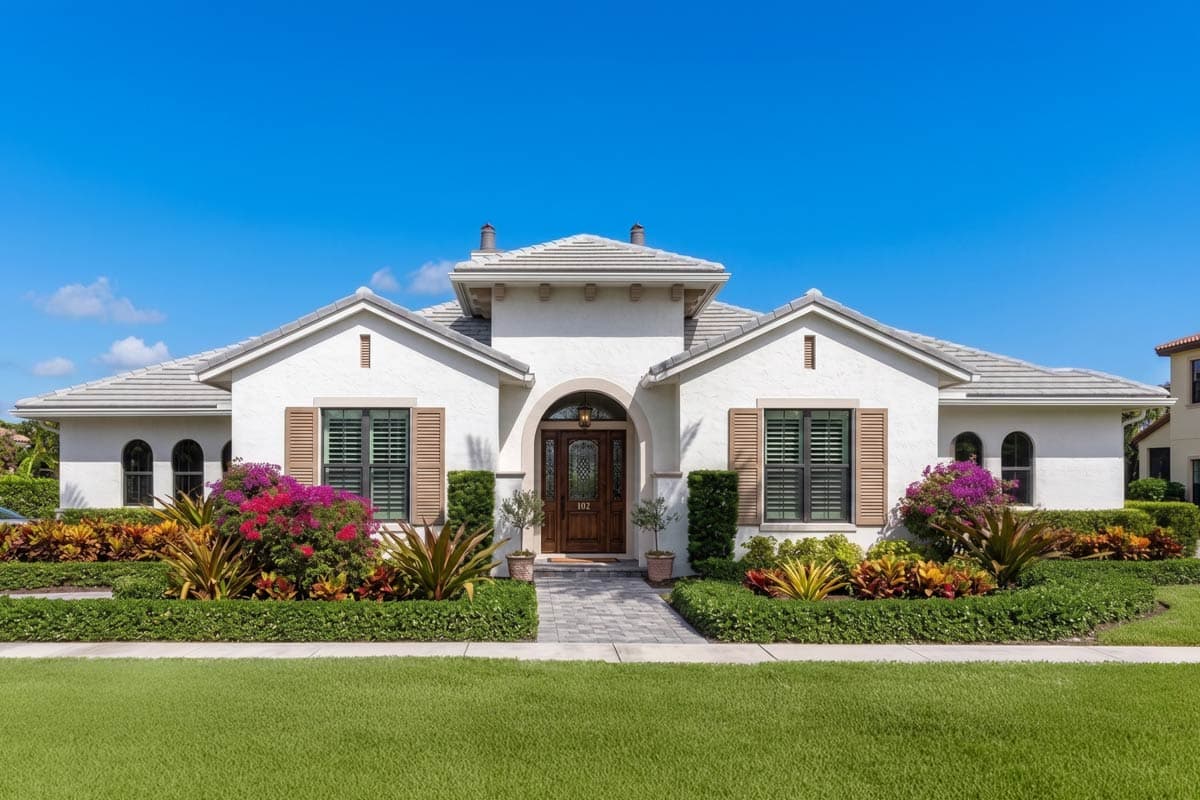

  • This 3 bed, 3 bath Mediterranean-style home plan is perfect for those with a European taste and a craving for luxury. The exterior of this home has great curb appeal with different textures including stucco and stone. Walk up the path to the front door, and you’re welcomed with a covered porch leading into a beautiful entryway.
  • Step inside and you get a straight view of the dining room, or head down either side of the hallway to explore what this home has to offer. The kitchen, living, and dining rooms are all connected, making the space open, yet also including a two-way fireplace for separation. The kitchen also has a gorgeous breakfast bar and a large walk-in pantry.
  • The master suite can be found in connection to the living room and outdoor pergola, being a great spot to step out after a meal and watch the sunset. The master suite also includes a soaking tub, double vanity, and walk-in closet. Both additional bedrooms can be found on the front side of the house with individual bathrooms and walk-in closets.
  • Head to the opposite side of the home to find an additional space for an office, followed by another fireplace, as well as a mudroom and laundry area that leads out to the spacious 2-car garage.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Mediterranean House Plan with Expansive Layout and Two-Way Fireplace

  • 2,192

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,192 sq. ft.
  • 1st Floor: 2,192 sq. ft.

Dimensions

  • Width: 86' 0"
  • Depth: 46' 4"
  • Max ridge height: 17' 11"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 555 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Stick
