Plan 69842AM
Transitional House Plan with 5 Beds Including Main Floor Guest Suite - 3027 Sq Ft
Heated S.F.
3,027
Beds
5
Baths
3.5
Stories
2
Cars
3
Floor Plan
Basement Stairs Location
Reverse Floor Plan
Transitional House Plan with 5 Beds Including Main Floor Guest Suite - 3027 Sq Ft - 69842AM floor plan - Basement Stairs Location
Plan Details

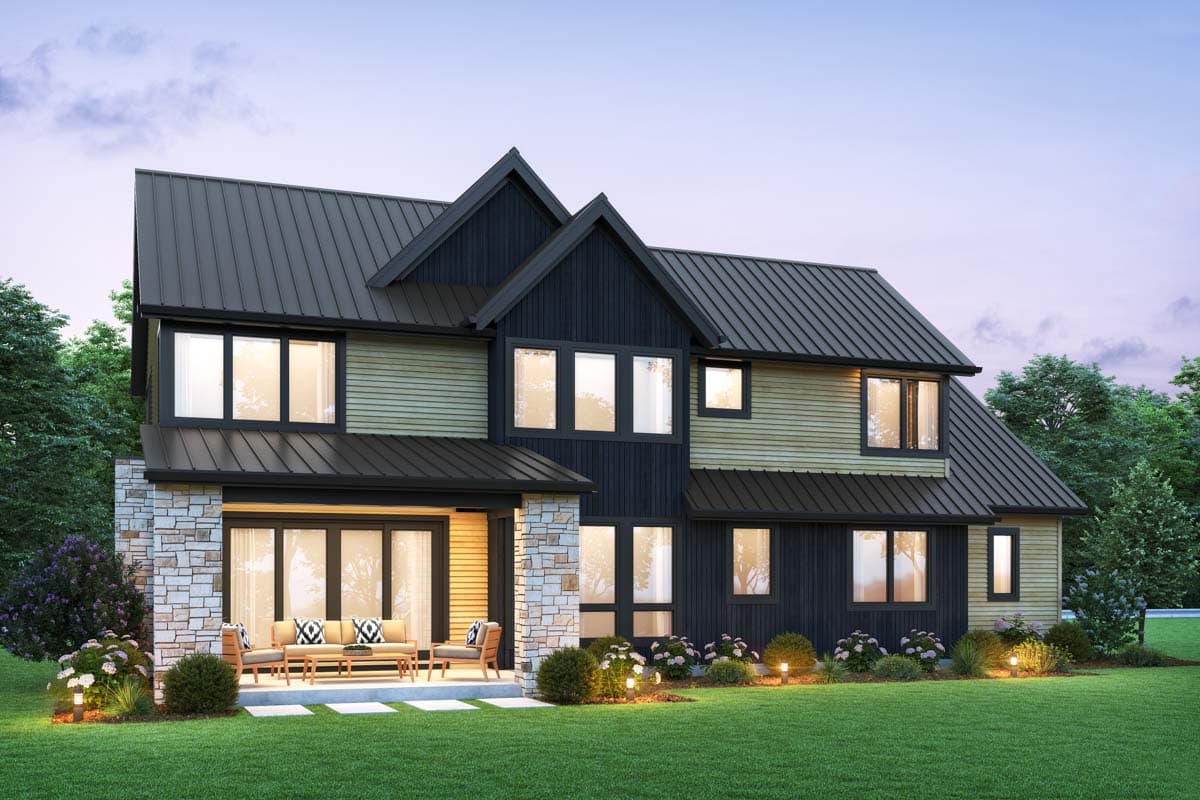

  • This Transitional house plan gives you 5 beds, 3.5 baths and 3,027 square feet of heated living. A 3-car garage has 651 square feet of parking space. A dynamic exterior with multiple gables and board and batten siding has great curb appeal.
  • Inside, a vaulted den off the foyer can serve as a great home office. The great room has a fireplace on the side wall and sliding door access to the back covered porch which gives you 221 square feet of fresh air space to enjoy. The room is open to the dining room and kitchen. A large walk-in pantry has wine storage as well.
  • A guest suite is tucked behind the garage as is the mudroom.
  • Upstairs four bedrooms plus laundry await. The master bath is designed to pamper with a spa tub, walk-in shower and walk-in closet and twin vanities.
  • Related Plans: Get a 4-bed version house plans 69751AM (2,618 sq. ft.) and 69841AM (2,721 sq. ft.).
What's Included

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Transitional House Plan with 5 Beds Including Main Floor Guest Suite - 3027 Sq Ft

  • 3,027

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

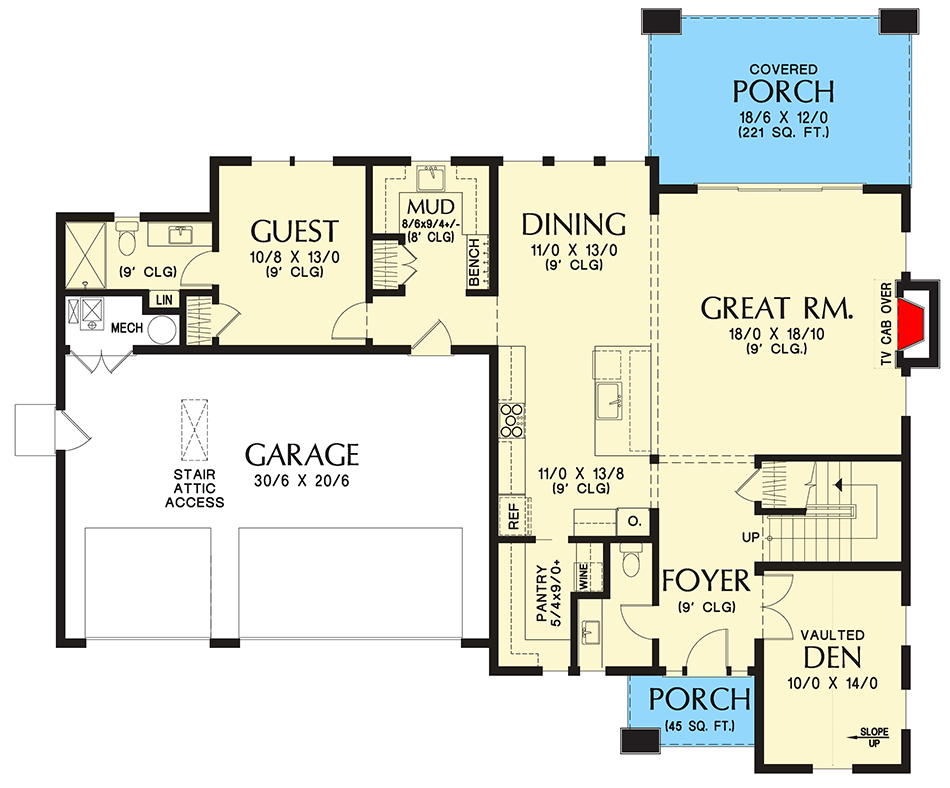

  • Main Level

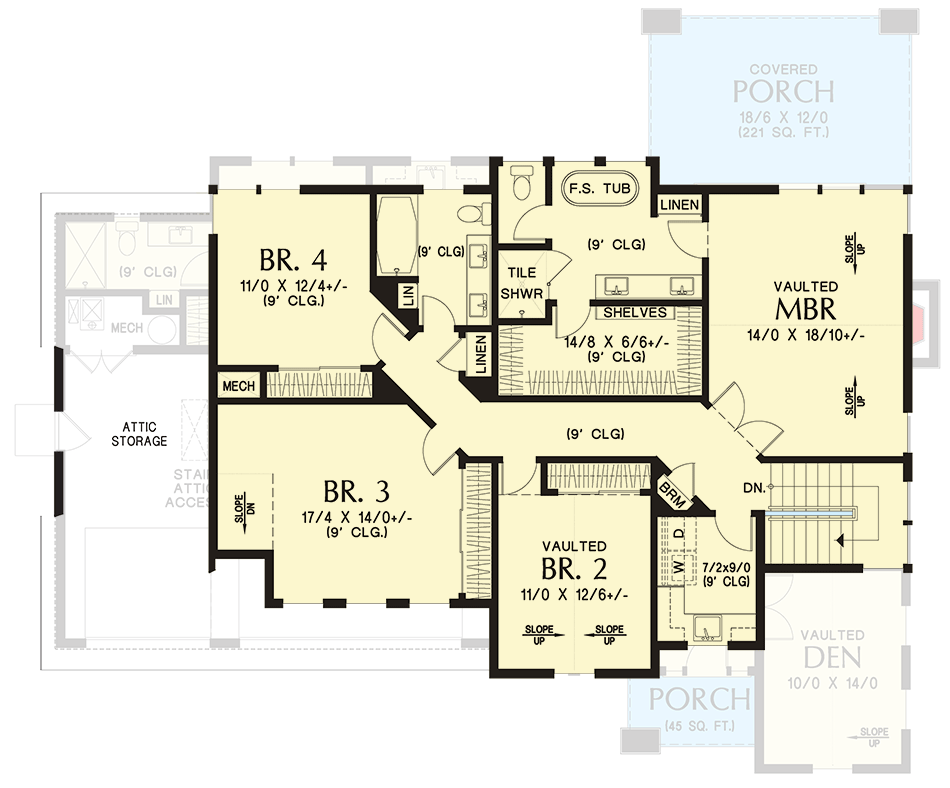

  • 2nd Floor

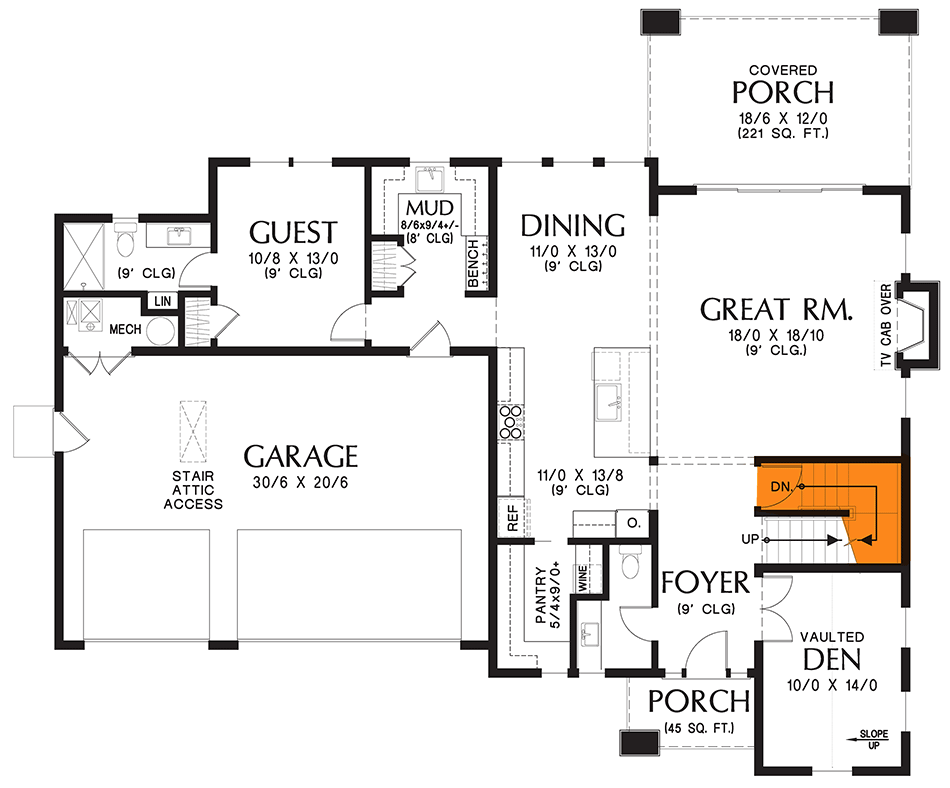

  • Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total: 3,027 sq. ft.
  • 1st Floor: 1,541 sq. ft.
  • 2nd Floor: 1,489 sq. ft.

Dimensions

  • Width: 61' 0"
  • Depth: 54' 0"
  • Max ridge height: 30' 7"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 651 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Truss
