Plan 80810PM
Contemporary Styling
Heated S.F.
1,607
Beds
3
Baths
1.5
Stories
2
Cars
1
Floor Plan

Plan 80810PM

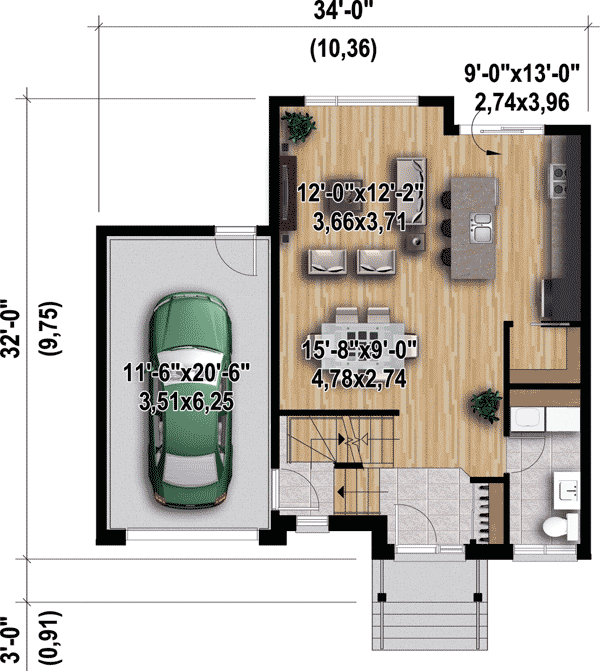

Main Level
slide image 0

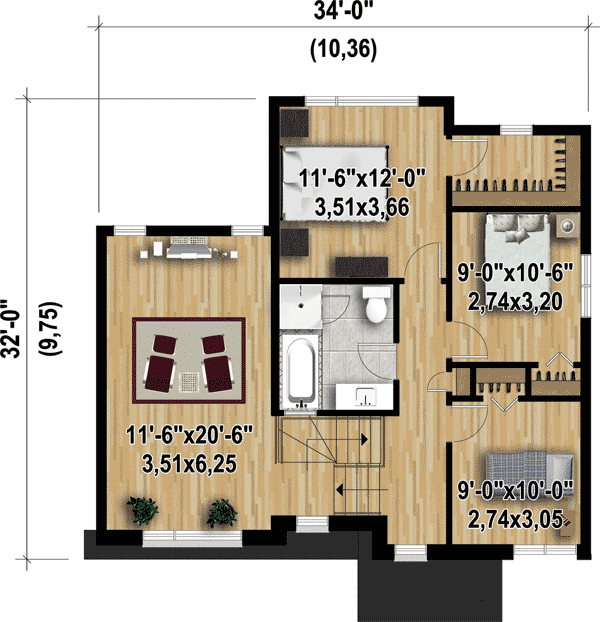

2nd Floor
slide image 1

Plan 80810PM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • With great good looks and multiple levels, this Contemporary house plan offers a lot within its modest square footage.
  • The garage is on the lowest level and it's just four short steps up to the first first floor where the open layout make the space feel larger.
  • The kitchen gets an island and a walk-in pantry.
  • Space-saving measures include combining the laundry room with the powder room.
  • The bedroom level is at the very top of the home and over the garage you get a sunken family room with front to back views.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,607 sq. ft.

1st Floor

671 sq. ft.

2nd Floor

936 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

32' 0"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

265 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Special Features

Butler Walk-in Pantry

Master Suite - 2nd Floor

Split Level

Plan Collections

Canadian House Plans

Metric

Photo Gallery

Split Level House Plans

Square Footage Breakdown

Total Heated Area

1,607 sq. ft.

1st Floor

671 sq. ft.

2nd Floor

936 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

32' 0"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

265 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Special Features

Butler Walk-in Pantry

Master Suite - 2nd Floor

Split Level

Plan Collections

Canadian House Plans

Metric

Photo Gallery

Split Level House Plans
