Plan 280001JWD Craftsman House Plan with Bonus Room Included - 2939 Sq Ft

2,939 3 2.5 1 2

Floor Plan

Main Level

Reverse Floor Plan

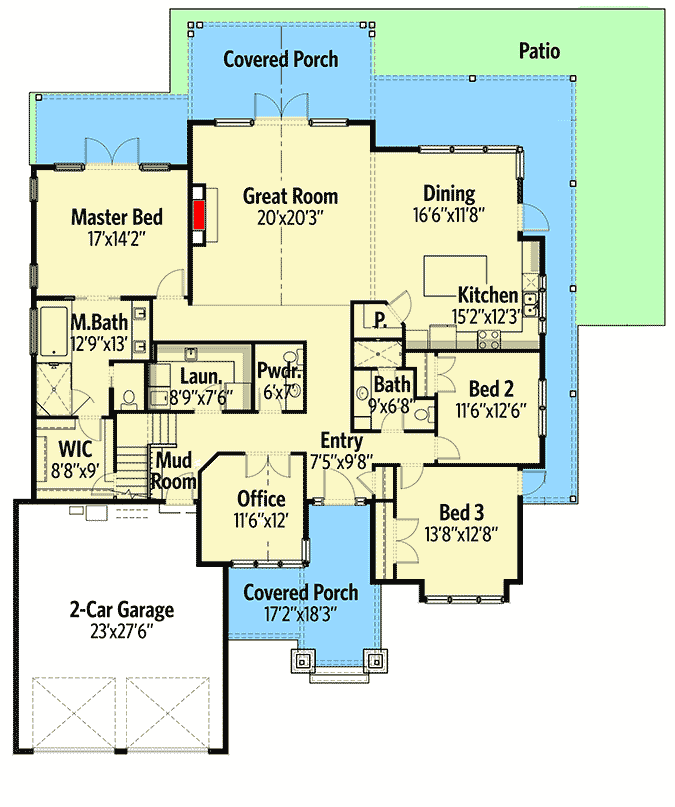

Craftsman House Plan with Bonus Room Included - 2939 Sq Ft - 280001JWD floor plan - Main Level

Bonus

Reverse Floor Plan
Craftsman House Plan with Bonus Room Included - 2939 Sq Ft - 280001JWD floor plan - Bonus

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,939 sq. ft.
  • 1st Floor: 2,540 sq. ft.
  • Covered Patio: 759 sq. ft.
  • Porch, Front: 209 sq. ft.
  • Bonus: 399 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 58' 0"
  • Depth: 71' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 649 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
