Plan 59321ND

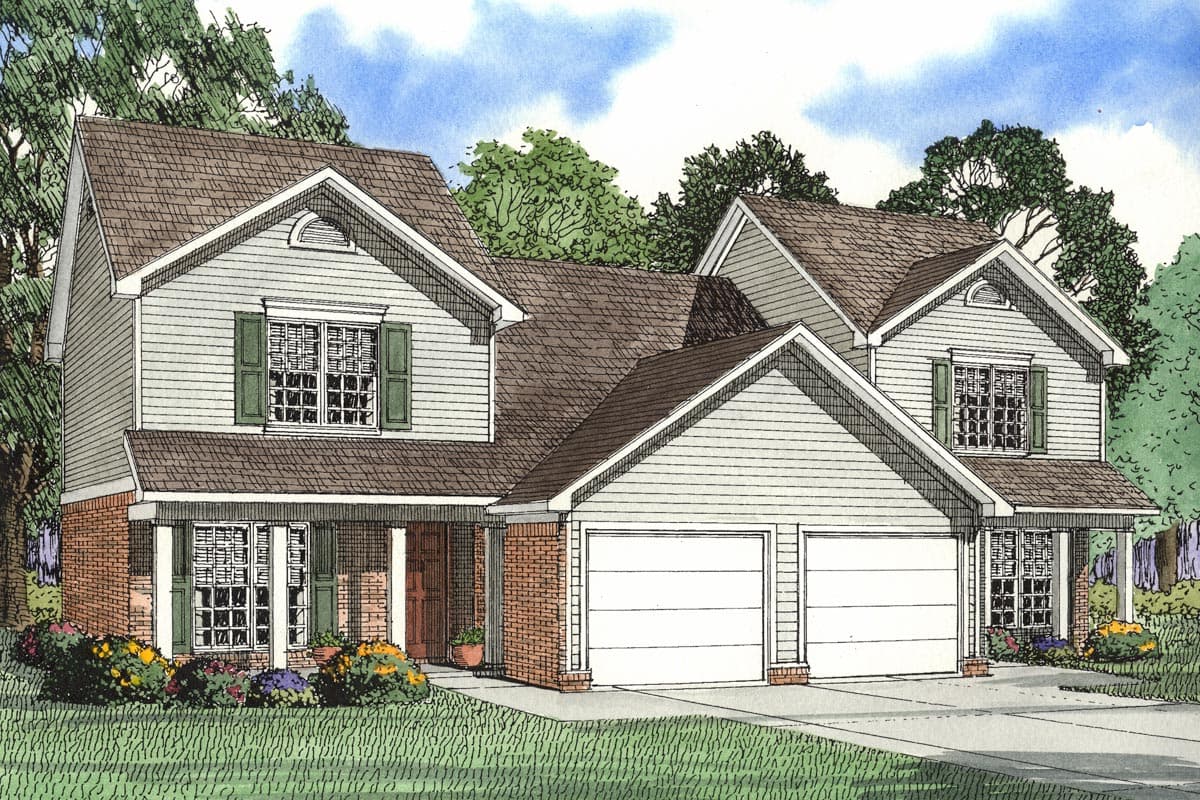

Quaint Duplex - 1251 Sq Ft 3 Bed 2.5 Bath Units
Heated S.F.
2,502
Units
2
Width
Depth
Floor Plan

Plan 59321ND

Main Level
slide image 0
2nd Floor
slide image 1

Plan 59321ND

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This charming duplex awaits you and your family.
  • The quaint covered porch with boxed columns is perfect for greeting family and guests.
  • Inside, you'll feel at home in the spacious great room complete with fireplace and eight inch columns leading into the dining room.
  • On the upper floor you'll find the secluded master suite with full bath and ample closet space.
  • The children will have all the space they will need in their own rooms and connecting bath.
Unit A
1,251Sq. Ft.
610 Sq. Ft.
1st Floor
641 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
1Vehicle
Attached
251 Sq. Ft.
27'width
39'depth
27'height
Unit B
1,251Sq. Ft.
610 Sq. Ft.
1st Floor
641 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
1Vehicle
Attached
251 Sq. Ft.
27'width
39'depth
27'height
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

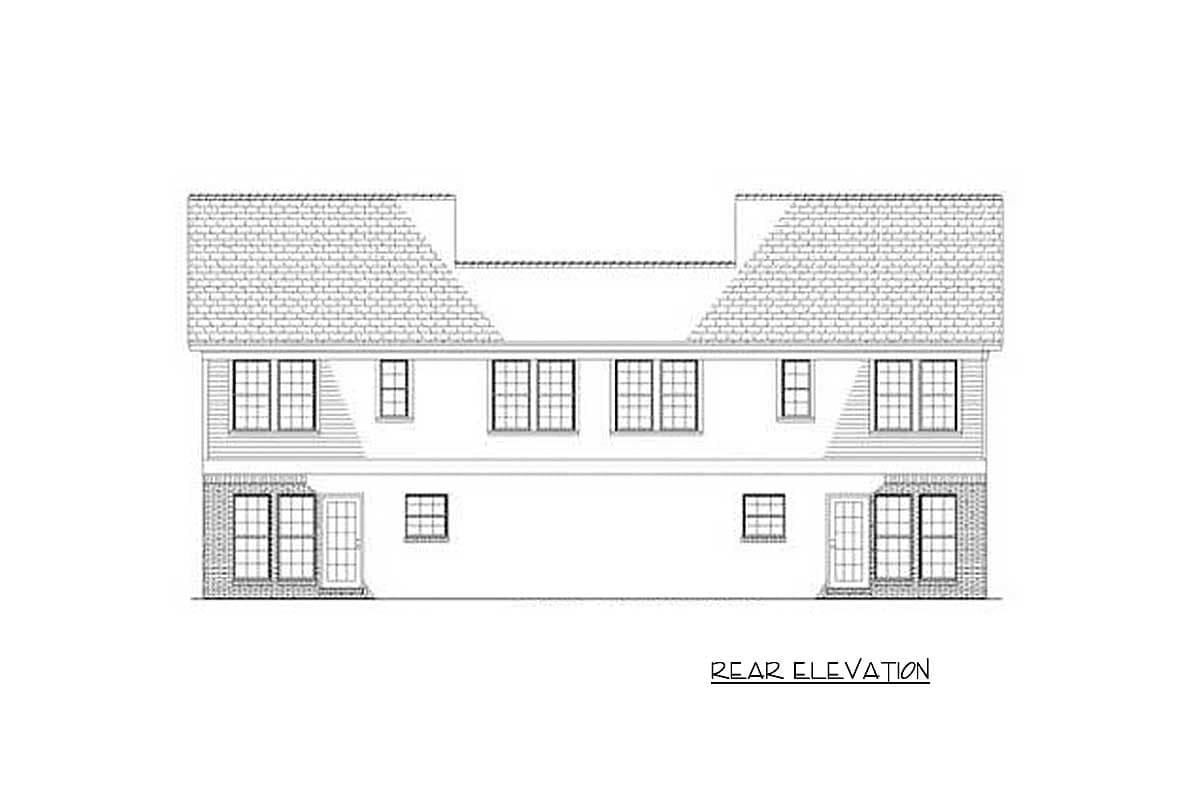

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,502 sq. ft.

1st Floor

1,220 sq. ft.

2nd Floor

1,282 sq. ft.

Porch, Combined

160 sq. ft.

Entry

74 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 0"

Depth

39' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

502 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Special Features

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

2,502 sq. ft.

1st Floor

1,220 sq. ft.

2nd Floor

1,282 sq. ft.

Porch, Combined

160 sq. ft.

Entry

74 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 0"

Depth

39' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

502 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Special Features

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Master Suite - 2nd Floor
