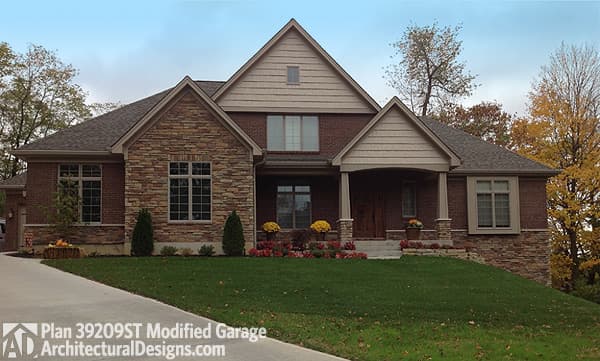

Plan 39209ST
Solarium and Two Box Bay Windows
Heated S.F.
2,542
Beds
4
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 39209ST

Main Level
slide image 0
2nd Floor
slide image 1

Plan 39209ST

1-800-854-7852

1-262-521-4596

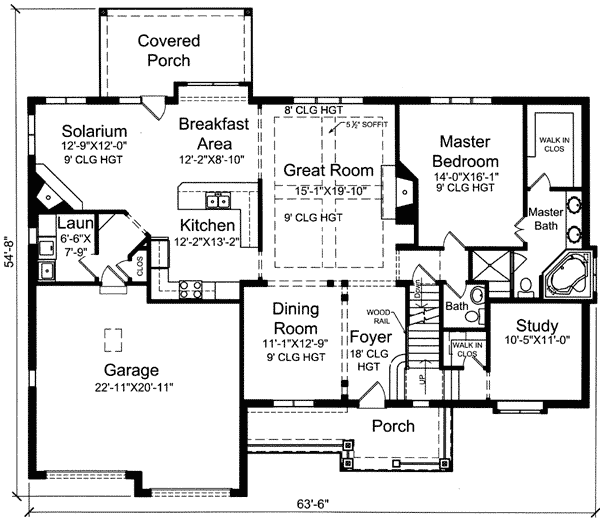

Main Level
floor plan image Main Level

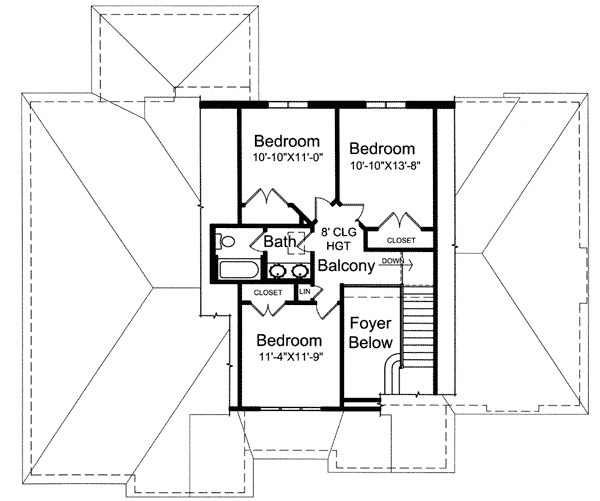

2nd Floor
floor plan image 2nd Floor

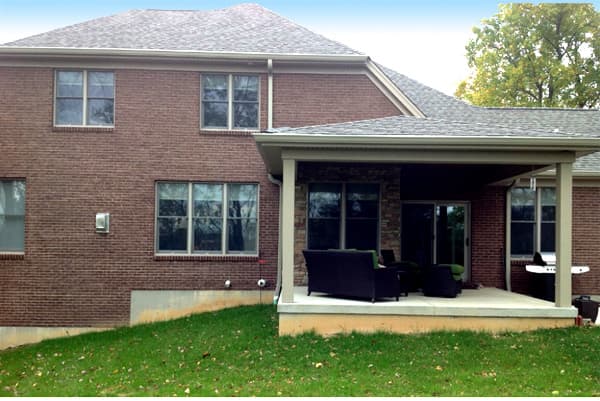

Plan Details
  • Two box bay windows extend the study and the breakfast nook in this Traditional home plan.
  • A solarium gets the benefit of a fireplace too making it a cozy space to gather in.
  • Coffered ceilings can be found in the great room and the two-story foyer rises to 18'.
  • A T-shaped staircase has a landing that is two steps down to the foyer on one side and two steps down to the study on the other.
  • Three bedrooms share a hall bath on the second floor.
What's Included
  • General notes and specifications

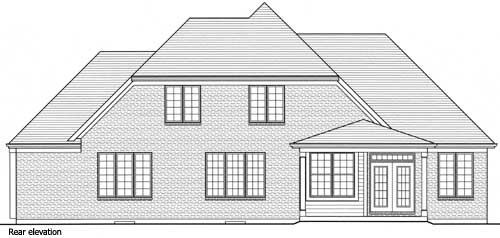

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,542 sq. ft.

1st Floor

1,879 sq. ft.

2nd Floor

663 sq. ft.

Porch, Front

141 sq. ft.

Porch, Rear

153 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

63' 6"

Depth

54' 8"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

474 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

14 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Breakfast Nook

Flex Room

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Sunroom

Square Footage Breakdown

Total Heated Area

2,542 sq. ft.

1st Floor

1,879 sq. ft.

2nd Floor

663 sq. ft.

Porch, Front

141 sq. ft.

Porch, Rear

153 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

63' 6"

Depth

54' 8"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

474 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

14 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Breakfast Nook

Flex Room

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Sunroom
