Plan 450005ESP

Exclusive

One-Of-A-Kind Modern House Plan with 4 Beds and Exercise Room
Heated S.F.
2,290
Beds
4
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 450005ESP

Main Level
slide image 0
2nd Floor
slide image 1

Plan 450005ESP

1-800-854-7852

1-262-521-4596

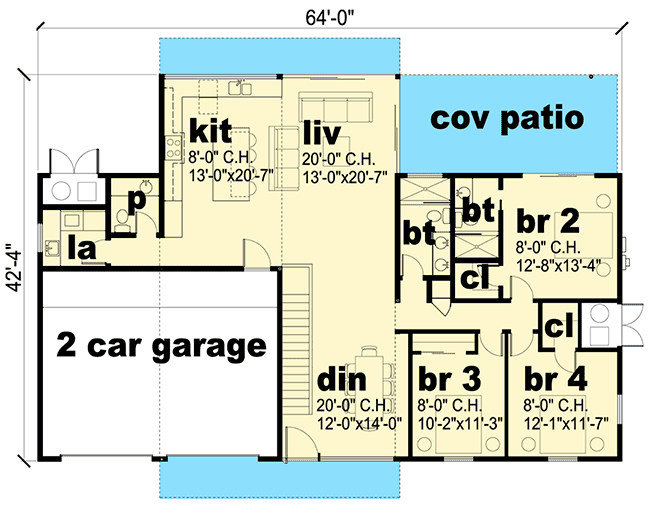

Main Level
floor plan image Main Level

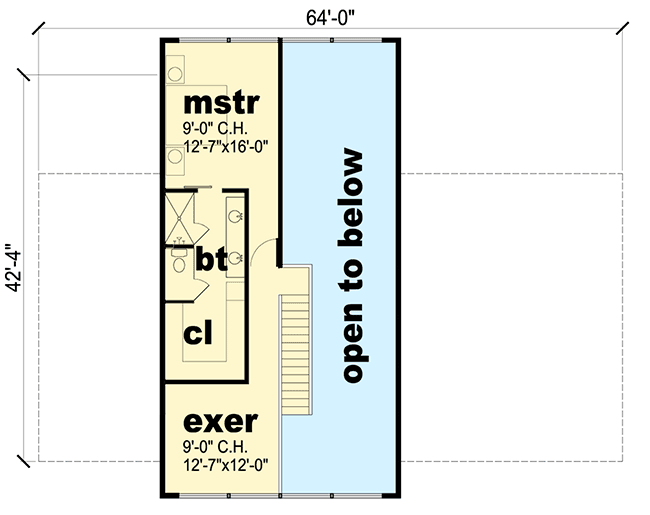

2nd Floor
floor plan image 2nd Floor
Plan Details

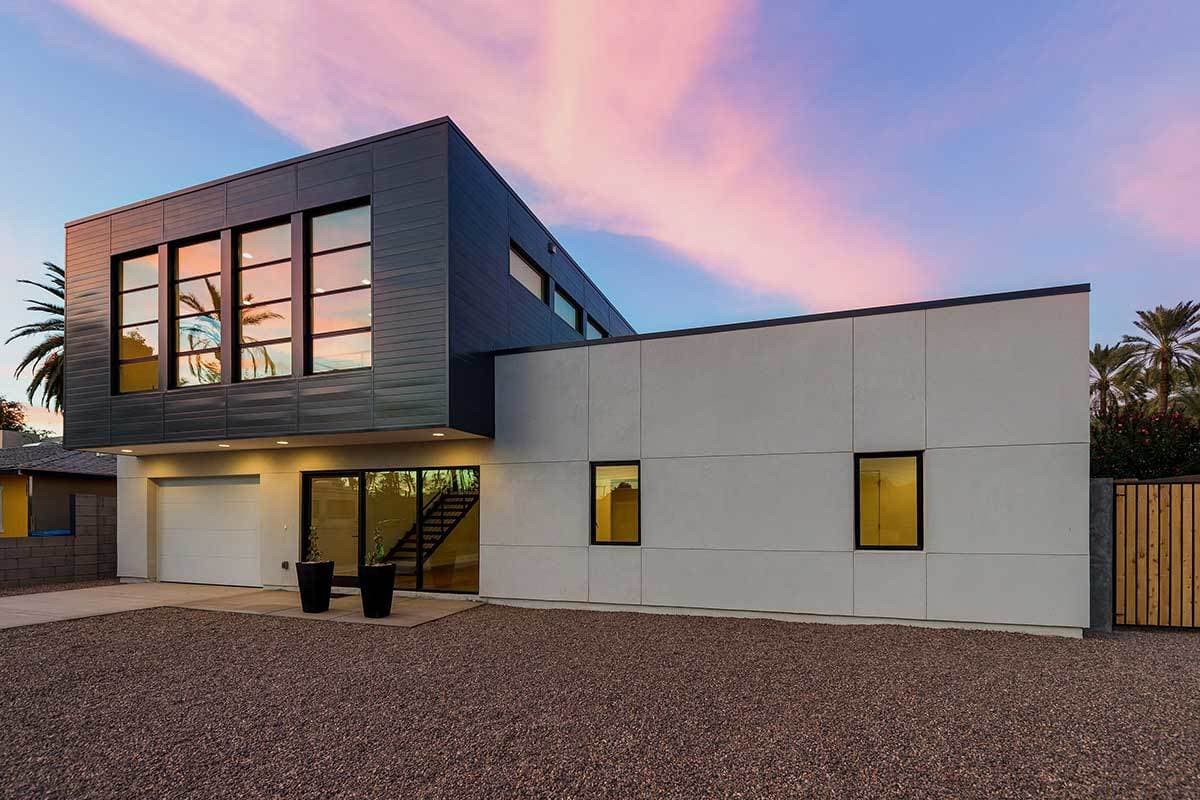

  • Clean, sleek lines are the hallmark of this exciting Modern house plan that is exclusive to Architectural Designs.

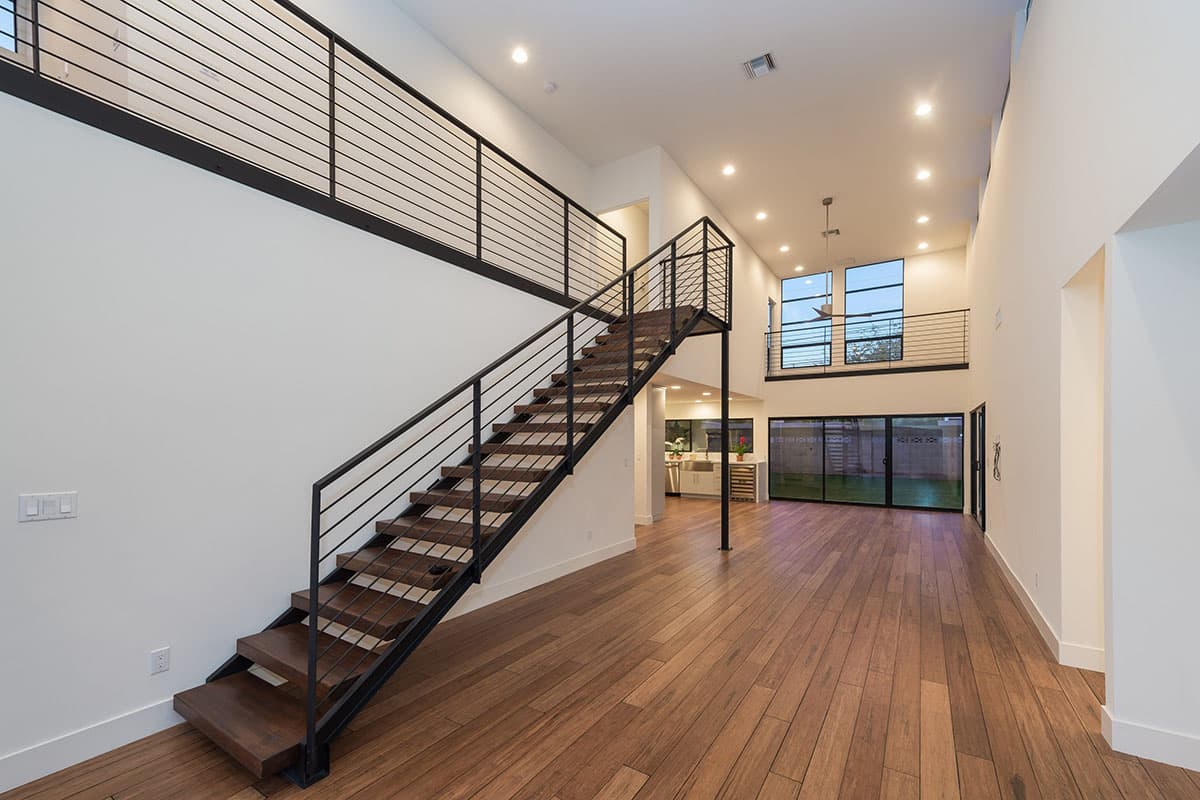

  • Both the living room and dining room have 20' ceilings creating a dramatic effect.
  • The open floor plan gives you wonderful sight lines and sliding glass doors on two sides of the living room lead out to covered patios.
  • Three bedrooms are grouped on the right side of the first floor, with bedroom 2 having a private bathroom.
  • The master suite is up top - the only bedroom on this floor.

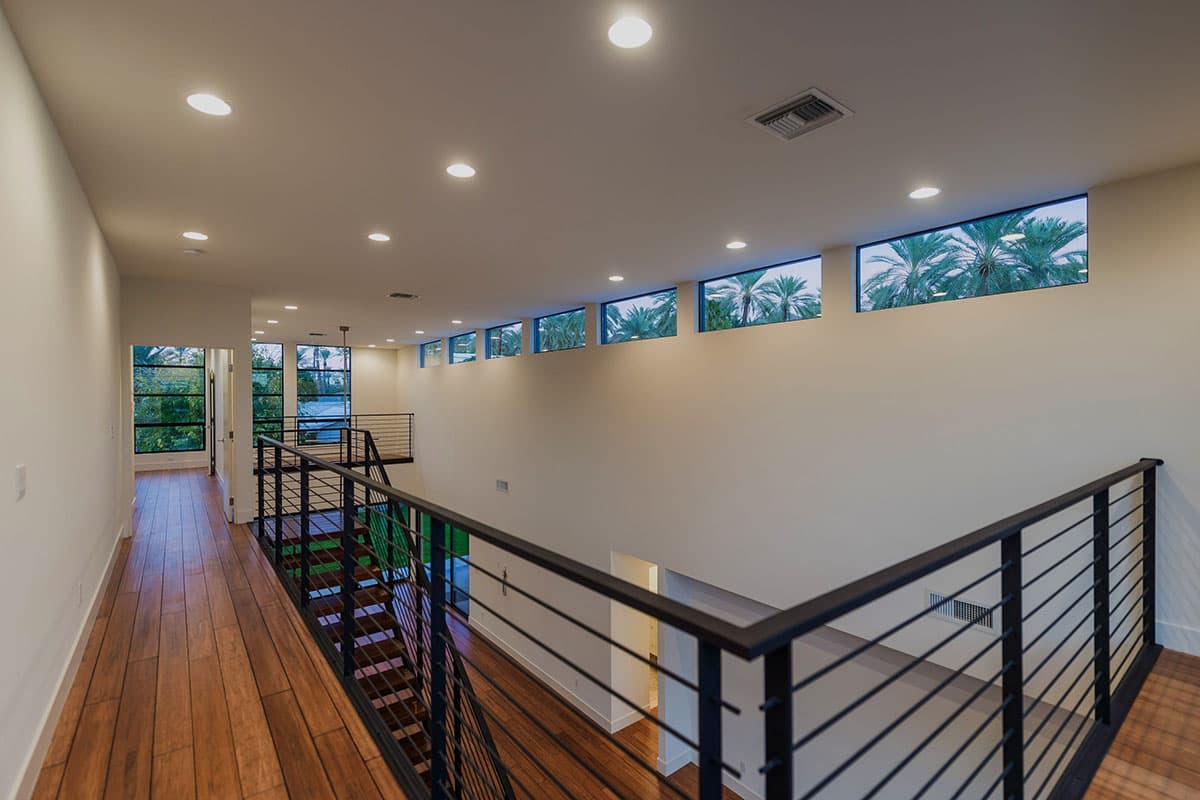

  • The whole family will enjoy the exercise room that has open railing on one side so you can see into the first floor below.
What's Included
  • Covered Sheet
  • Foundation and Framing Plan
  • Floor plan

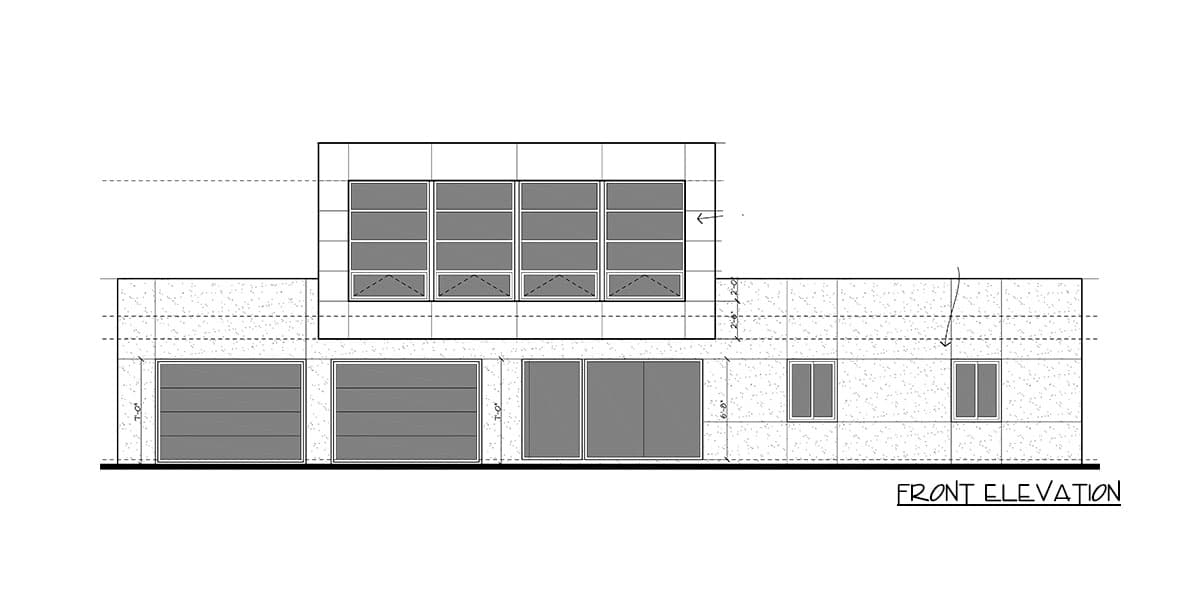

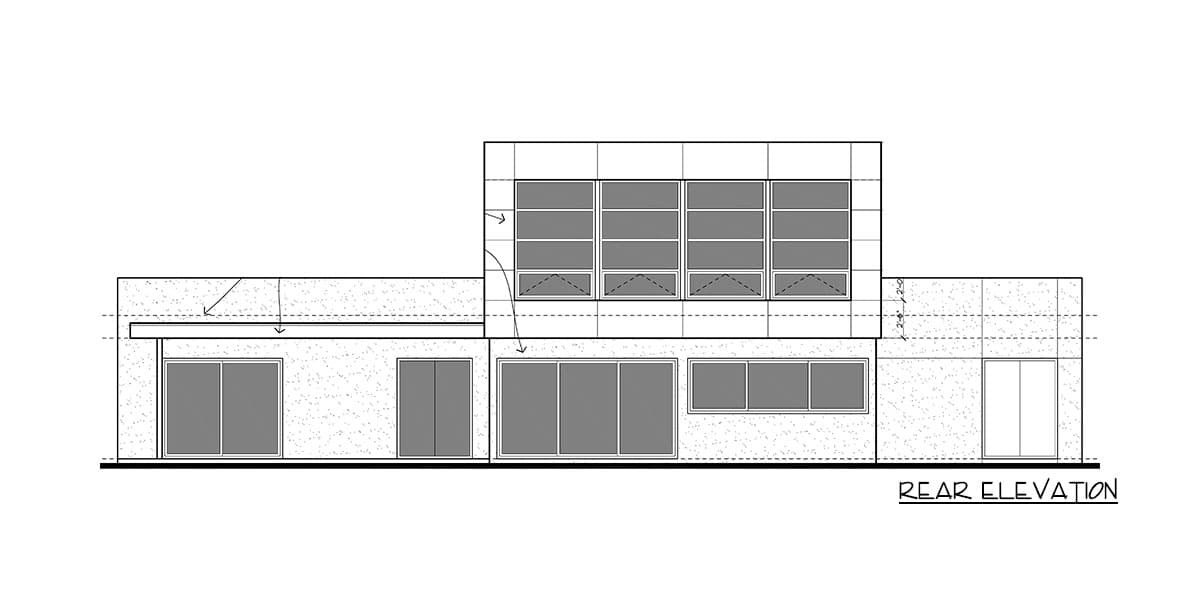

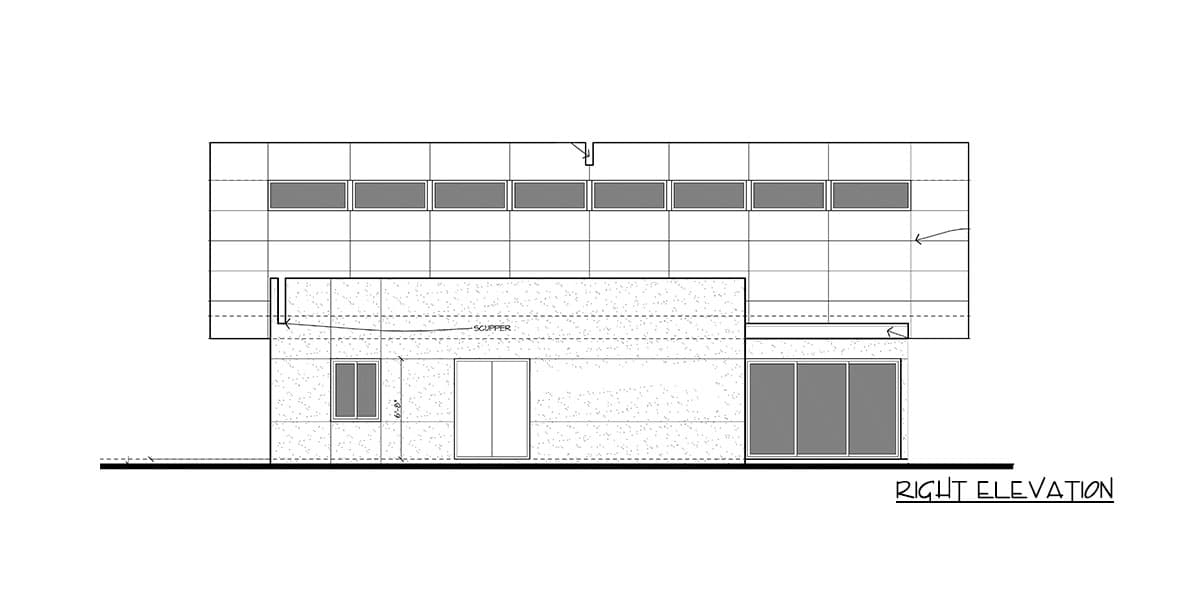

  • Elevations - 1/4" scale
  • Roof Framing Plan
  • Sections
  • Typical Detail sheet
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,290 sq. ft.

1st Floor

1,620 sq. ft.

2nd Floor

670 sq. ft.

Porch, Combined

264 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 0"

Depth

42' 0"

Max Ridge Height

21' 4"

Garage

Type

Attached

Area

311 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Bonus Room

In-Law Suite

Laundry - Main Level

Master Suite - 2nd Floor

Two Story Great Room

Plan Collections

Exclusive
