Plan 710004BTZ
2-Story Traditional House Plan with Flexible Floor Plan
Heated S.F.
2,810
Beds
3 - 5
Baths
4 - 5
Stories
2
Cars
2
Floor Plan

Plan 710004BTZ

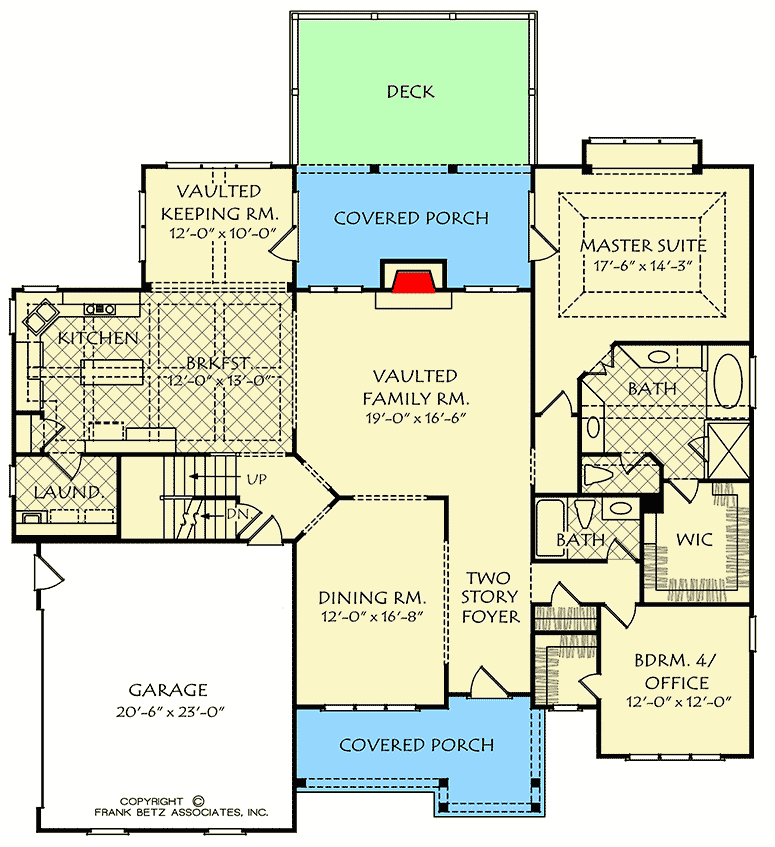

Main Level
slide image 0

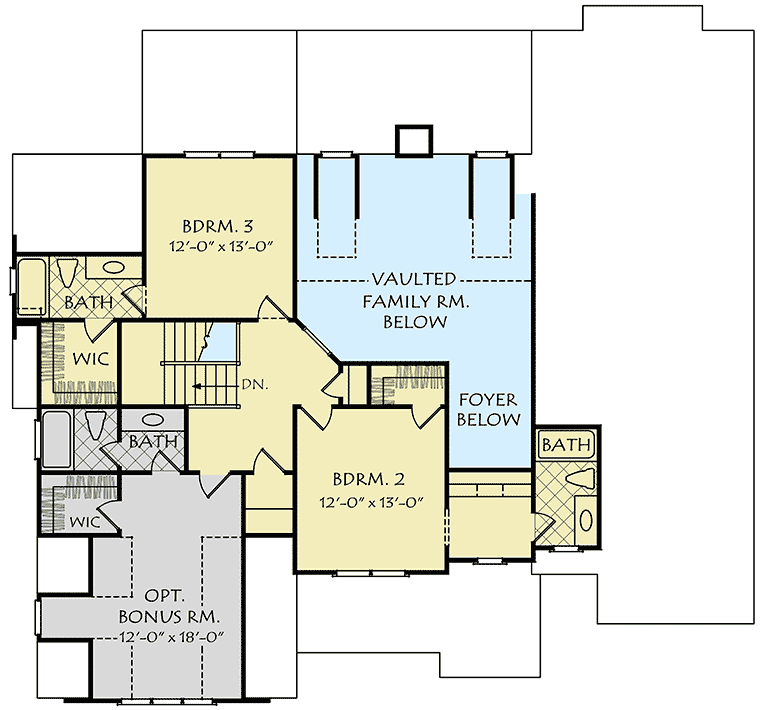

2nd Floor
slide image 1

Plan 710004BTZ

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 2-story traditional house plan - with a dose of European influence - has a multi-gabled exterior. Inside, you get a floor plan that gets you 3, 4 or 5 bedrooms depending on your needs.
  • The two-story foyer leads to the vaulted family room with large windows that bring in natural light. To the left is the breakfast area and open-concept kitchen.
  • Through the breakfast area is the vaulted keeping room, and just off the kitchen is the conveniently located laundry room.
  • A covered porch and sundeck are reached through both the keeping room and main-level master suite.
  • The master suite includes an oversized bathroom with his-and-her sinks and large walk-in closet. A second bedroom is found just off the foyer with a full guest bathroom nearby.
  • Upstairs, you’ll find two bedrooms with attached bathrooms. A bonus room with a full bathroom and walk-in closet is just across the hall, ideal for a guest suite or game room for the kids.
  • Related Plans: Get alternate exteriors with house plans 710002BTZ and 710003BTZ.
What's Included
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,810 sq. ft.

1st Floor

2,104 sq. ft.

2nd Floor

706 sq. ft.

Basement Unfinished

2,104 sq. ft.

Bonus

335 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

4 or 5

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 0"

Depth

56' 0"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

488 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

European

Traditional

Tudor

Special Features

Bonus Room

Game/Rec Room

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor
