Plan 849003PGE
Spacious Mountain Home Plan with Exercise Room off Primary Bedroom
Heated S.F.
7,943
Beds
3
Baths
4.5
Stories
1
Cars
4
Floor Plan

Plan 849003PGE

Main Level
slide image 0
Upstairs Loft
slide image 1
Lower Level
slide image 2

Plan 849003PGE

1-800-854-7852

1-262-521-4596

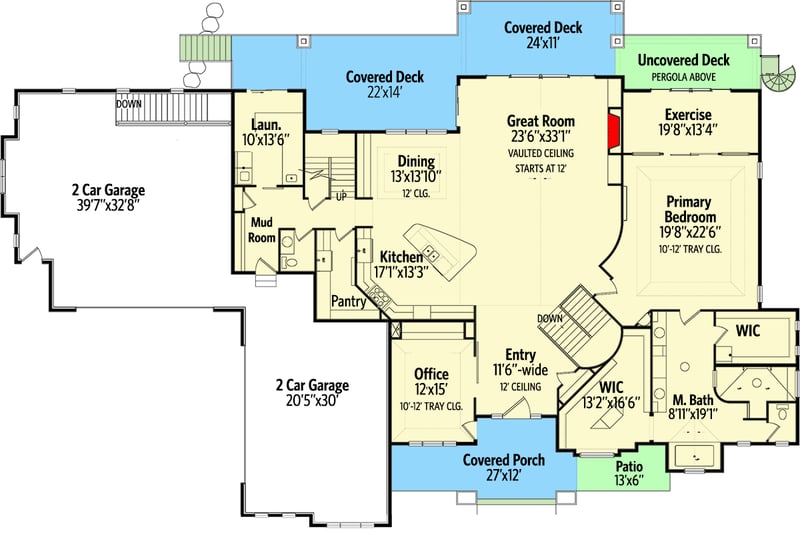

Main Level
floor plan image Main Level

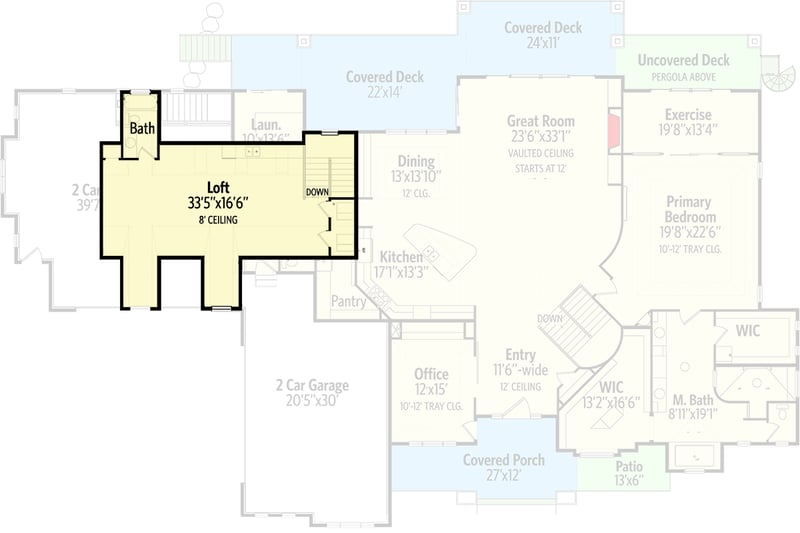

Upstairs Loft
floor plan image Upstairs Loft

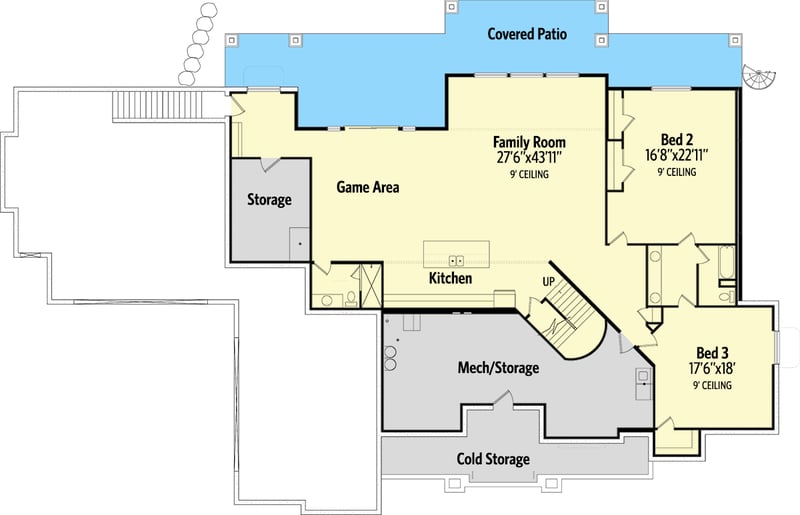

Lower Level
floor plan image Lower Level
Plan Details
  • This luxury design presents a stone exterior, spacious interior with a vaulted ceiling above the great room, and a walk-out lower level.
  • The rear wall is lined with windows in order for the great room, dining area, and kitchen to enjoy the views and natural lighting, while a large island anchors the space and serves as a natural gathering spot.
  • The primary bedroom is located on the main level and is bordered by an exercise room and deluxe master bathroom with two walk-in closets and an oversized shower.
  • The work-from-home resident will appreciate the home office near the formal entry, and the loft above one of the 2-car garages lends a versatile space for all to enjoy.
  • The fun continues downstairs, complete with a family / game room with a kitchen, two bedrooms, a covered patio, and dedicated storage space.
What's Included
  • Cover Sheet
  • Elevations
  • Foundation Plan
  • Floor Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

7,943 sq. ft.

Lower Level

3,644 sq. ft.

1st Floor

3,563 sq. ft.

2nd Floor

736 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

116' 6"

Depth

77' 0"

Max Ridge Height

30' 6"

Garage

Type

Attached

Area

1735 sq. ft.

Count

4 Cars

Entry Location

Front, Side

Architectural Style

European

Traditional

Special Features

Butler Walk-in Pantry

Game/Rec Room

Home Office

Laundry - Main Level

Loft

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Two Story Great Room
