1,020 Sq Ft Hill Country Ranch House Plan with Single-Car Garage
Heated S.F.
1,020
Beds
2
Baths
1
Stories
1
Cars
1
Floor Plan

Plan 420107WNT

Main Level
slide image 0

Plan 420107WNT

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

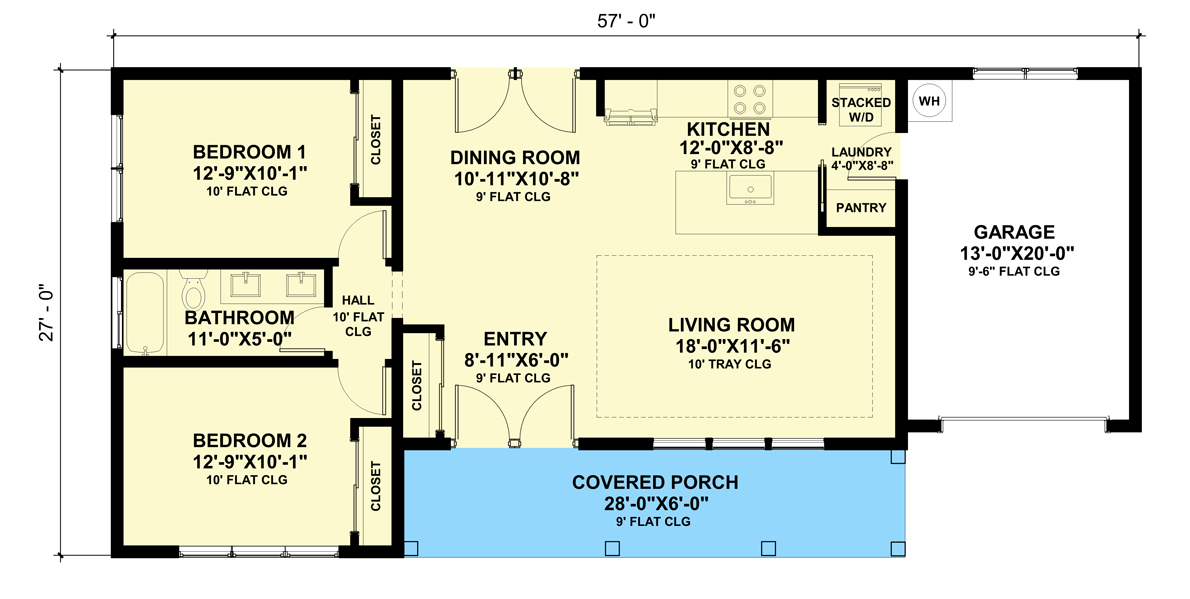

  • This 1,020 sq. ft. Hill Country Ranch house plan gives you 2 beds, 1 bath and a 1-car garage (260 sq. ft.). The stone exterior with wooden beam supports give what would be a typical cabin a strong and elegant aesthetic.
  • Past the covered porch and double front doors - matching pair of doors is on the back wall - you land at the entry with a coat closet directly to your left that shares a wall with the two bedrooms and full bath behind it.
  • On the right, an open concept living room, kitchen and dining room make up the remaining square footage before granting you access to the single-car garage.
  • NOTE: Please allow 3 to 5 business days for delivery.
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.
  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,020 sq. ft.

1st Floor

1,020 sq. ft.

Porch, Front

168 sq. ft.

Porch, Combined

168 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

57' 0"

Depth

27' 0"

Max Ridge Height

19' 11"

Garage

Type

Attached

Area

260 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Bedroom 1

Flat

10' 0''

Bedroom 2

Flat

10' 0''

Living Room

Tray

10' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8.5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Country

Craftsman

Hill Country

Ranch

Rustic

Special Features

Bedrooms - Clustered

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

1,020 sq. ft.

1st Floor

1,020 sq. ft.

Porch, Front

168 sq. ft.

Porch, Combined

168 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

57' 0"

Depth

27' 0"

Max Ridge Height

19' 11"

Garage

Type

Attached

Area

260 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Bedroom 1

Flat

10' 0''

Bedroom 2

Flat

10' 0''

Living Room

Tray

10' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8.5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Country

Craftsman

Hill Country

Ranch

Rustic

Special Features

Bedrooms - Clustered

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive
