Plan 370046SEN
1-Bed Adobe ADU House Plan with Breakfast Nook - 660 Sq Ft
Heated S.F.
660
Beds
1
Baths
1
Stories
1
Floor Plan

Plan 370046SEN

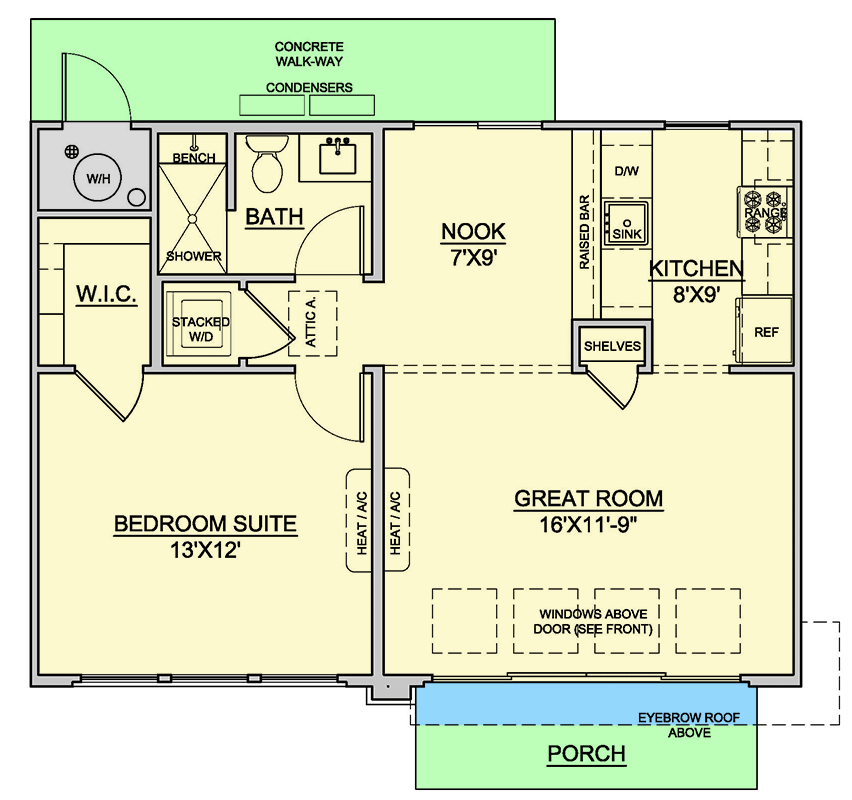

Main Level
slide image 0

Plan 370046SEN

1-800-854-7852

1-262-521-4596

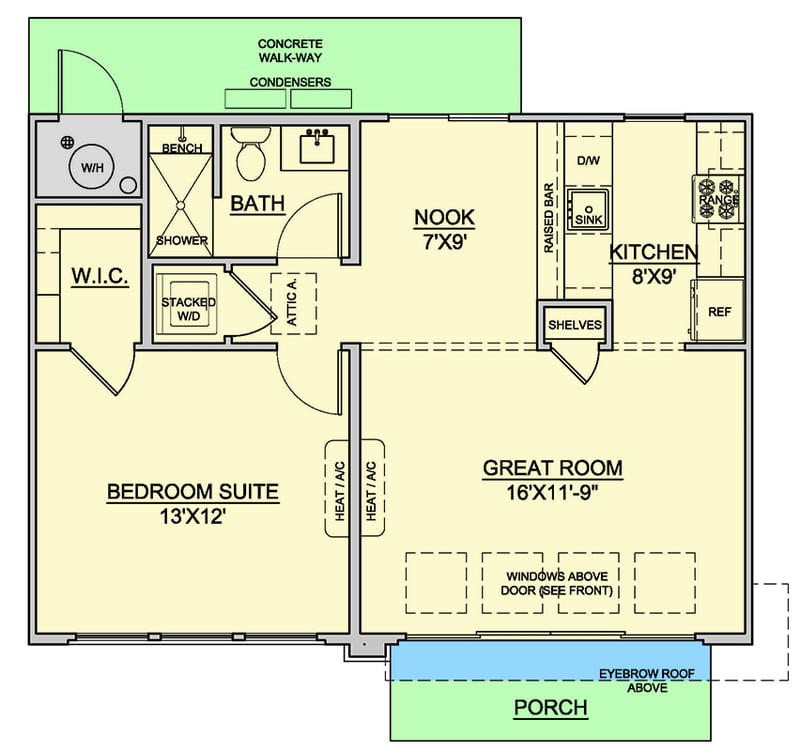

Main Level
floor plan image Main Level
Plan Details
  • This 660 square foot adobe ADU turns your backyard into a wealth generating space. Most states allow an accessory structure to be built in your back yard so long as it fits within your building envelope (setbacks).
  • This design features a fully functional 5 piece kitchen, a full bathroom with roll-in shower with bench, a spacious bedroom suite with separate great room and roomy dining nook.
  • Additional features include stacked washer and dryer, water heater, lots of natural light and a twin mini-split heater / air conditioner for optimal temperature control.
  • The standard ceiling height is 8’ with the great room vaulting upward to nearly 13' with transom windows giving plenty of natural sunlight into the living quarters.
  • Related Plan: Get an alternate contemporary exterior with house plan 370043SEN (660 sq. ft.) or a contemporary exterior with a garage with house plan 370045SEN (660 sq. ft.).
What's Included
  • COVER SHEET
  • GENERAL NOTES
  • ELEVATIONS
  • FOUNDATION PLAN
  • FLOOR PLANS AND NOTES
  • BUILDING SECTION
  • ROOF PLAN
  • ELECTRICAL PLAN
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

660 sq. ft.

1st Floor

660 sq. ft.

Porch, Front

66 sq. ft.

Porch, Rear

81 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

22' 6"

Max Ridge Height

14' 2"

Ceiling Heights

First Floor

8' 1"

Room

Ceiling Type

Height

Great Room

Raised

12' 1''

Roof Details

Primary Pitch

0.25 on 12

Framing Type

Stick

Architectural Style

Adobe

Special Features

Breakfast Nook

Handicapped Accessible

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

660 sq. ft.

1st Floor

660 sq. ft.

Porch, Front

66 sq. ft.

Porch, Rear

81 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

22' 6"

Max Ridge Height

14' 2"

Ceiling Heights

First Floor

8' 1"

Room

Ceiling Type

Height

Great Room

Raised

12' 1''

Roof Details

Primary Pitch

0.25 on 12

Framing Type

Stick

Architectural Style

Adobe

Special Features

Breakfast Nook

Handicapped Accessible

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU
