Plan 72414DA
1-Bed ADU Modern Cottage with Vaulted Great Room - 560 Sq Ft
Heated S.F.
560
Beds
1
Baths
1
Stories
1

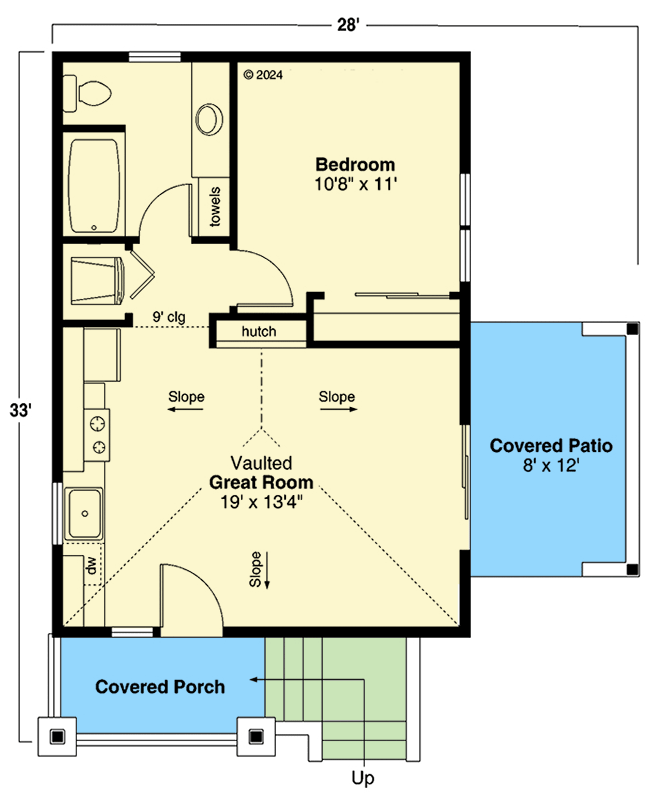

Floor Plan

Plan 72414DA

Main Level
slide image 0

Plan 72414DA

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • A charming 560-square-foot ADU designed to gives both modern comfort and aesthetic appeal.
  • Its open floor plan ensures seamless transitions between living spaces, promoting versatility in use.
  • This ADU strikes the perfect balance between comfort and practicality.
  • With a well-appointed kitchen equipped with modern appliances, stylish cabinetry, and durable countertops. This space not only facilitates meal preparation but also enhances the overall aesthetic appeal of the cottage.
  • The bedroom offers a serene retreat, bathed in natural light and complemented by tranquil views of the surroundings. Adjacent to the bedroom, the full bathroom is elegantly appointed with contemporary fixtures, providing a space for relaxation.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

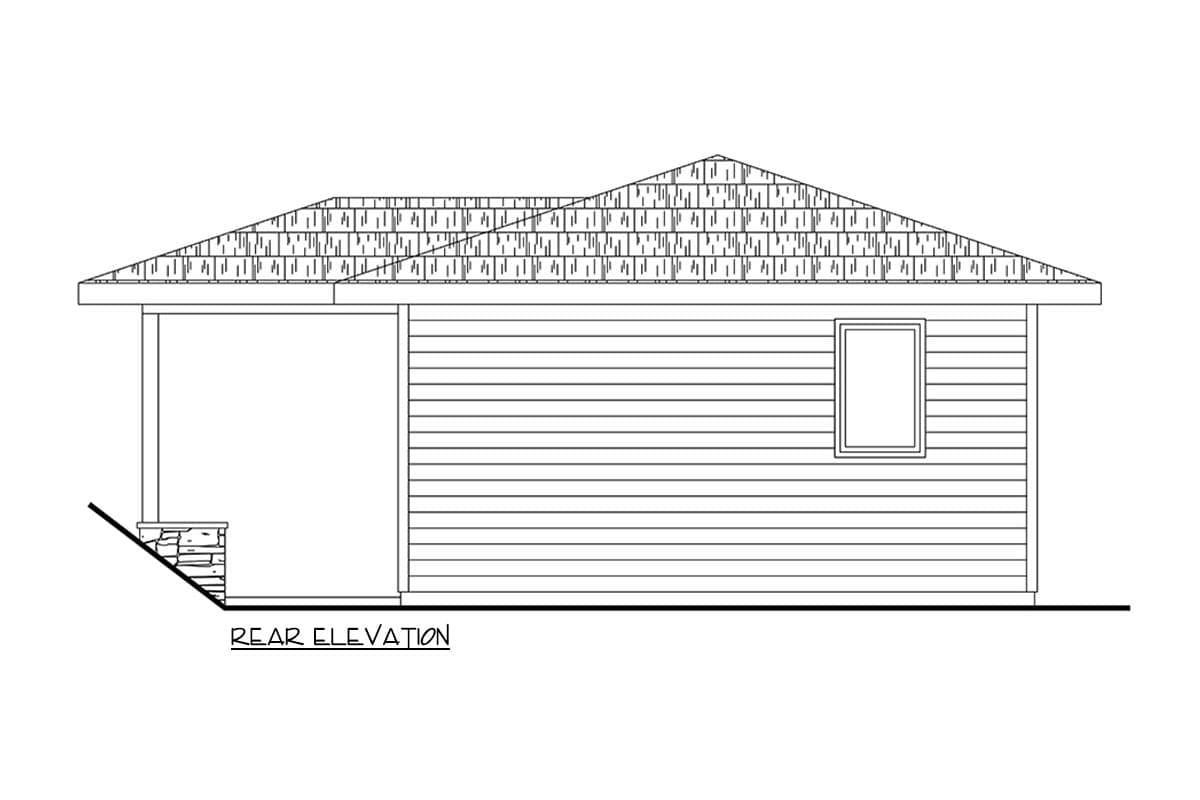

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

560 sq. ft.

1st Floor

560 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

33' 0"

Max Ridge Height

14' 2"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Cottage

Modern

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

560 sq. ft.

1st Floor

560 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

33' 0"

Max Ridge Height

14' 2"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Cottage

Modern

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor
