Plan 5164MM
1-Bed Barndominium House Plan with Upstairs Hay Loft
Heated S.F.
741
Beds
1
Baths
1
Stories
1
Floor Plan

Plan 5164MM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 5164MM

1-800-854-7852

1-262-521-4596

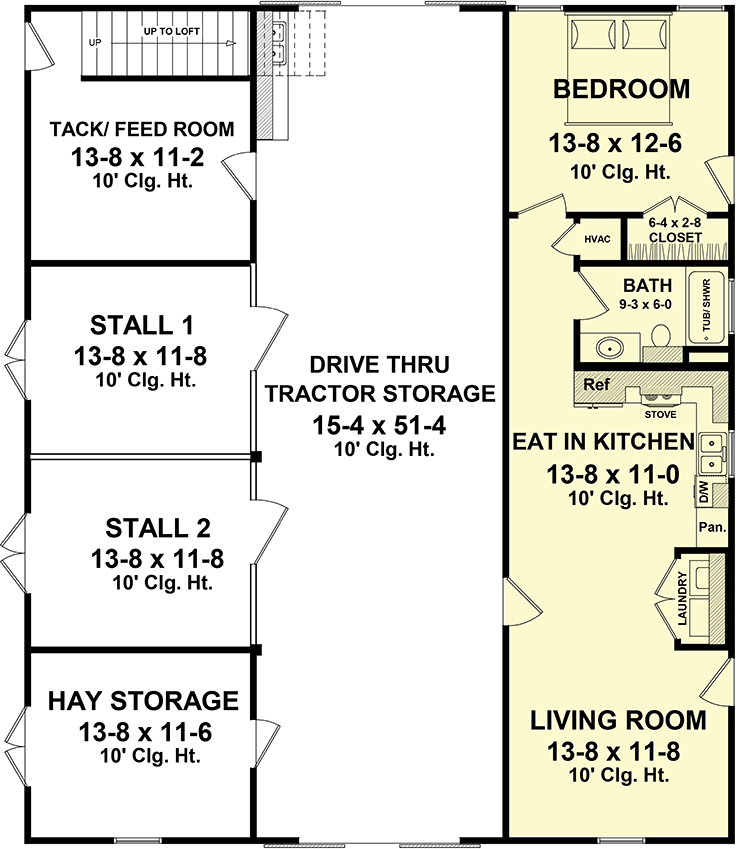

Main Level
floor plan image Main Level

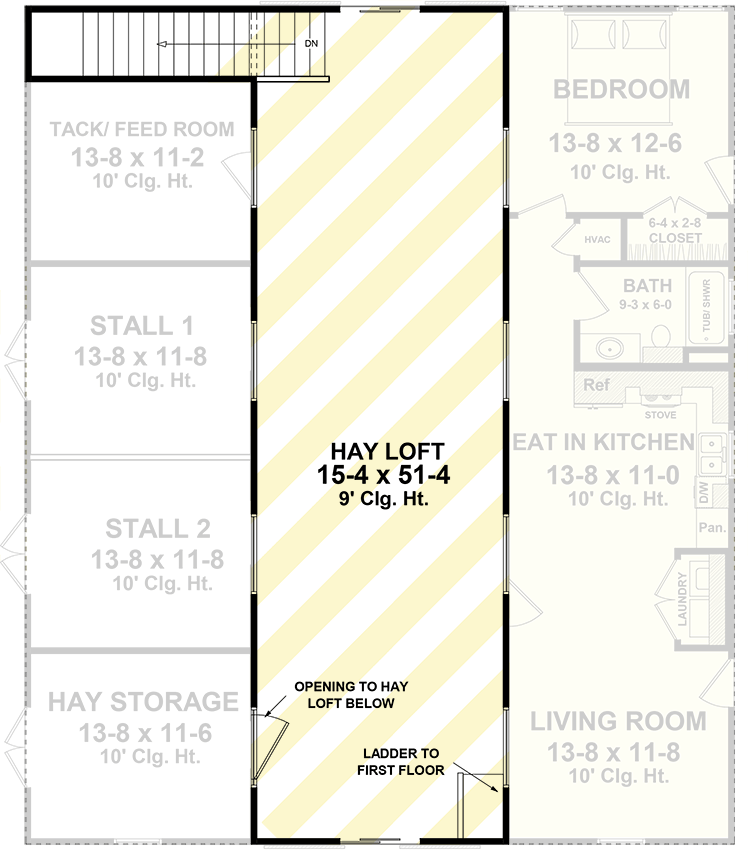

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This barndominium combines living space with functional farm use. It includes a drive-through tractor storage area, hay storage, and a tack and feed room.
  • Two horse stalls provide a practical setup for equestrian needs, with an unfinished hay loft above for extra storage. A comfortable apartment offers efficient living, making it a versatile and practical country home.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get an alternate house plan with 51196MM (741 sq. ft.).
What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

741 sq. ft.

1st Floor

741 sq. ft.

Loft

810 sq. ft.

Stalls/Tractor

1,543 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

44' 0"

Depth

52' 0"

Max Ridge Height

26' 3"

Ceiling Heights

First Floor

10'

Loft

9' 0''

Architectural Style

Barndominium

Farmhouse

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

741 sq. ft.

1st Floor

741 sq. ft.

Loft

810 sq. ft.

Stalls/Tractor

1,543 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

44' 0"

Depth

52' 0"

Max Ridge Height

26' 3"

Ceiling Heights

First Floor

10'

Loft

9' 0''

Architectural Style

Barndominium

Farmhouse

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor
