Plan 420151WNT

Exclusive

1-Bed Colonial Cottage House Plan or ADU with Vaulted Living Room - 667 Sq Ft
Heated S.F.
667
Beds
1
Baths
1
Stories
1
Floor Plan

Plan 420151WNT

Main Level
slide image 0

Plan 420151WNT

1-800-854-7852

1-262-521-4596

Main Level

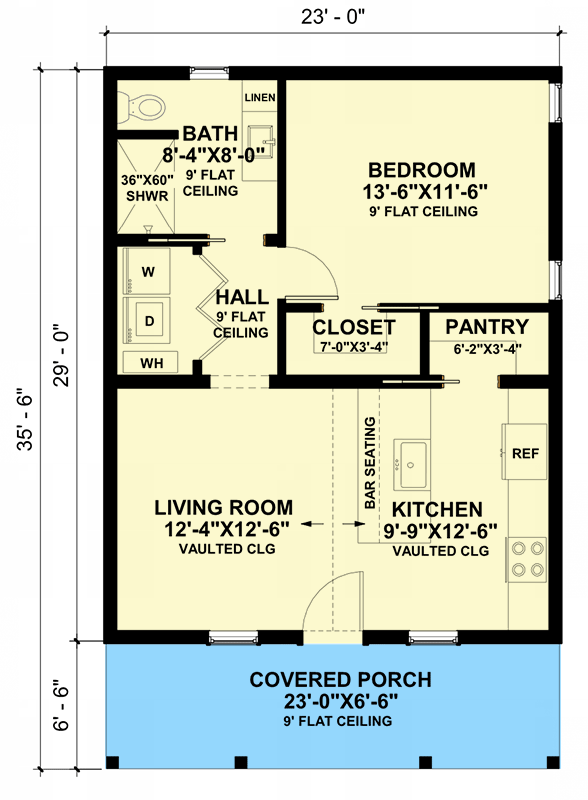

floor plan image Main Level
Plan Details
  • This charming colonial cottage house plan with vaulted living room and kitchen is an ideal ADU with 1-bed and 1-bath and gives you 667 square feet of heated living space.
  • This compact home feels much larger with the vaulted ceilings in the open-concept living room and kitchen, and a walk-in pantry is a welcome use of space.
  • A full size side-by-side washer and dryer fit in the laundry room located in the hallway to the shared full bath and master bedroom.
  • The compact footprint of 23' wide by 35'-6" deep makes this well suited to fit on a variety of properties.
  • Build this cottage as a rental property, a second home, or on your property as an inviting in-law or guest cottage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • NOTE: Please allow 3 to 5 business days for delivery.
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

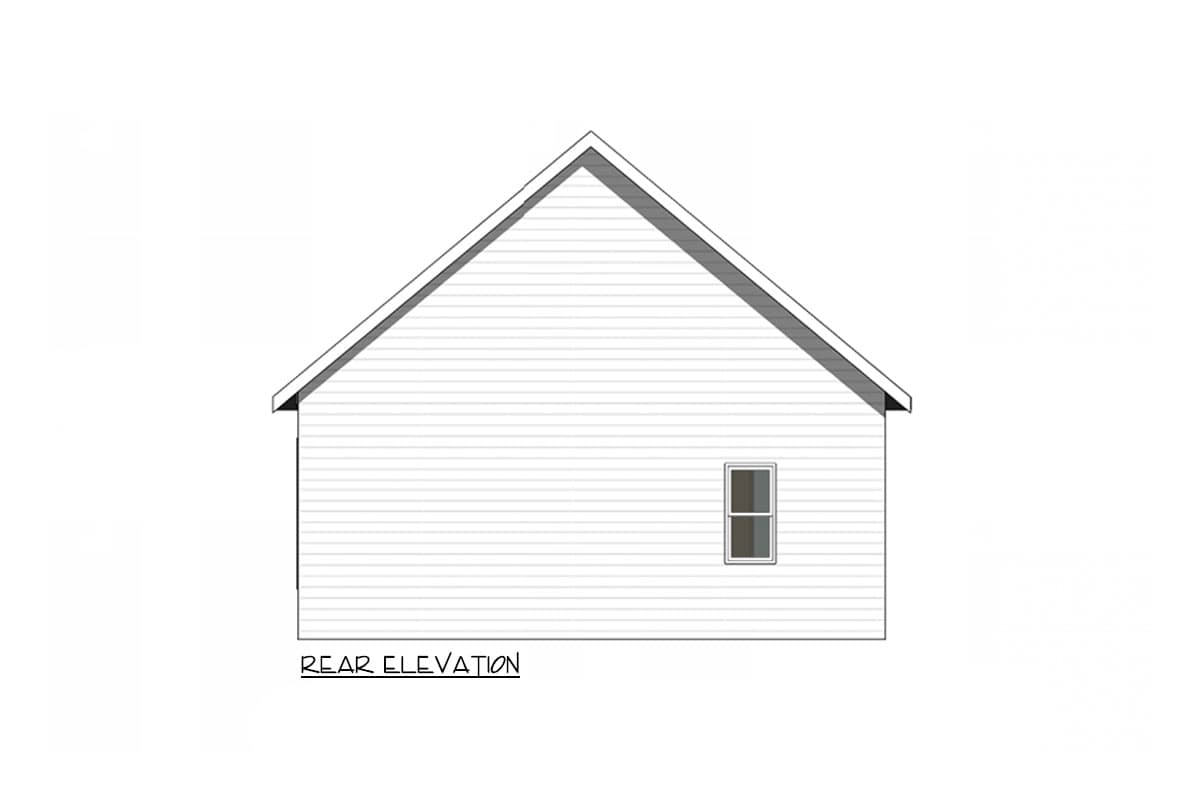

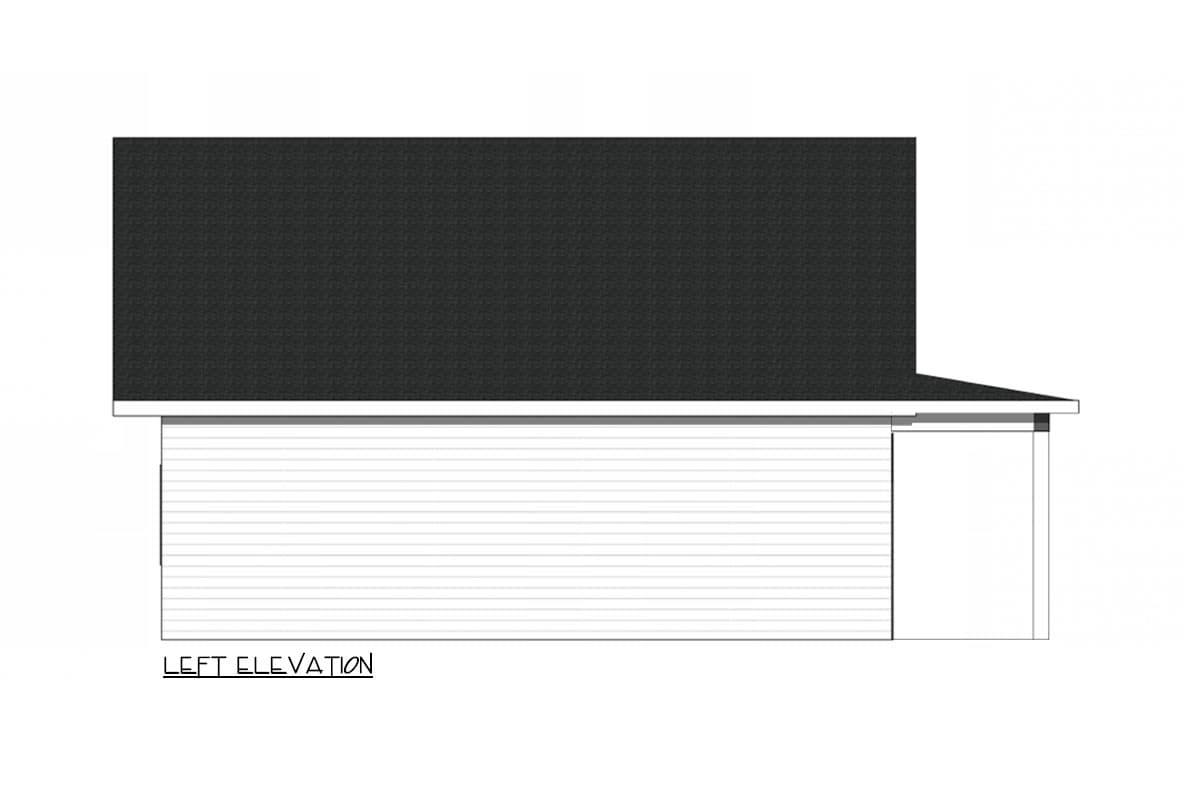

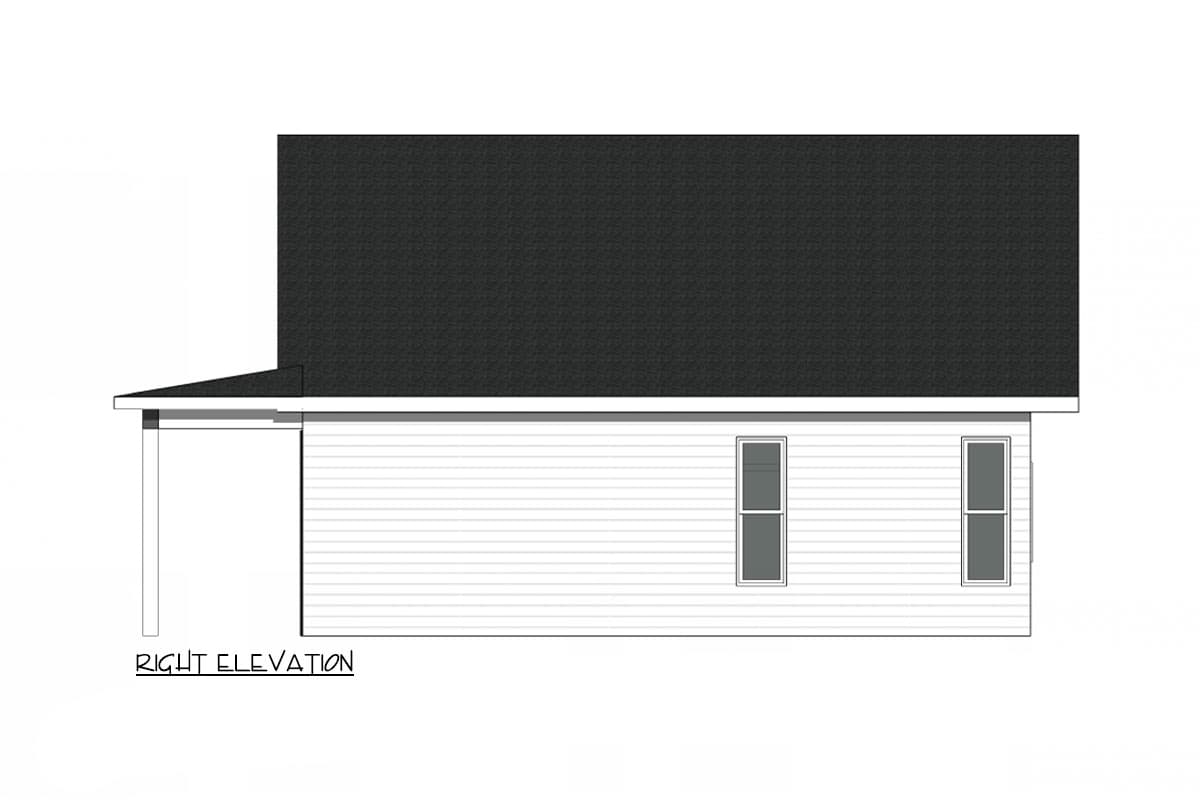

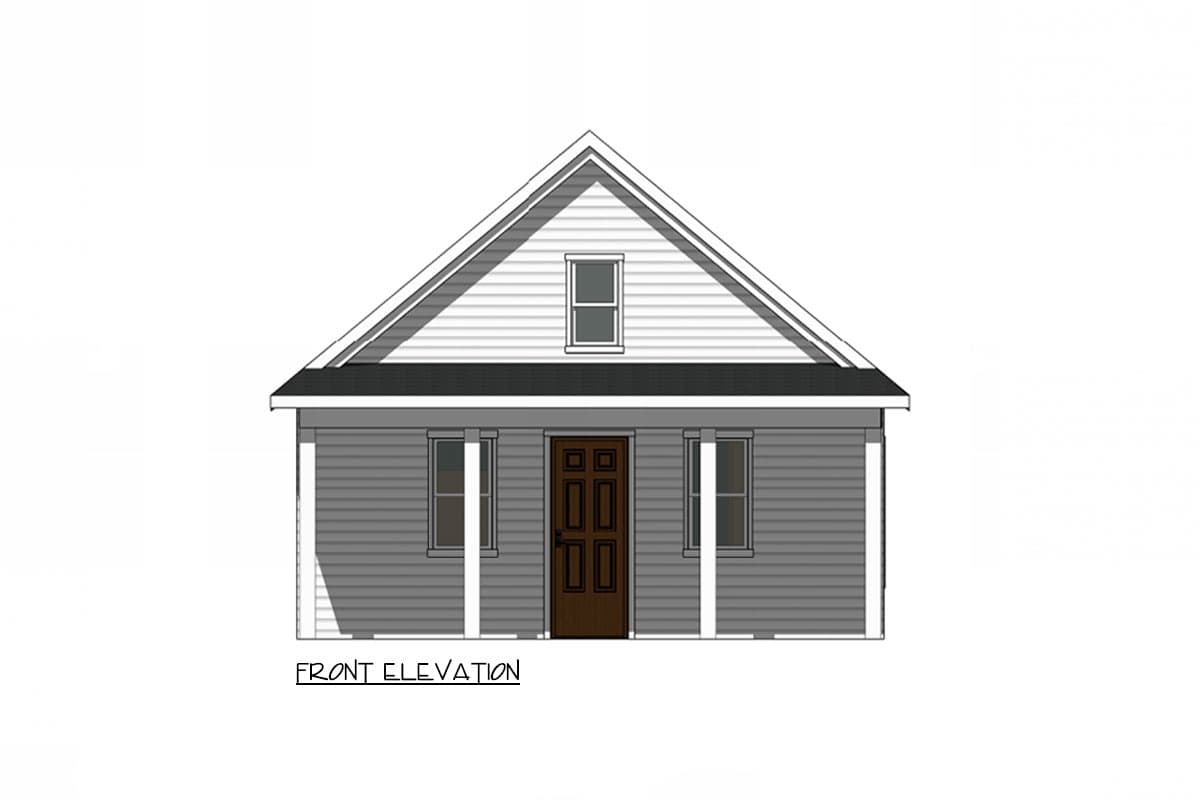

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

667 sq. ft.

1st Floor

667 sq. ft.

Porch, Front

149 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

23' 0"

Depth

35' 6"

Max Ridge Height

19' 10"

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

Vaulted

14' 0''

Kitchen

Vaulted

14' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Cabin

Colonial

Cottage

Country

Farmhouse

Traditional

Special Features

Handicapped Accessible

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Exclusive

Square Footage Breakdown

Total Heated Area

667 sq. ft.

1st Floor

667 sq. ft.

Porch, Front

149 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

23' 0"

Depth

35' 6"

Max Ridge Height

19' 10"

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

Vaulted

14' 0''

Kitchen

Vaulted

14' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Cabin

Colonial

Cottage

Country

Farmhouse

Traditional

Special Features

Handicapped Accessible

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Exclusive
