Plan 680452VR
1-Bed Contemporary RV Garage with Second-Floor Apartment - 575 Sq Ft
Heated S.F.
575
Beds
1
Baths
1
Stories
2
Cars
3
Floor Plan

Plan 680452VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 680452VR

1-800-854-7852

1-262-521-4596

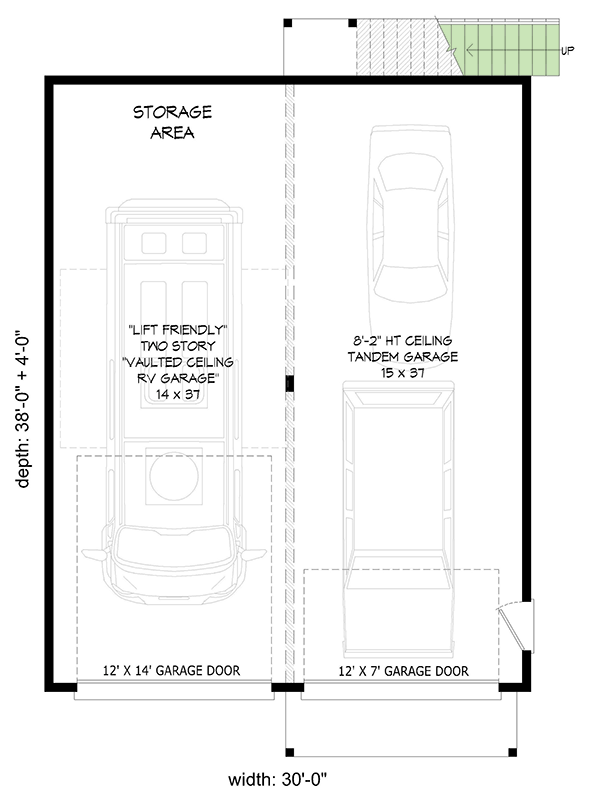

Main Level
floor plan image Main Level

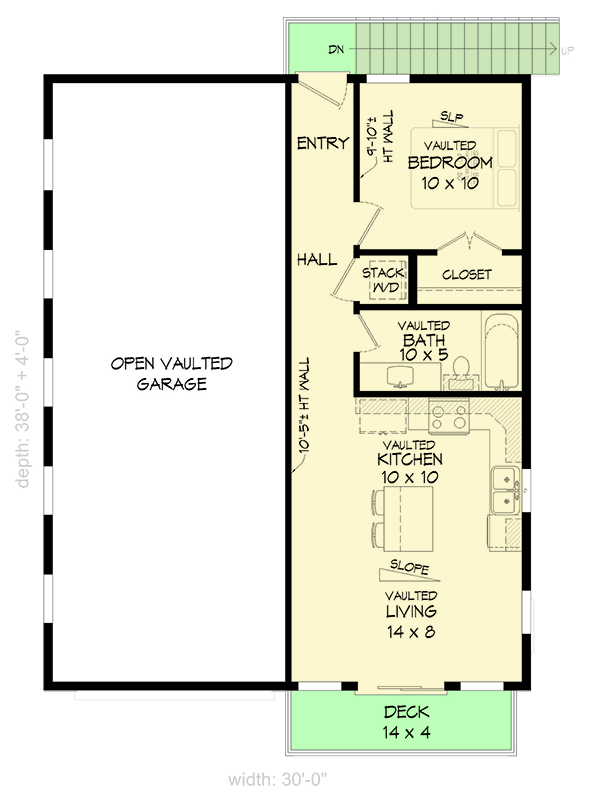

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This detached RV garage  offers you a 1140 sq. ft. garage bay with space for 3 vehicles and a 575 sq. ft. second floor apartment with 1 bed and 1 full bath.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

575 sq. ft.

2nd Floor

575 sq. ft.

Deck

57 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

42' 0"

Max Ridge Height

23' 5"

Garage

Type

RV Garage, Detached

Area

1140 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

8' 2"

Second Floor

8'

Roof Details

Primary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Contemporary

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

575 sq. ft.

2nd Floor

575 sq. ft.

Deck

57 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

42' 0"

Max Ridge Height

23' 5"

Garage

Type

RV Garage, Detached

Area

1140 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

8' 2"

Second Floor

8'

Roof Details

Primary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Contemporary

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

ADU
