Plan 677030NWL
1-Bed Cottage ADU with 8-Foot-Deep Front Porch - 672 Sq Ft
Heated S.F.
672
Beds
1
Baths
1
Stories
1
Tour
Floor Plan

Plan 677030NWL

Main Level
slide image 0

Plan 677030NWL

1-800-854-7852

1-262-521-4596

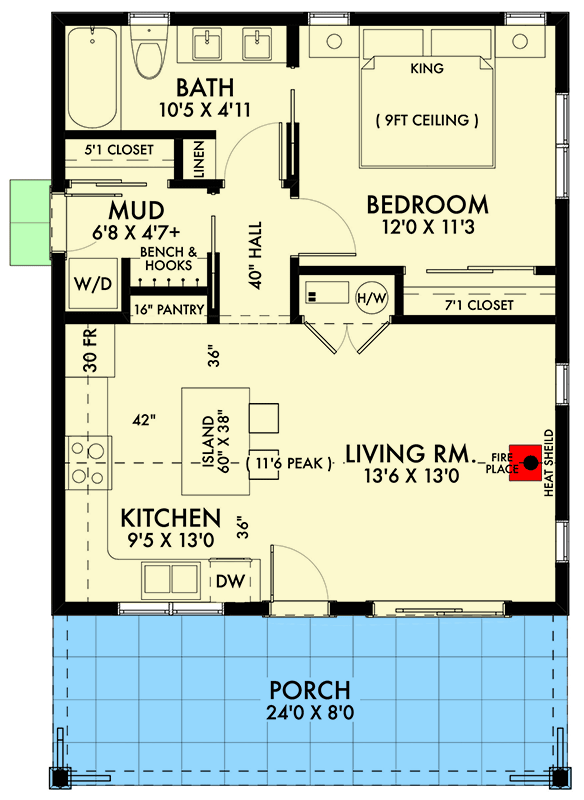

Main Level
floor plan image Main Level
Plan Details
  • This 1 bed, 1 bath ADU gives you 672 square feet of heated living and has a 192 square foot, 8-foot-deep front porch.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • General Notes, Perspectives
  • Fully Dimensioned Floor Plans
  • Foundation & Roof Plan

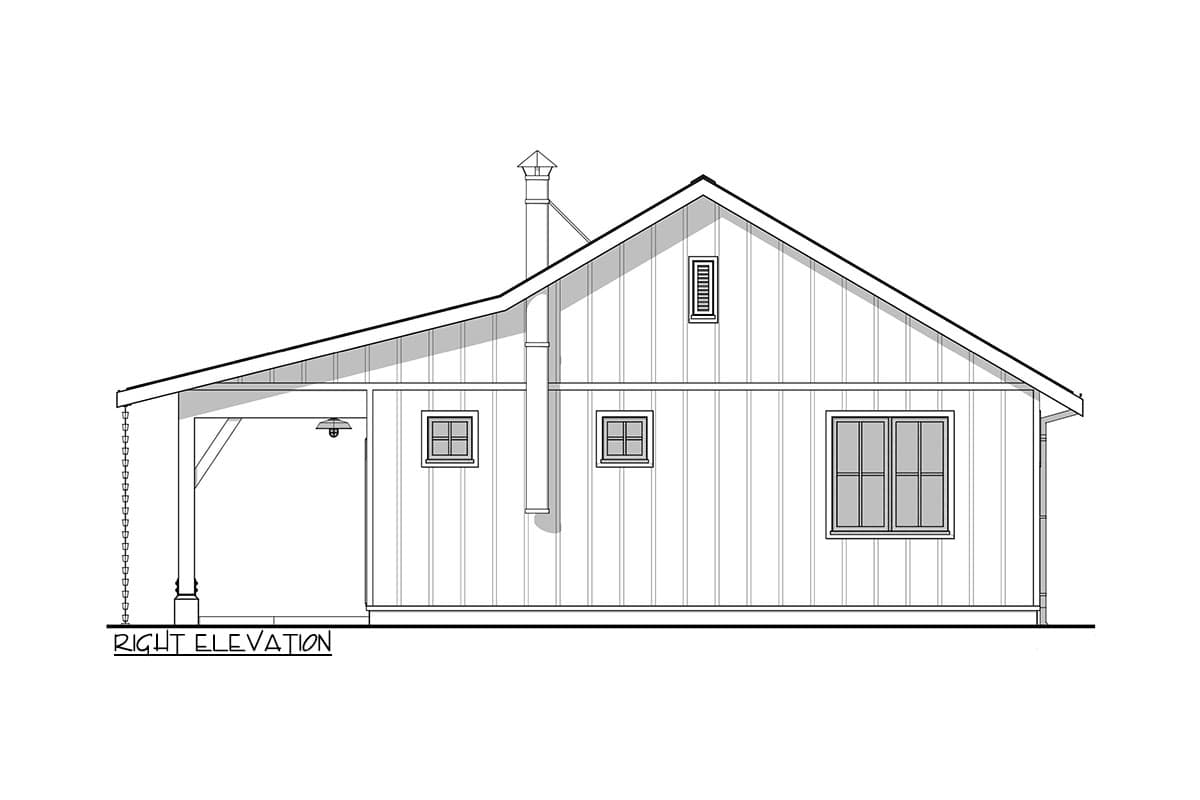

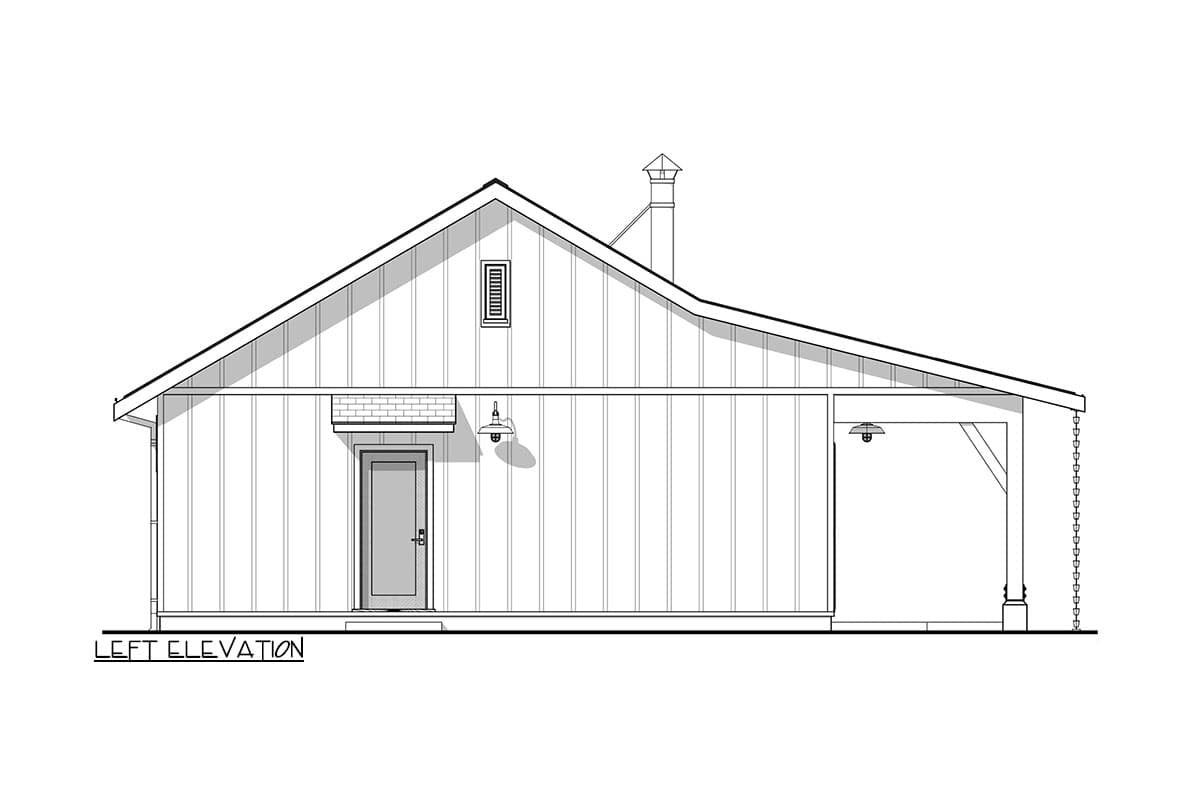

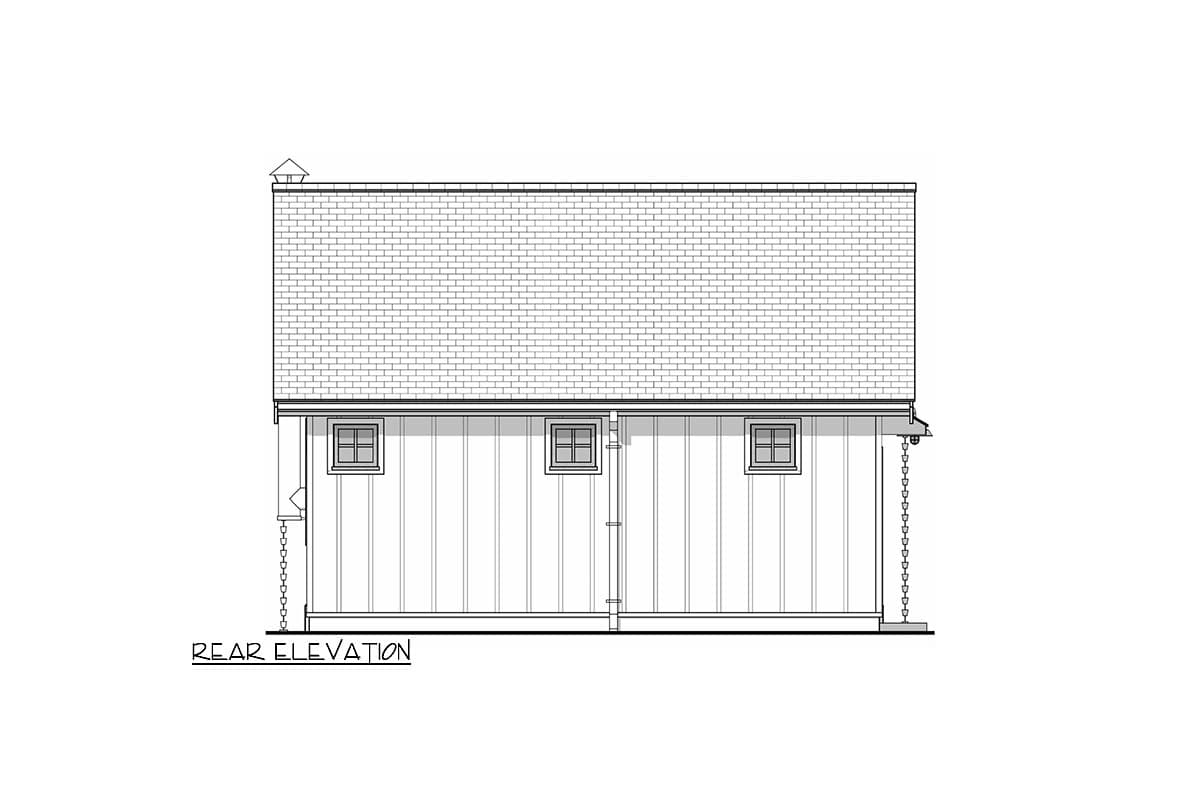

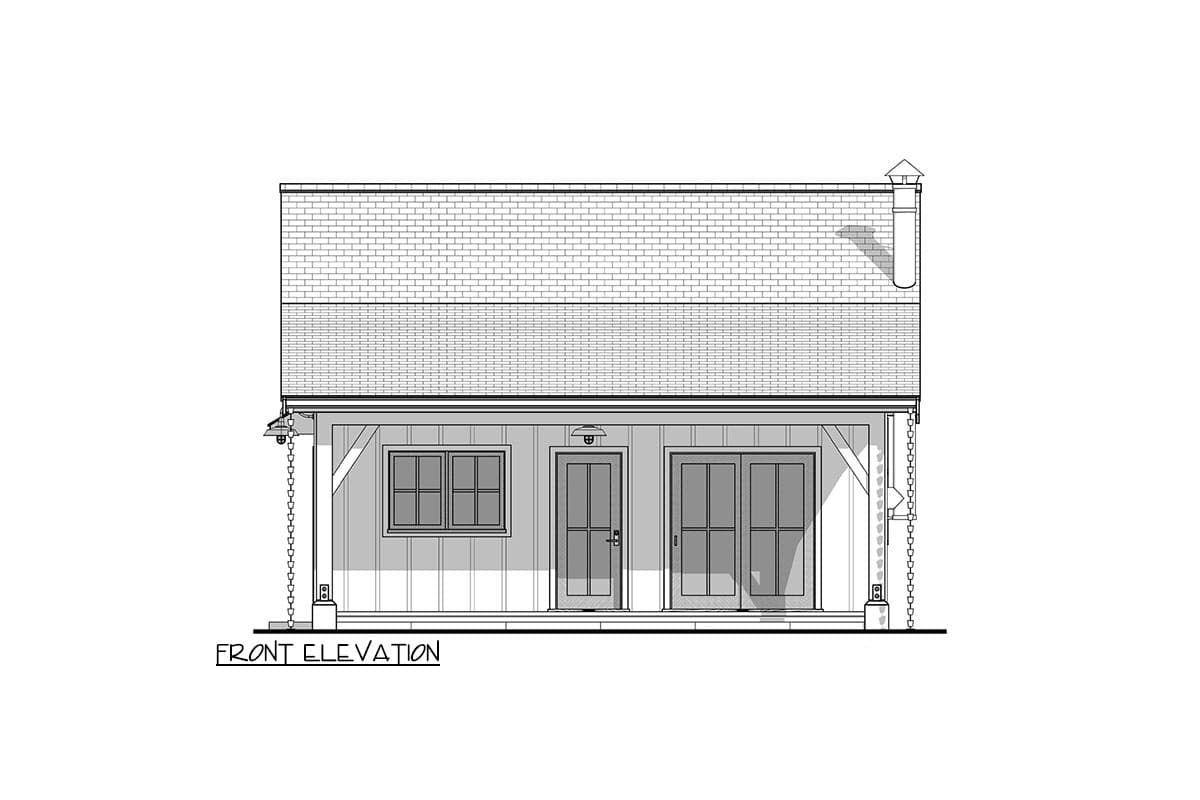

  • Elevations
  • Building & Wall Sections
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

672 sq. ft.

1st Floor

672 sq. ft.

Porch, Front

192 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

24' 0"

Depth

36' 0"

Max Ridge Height

18' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Cabin

Cottage

Country

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

ADU

Canadian House Plans

Tiny Home House Plans

Square Footage Breakdown

Total Heated Area

672 sq. ft.

1st Floor

672 sq. ft.

Porch, Front

192 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

24' 0"

Depth

36' 0"

Max Ridge Height

18' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Cabin

Cottage

Country

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

ADU

Canadian House Plans

Tiny Home House Plans
