Plan 52401WM
1-Bed Cottage Duplex with Matching Units - 992 Sq Ft
Heated S.F.
992
Units
2
Width
Depth
Floor Plan

Plan 52401WM

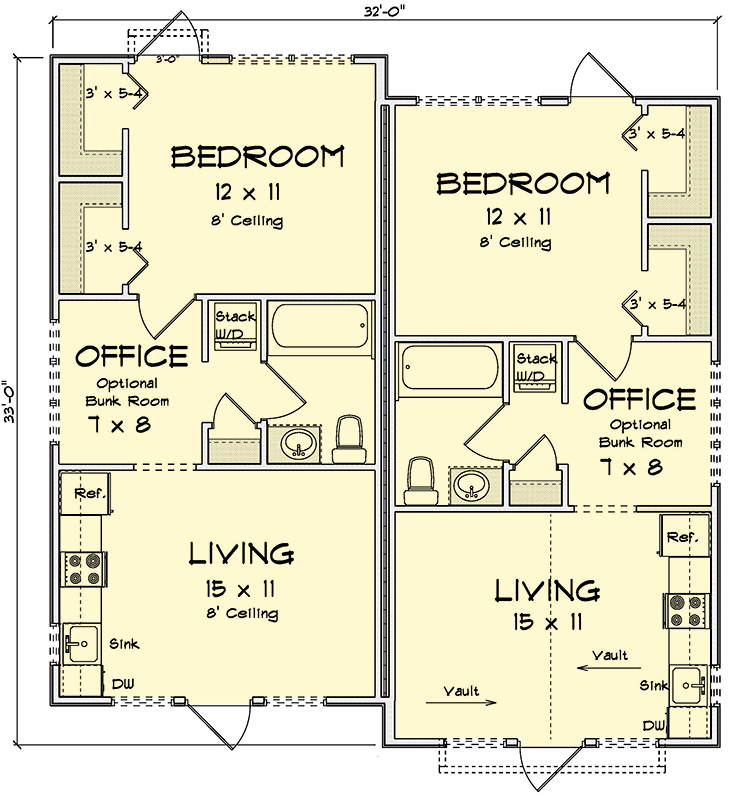

Main Level
slide image 0

Plan 52401WM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This duplex house plan features two units, each with 496 square feet of heated living space, one bedroom, and one bathroom.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
496Sq. Ft.
496 Sq. Ft.
1st Floor
1Beds
1Full Bath
16'width
33'depth
Unit B
496Sq. Ft.
496 Sq. Ft.
1st Floor
1Beds
1Full Bath
16'width
33'depth
What's Included
  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

992 sq. ft.

1st Floor

992 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 0"

Depth

33' 0"

Max Ridge Height

15' 9"

Ceiling Heights

First Floor

8'

Architectural Style

Cottage

Ranch

Special Features

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

992 sq. ft.

1st Floor

992 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 0"

Depth

33' 0"

Max Ridge Height

15' 9"

Ceiling Heights

First Floor

8'

Architectural Style

Cottage

Ranch

Special Features

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor
