Plan 470307REY

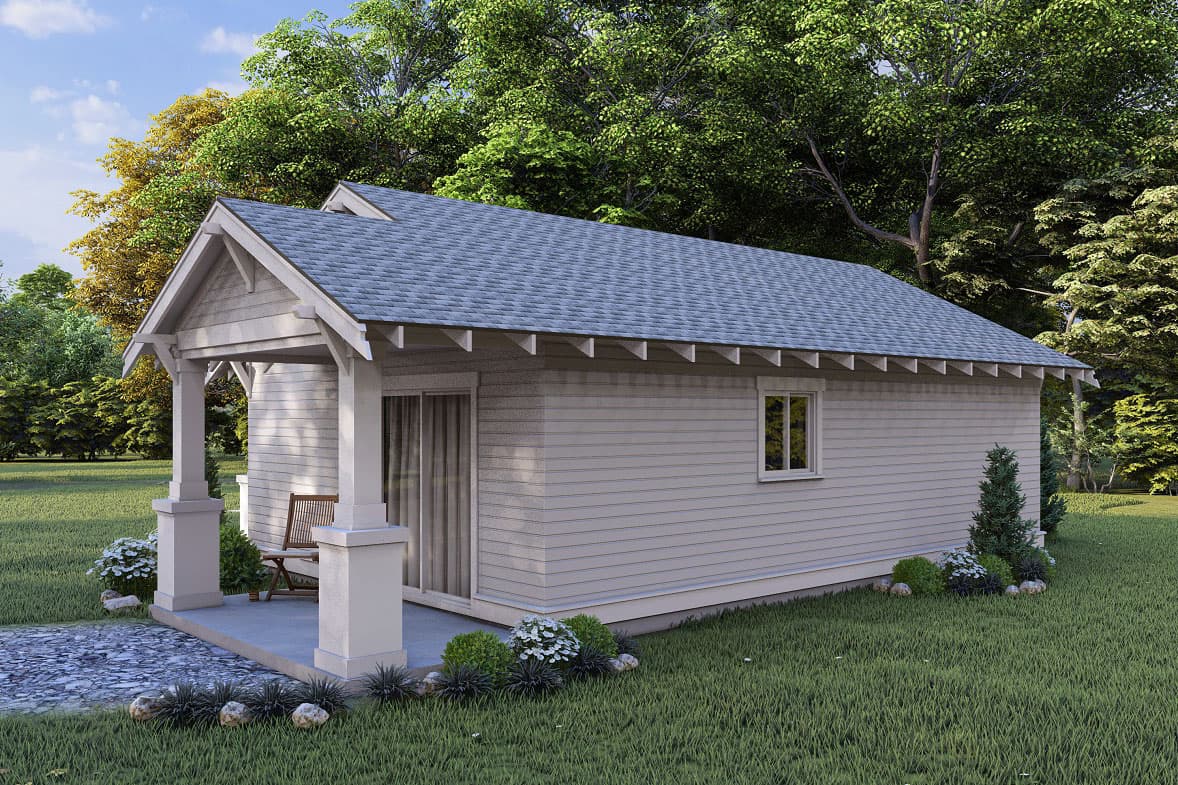

1-Bed Cottage House Plan with Vaulted Great Room - 600 Sq Ft
Heated S.F.
600
Beds
1
Baths
1
Stories
1
Floor Plan

Plan 470307REY

Main Level
slide image 0

Plan 470307REY

1-800-854-7852

1-262-521-4596

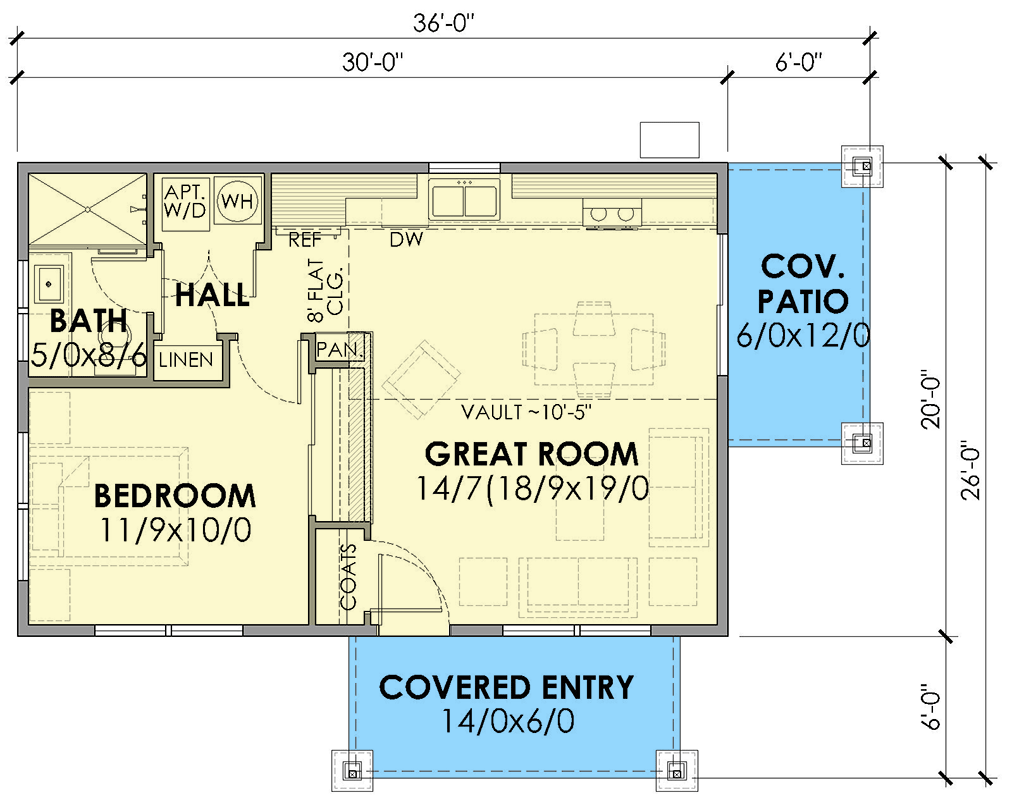

Main Level
floor plan image Main Level
Plan Details

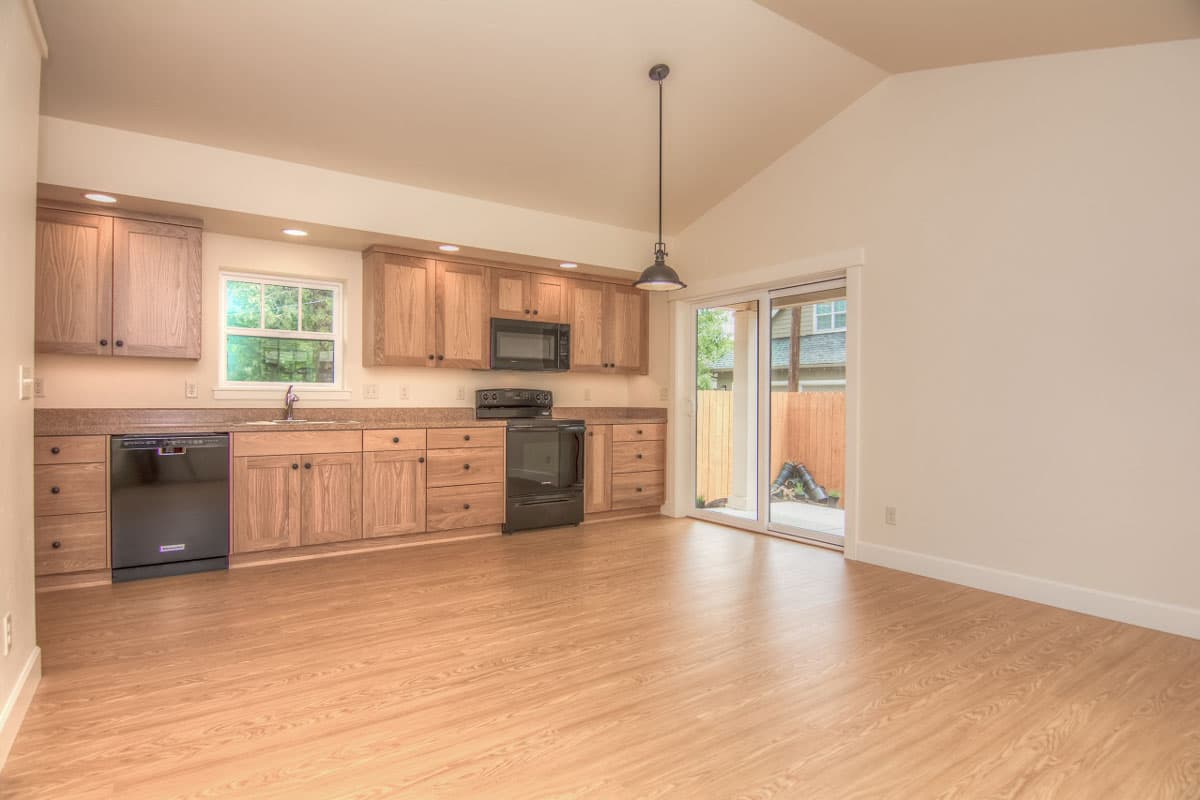

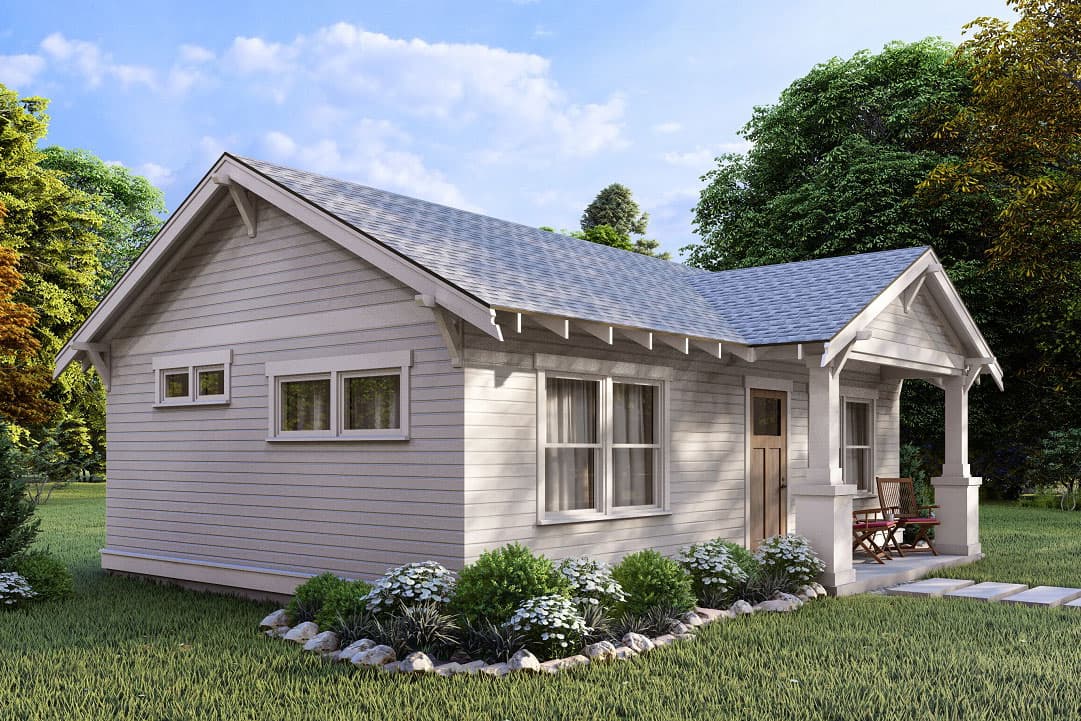

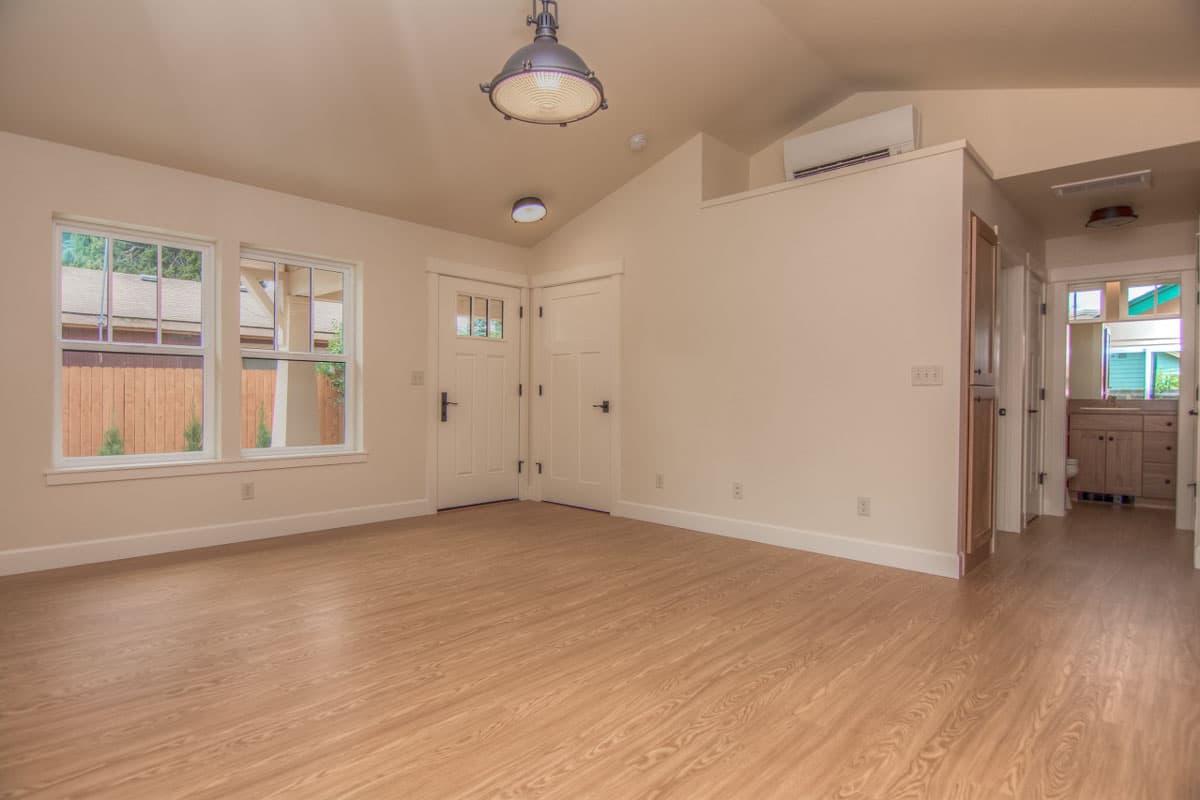

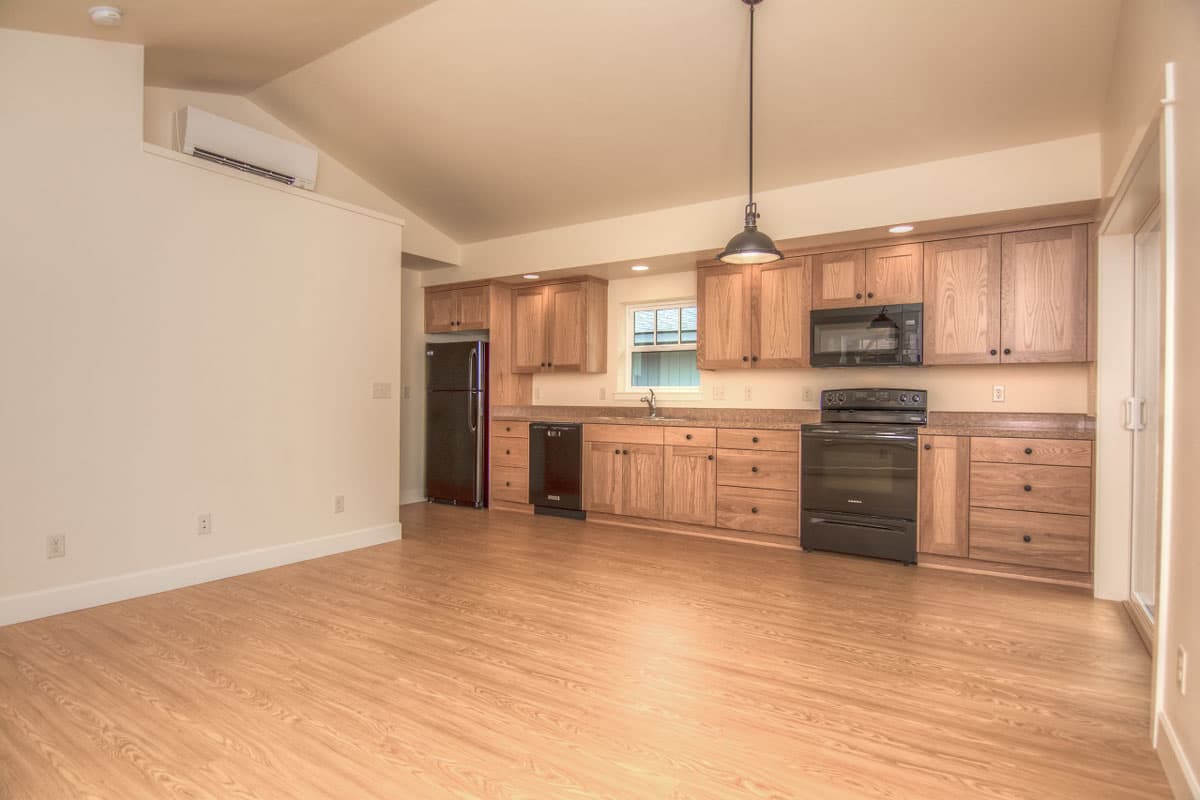

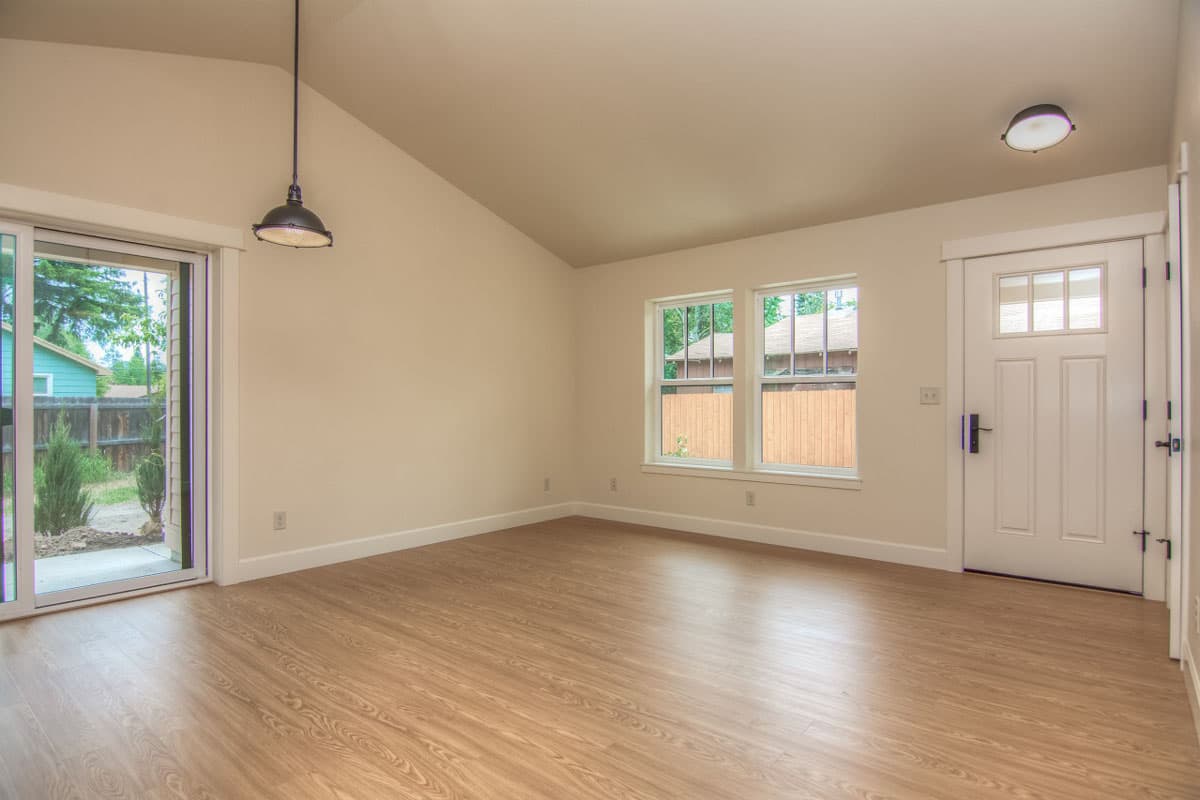

  • Super efficient, comfortable floor plan with enhanced daylighting and good storage. Layout and vault expands the feel of the interior space, multiple exterior access points with covered patios both front and side. Utility closet houses stacked washer/dryer and water heater.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Cover Sheet: Includes front elevation or perspective, plan description, general notes, building footprint, building area breakdowns, drawing sheet index, etc. These elements are not to scale.
  • Floor Plan: Includes layout of each floor with locations and dimensions of walls, doors, and windows. Overhead beams and vaults are indicated. Shows locations of cabinetry, appliances, plumbing fixtures, closets and shelf packs.
  • Exterior Elevations: Shows front, sides and back building elevations along with roof pitches, and exterior siding and trim materials.
  • Typical Section: Usually drawn to ½”=1’-0”. Shows a cross-section of the building with typical elements such as ceiling and header heights, roof style, insulation locations (thermal envelope), and foundation style. Specific details may be shown in an additional Typical Wall Section, if included.
  • Electrical Plan: Includes a general suggested layout of light fixtures, switches, and electrical outlets.
  • Foundation Plan: Shows locations of foundation walls, strip footings and pier pads.
  • Floor Framing Plan: First floor framing may be combined with Foundation Plan. Shows floor framing type, spacing and direction along with supporting element locations.
  • Roof Framing Plan: Shows truss/rafter spacing and direction, typical overhangs, roof outline, supporting member locations, and over framing locations (if any).
  • Typical Details: Scales may vary, typically at to ½”=1’-0” or to 1”=1’-0”, some not to scale. Shows the suggested typical details such as transitions from foundation to walls, walls to ceiling/roof, general flashing strategies, and other connection points. Other specific architectural finish details may be included at designer’s discretion.
  • Interior Elevations of Cabinetry may be included, but are not always part of a standard drawing set.
This is a general description of the content of each main drawing set element. Elements may be grouped on single sheets for smaller plans or over multiple sheets for larger plans. Additional information may be included. All information provided, and particularly any structural information, simply reflects the conditions of the original build location and may not be appropriate for the plan purchaser’s build location and are included for reference only. Therefore, all drawing information is to be verified by a person qualified to ensure compliance with the actual build location conditions and regulations as needed. Unless otherwise noted, elements are typically drawn to a scale of ¼”=1’-0”.

What's Not Included
Document
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
  • Materials list - MAY be available as a purchasable option under the "Options" tab
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

600 sq. ft.

1st Floor

600 sq. ft.

Porch, Front

84 sq. ft.

Porch, Rear

72 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

26' 0"

Max Ridge Height

15' 3"

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Great Room

Cathedral

8' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cape Cod

Cottage

Craftsman

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

600 sq. ft.

1st Floor

600 sq. ft.

Porch, Front

84 sq. ft.

Porch, Rear

72 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

26' 0"

Max Ridge Height

15' 3"

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Great Room

Cathedral

8' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cape Cod

Cottage

Craftsman

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU
