Name: Plan 350086GH: 1-Bed Craftsman House Plan with 3rd Floor Viewing Tower and Widow Walk - 2280 Sq Ft
SKU: 350086GH
Price: 1195.0 USD
Availability: InStock

Plan 350086GH

1-Bed Craftsman House Plan with 3rd Floor Viewing Tower and Widow Walk - 2280 Sq Ft

Heated S.F.

2,280

Beds

Baths

2.5

Stories

Floor Plan

Main Level

2nd Floor

3rd Floor

Plan Details

This charming Storybook Craftsman house plan is the perfect lake house or mountain retreat. A unique home perfect for an adventurous lifestyle, this house plan is well-suited for a lot with 360° views - with a tower on the third floor with a full wrap around widow walk porch, accessed by a spiral staircase from the second floor loft.

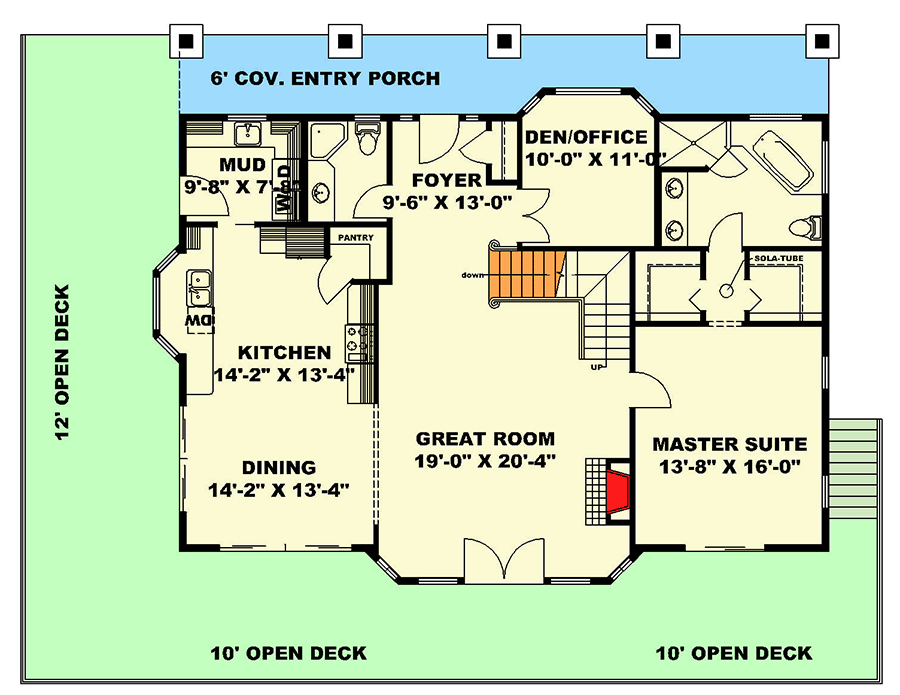

The main level is the primary living area, featuring a full wrap around deck and covered front entry porch, 1 bedroom, 2.5 baths, a den or home office with bay window, a large great room with wood burning fireplace and 2-story ceiling, a cozy dining nook, and a generous kitchen with a bay window over the double sink. A convenient mudroom and laundry off the kitchen helps keep your home clean after any adventure.
The master suite features sliding glass door access to the wrap around porch, and dual walk-in closets (designed with a sola-tube skylight in the vestibule for additional light), and a private 5-fixture bathroom with corner soaking tub and double sink vanity.

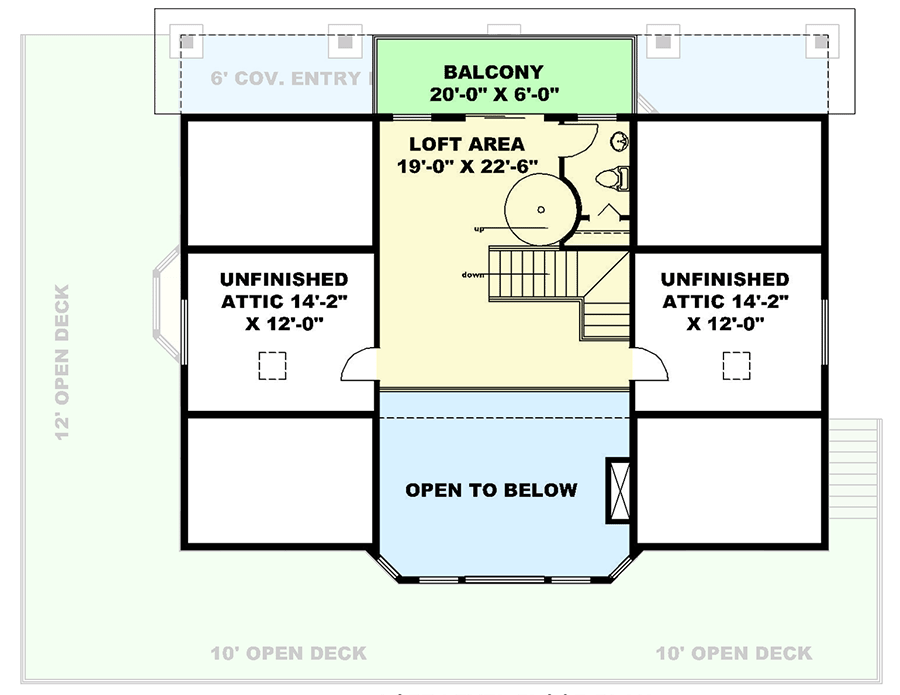

A loft overlooking the great room is upstairs, with a half bath and front balcony could be used as a guest room. Access to two attic spaces provide ample storage.

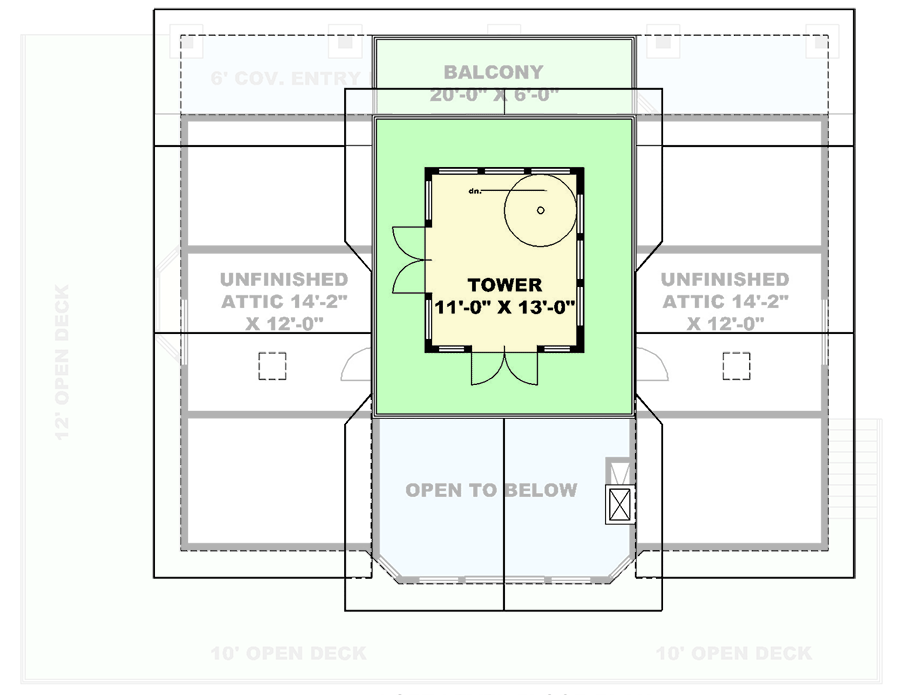

The loft also has a spiral staircase leading up to the third floor tower, providing views in all directions and access to a full wrap around widow walk porch.

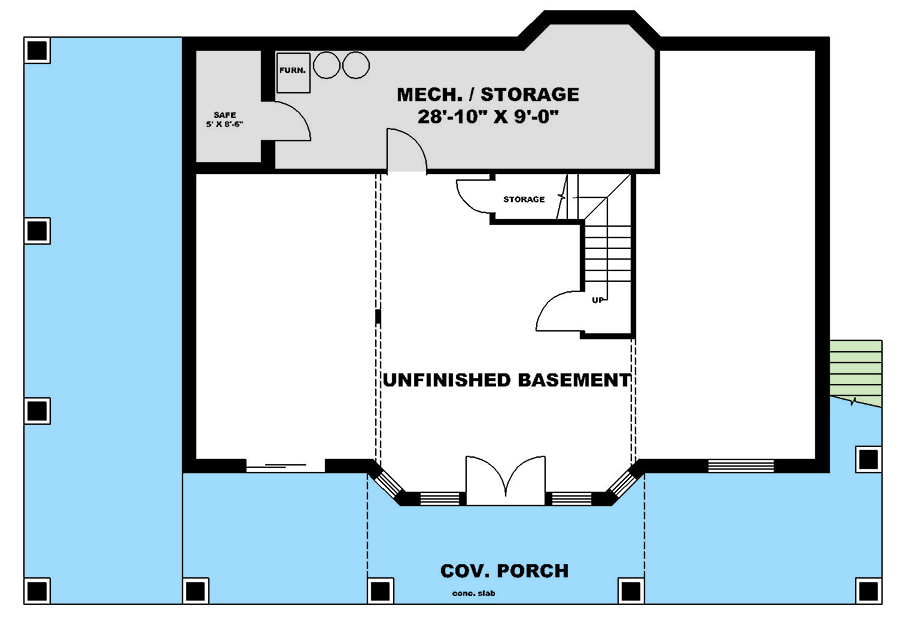

An unfinished walkout basement provides expansion opportunity, as well as additional storage, space for mechanicals, and a reinforced safe room storm shelter.
Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
We can modify any house plan you see on our site. Learn more about modifications.

What's Included

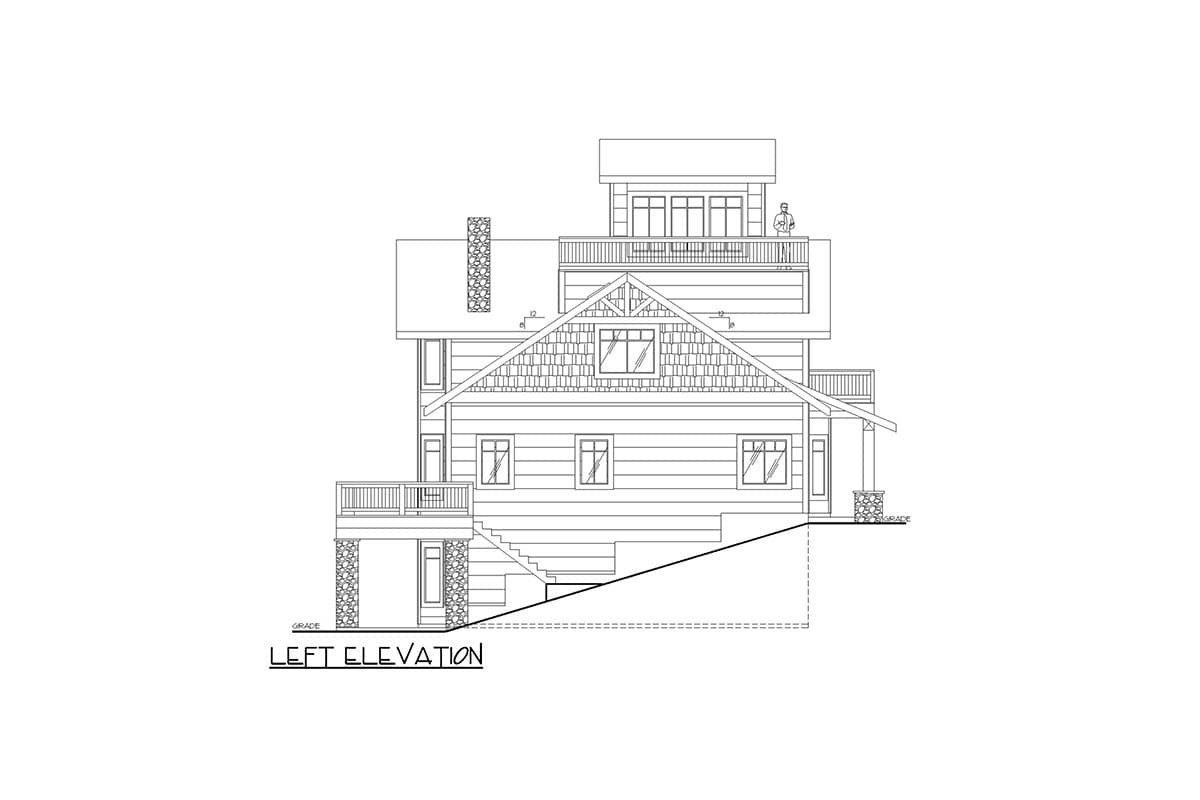

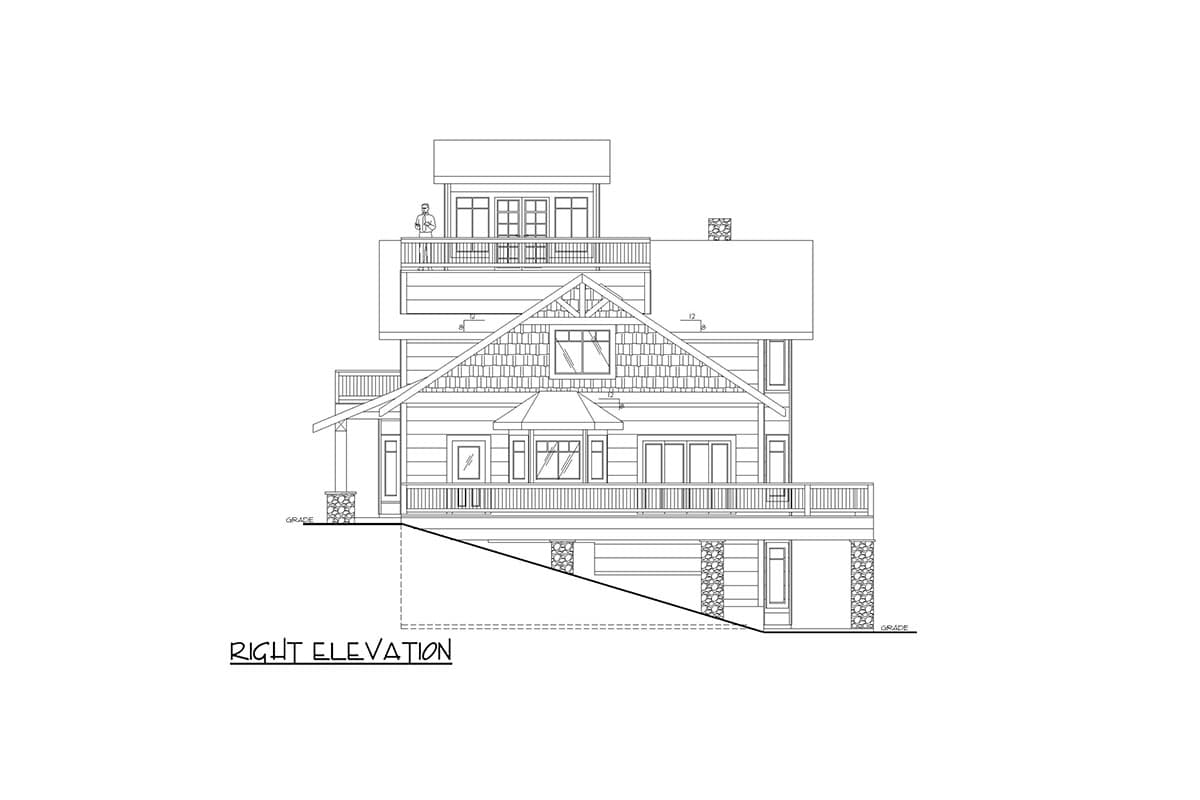

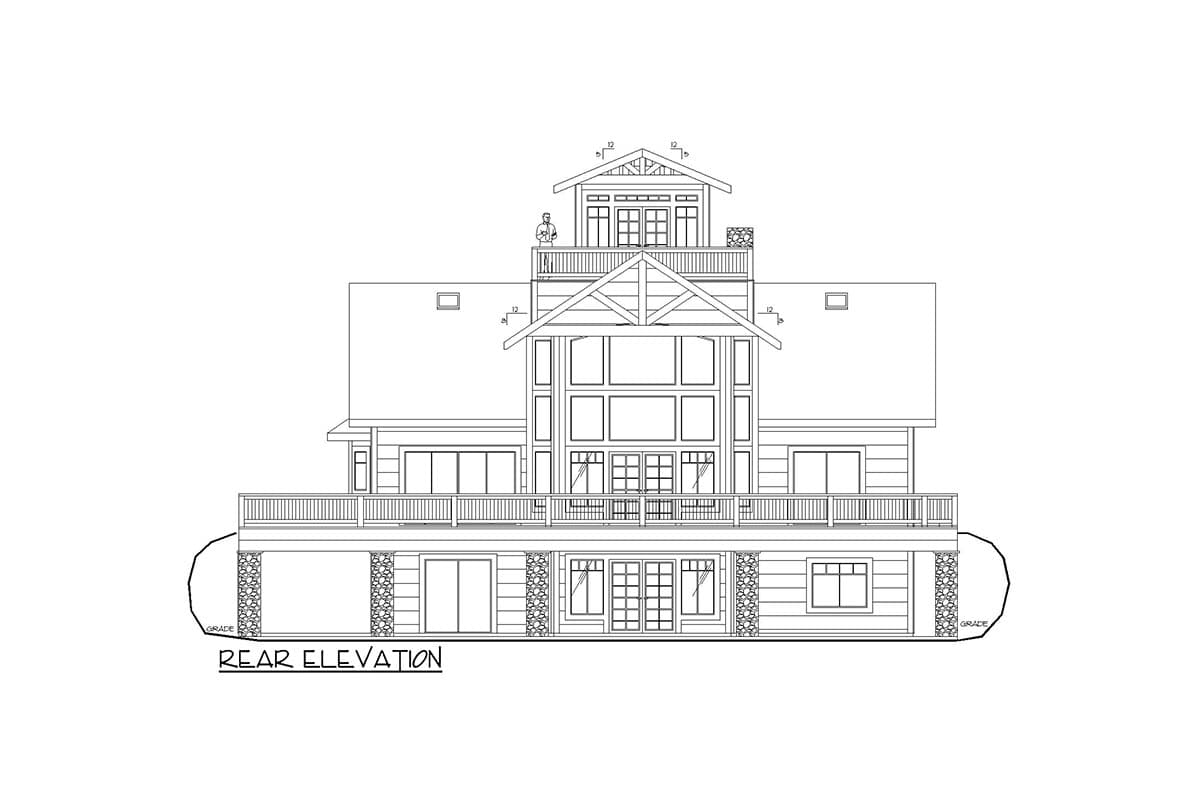

Exterior Elevations: The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
Floor Plans: The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
Details: This page includes the structural details for the construction of the house.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
