Plan 623449DJ
1-Bed Modern ADU House Plan with Patio - 583 Sq Ft
Heated S.F.
583
Beds
1
Baths
1
Stories
1
Tour
Floor Plan

Plan 623449DJ

Main Level
slide image 0

Plan 623449DJ

1-800-854-7852

1-262-521-4596

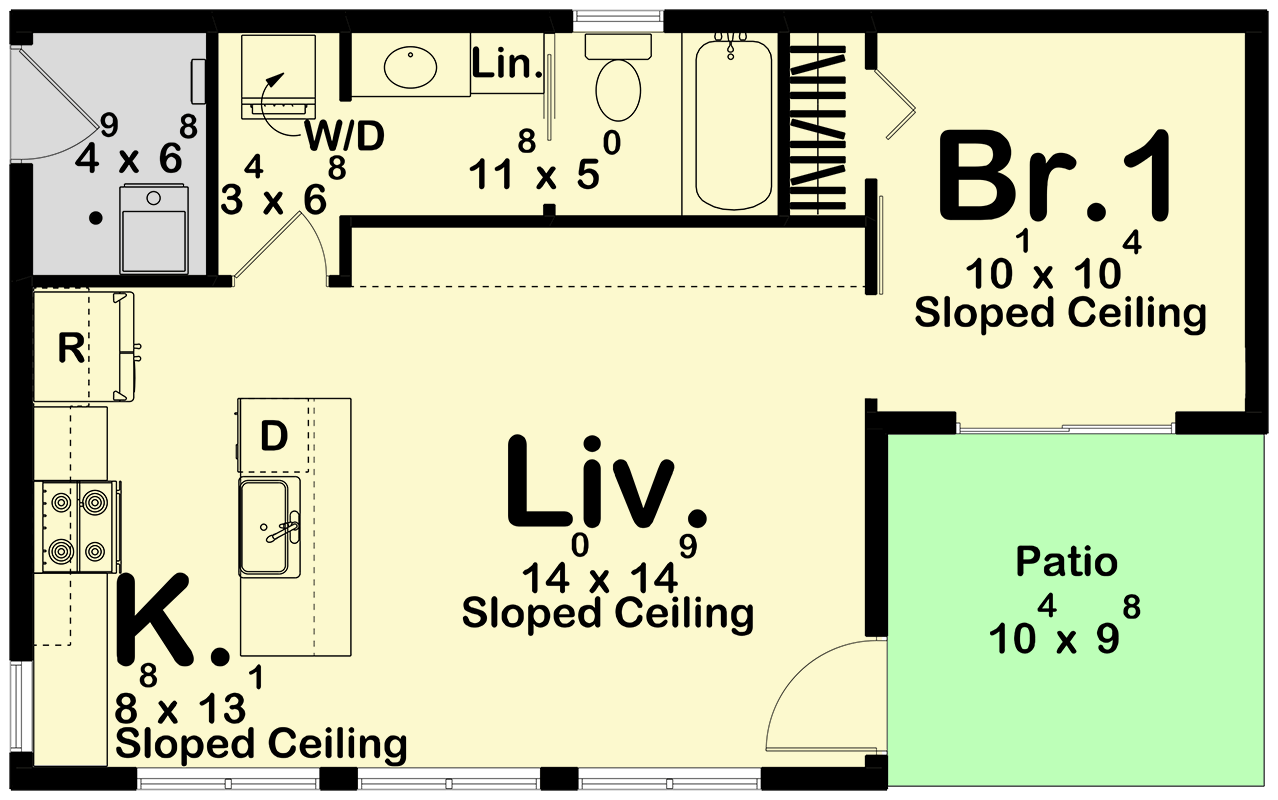

Main Level
floor plan image Main Level
Plan Details

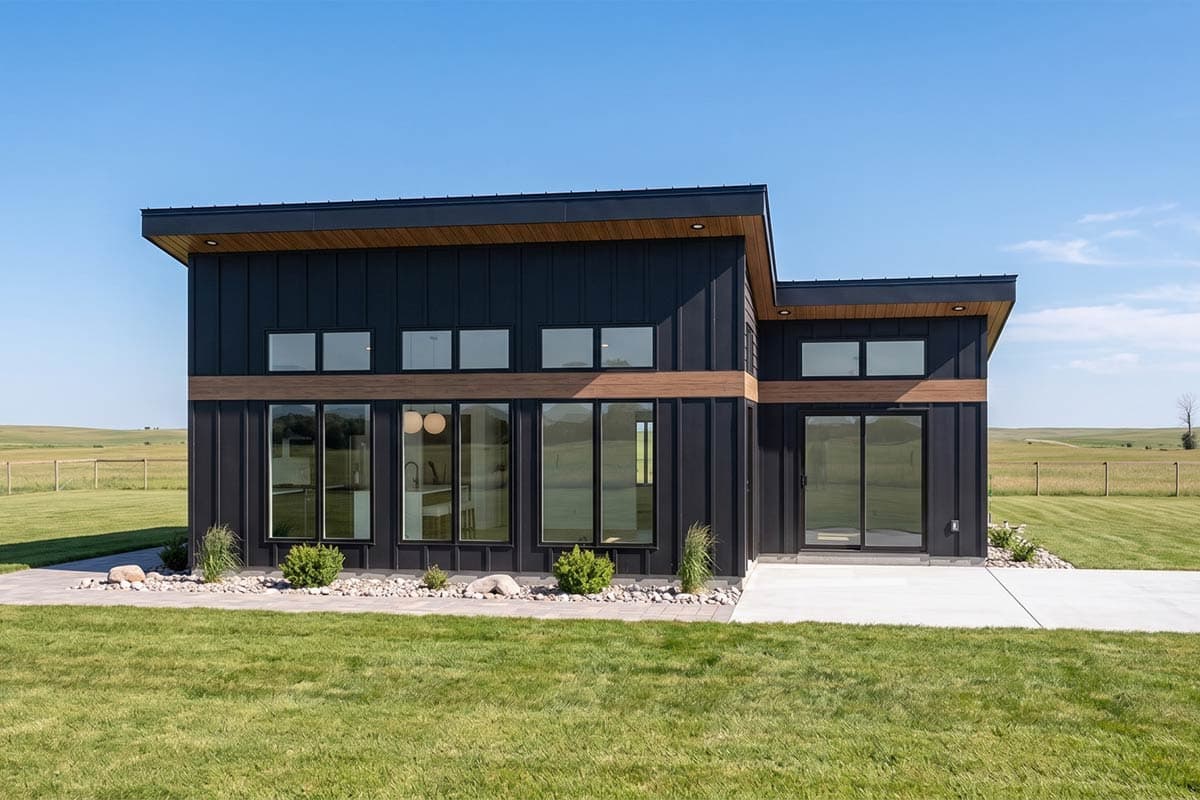

  • This ADU offers a modern, open-concept layout that maximizes space and light.
  • The living room, with floor-to-ceiling windows, connects to an outdoor patio for seamless indoor-outdoor living.
  • The kitchen, next to the living area, features a spacious island for dining and entertaining.
  • A full bathroom includes a stacked washer and dryer, and the private bedroom offers large windows for natural light.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

583 sq. ft.

1st Floor

583 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

34' 0"

Depth

21' 0"

Max Ridge Height

15' 4"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

3 on 12

Framing Type

Architectural Style

Contemporary

Modern

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

583 sq. ft.

1st Floor

583 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

34' 0"

Depth

21' 0"

Max Ridge Height

15' 4"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

3 on 12

Framing Type

Architectural Style

Contemporary

Modern

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU
