Plan 680423VR
1-Bed Mountain Cabin House Plan with Loft Above - 823 Sq Ft
Heated S.F.
823
Beds
1 - 2
Baths
1
Stories
2
Floor Plan

Plan 680423VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 680423VR

1-800-854-7852

1-262-521-4596

Main Level

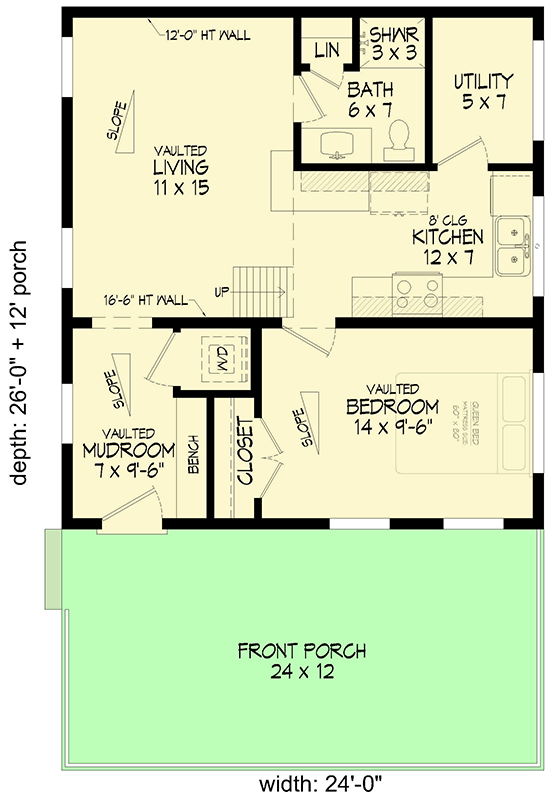

floor plan image Main Level
2nd Floor

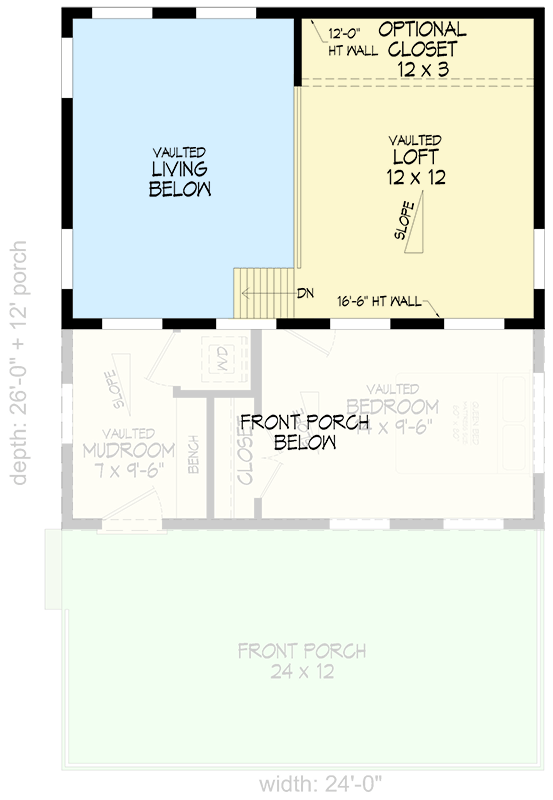

floor plan image 2nd Floor
Plan Details
  • This 1-2 bed, 2 bath mountain house plan gives you 823 square feet of heated living space with a loft on the second floor.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

823 sq. ft.

1st Floor

624 sq. ft.

2nd Floor

199 sq. ft.

Porch, Front

288 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

24' 0"

Depth

38' 0"

Max Ridge Height

17' 11"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

3 on 12

Secondary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Cabin

Mountain

Rustic

Vacation

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

823 sq. ft.

1st Floor

624 sq. ft.

2nd Floor

199 sq. ft.

Porch, Front

288 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

24' 0"

Depth

38' 0"

Max Ridge Height

17' 11"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

3 on 12

Secondary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Cabin

Mountain

Rustic

Vacation

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Photo Gallery
