Plan 420126WNT

Exclusive

1-Bed Traditional Cottage ADU with Front Entry Porch - 506 Sq Ft
Heated S.F.
506
Beds
1
Baths
1
Stories
1
Floor Plan

Plan 420126WNT

Main Level
slide image 0

Plan 420126WNT

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

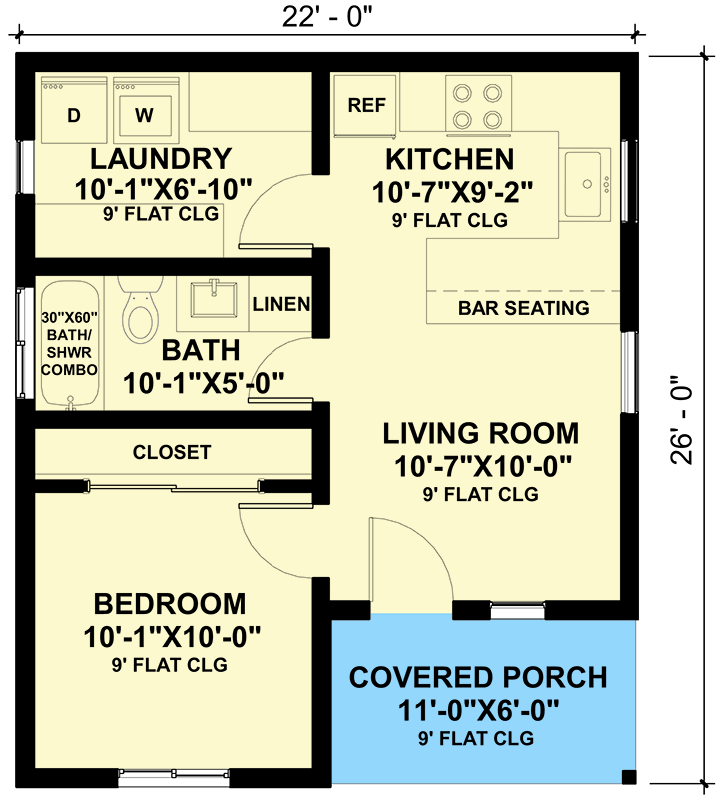

  • This 1-bed ADU gives you one bedroom, one bath and 506 square feet of heated living and a 66 square foot front entry porch.
  • The right side of the home is open front to back with the living room in front and the kitchen in back. The C-shaped kitchen has the sink set below a window looking out the side and a peninsula with bar seating.
  • On the left, the bedroom is in front and has a linear closet. The bathroom is located between the bedroom and the laundry room in back.
  • NOTE: Please allow 3 to 5 business days for delivery.
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

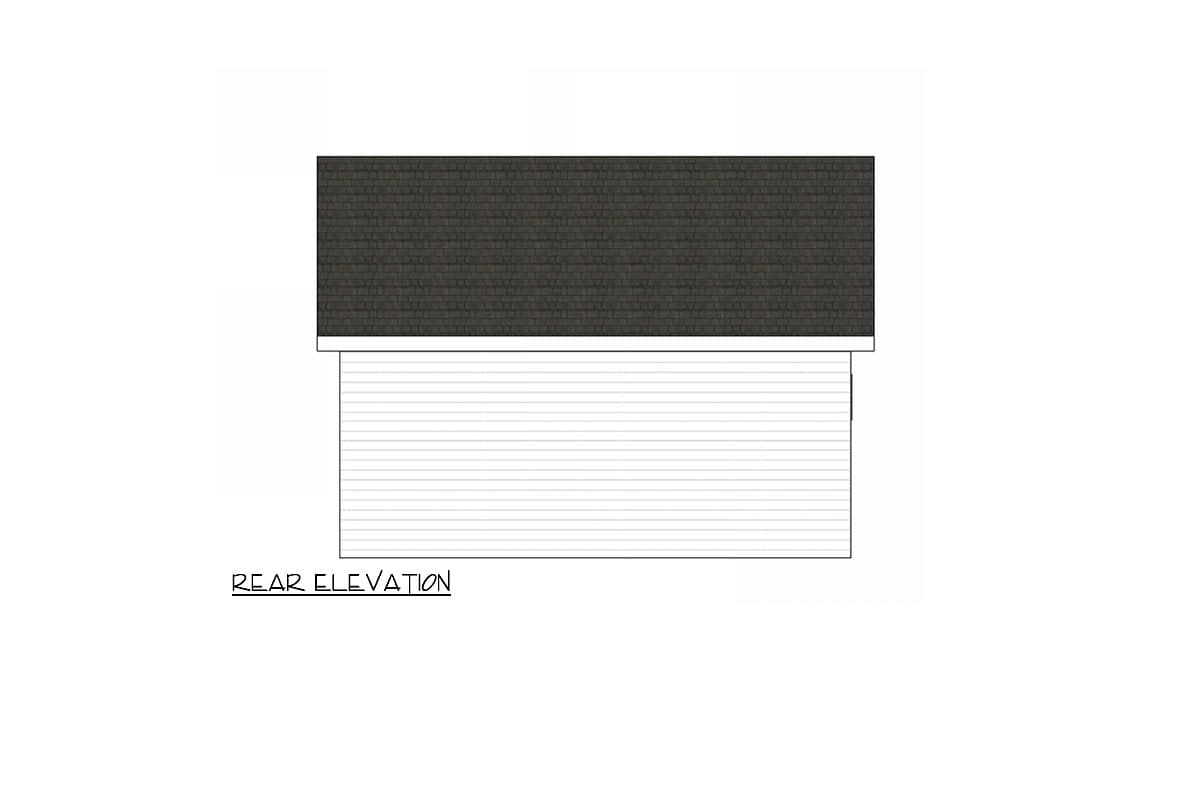

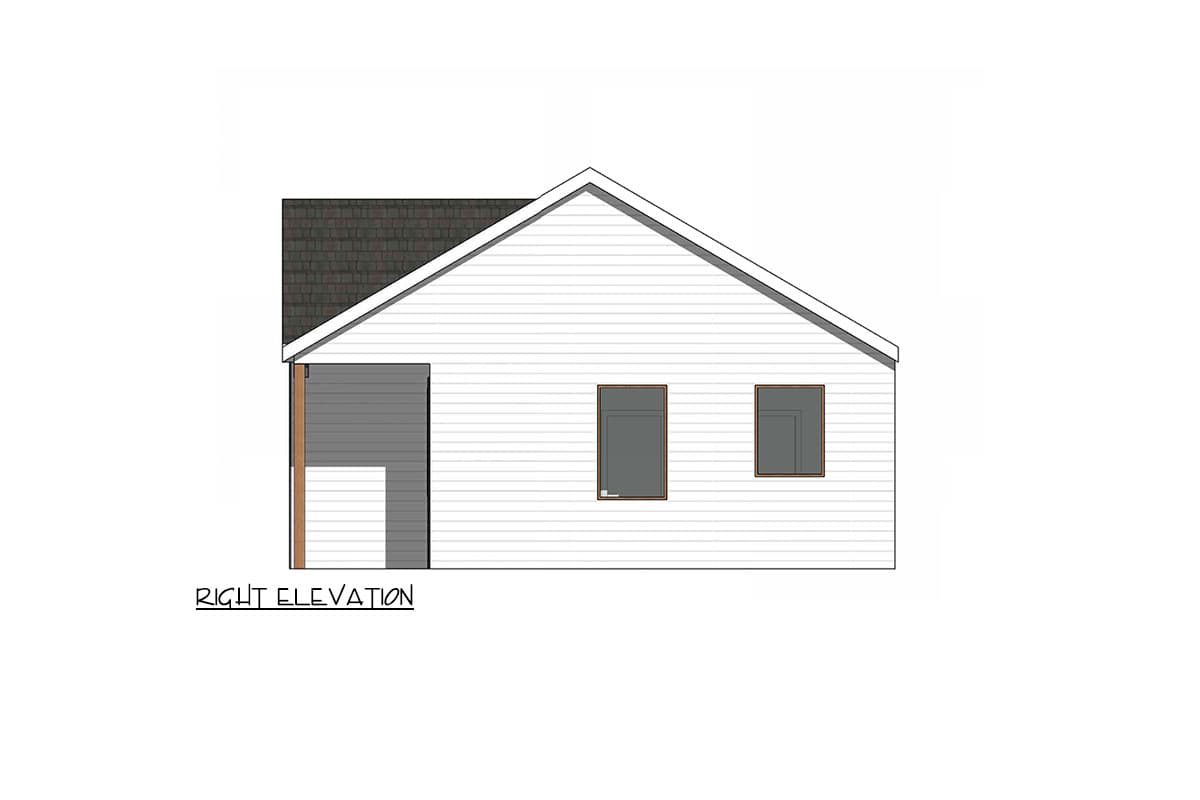

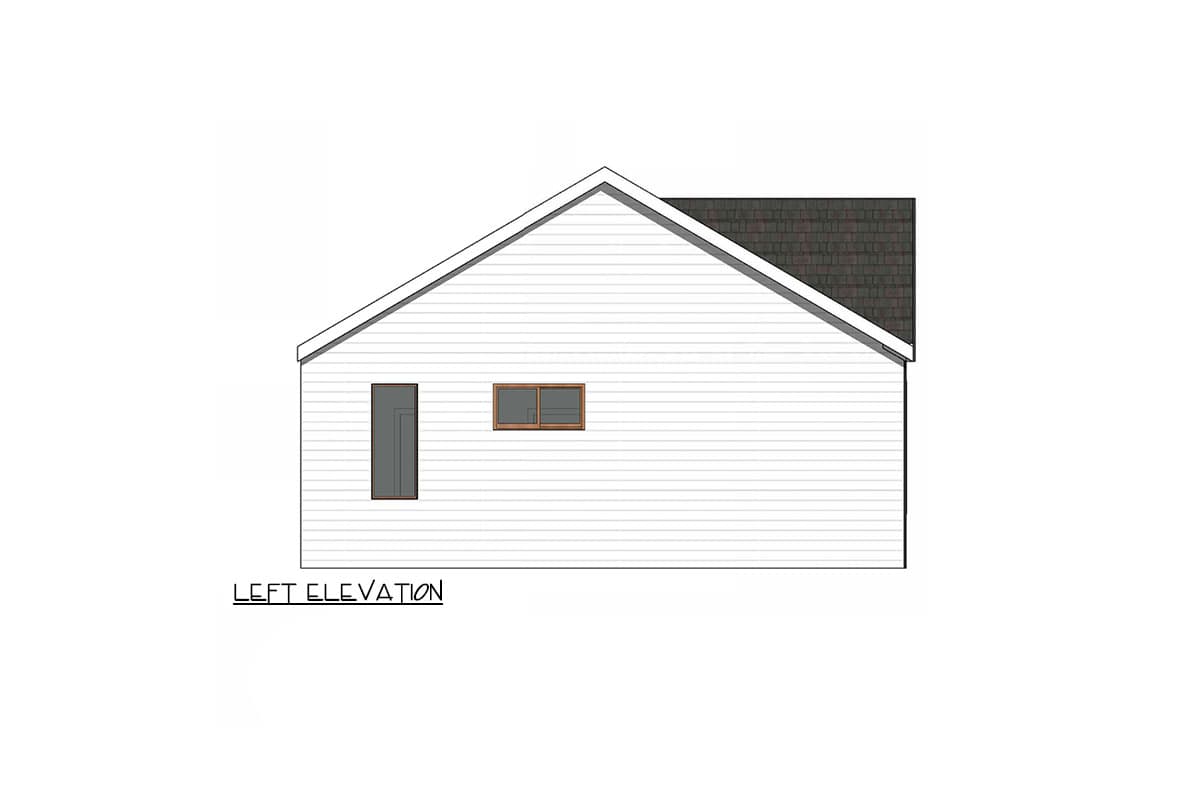

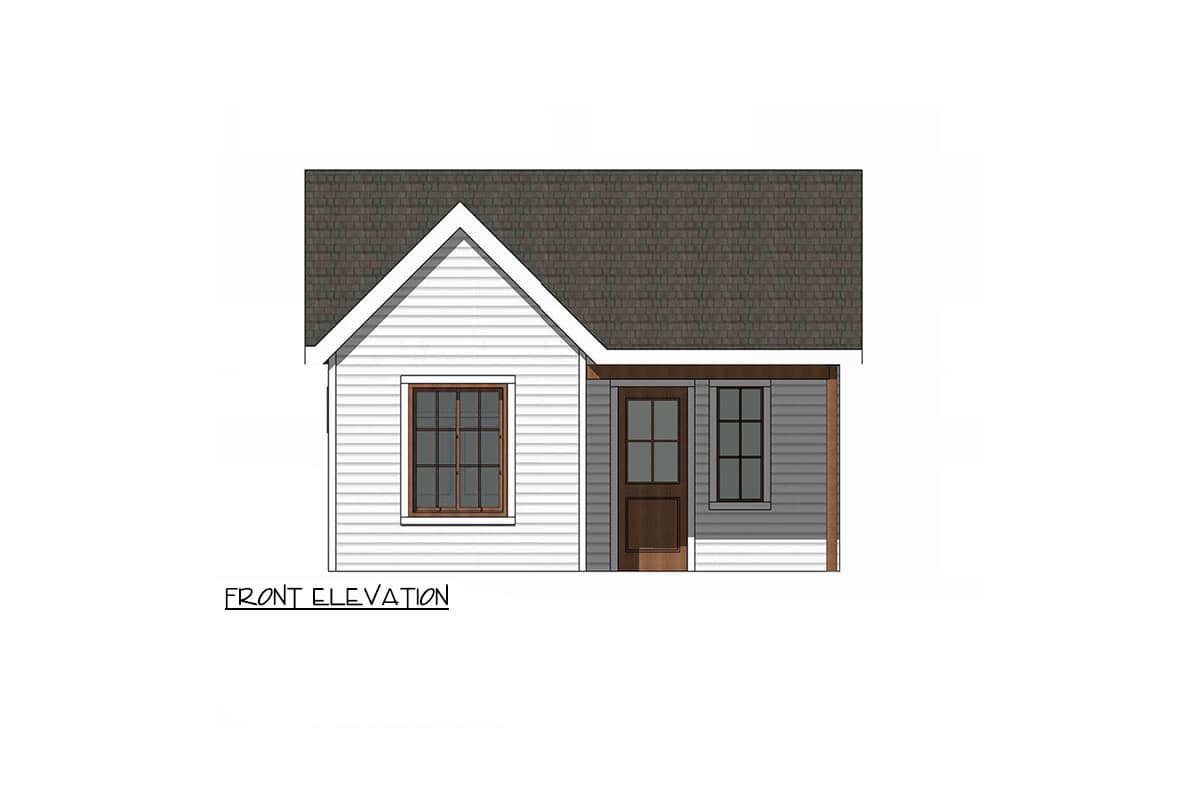

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

506 sq. ft.

1st Floor

506 sq. ft.

Porch, Front

66 sq. ft.

Porch, Combined

66 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

22' 0"

Depth

26' 0"

Max Ridge Height

17' 6"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Cabin

Cottage

Traditional

Special Features

In-Law Suite

Laundry - Main Level

Plan Collections

ADU

Exclusive

Square Footage Breakdown

Total Heated Area

506 sq. ft.

1st Floor

506 sq. ft.

Porch, Front

66 sq. ft.

Porch, Combined

66 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

22' 0"

Depth

26' 0"

Max Ridge Height

17' 6"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Cabin

Cottage

Traditional

Special Features

In-Law Suite

Laundry - Main Level

Plan Collections

ADU

Exclusive
