Plan 680166VR
1-Car Detached Garage with 333 Square Foot Loft Above
Heated S.F.
333
Beds
Baths
0
Stories
2
Cars
1
Floor Plan

Plan 680166VR

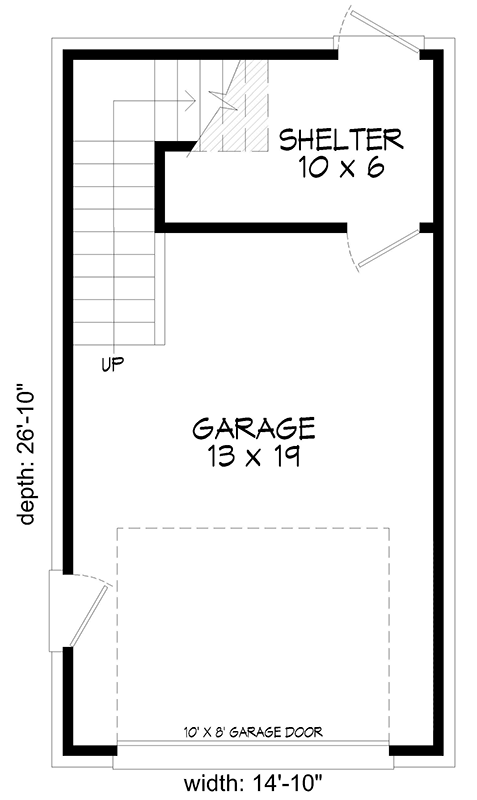

Main Level
slide image 0

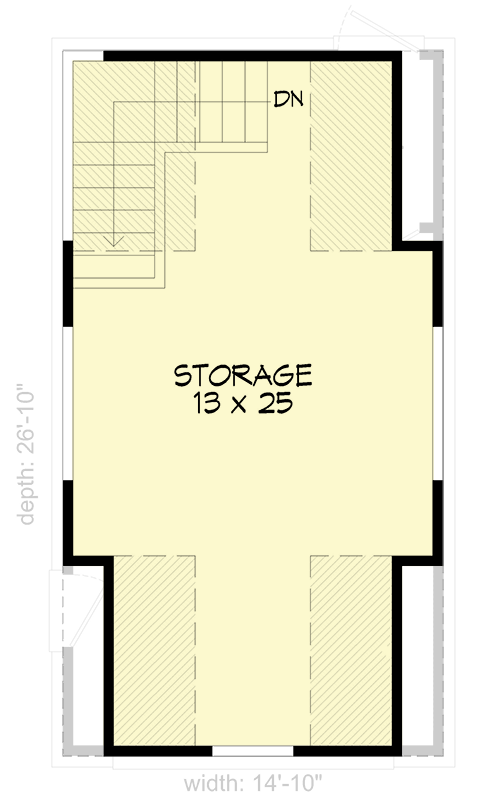

2nd Floor
slide image 1

Plan 680166VR

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Board and batten siding guides your eye upward to the gabled roofline of this single, detached garage, while adding a hint of the ever-popular farmhouse style.
  • The rectangular footprint keeps budget in mind, while offering access to the outdoors from each of the four sides.
  • Additional storage space is included on the main level, which is topped by a versatile, 13' by 25' loft on the second level.
  • Related Plan: Get an alternate version with garage plan 68678VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

333 sq. ft.

2nd Floor

333 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

14' 10"

Depth

26' 10"

Max Ridge Height

21' 4"

Garage

Type

Detached

Area

398 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

New American

Traditional

Square Footage Breakdown

Total Heated Area

333 sq. ft.

2nd Floor

333 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

14' 10"

Depth

26' 10"

Max Ridge Height

21' 4"

Garage

Type

Detached

Area

398 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

New American

Traditional
