Plan 135261GRA
1110 Sq Ft 2-Car Garage with 507 Sq Ft Studio Apartment Above
Heated S.F.
507
Beds
1
Baths
1
Stories
2
Cars
2
Floor Plan

Plan 135261GRA

Main Level
slide image 0
2nd Floor
slide image 1

Plan 135261GRA

1-800-854-7852

1-262-521-4596

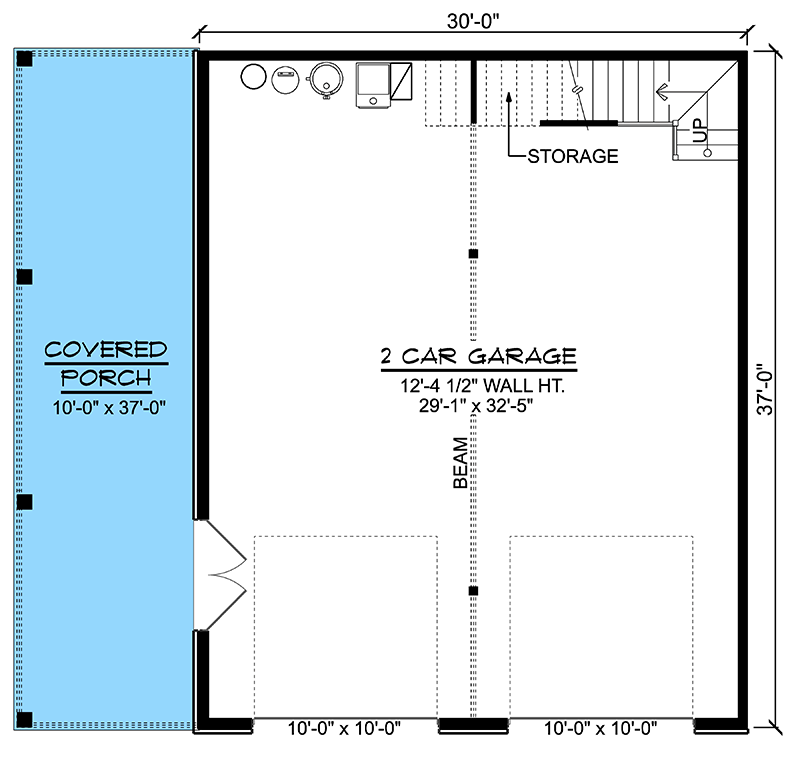

Main Level
floor plan image Main Level

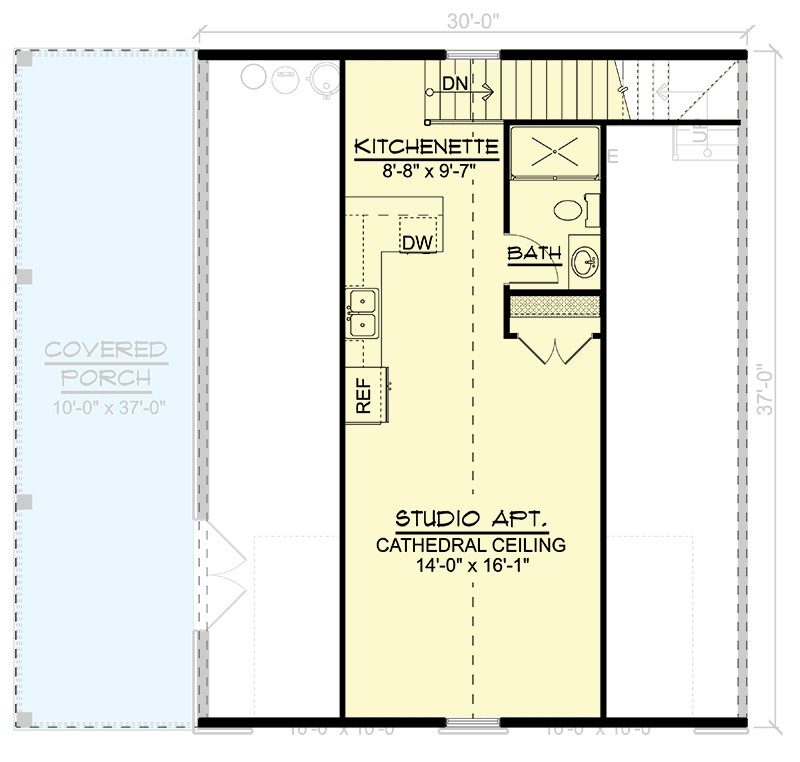

2nd Floor
floor plan image 2nd Floor
Plan Details

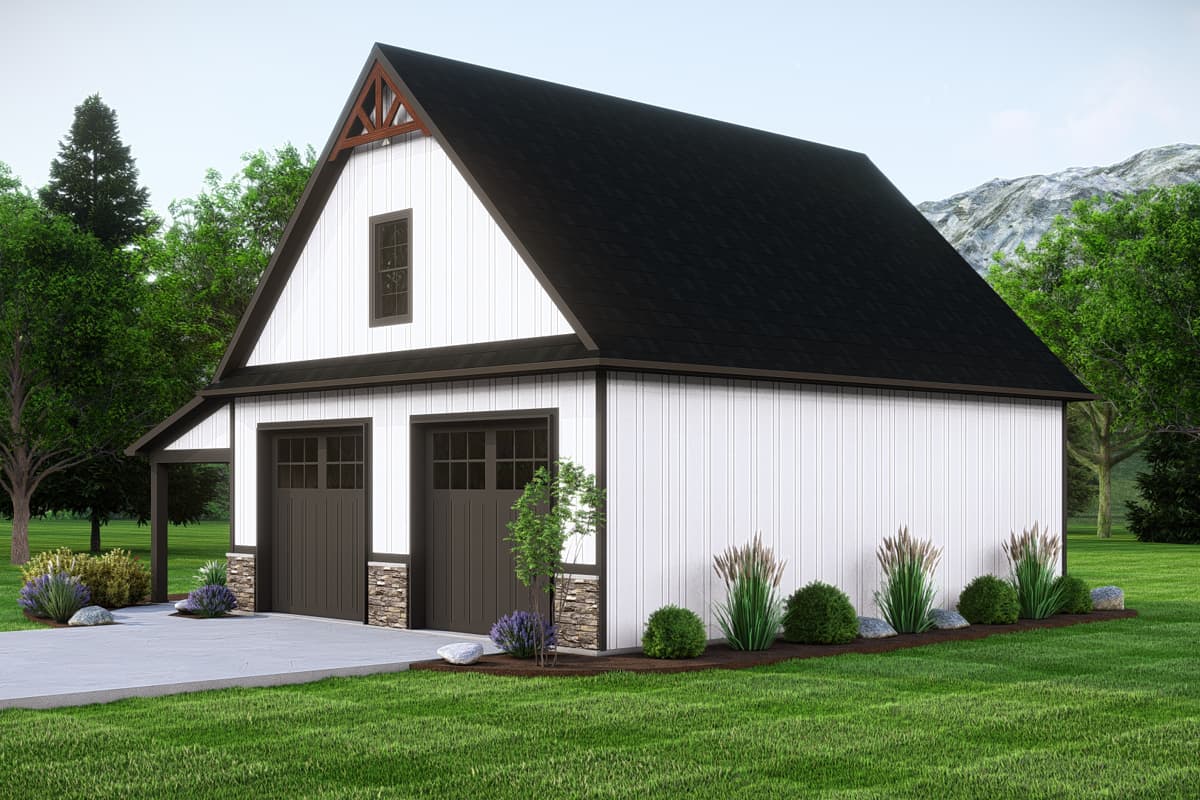

  • This detached garage plan not only gives you a 1,110 square foot 2-car garage on the main floor but also a 507 square foot open studio apartment above.

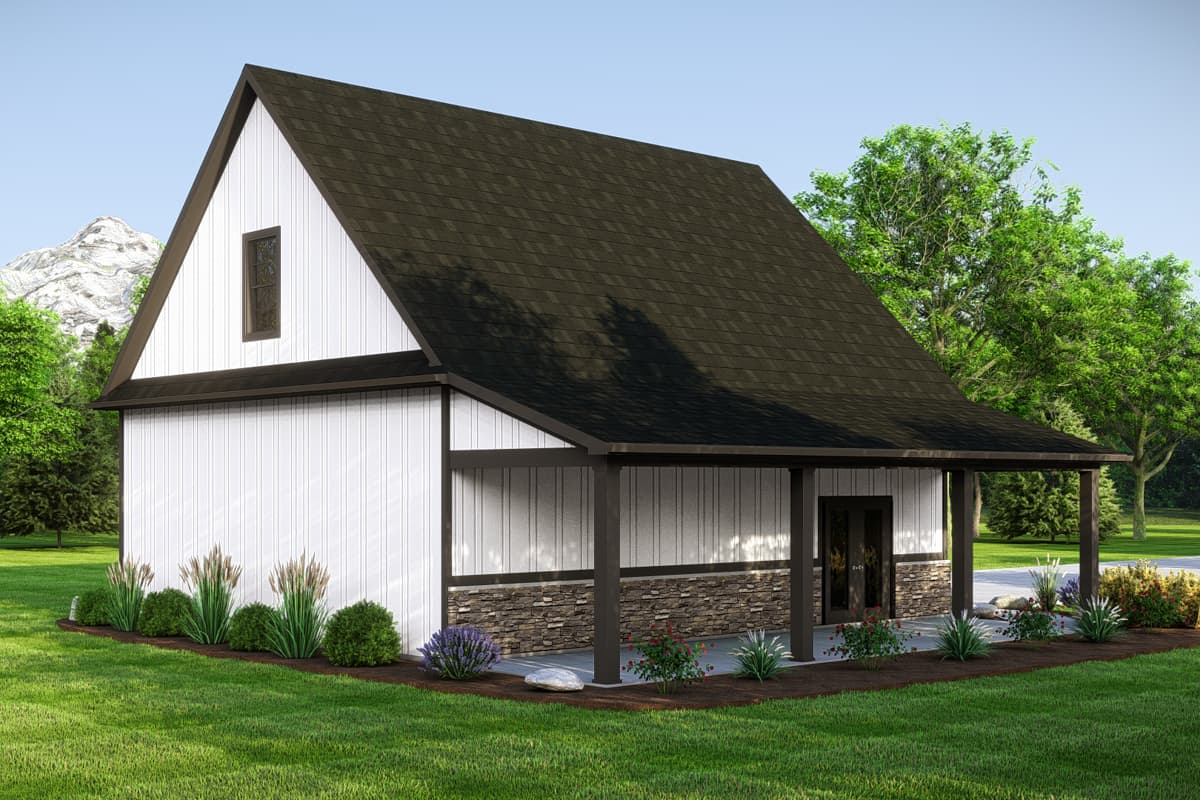

  • Matching 10' by 10' overhead doors give your cars access to the barrier-free garage with space for storage and utilities in back. Along the left side, a 10' deep covered porch runs along the entire home.

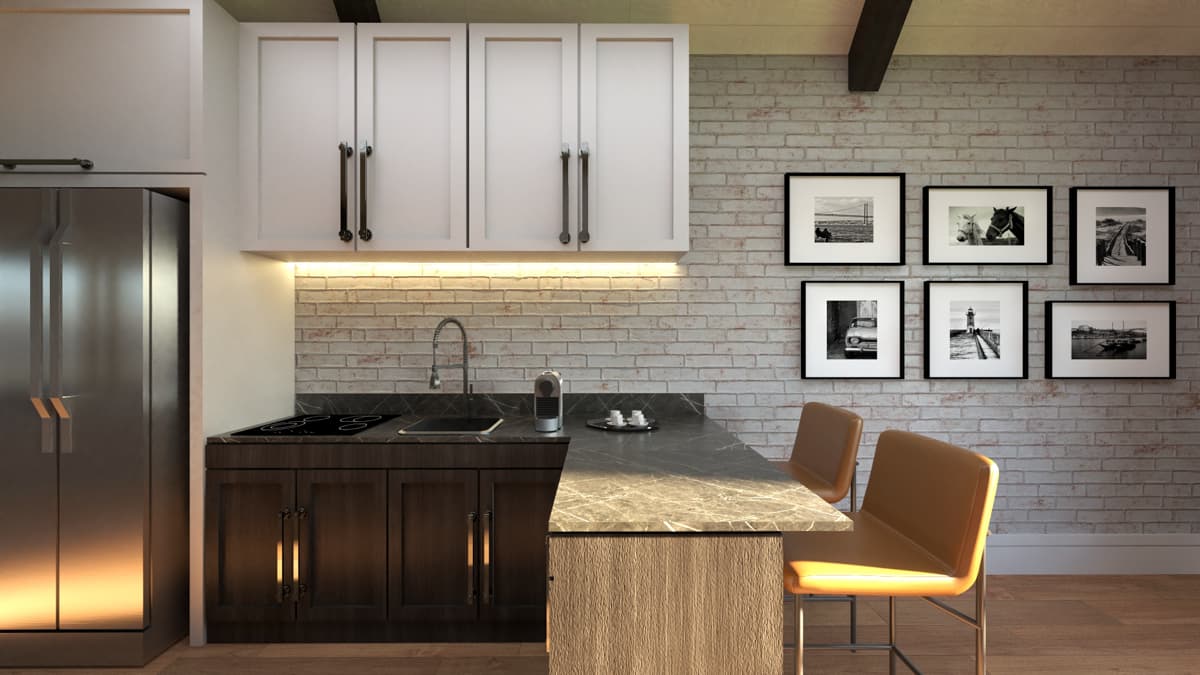

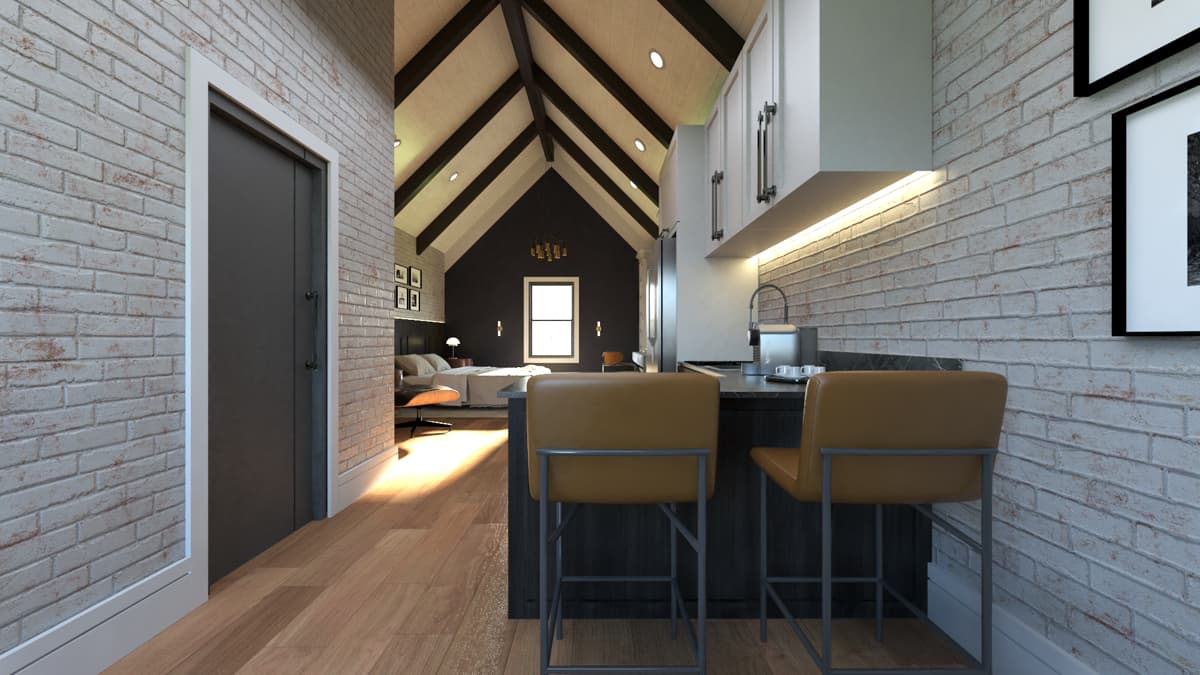

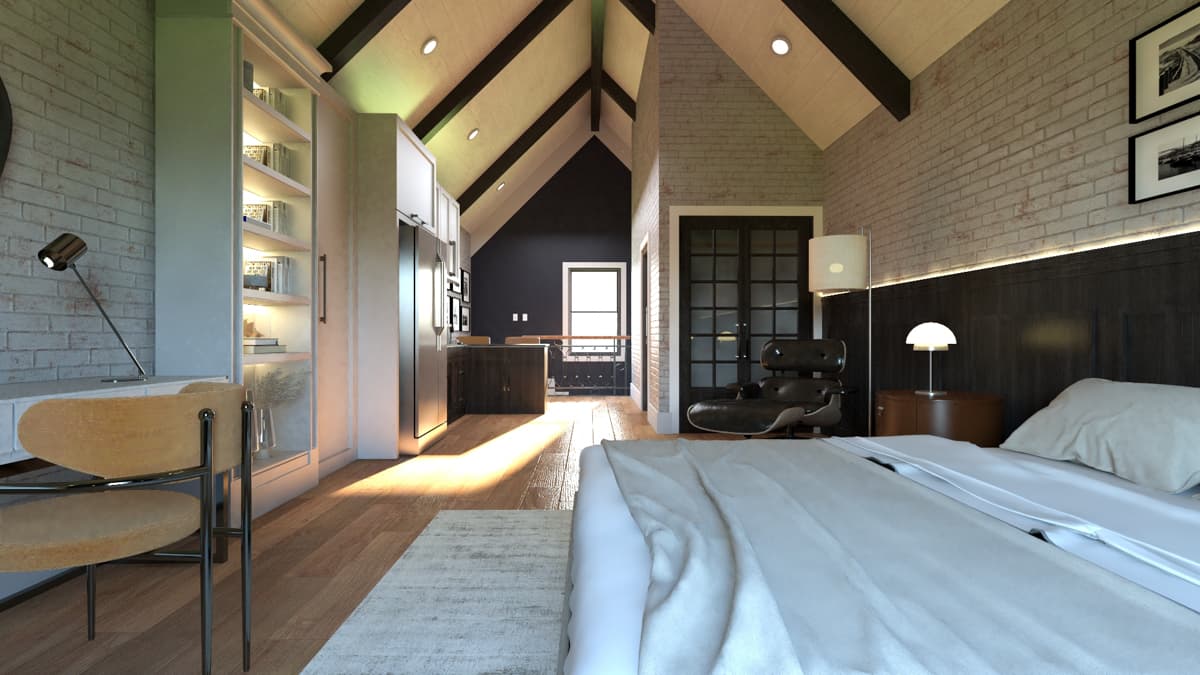

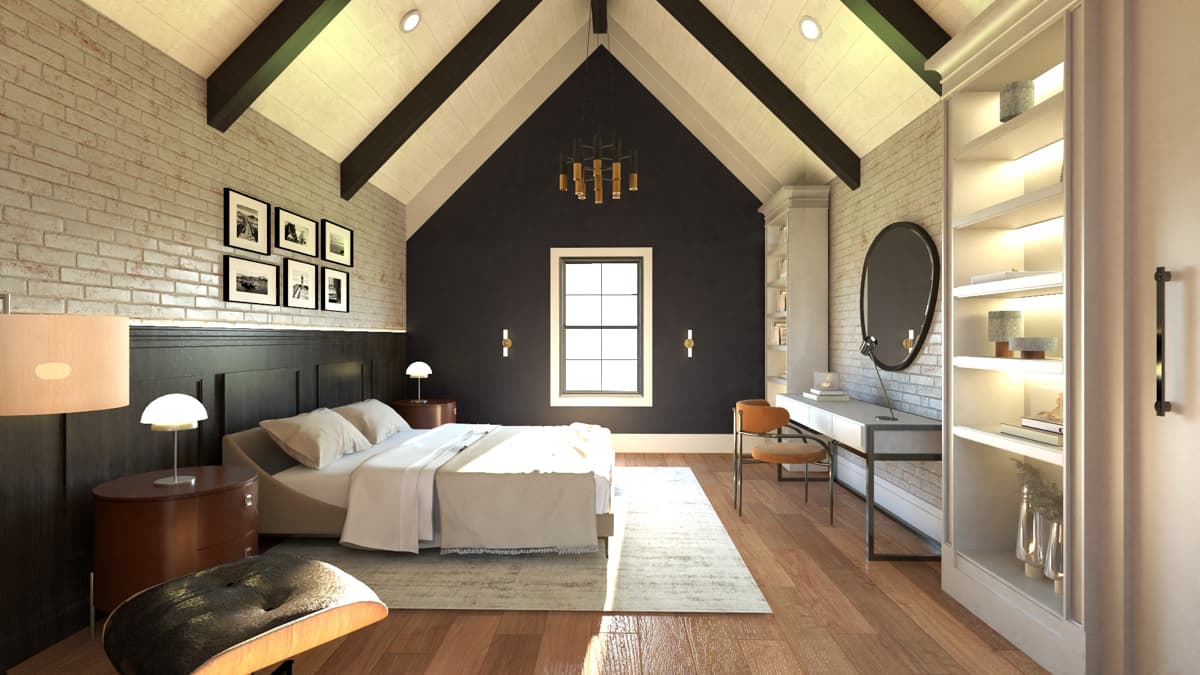

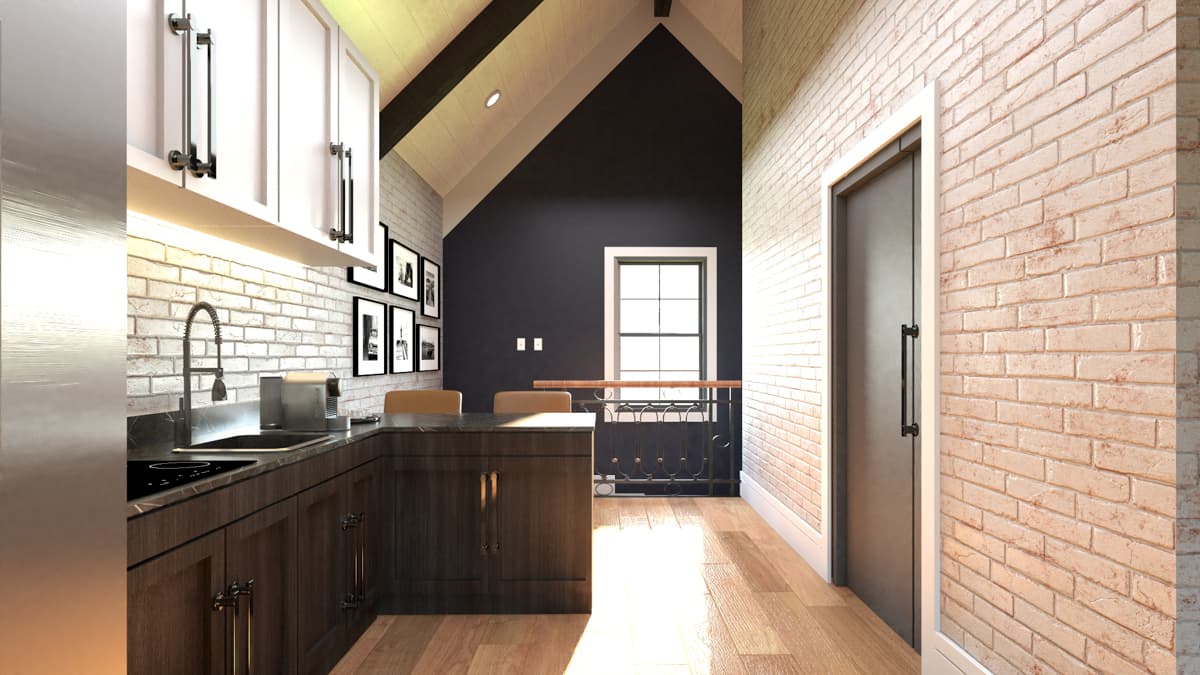

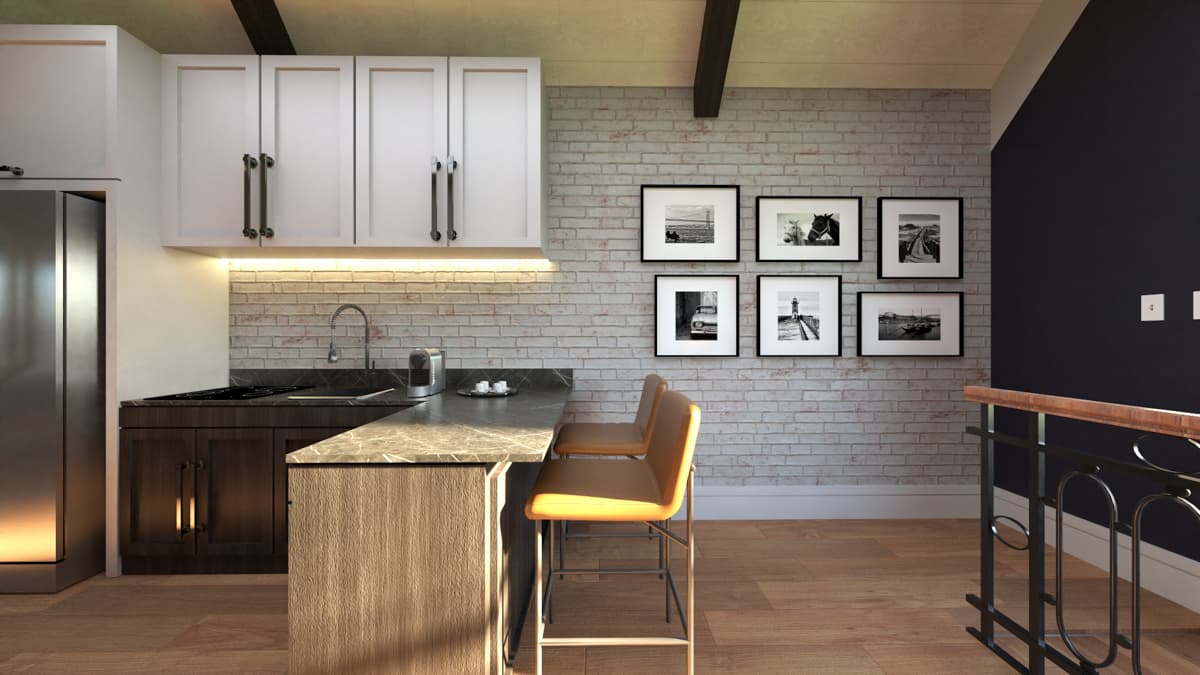

  • Stairs in the back-right of the garage take you to the apartment with a kitchenette by the top of the stairs, a full bath and a flexible vaulted open space.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

507 sq. ft.

2nd Floor

507 sq. ft.

Covered Patio

380 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

37' 0"

Max Ridge Height

28' 9"

Garage

Type

Detached

Area

1110 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

12'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Cabin

Cottage

Country

Craftsman

Traditional

Special Features

Laundry - Main Level

Master Suite - 2nd Floor

Plan Collections

ADU
