1162 Square Foot Rustic 3 Bedroom New American Ranch
Heated S.F.
1,162
Beds
3
Baths
2
Stories
1
Floor Plan

Plan 420042WNT

Main Level
slide image 0

Plan 420042WNT

1-800-854-7852

1-262-521-4596

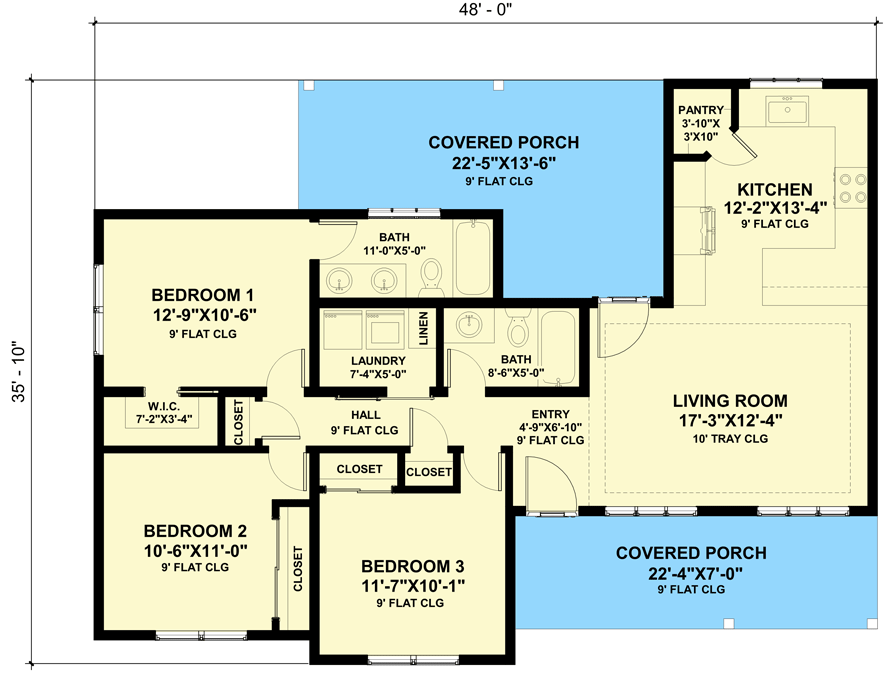

Main Level
floor plan image Main Level
Plan Details
  • The stunning rustic exterior adds to the curb appeal provided by this 3-bedroom New American Ranch home plan.
  • An inviting 22'4" by 7' front porch invites family and friends inside where a living room resides to the right.
  • The rectangular kitchen features a corner pantry and a window above the sink that overlooks the back yard.
  • The living space expands onto a rear porch for BBQs and lounging outdoors; an ideal spot when entertaining.
  • The primary bedroom includes a full bathroom with a dual-vanity sink. Across the hall, two bedrooms share a full bath and the laundry room is centrally located for convenience.
  • Related Plans: Get a larger version with house plans 420048WNT (1,240 sq. ft.) and 420043WNT (1,264 sq. ft).
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

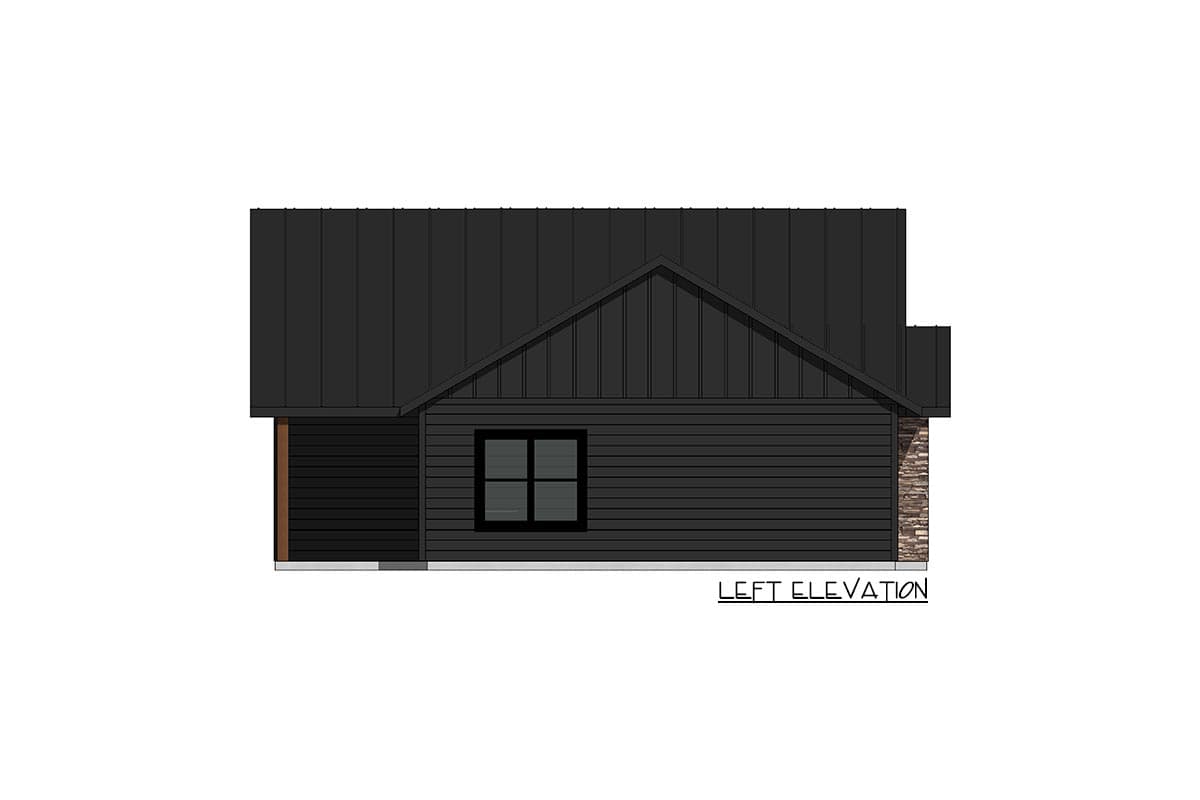

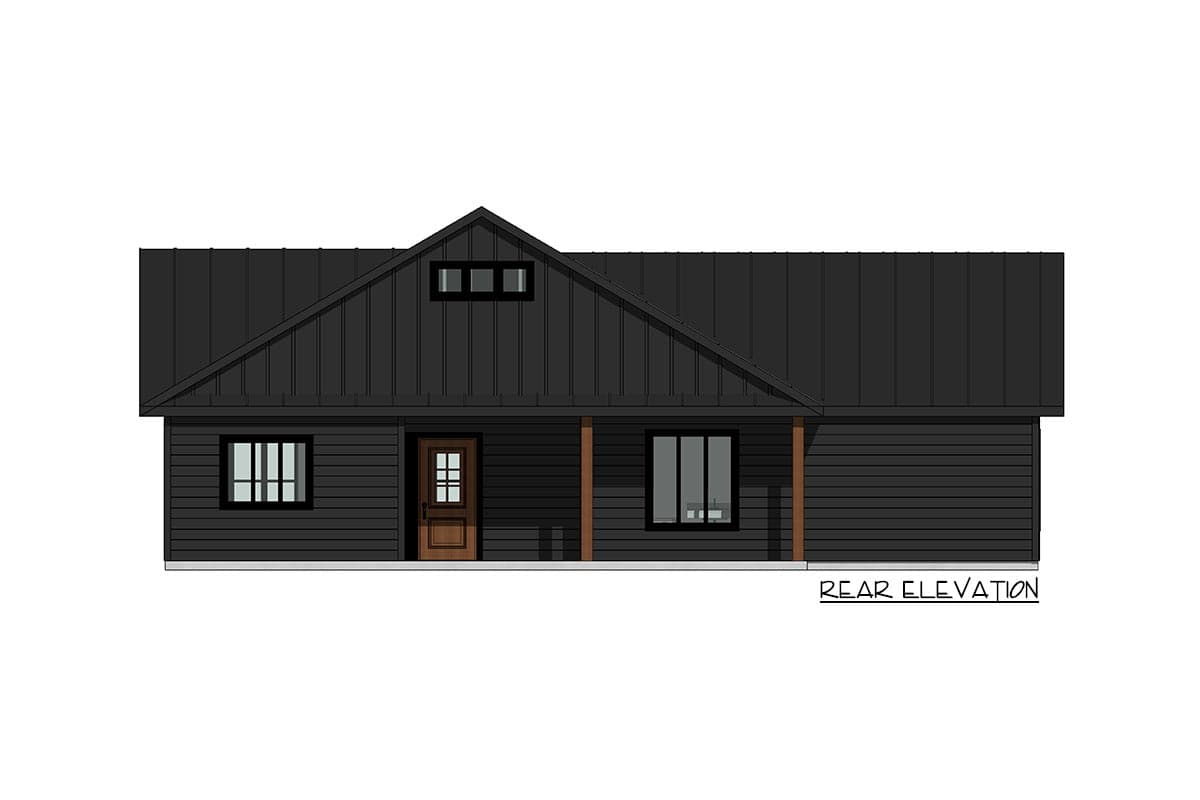

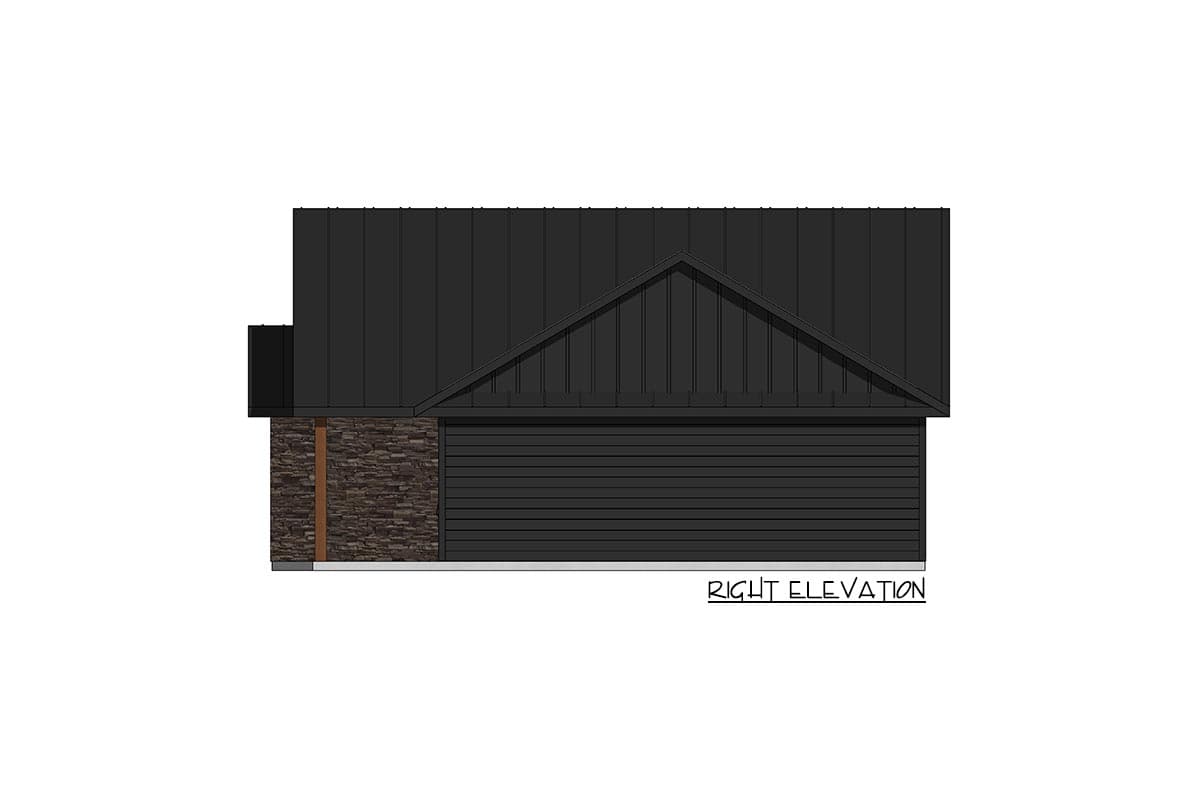

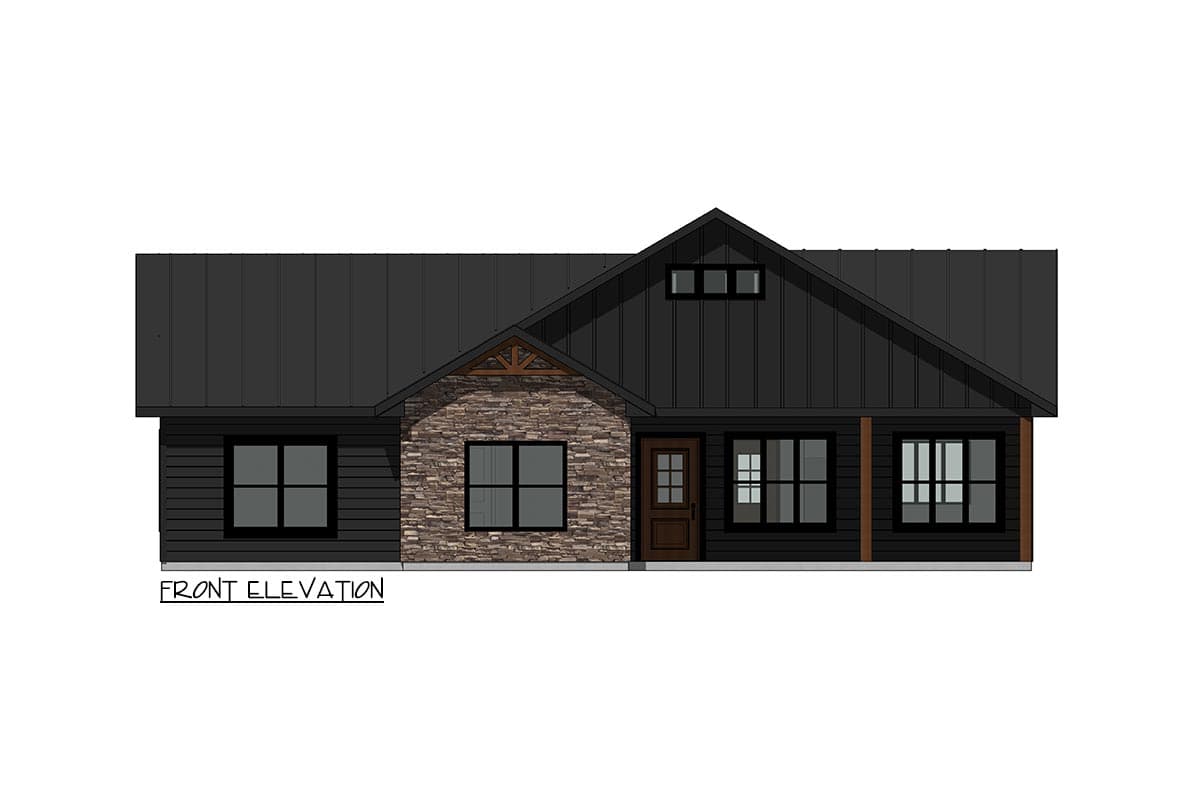

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
