Plan 680244VR
1200 Sq Ft 4-Car Garage with Workshop and 1200 Sq Ft Loft Above
Heated S.F.
0
Beds
Baths
0
Stories
2
Cars
2
Floor Plan

Plan 680244VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 680244VR

1-800-854-7852

1-262-521-4596

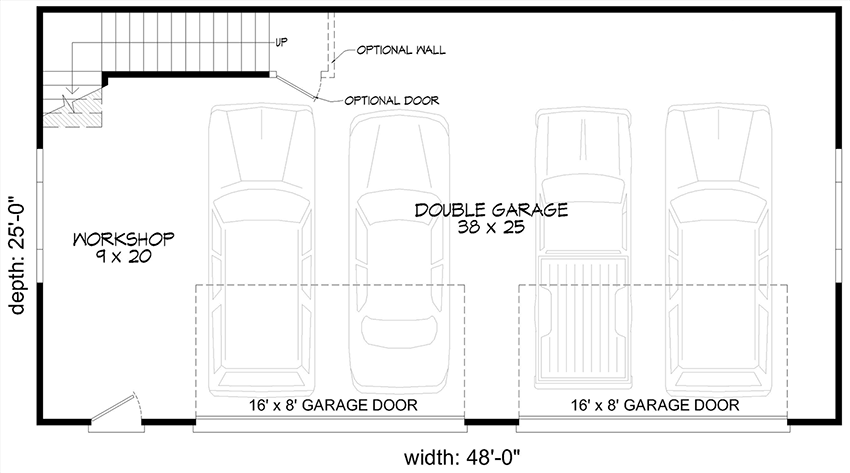

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

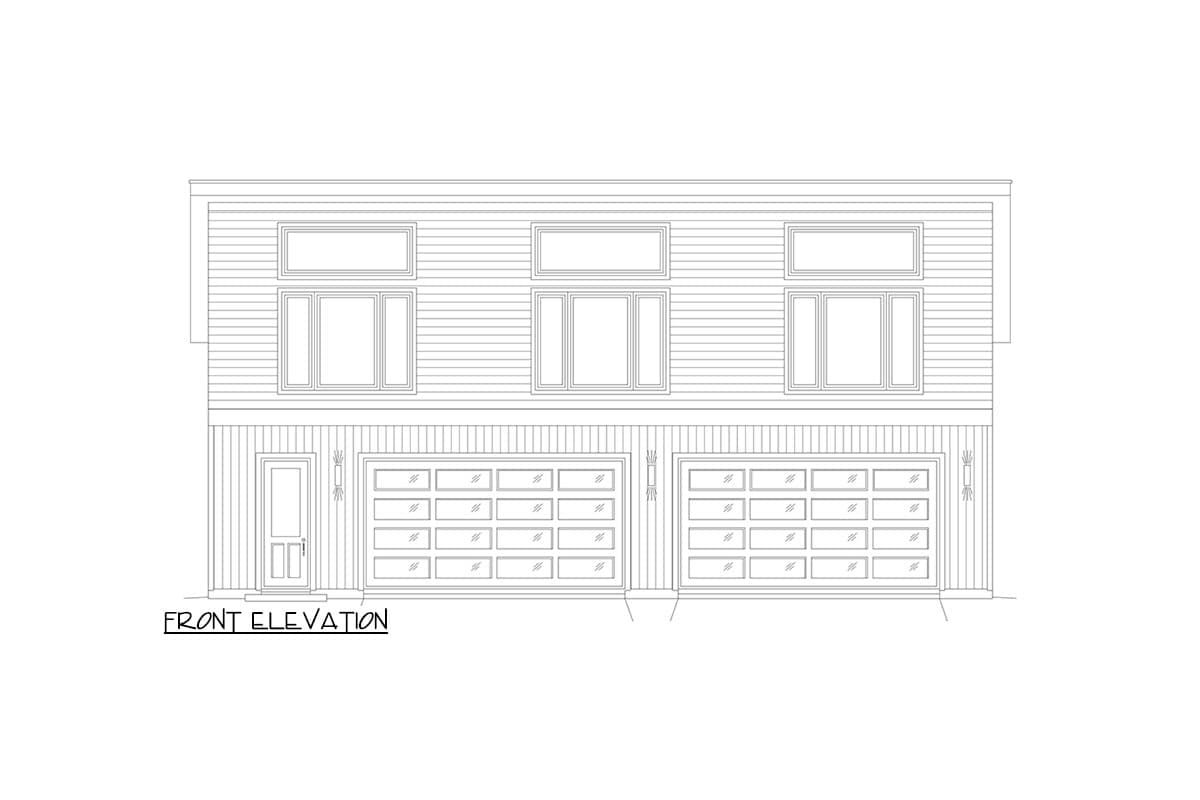

  • This garage workshop gives you 1,200 square feet of parking set behind two 16' by 8' overhead doors.
  • A workshop is located behind the man door. Windows on either side let in natural light.
  • Stairs run along the back and take you to a 1,200 square foot wide open loft.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get an alternate version with garage plan 68544VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

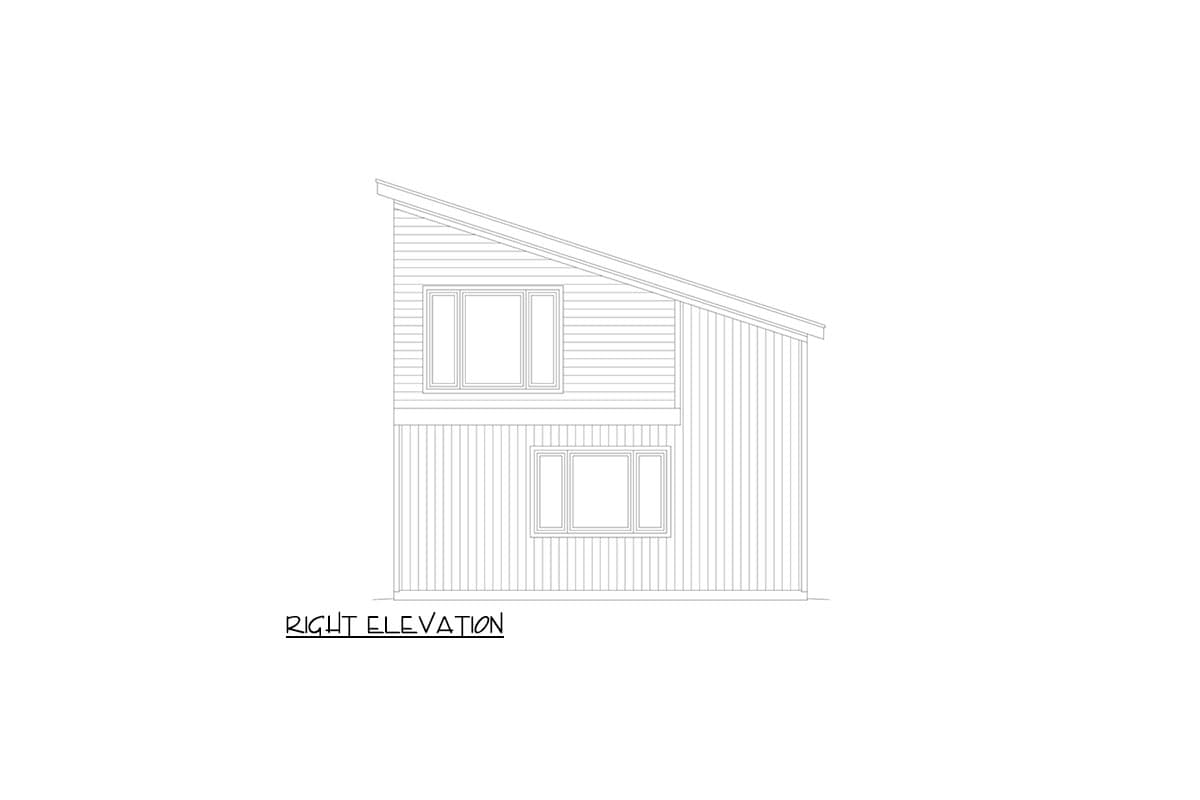

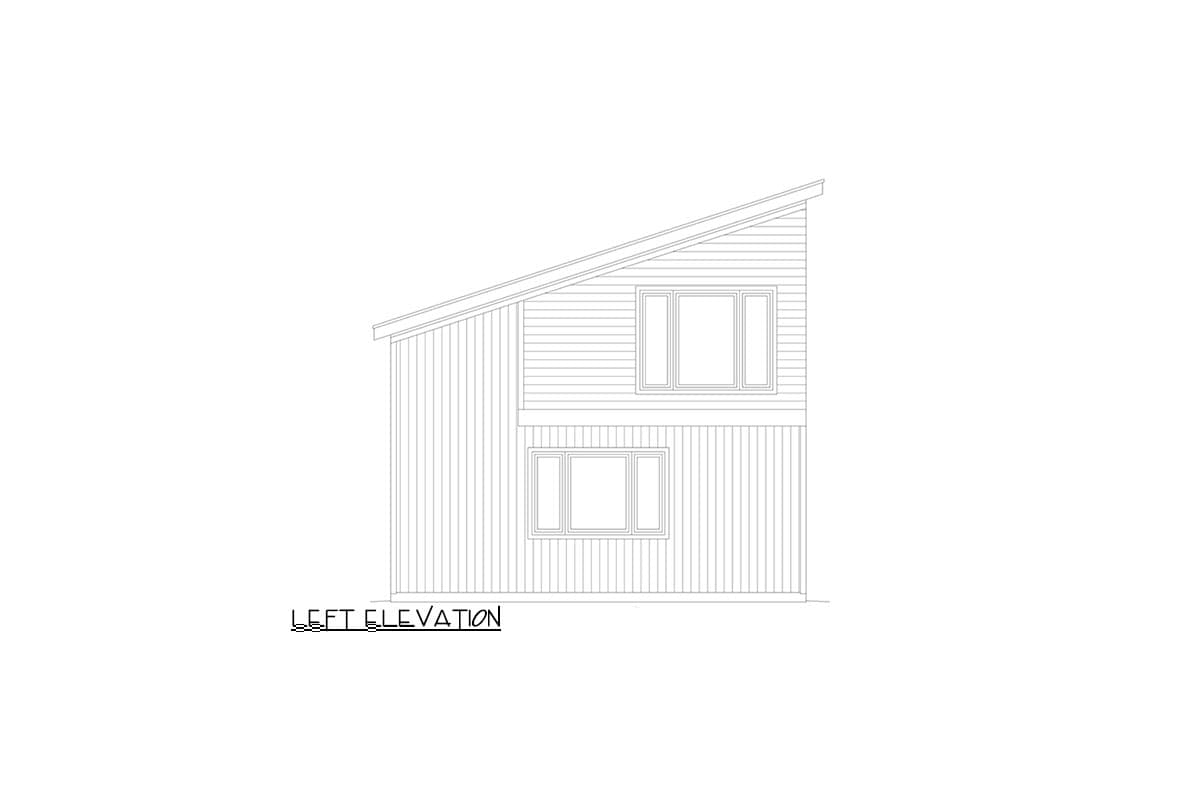

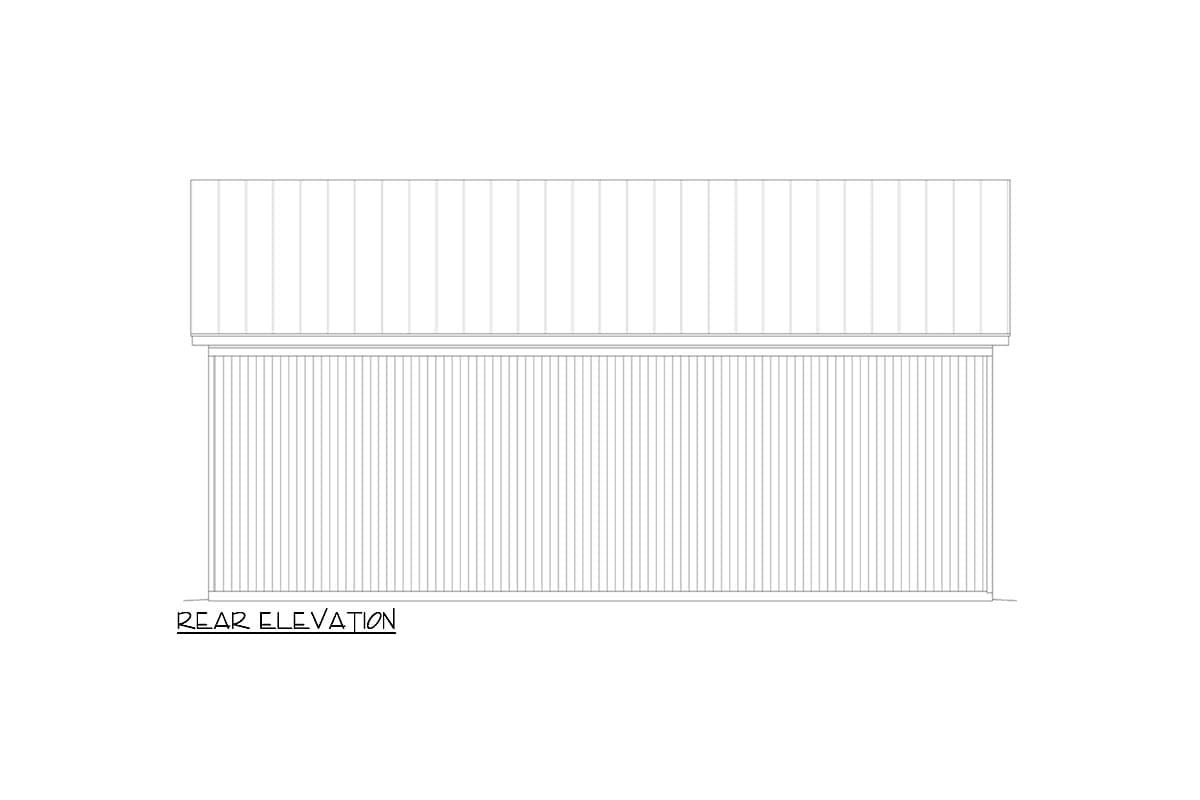

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Loft

1,200 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

48' 0"

Depth

25' 0"

Max Ridge Height

24' 9"

Garage

Area

1200 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Loft

Workshop

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Loft

1,200 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

48' 0"

Depth

25' 0"

Max Ridge Height

24' 9"

Garage

Area

1200 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Loft

Workshop
