Plan 810018RBT
1345 Square Foot Carriage House Plan with Flex Room
Heated S.F.
1,345
Beds
1 - 2
Baths
1.5
Stories
2
Cars
3
Floor Plan

Plan 810018RBT

Main Level
slide image 0
2nd Floor
slide image 1

Plan 810018RBT

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • A broad shed dormer with 3 two-over-two windows not only adds to the curb appeal but also lets in light and creates volume in the living level above the 3-car garage.
  • Enclosed stairs run along the right side with a foyer and closet helping make the transition from outside - as well as inside the garage - more pleasant.

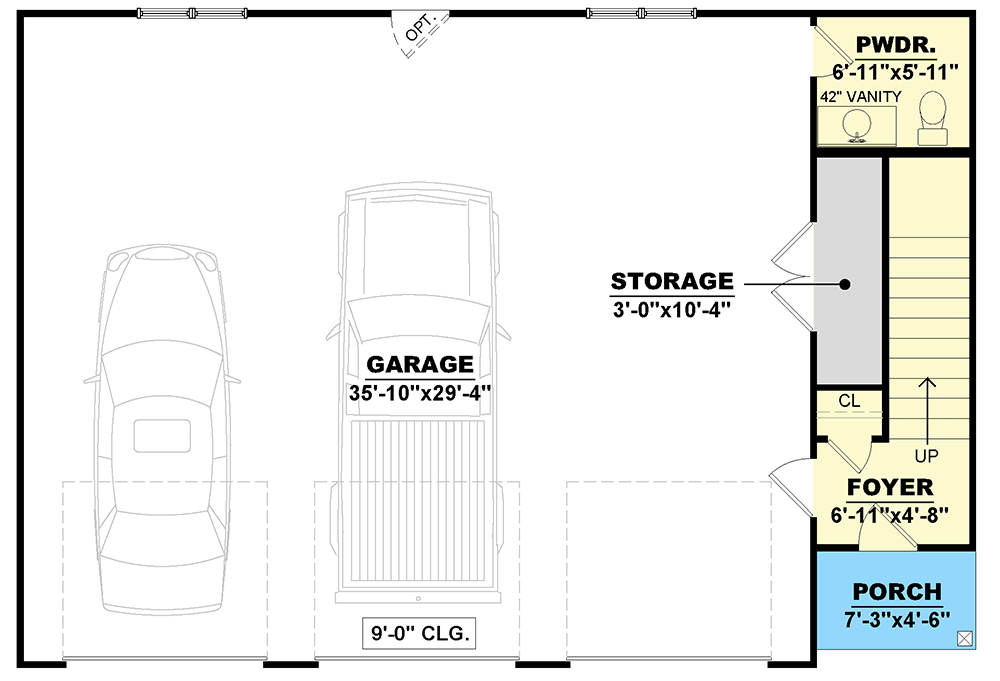

  • The ground level is dedicated to parking and storage and has a half bath tucked in the back-right corner.

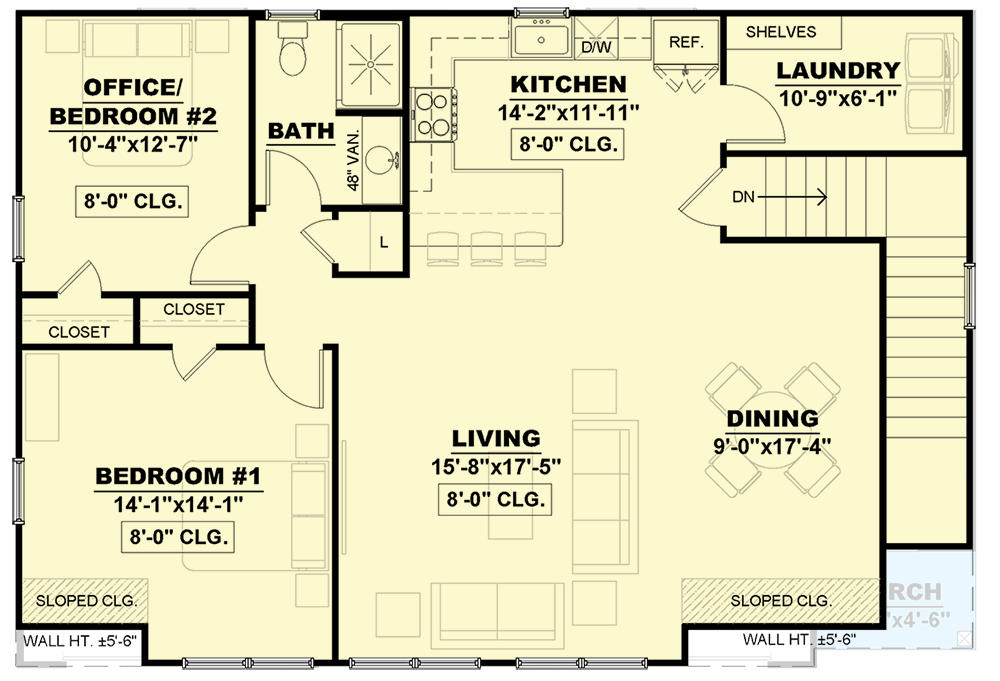

  • On the living level, a main bedroom and a flex room - perfect for use as a home office - line the left side of the floor.
  • The main portion of the upper floor is filled with light and open front to back. There is informal seating at the peninsula in the C-shaped kitchen and laundry hidden in the back-right corner.
  • Related Plans: Get an alternate layout with garage plans 810003RBT (1,196 sq. ft.) and 810031RBT (1,345 sq. ft.).
What's Included
  • Cover sheet with General Notes, Area Tabulation, Index, Drawing Symbol Key, Rendering, Abbreviations, + Materials Legend
  • Foundation Plan, Foundation Plan Notes, Wall Type Legend, Roof Plan, + General Roof Plan Notes
  • Main Level Floor Plan, Upper Level Floor Plan, Wall Type Legend, + Interior Kitchen Elevations

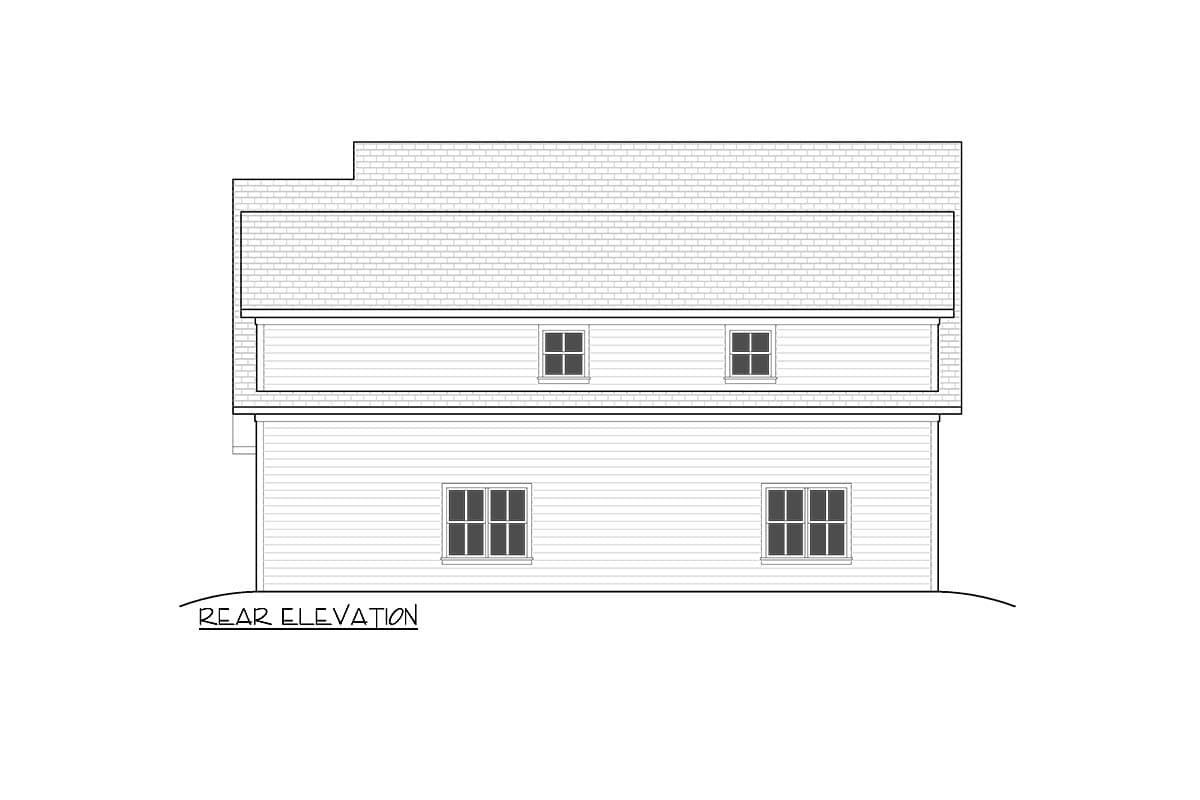

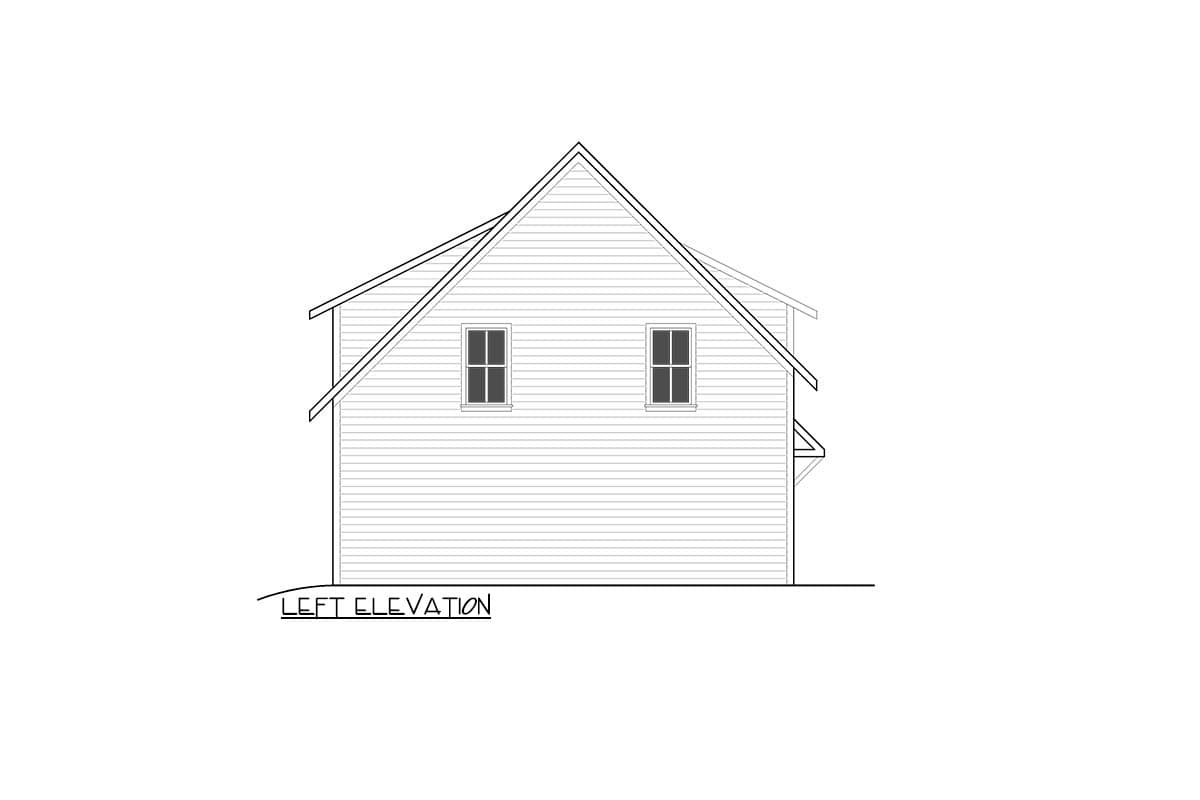

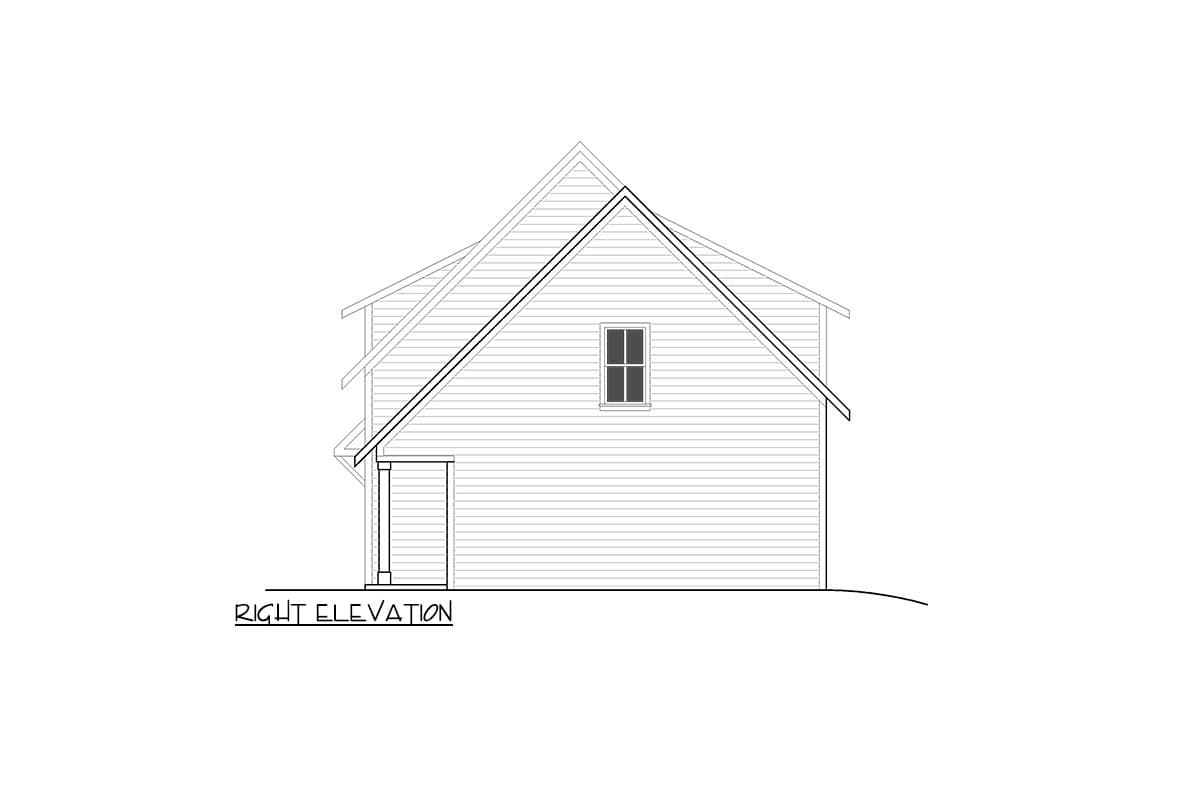

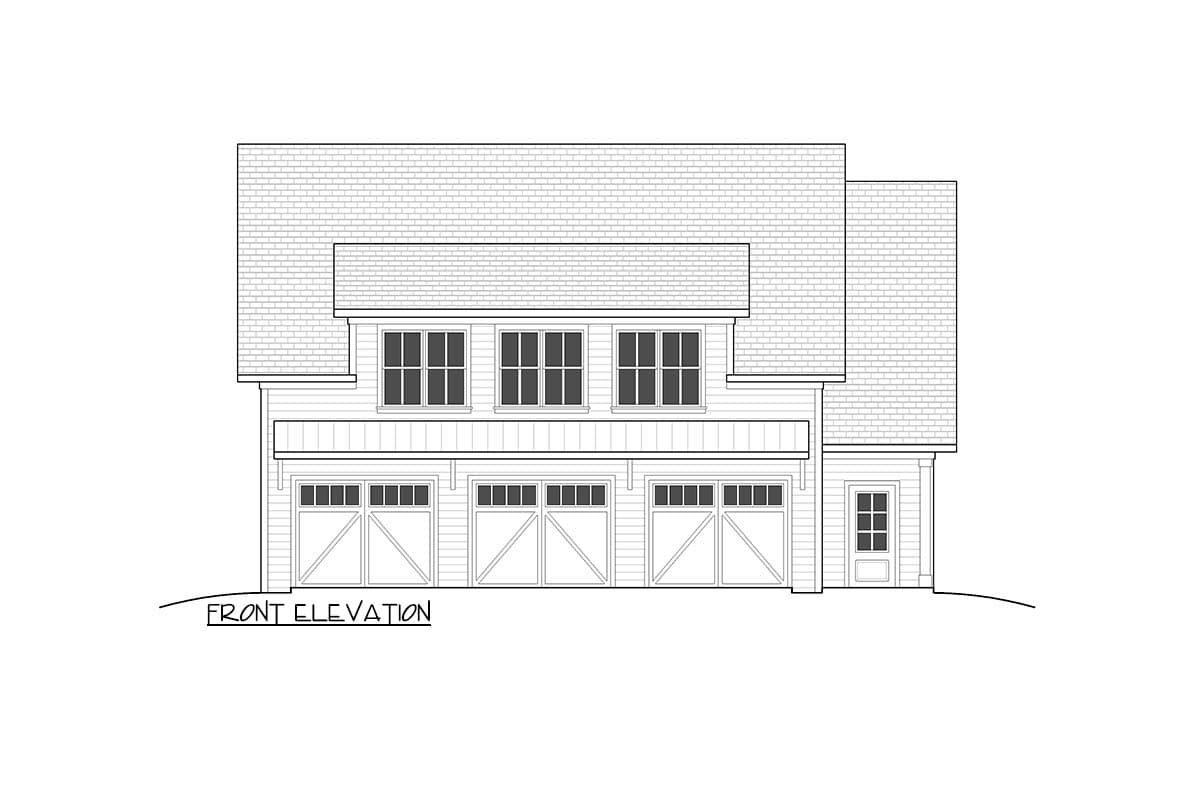

  • Four Exterior Elevations, General Elevation Notes
  • Electrical Lighting Plans, Electrical Legend, + Electrical Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,345 sq. ft.

1st Floor

149 sq. ft.

2nd Floor

1,196 sq. ft.

Porch, Front

33 sq. ft.

Storage

37 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

43' 9"

Depth

30' 0"

Max Ridge Height

29' 2"

Garage

Type

Detached

Area

1088 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Carriage

Country

Craftsman

Traditional

Special Features

Bedrooms - Clustered

Flex Room

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

1,345 sq. ft.

1st Floor

149 sq. ft.

2nd Floor

1,196 sq. ft.

Porch, Front

33 sq. ft.

Storage

37 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

43' 9"

Depth

30' 0"

Max Ridge Height

29' 2"

Garage

Type

Detached

Area

1088 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Carriage

Country

Craftsman

Traditional

Special Features

Bedrooms - Clustered

Flex Room

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

ADU
