Plan 680177VR
1400 Square Foot RV Garage with 917 Square Foot Apartment Above
Heated S.F.
917
Beds
1
Baths
1.5
Stories
2
Cars
2
Floor Plan

Plan 680177VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 680177VR

1-800-854-7852

1-262-521-4596

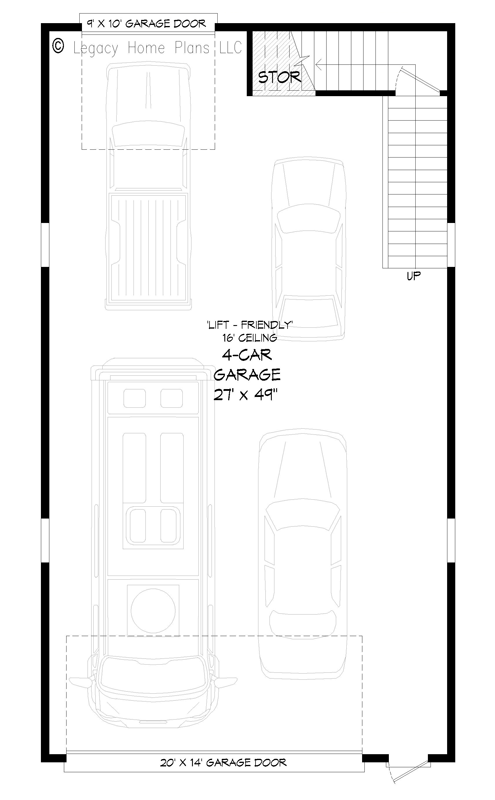

Main Level
floor plan image Main Level

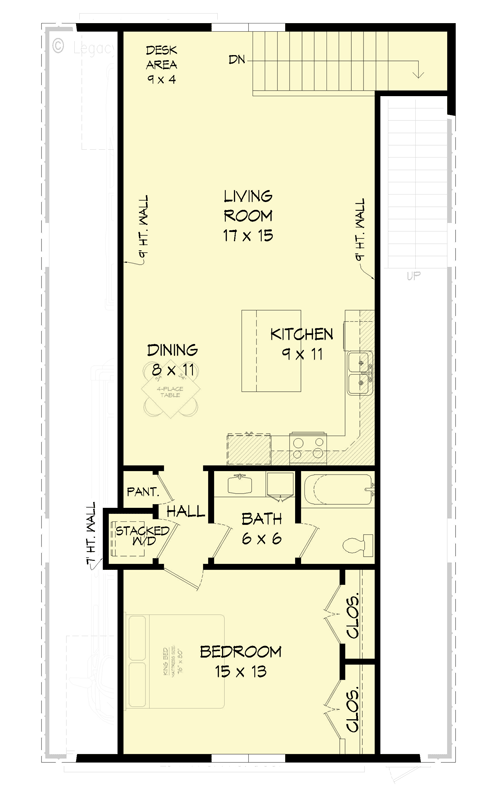

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This detached garage apartment plan has a barn-like appearance and gives you 1400 square feet of RV-friendly parking space - accessed through a 20'-wide and 14'-high overhead door - with a 917 square foot apartment above.
  • A 9' by 10' overhead door in back gives you drive through capability.
  • Stairs along the right wall take you to a large upper level living space that can serve as an ADU for family or guests.
  • Related Plans: Get a two bedroom apartment with plan 680179VR. Replace the living space with a loft/storage area with 68683VR. Substitute the RV bay for a 2 standard bays with garage plan 68684VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

917 sq. ft.

2nd Floor

917 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

50' 0"

Max Ridge Height

31' 10"

Garage

Type

RV Garage

Area

1400 sq. ft.

Count

2 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

16'

Second Floor

9'

Roof Details

Primary Pitch

7 on 24

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Barndominium

Carriage

Country

Farmhouse

Rustic

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

917 sq. ft.

2nd Floor

917 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

50' 0"

Max Ridge Height

31' 10"

Garage

Type

RV Garage

Area

1400 sq. ft.

Count

2 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

16'

Second Floor

9'

Roof Details

Primary Pitch

7 on 24

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Barndominium

Carriage

Country

Farmhouse

Rustic

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

ADU
