Plan 28085J
15-Foot-Wide 1800 Square Foot 3-Bed House Plan
Heated S.F.
1,807
Beds
3
Baths
2.5
Stories
2
Cars
1
Floor Plan

Plan 28085J

Main Level
slide image 0
2nd Floor
slide image 1

Plan 28085J

1-800-854-7852

1-262-521-4596

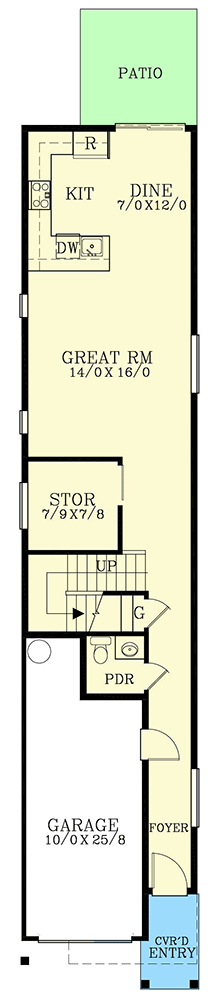

Main Level
floor plan image Main Level

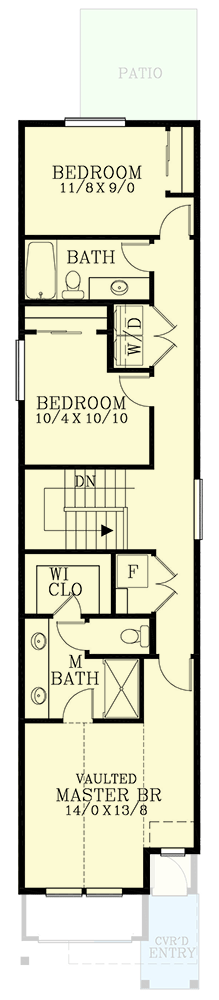

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 3-bed house plan is perfect for an infill lot with a footprint that is just 15' wide.
  • All three bedrooms are located on the second floor, as is laundry for your convenience. The master suite has a vaulted ceiling and a 4-fixture bath.
  • Enter the home through the foyer or from the garage and find yourself in a hallway with a powder room located before you get to the stairs.
  • The back of the home is open from the great room to the C-shaped kitchen and dining area. A door on the back wall takes you to a patio.
  • Related Plans: Get alternate versions with house plans 28084J (64' deep), 28083J (62' deep) and 28082J (60' deep).

What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,807 sq. ft.

1st Floor

791 sq. ft.

2nd Floor

1,016 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

15' 0"

Depth

70' 0"

Max Ridge Height

25' 2"

Garage

Type

Attached

Area

257 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Special Features

Laundry - Main Level
