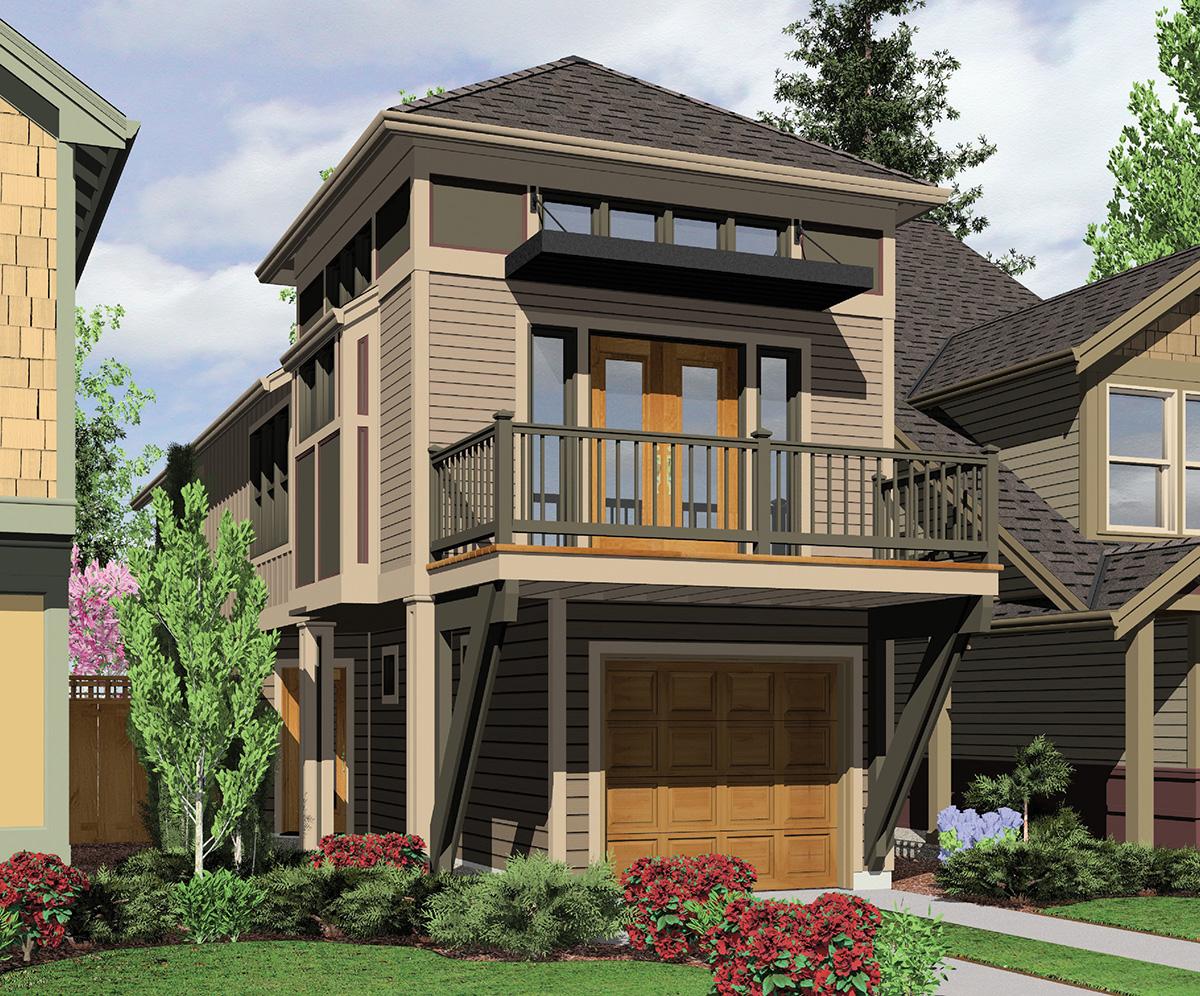

You can take this house plan anywhere! It is narrow enough to fit on just about any site and still offers the views you want as the main living spaces are on the upper level. The contemporary look of the home makes it a winner in any neighborhood.

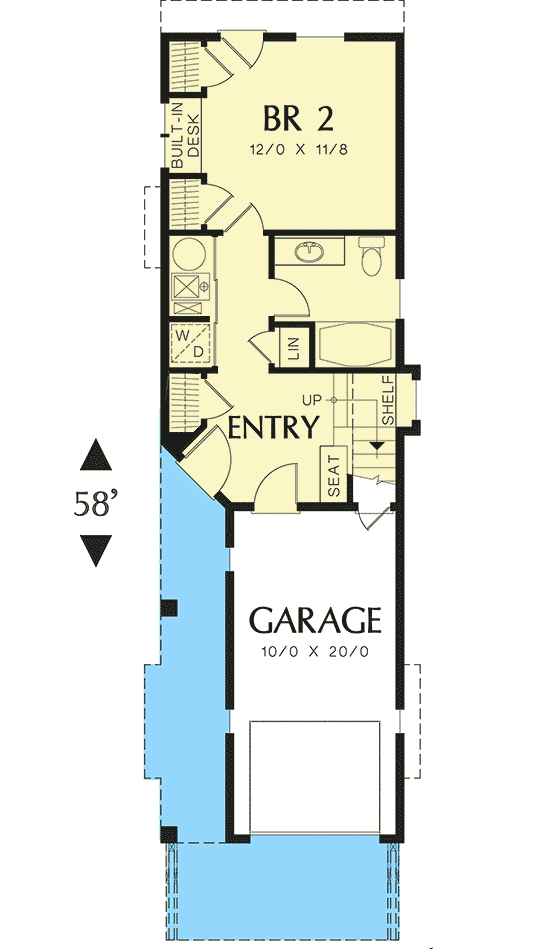

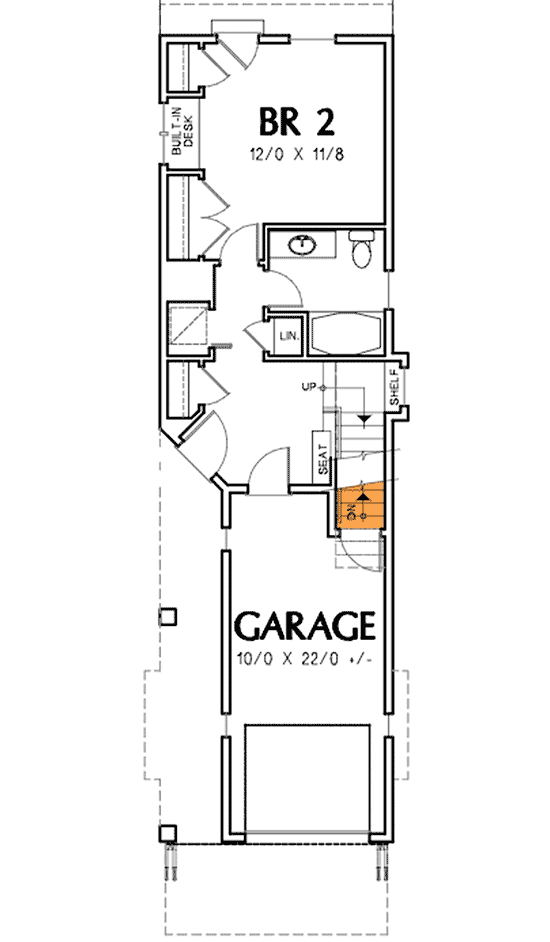

A one-car garage sits at the entry level. You may access the home from here or from the angled entry with coat closet and built-in seat. A secondary bedroom with built-in desk and full bath is also on this level, as is a laundry alcove and linen closet.

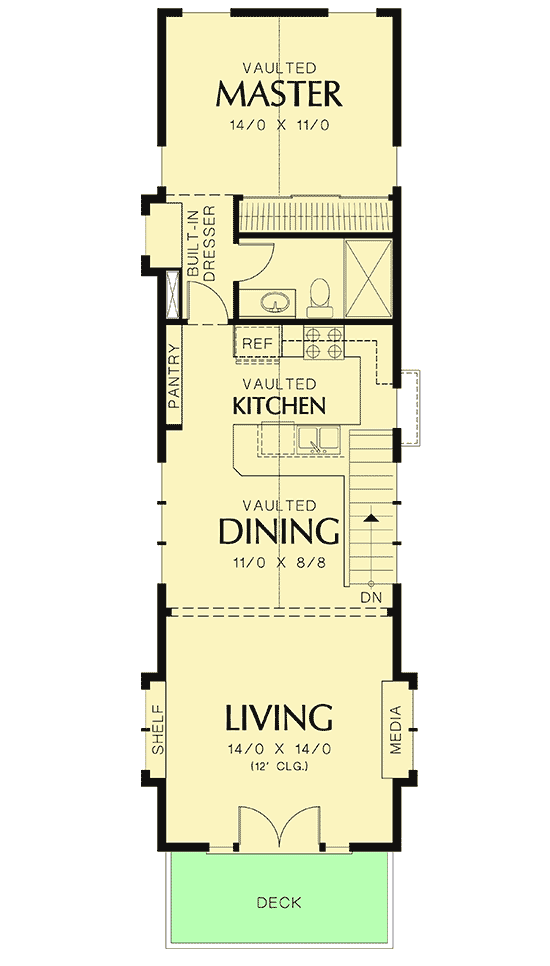

The main level has vaulted spaces: a dining room, kitchen and master salon, and a living room with 12-foot ceiling. The living room features built-in shelves and media center and double doors to the sunny front deck. The master suite sits at the rear of the upper level and has a full bath and dressing area with built-in dresser.
Bump-outs on second floor extend width to 17'. The foundation is 15' wide.
Related Plans: Get alternate elevations with house plans 69574AM (1,247 sq. ft.), 6989AM (1,228 sq. ft.) and 69575AM (1,572 sq. ft.).
What's Included

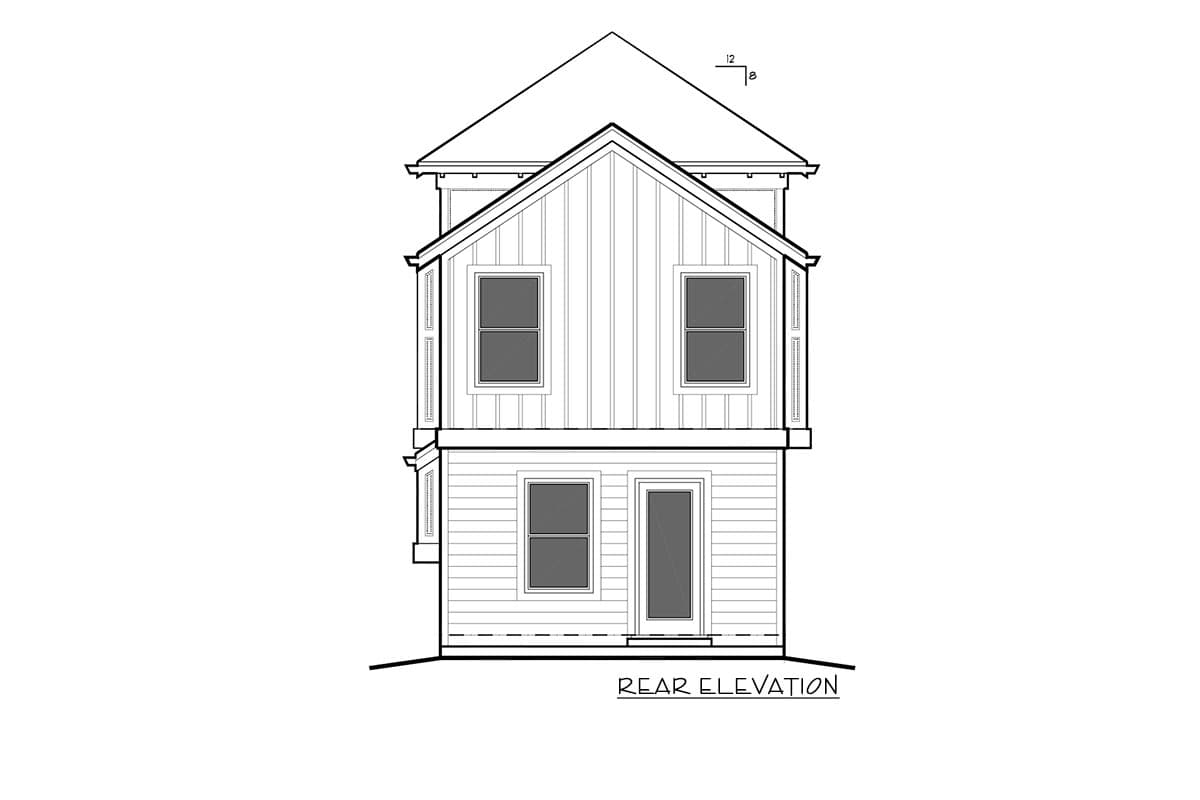

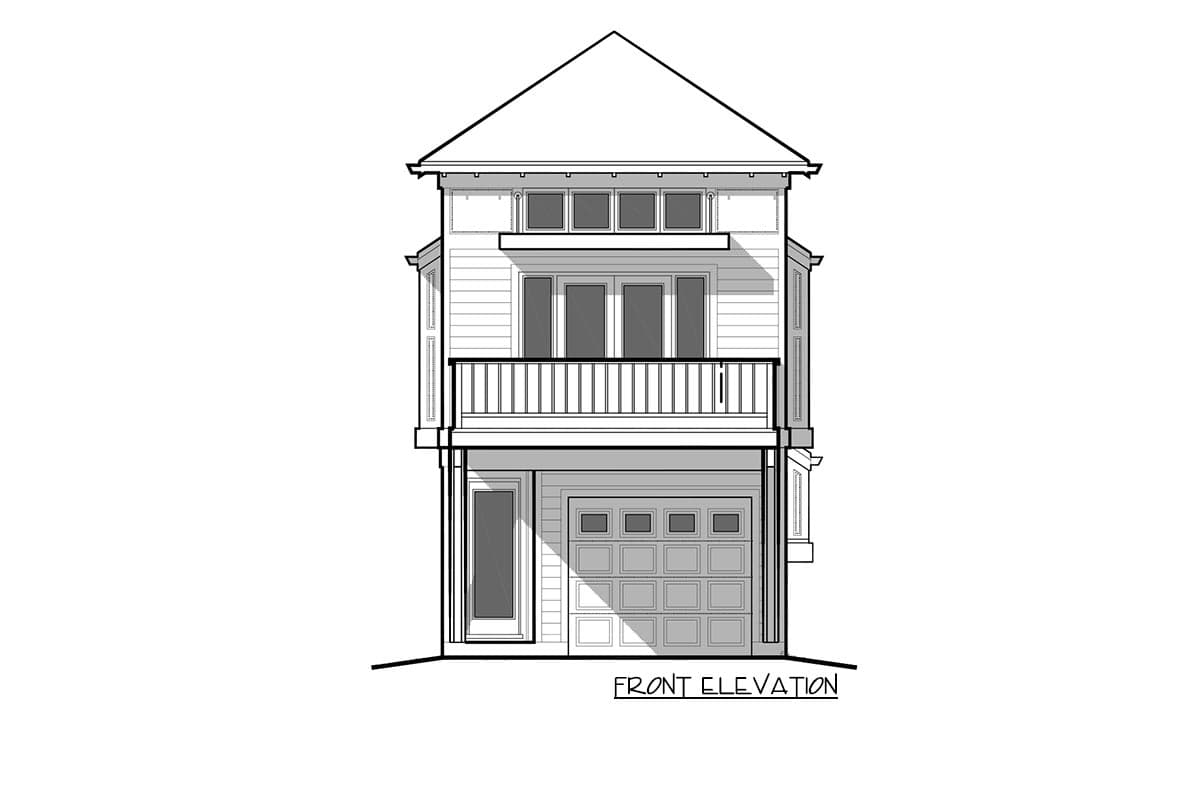

Exterior Elevations: In addition to the front exterior, your
drawing set will include drawings of the rear and sides of your house as well.
These drawings give notes on exterior materials and finishes. Particular
attention is given to cornice detail, brick and stone accents, or other finish
items that make your home unique.
Foundation Plan: The foundation page dimensions, concrete
walls, footings, pads, posts, beams, bearing walls, and any stepped foundation
information along with any retaining wall info (schematic only). A typical wall
section for the home is also usually included on this page (if not, it is
elsewhere in your plan set, as space allows). If your plan features a poured
concrete slab rather than a basement or crawlspace, the foundation page shows
footings and details for the slab, and includes plumbing locations.
Floor Plan(s): Exterior and interior wall framing, and
windows/doors are dimensioned. Room sizes are indicated and any beams, posts
and structural bearing points are called out. The floor plans include an
electrical legend, and electrical fittings, lights and outlets are shown. Floor
Plans will also indicate cross–section details (provided on the sections page)
and show any special framing details applicable to the design. Cabinet elevations
are included for kitchen and bathrooms; some designs feature cabinet elevations
for design–related built–ins too.
Building Sections: Building sections show changes in
floor, ceiling, or roof height, and the relationship of one level to another. Our
section pages also show how the stairs are calculated (if there are some!) and
depict roof and foundation members. We try and draw sections to show the most
useful information — choosing locations where there are elements you or your
contractor might need clarification on.
IMPORTANT NOTE: Sections and elevations depict the standard foundation only.
Roof Plan: Roof framing or truss directions are
shown, slope directions are indicated and structural members are sized and
called out if applicable. The gravity loads used to calculate the rafters,
beams and posts are indicated , and we also show gutters, downspouts, and any
roof venting required for your home.
Notes and Details
Page(s): Your
home comes detailed to meet the requirements of the latest adopted version of
the ‘International Residential Code’, and our notes and details pages outline
all the elements applicable to the design of your home. Compliance with further
standards may need to be incorporated into your plan set, depending on the
requirements of your building department — these are usually done locally.
What's Not Included
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
