Plan 444333GDN
1511 Square Foot One-story Craftsman Home Plan with 3 Bedrooms
Heated S.F.
1,511
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 444333GDN

Main Level
slide image 0
Bonus Level
slide image 1
Main Level - Basement Stairs Location
slide image 2

Plan 444333GDN

1-800-854-7852

1-262-521-4596

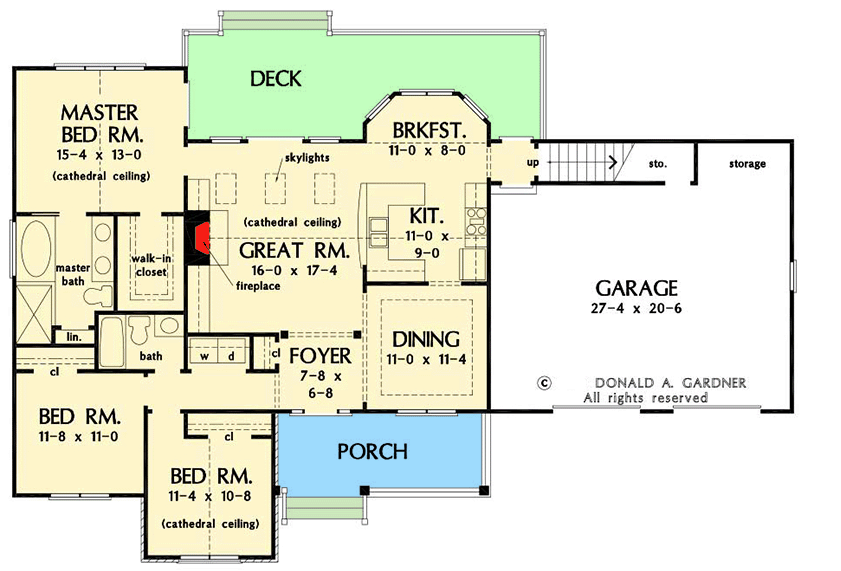

Main Level
floor plan image Main Level

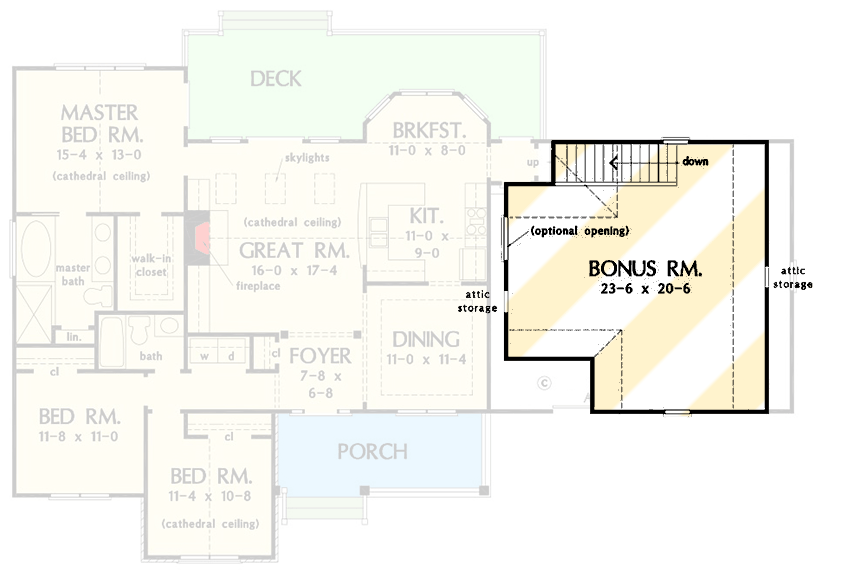

Bonus Level
floor plan image Bonus Level

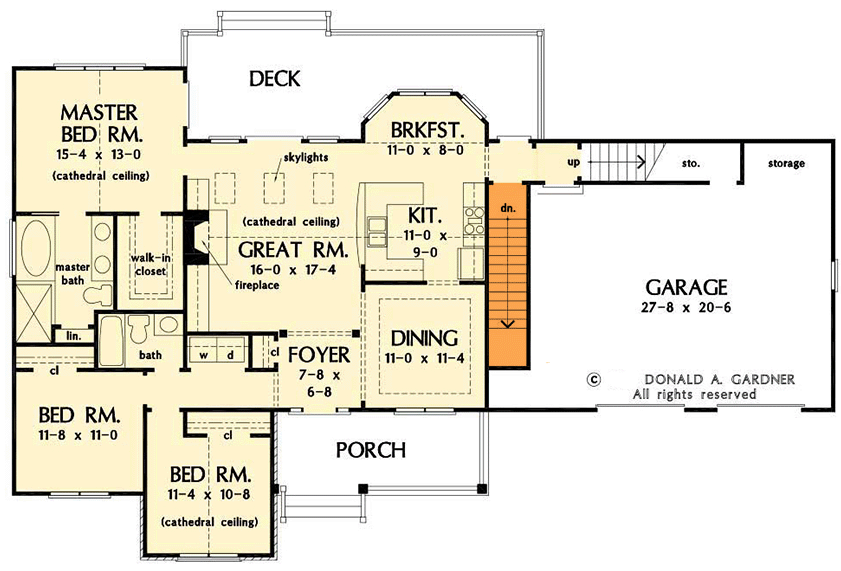

Main Level - Basement Stairs Location
floor plan image Main Level - Basement Stairs Location
Plan Details
  • An attractive mixture of exterior building materials, striking gables, and Craftsman character combine to give this 3 bed house plan a welcoming facade.
  • Located at the heart of the home is a great room with a 18'4" cathedral ceiling, fireplace, convenient built-ins, a trio of skylights, and access to the rear deck (33'2" by 10').
  • The master suite also enjoys deck entry as well as a 17'3" cathedral ceiling, walk-in closet, and private bath with a linen closet and roomy shower. Two more bedrooms share a hall bath at the front of the home.
  • Please allow 15 to 20 days for delivery if it includes the slab foundation option or 2x6 exterior wall conversion.
What's Included
  • Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details -  Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,511 sq. ft.

1st Floor

1,511 sq. ft.

Bonus

549 sq. ft.

Porch, Combined

150 sq. ft.

Deck

289 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

71' 4"

Depth

45' 0"

Max Ridge Height

27' 8"

Garage

Type

Attached

Area

655 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Ranch

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

1,511 sq. ft.

1st Floor

1,511 sq. ft.

Bonus

549 sq. ft.

Porch, Combined

150 sq. ft.

Deck

289 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

71' 4"

Depth

45' 0"

Max Ridge Height

27' 8"

Garage

Type

Attached

Area

655 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Ranch

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
