Plan 80994PM
1600 Square Foot 2-Bed Rustic Craftsman Home Plan
Heated S.F.
1,608
Beds
2
Baths
1
Stories
1
Cars
2
Floor Plan

Plan 80994PM

Main Level
slide image 0

Plan 80994PM

1-800-854-7852

1-262-521-4596

Main Level

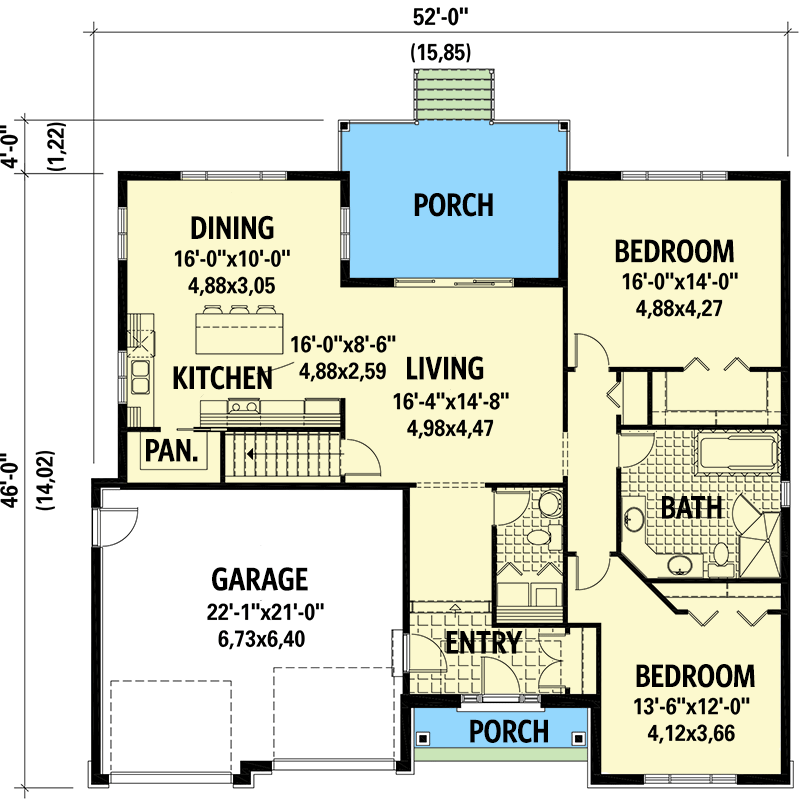

floor plan image Main Level
Plan Details
  • Stone accents in the shed dormer, covered entry and the skirt give this 2-bed Craftsman home plan a slightly rustic appeal. The house plan is 52 feet wide by 46 feet deep and has 1,608 square feet of heated living.
  • Two bedrooms share a bath with two vanities on the right side of the home. The master bedroom has a large closet and windows on the back wall. Laundry is tucked away in the powder room.
  • A kitchen with island, a dining room, a living room are open to each other. Sliding doors in the living room take you to the rear porch.
What's Included
Please note this plan is designed to the National Building Code of Canada.

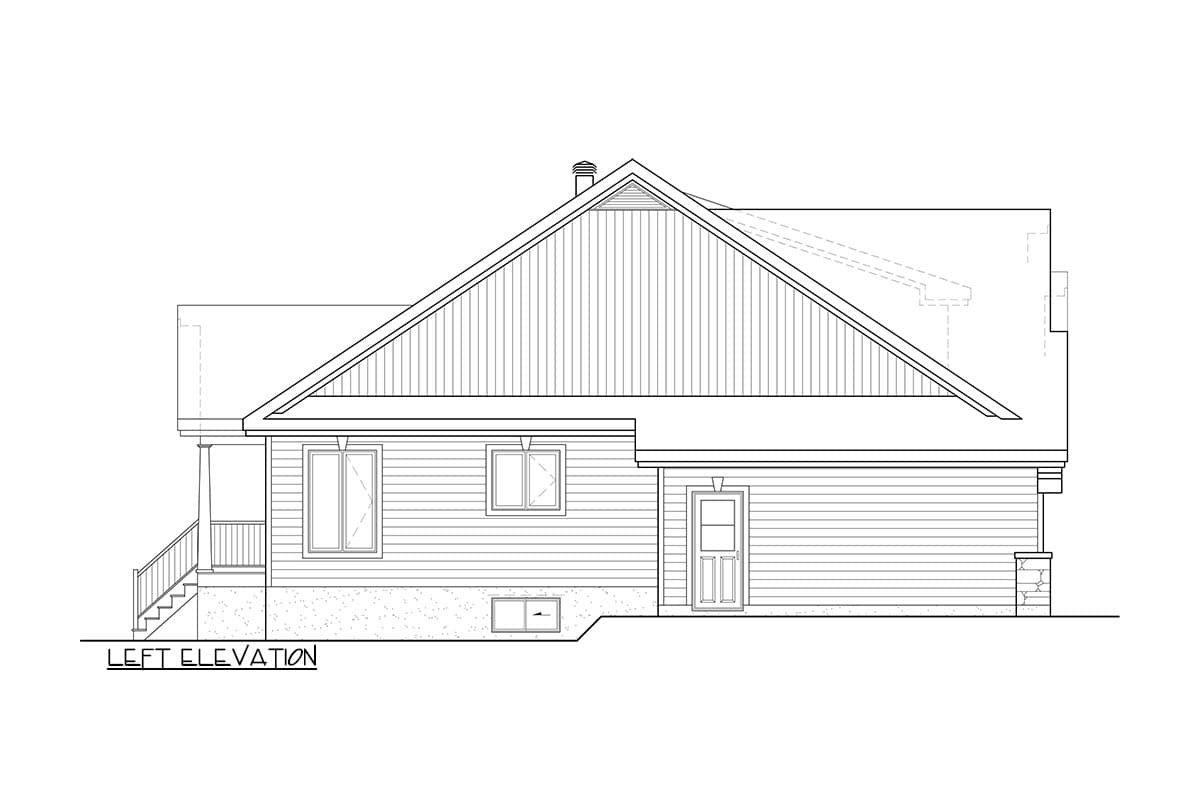

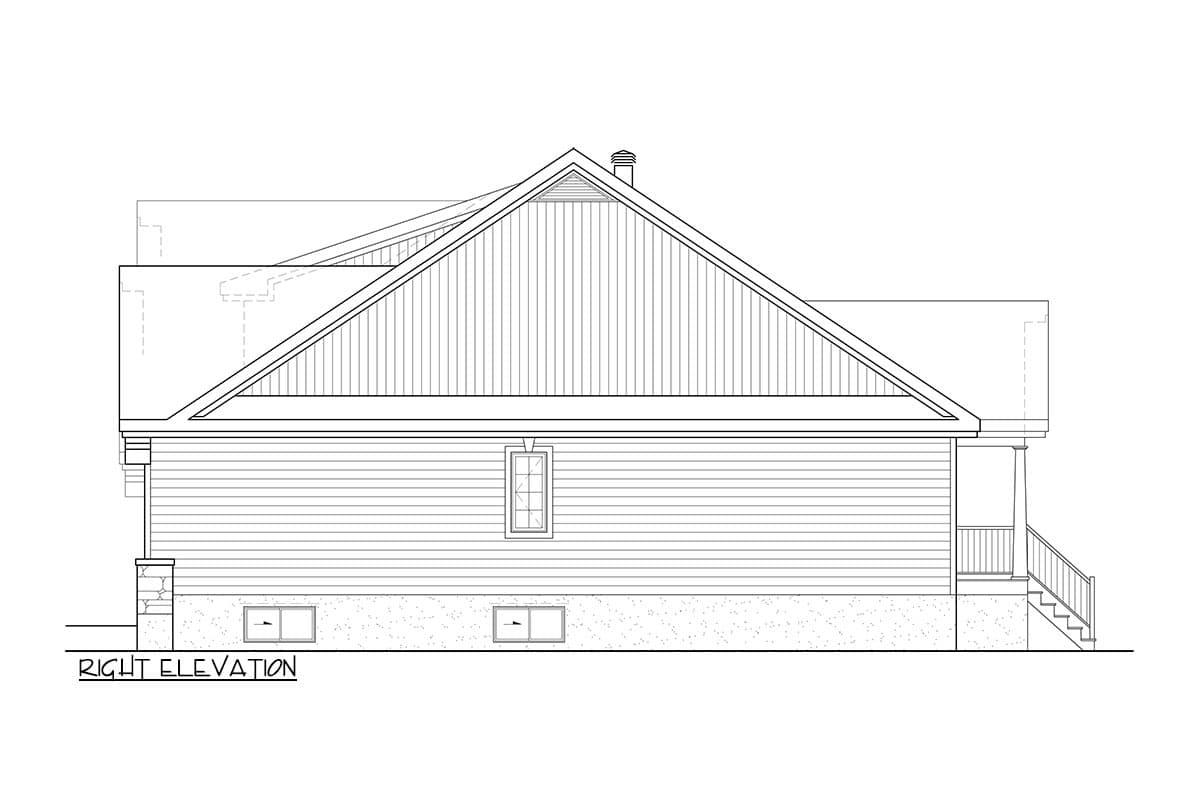

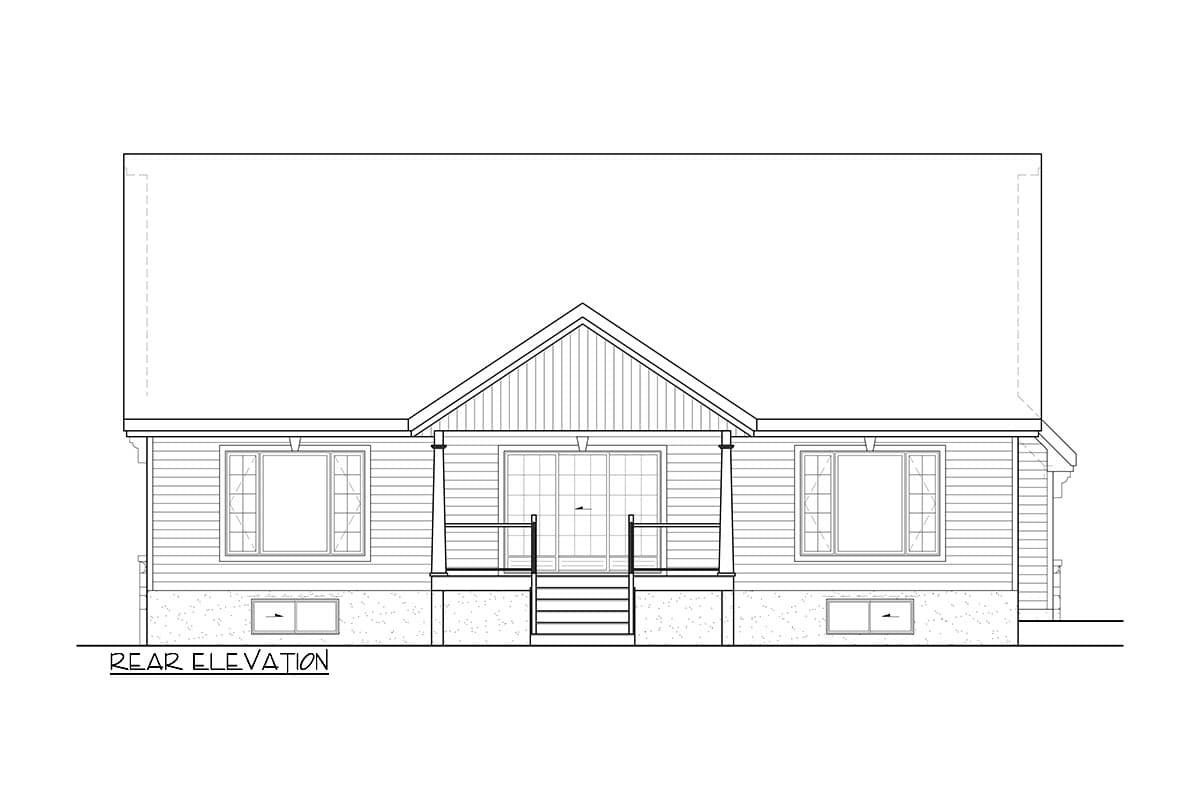

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,608 sq. ft.

1st Floor

1,608 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 0"

Depth

46' 0"

Max Ridge Height

28' 3"

Garage

Type

Attached

Area

499 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Country

Craftsman

New American

Rustic

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

1,608 sq. ft.

1st Floor

1,608 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 0"

Depth

46' 0"

Max Ridge Height

28' 3"

Garage

Type

Attached

Area

499 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Country

Craftsman

New American

Rustic

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Canadian House Plans
