Plan 680205VR
1618 Sq Ft Traditional Ranch Home Plan with Vaulted Interior and a 2-Car Garage
Heated S.F.
1,618
Beds
1
Baths
1
Stories
2
Cars
2
Floor Plan

Plan 680205VR

Main Level
slide image 0

Plan 680205VR

1-800-854-7852

1-262-521-4596

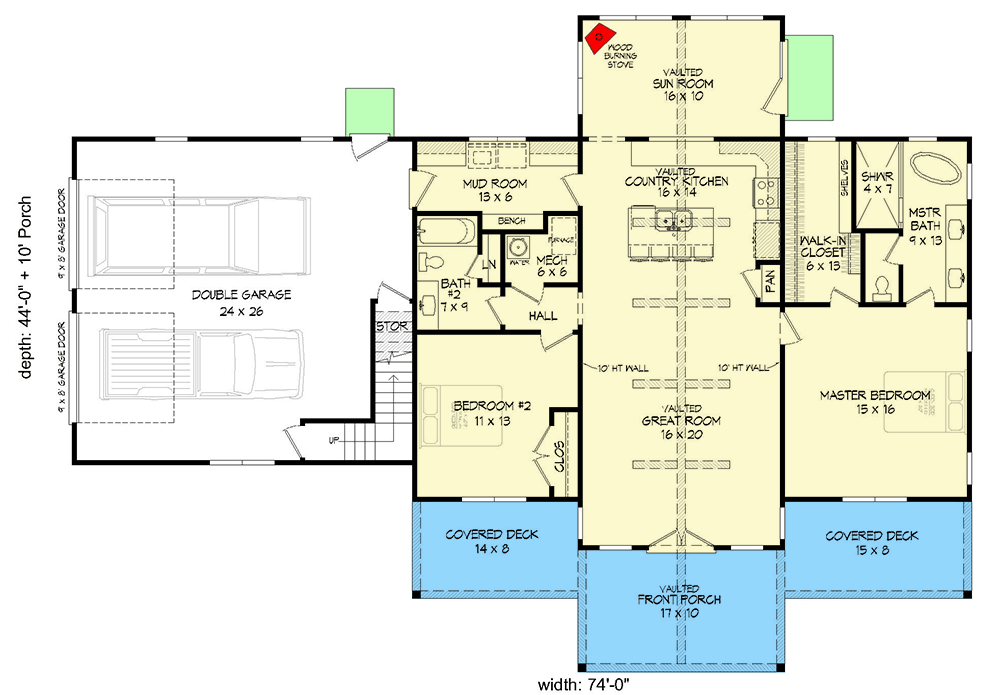

Main Level
floor plan image Main Level
Plan Details
  • This 1,618 square foot traditional ranch home plan gives you two beds separated by an open-and-vaulted space that gives you a great room and a country kitchen.
  • Covered decks in front - 8' deep to either side of the center 10'deep vaulted portion - combine to give you 402 square feet of fresh air space to enjoy.
  • The vault continues through to the sun room with wood burning stove in back.
  • A 2-car side-load garage has two 9' by 8' overhead doors and accesses the home through a mud room with bench and laundry.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

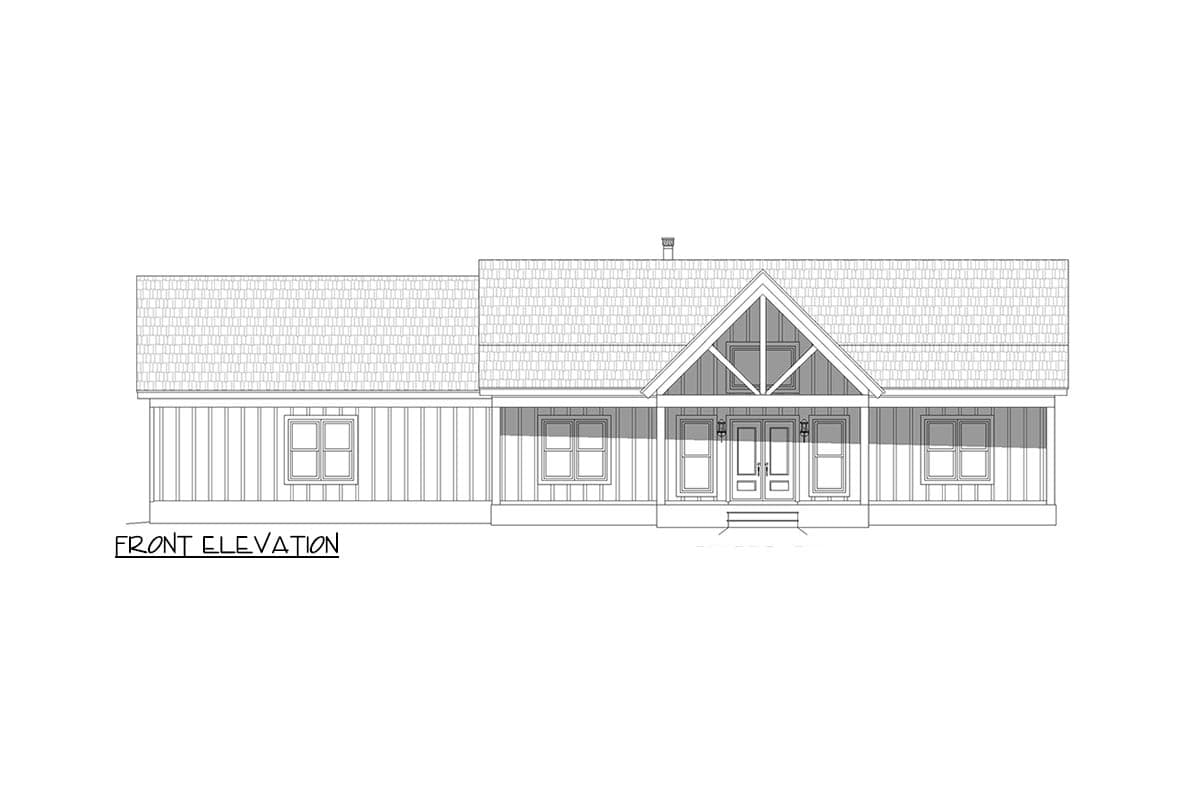

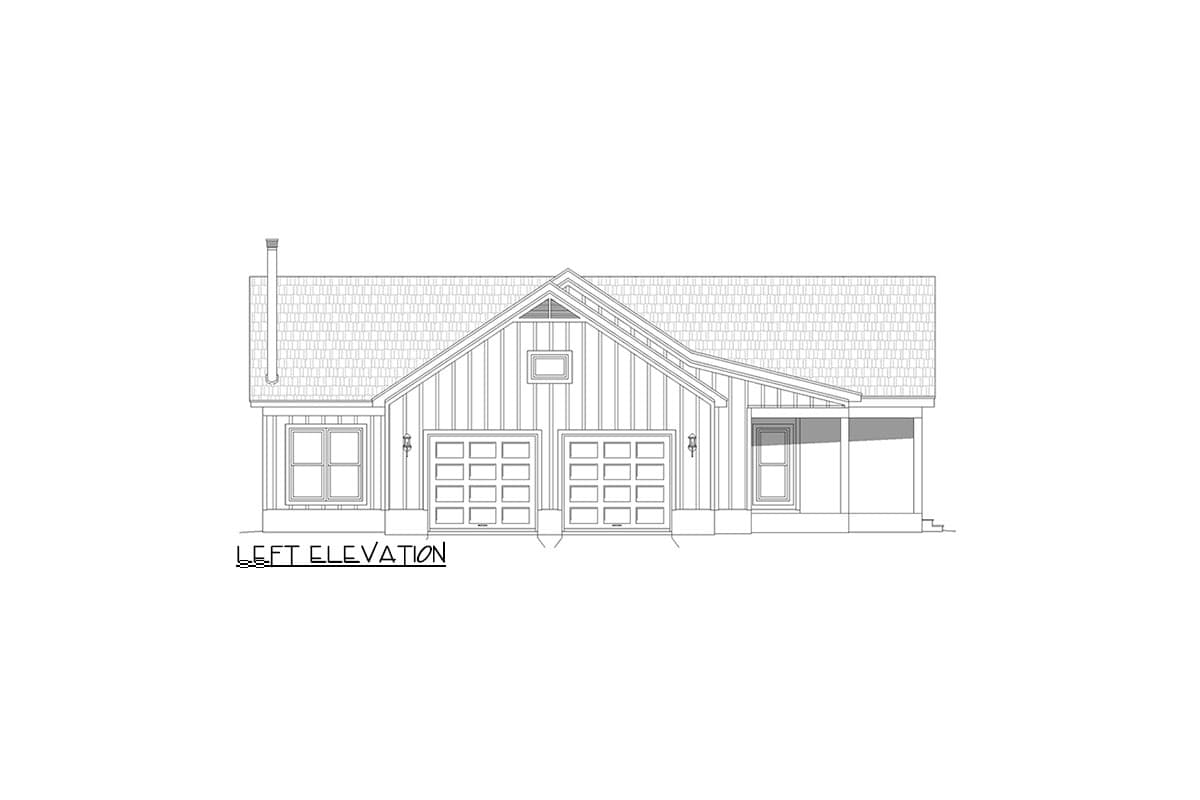

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,618 sq. ft.

1st Floor

1,618 sq. ft.

Porch, Front

402 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

38' 0"

Max Ridge Height

26' 1"

Garage

Type

Attached, Drive Under

Area

756 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

12' 10"

Roof Details

Primary Pitch

2 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Carriage

Contemporary

Mid Century Modern

Modern

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

1,618 sq. ft.

1st Floor

1,618 sq. ft.

Porch, Front

402 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

38' 0"

Max Ridge Height

26' 1"

Garage

Type

Attached, Drive Under

Area

756 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

12' 10"

Roof Details

Primary Pitch

2 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Carriage

Contemporary

Mid Century Modern

Modern

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor
