Name: Plan 710425BTZ: 1627 Square Foot New American House Plan with Optional Second Level
SKU: 710425BTZ
Price: 1995.0 USD
Availability: InStock

Plan 710425BTZ

1627 Square Foot New American House Plan with Optional Second Level

Heated S.F.

1,627

Beds

2 - 4

Baths

2 - 3

Stories

Cars

Floor Plan

Main Level

2nd Floor

Plan Details

Warm, charming with style to belong in any location, this New American house plan is a modestly sized one story design that is equipped with all the necessities.
Crisp white claddings and stained timber accents are perfect material choices for the farmhouse style.

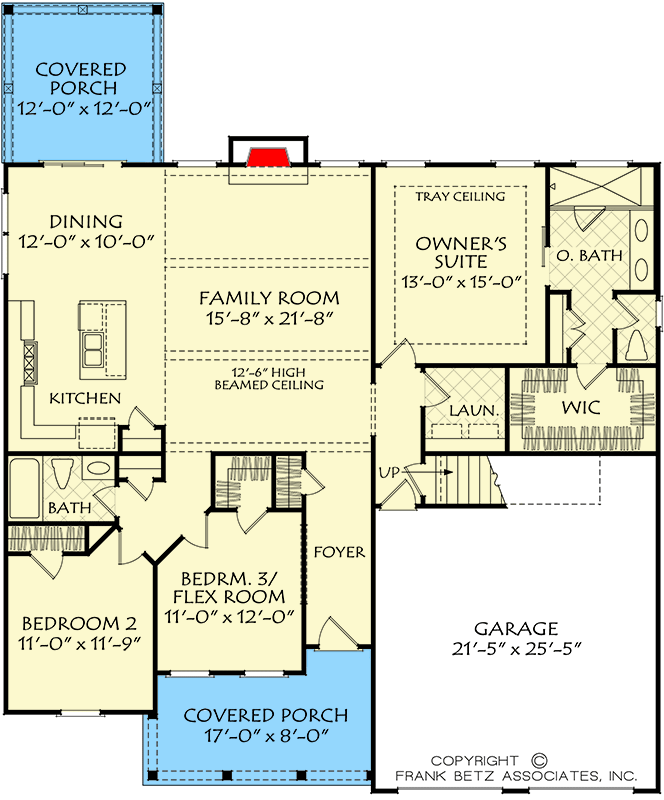

The main level is open with one large space for living and dining. The family room has a high ceiling and warming fireplace as the focal point. The owner's suite is private and separate from the other bedrooms. The owner's bath features a large shower and ample closet space. Bedroom three is a flexible space that doubles as a work space.

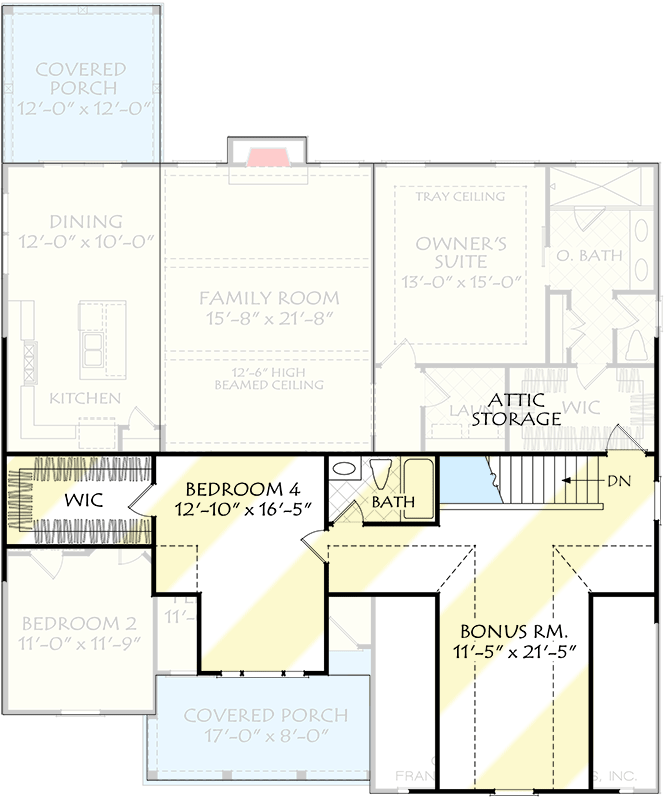

The optional upper level adds another sleeping space and a large bonus room. The bonus room can be utilized as simple storage or finished for a recreation or exercise room - you choose.

What's Included

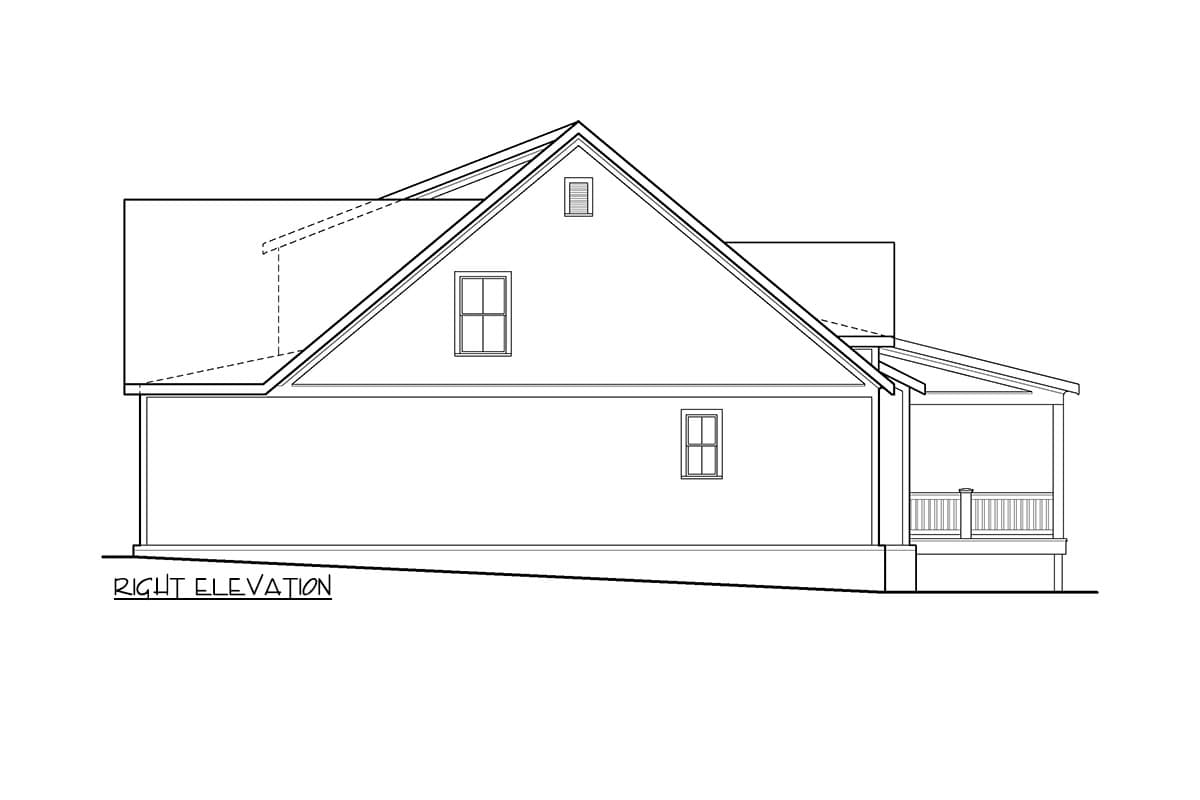

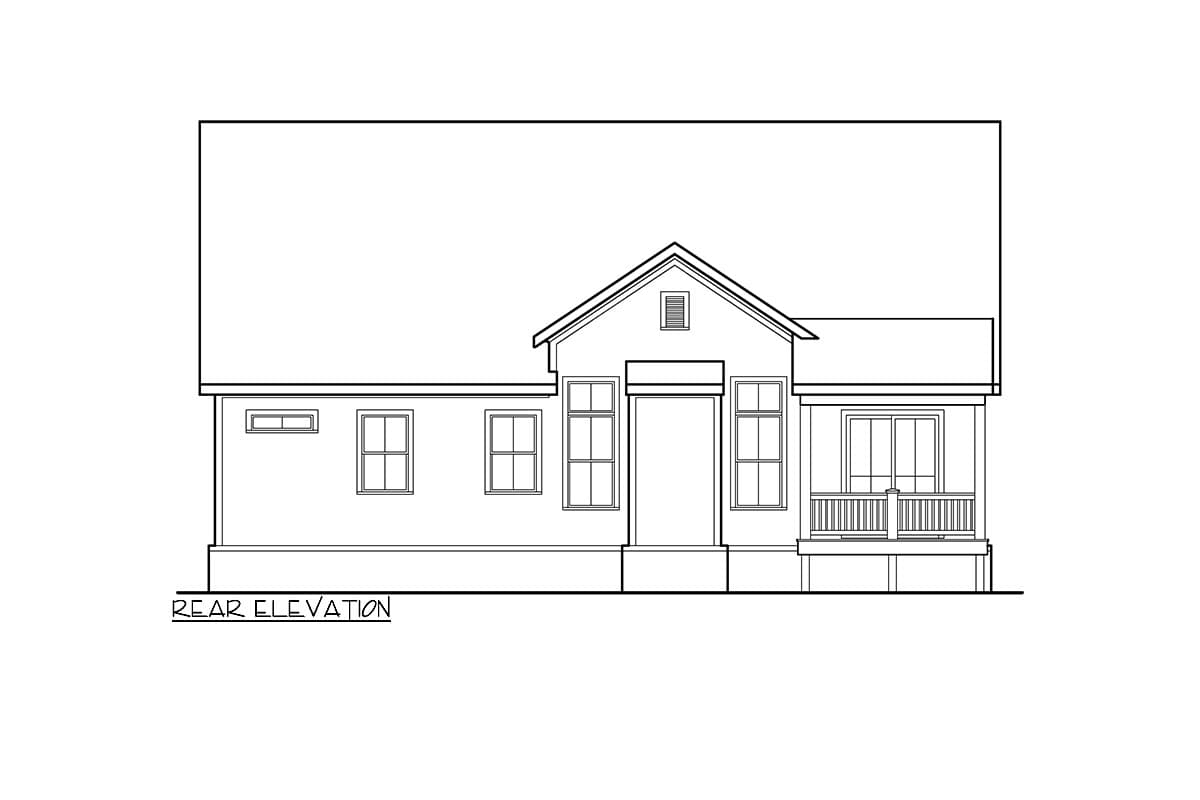

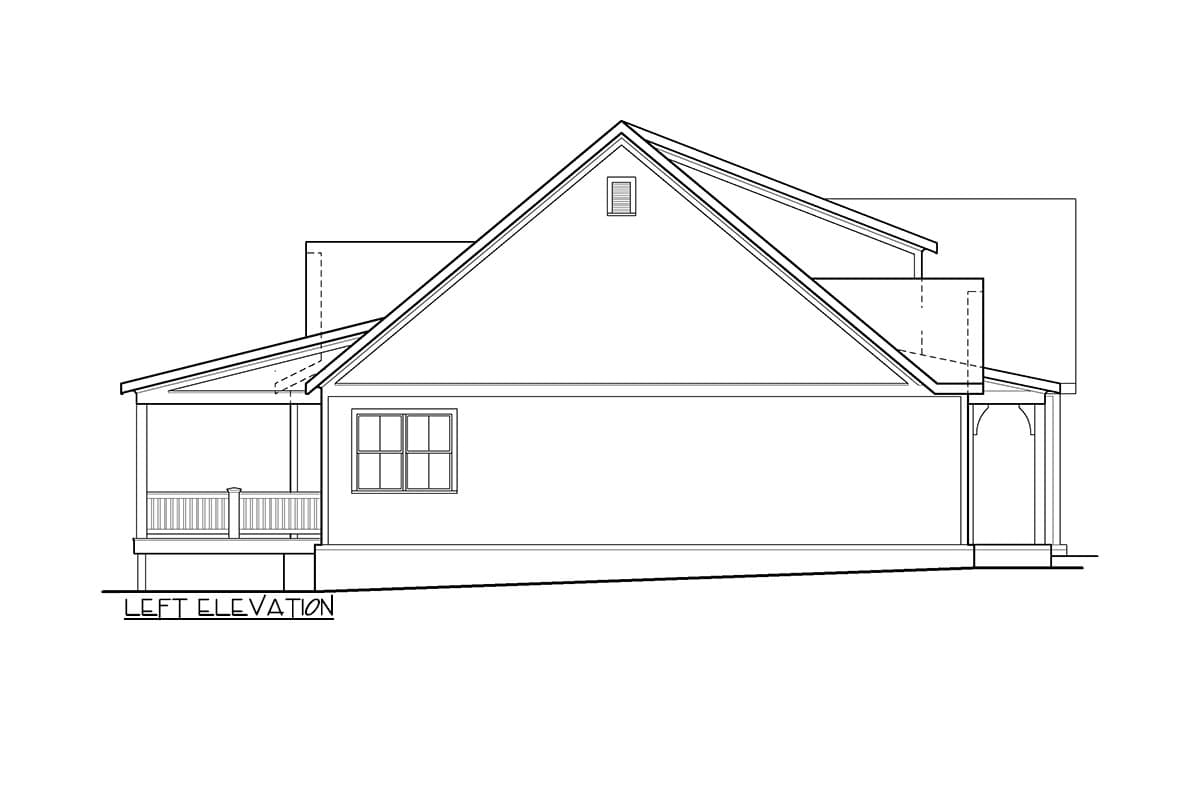

Elevations - at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, door/window sizes. Crawlspace and/or slab on grade foundations are available for some plans.
Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
Floor framing - if included it shows each floor joist indicating the size, spacing and length. All beams are sized and labeled. Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Details sheets - shows foundation details, typical wall section and other framing details. Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What's Not Included

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Energy calculations
Windows and Doors Schedules
