Plan 69574AM
17-foot Wide 2 Bed House Plan
Heated S.F.
1,247
Beds
2
Baths
2
Stories
2
Cars
1
Floor Plan

Plan 69574AM

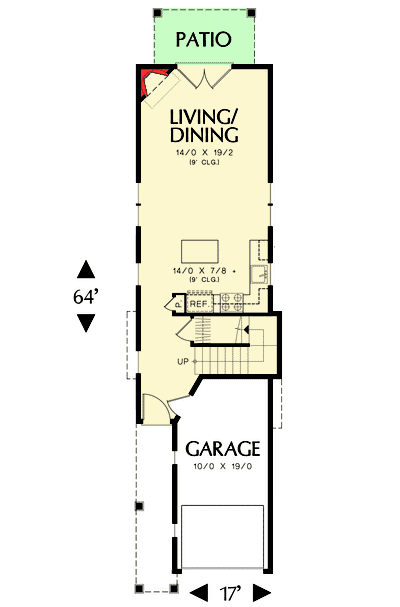

Main Level
slide image 0

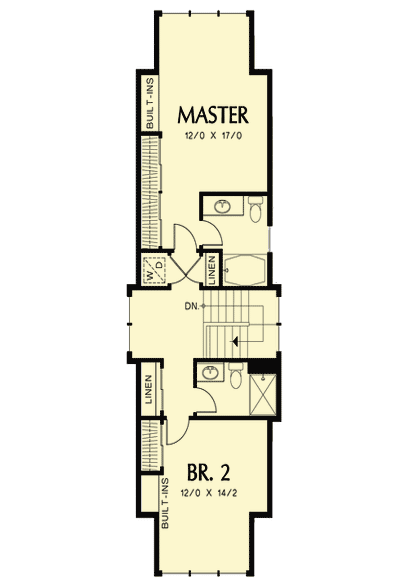

2nd Floor
slide image 1

Plan 69574AM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

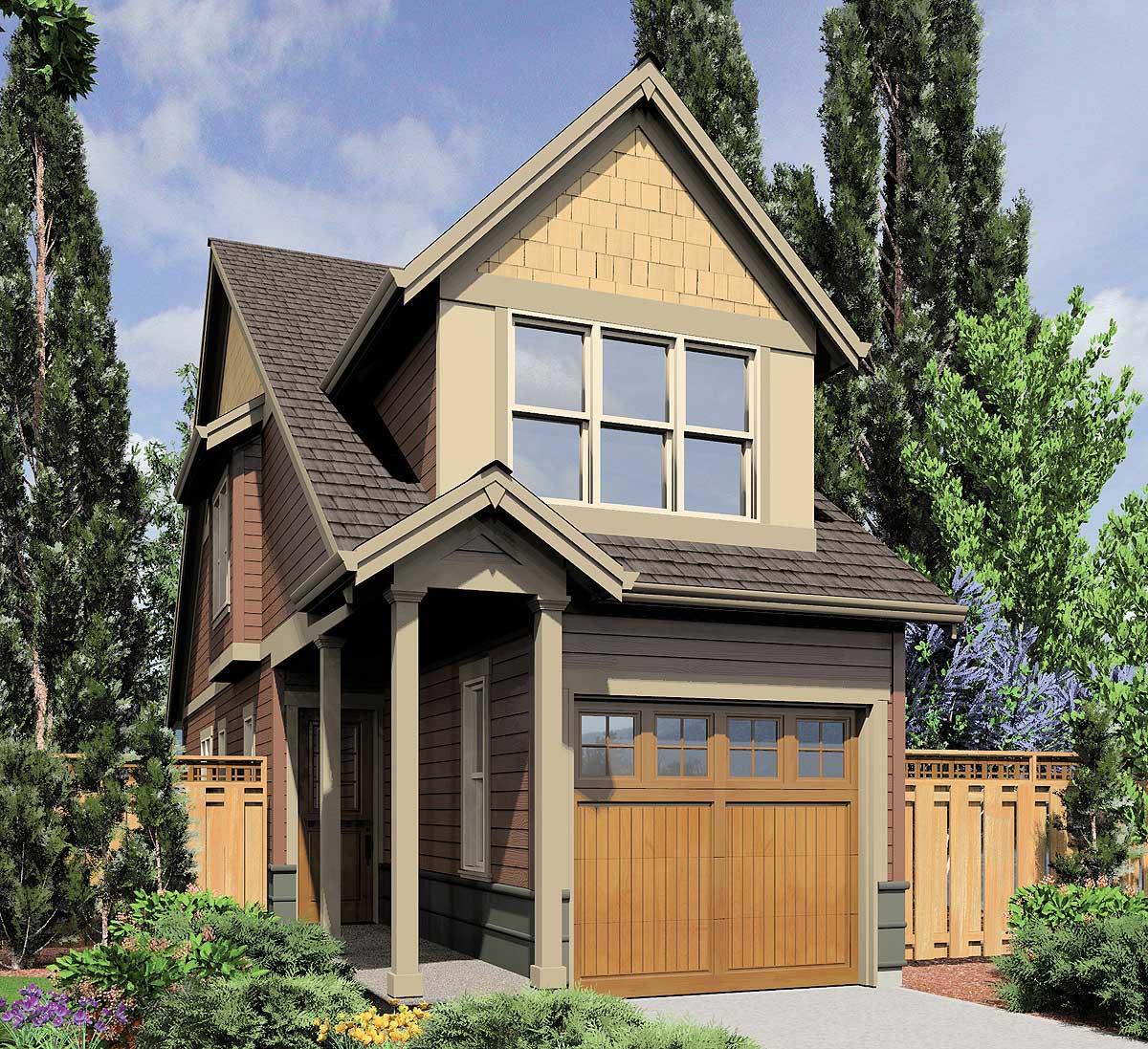

  • This sliver of a home can skim into sites where land is a precious commodity. The quaint facade - with its shake shingles, paneled door, and carriage-style garage door - gives is great cottage appeal.
  • The front and garage door entrances lead into the foyer where a U-shape staircase connects to the upper level. Beyond the entrance, the kitchen unfolds into a common living and dining room area.
  • Without walls for definition, the floor plan's openness counteracts the narrowness of the design. Windows along the sides and a set of French doors at the rear illuminate the living areas, furthering a sense of roominess.
  • Two bedrooms border the front and rear ends of the upper-level. The master suite is at the back of the plan with windows that wrap around a bump-out space. This perch provides a panoramic view, ideal in situations where the vista is only available from the second level.
  • To conserve floor space, dressers in both bedrooms are built into a recess in the wall and a hall closet houses a stackable washer/dryer unit.
  • Related Plans: Get alternate elevations with house plan 6988AM (1,203 sq. ft.), 6989AM (1,228 sq. ft.) and 69575AM (1,572 sq. ft.).
What's Included

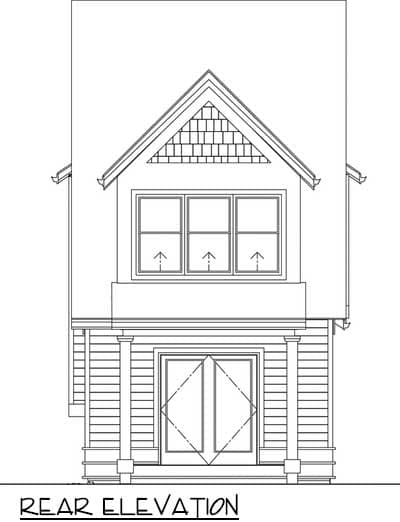

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,247 sq. ft.

1st Floor

535 sq. ft.

2nd Floor

712 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

17' 0"

Depth

64' 0"

Max Ridge Height

29' 7"

Garage

Type

Attached

Area

222 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Stick

Architectural Style

Cottage

Shingle

Special Features

Bedrooms - Split

Laundry - Upstairs

Master Suite - 2nd Floor
