Plan 28097J
1870 Square Foot Arts and Crafts Bungalow with Flex Room
Heated S.F.
1,870
Beds
3 - 4
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 28097J

Main Level
slide image 0

Plan 28097J

1-800-854-7852

1-262-521-4596

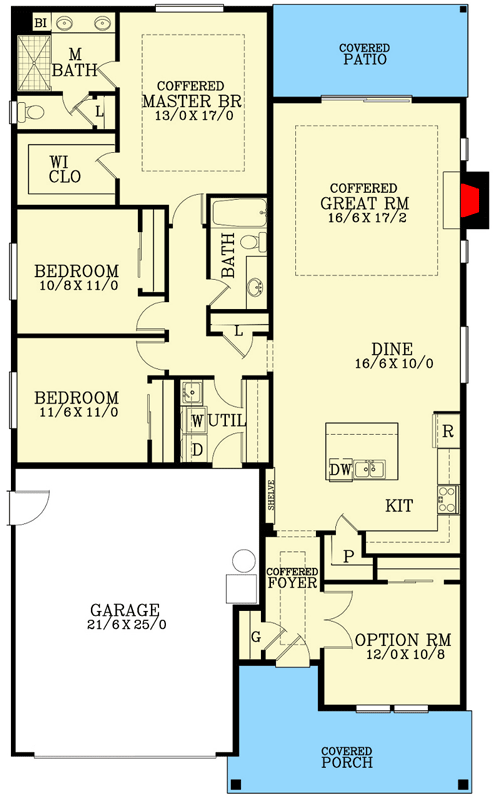

Main Level
floor plan image Main Level
Plan Details
  • This one-story Arts and Crafts house plan gives you 1,870 square feet of heated living space with 3 bedrooms, 2 baths and a flex room that can be used as a fourth bedroom or a home office.
  • French doors off the foyer open to a flex room that would be ideal for a home office or den.
  • Straight ahead, an open layout presents itself, combining the eat-in kitchen with the great room with fireplace.
  • The bedrooms are located behind the 2-car garage, along with the laundry room. Two similarly-sized bedrooms share the hall bath, which neighbors a linen closet.
  • The rear-facing master bedroom features a 4-fixture bath with a toilet room and a walk-in closet.
  • Related Plans: Get alternate versions with house plans 28013J and 28014J.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,870 sq. ft.

1st Floor

1,870 sq. ft.

Porch, Front

170 sq. ft.

Porch, Rear

136 sq. ft.

Covered Patio

136 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

69' 0"

Max Ridge Height

19' 8"

Garage

Type

Attached

Area

540 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Bungalow

Cottage

Craftsman

Northwest

Shingle

Special Features

Bedrooms - Clustered

Flex Room

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Lower Level

Mudroom
