Plan 421514CHD
19-Foot-Wide 2-Story House Plan with ADU Above Detached Garage - 1457 Sq Ft
Heated S.F.
1,457
Beds
3 - 4
Baths
2.5 - 3.5
Stories
2
Cars
2
Photos
Floor Plan

Plan 421514CHD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 421514CHD

1-800-854-7852

1-262-521-4596

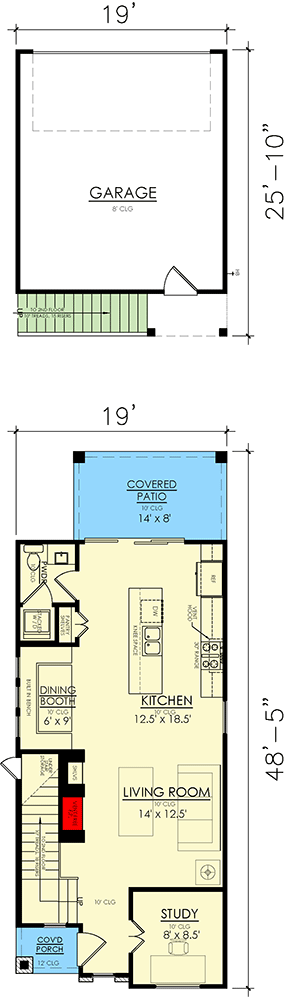

Main Level
floor plan image Main Level

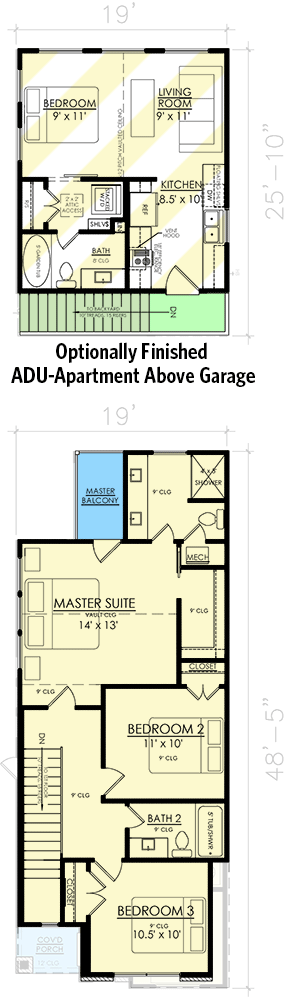

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 19'-wide 2-story house plan is great for your narrow lot. It gives you 3 beds and 2.5 baths and 1,457 square feet of heated living plus a 2-car gar alley-access garage with an ADU apartment above.
  • The main floor is open concept with a private study off the foyer. Moving back, a living room with fireplace connects to the kitchen with island. Built-in seating gives you a convenient place to dine Sliding doors open to the covered patio in back.
  • A powder room with stackable washer/dryer are tucked into the back-left corner.
  • Upstairs, the vaulted master suite with walk-in closet is located in back. Beds 2 and 3 are separated by a shared bath.
  • An external staircase runs in back of the rear-facing 2-car detached garage and takes you to the apartment, perfect for use as a rental, an ADU, in-law or nanny space.
  • Related Plans: Get an alternate 19'-wide house plan with 421513CHD (1,551 sq. ft.) and 421505CHD (1,630 sq. ft.).
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 421514CHD Comes to Life in Oklahoma

House Plan 421514CHD Comes to Life in Oklahoma

57

Photos

What's Included
  • Cover Page
  • Foundation Plan with Notes and Footing Details
  • Dimensioned Floor Plans with Notes
  • Exterior Elevations and Roof Plan with Notes
  • Electrical Layout Plans with Legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,457 sq. ft.

1st Floor

734 sq. ft.

2nd Floor

723 sq. ft.

Apartment

418 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

19' 0"

Depth

84' 8"

Garage

Type

Detached

Area

418 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

New American

Traditional

Special Features

Breakfast Nook

Laundry - Main Level

Library/Study

Master Suite - 2nd Floor

Plan Collections

ADU

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,457 sq. ft.

1st Floor

734 sq. ft.

2nd Floor

723 sq. ft.

Apartment

418 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

19' 0"

Depth

84' 8"

Garage

Type

Detached

Area

418 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

New American

Traditional

Special Features

Breakfast Nook

Laundry - Main Level

Library/Study

Master Suite - 2nd Floor

Plan Collections

ADU

Photo Gallery
