Plan 420147WNT

Exclusive

2-Bed ADU Cottage with Vaulted Kitchen and Living Room - 884 Sq Ft
Heated S.F.
884
Beds
2
Baths
2
Stories
1
Tour

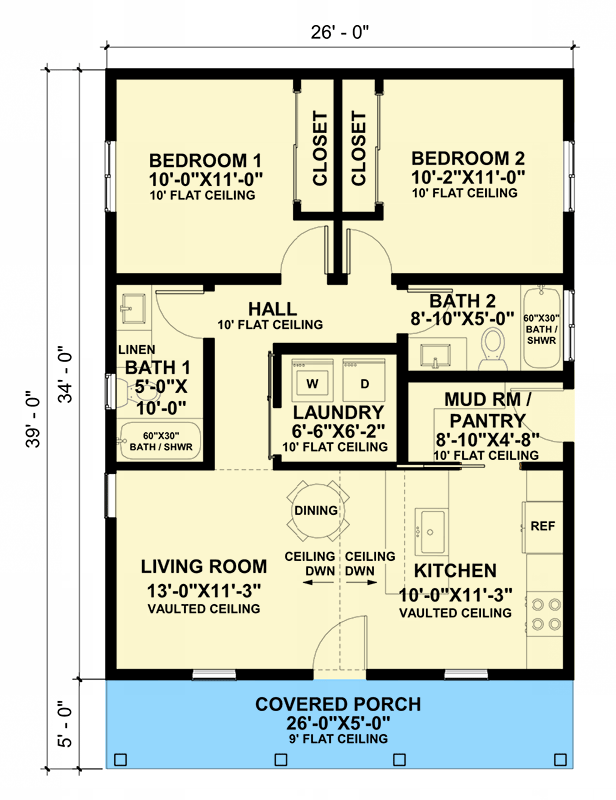

Floor Plan

Plan 420147WNT

Main Level
slide image 0

Plan 420147WNT

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This 2 bed, 2 bath country cottage house plan gives you 884 square feet of heated living and 130 square feet of outdoor living.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plans: Get an alternate house plan with 420035WNT (682 square feet), 420038WNT (726 square feet), 420039WNT (774 square feet) or 420138WNT (825 square feet). Get a similar layout with an attached 2-car garage with house plan 420164WNT (910 square feet).
  • NOTE: Please allow 3 to 5 business days for delivery.
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.
  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

884 sq. ft.

1st Floor

884 sq. ft.

Porch, Front

130 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

39' 0"

Depth

26' 0"

Max Ridge Height

22' 7"

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Living Room

Vaulted

13' 0''

Kitchen

Vaulted

13' 0''

Roof Details

Primary Pitch

10.5 on 12

Secondary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Special Features

Bedrooms - Clustered

Handicapped Accessible

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

ADU

Exclusive

Square Footage Breakdown

Total Heated Area

884 sq. ft.

1st Floor

884 sq. ft.

Porch, Front

130 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

39' 0"

Depth

26' 0"

Max Ridge Height

22' 7"

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Living Room

Vaulted

13' 0''

Kitchen

Vaulted

13' 0''

Roof Details

Primary Pitch

10.5 on 12

Secondary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Special Features

Bedrooms - Clustered

Handicapped Accessible

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

ADU

Exclusive
