Plan 62437DJ
2-Bed Beautiful Traditional House Plan - 2159 Sq Ft
Heated S.F.
2,159
Beds
2
Baths
2.5
Stories
1
Cars
3

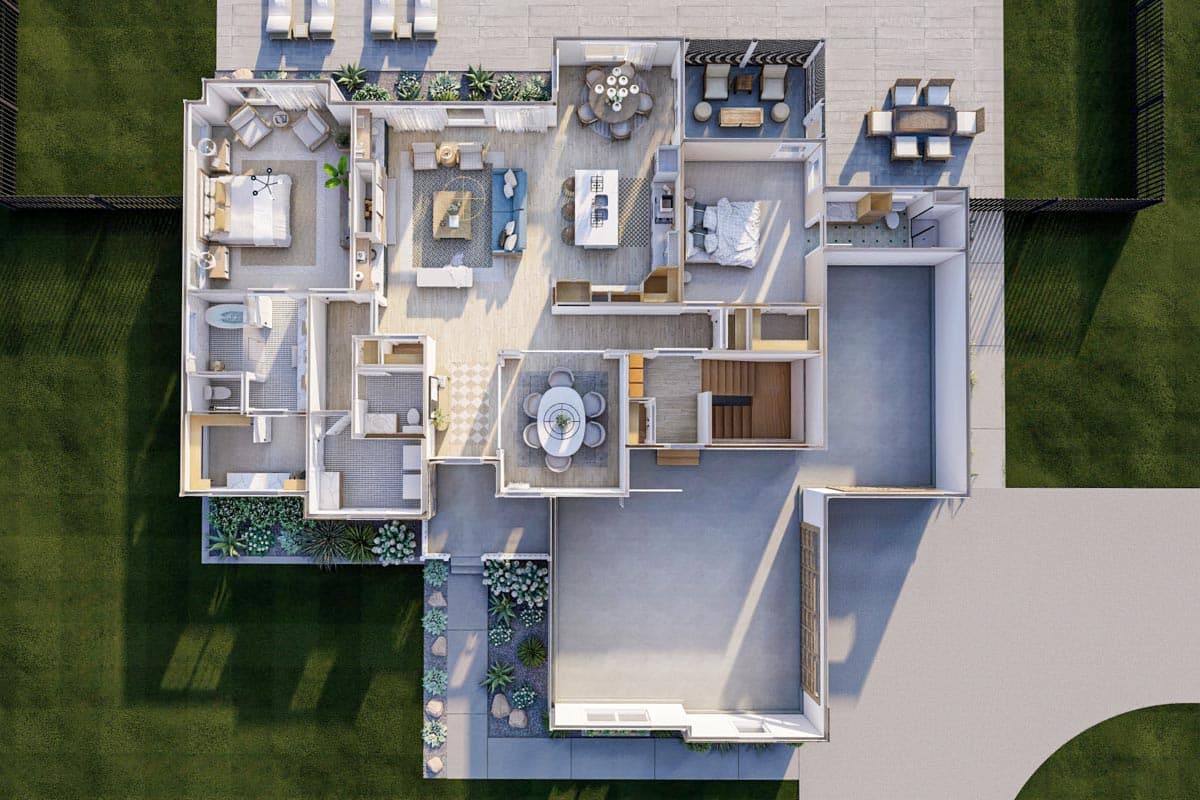

Floor Plan

Plan 62437DJ

Main Level
slide image 0

Plan 62437DJ

1-800-854-7852

1-262-521-4596

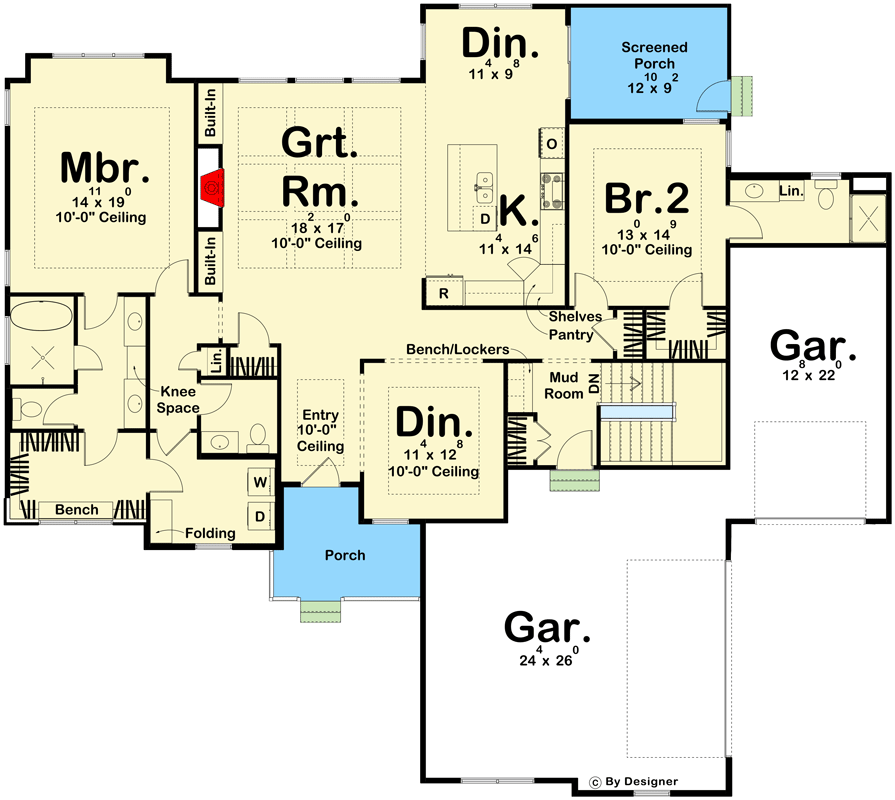

Main Level
floor plan image Main Level
Plan Details

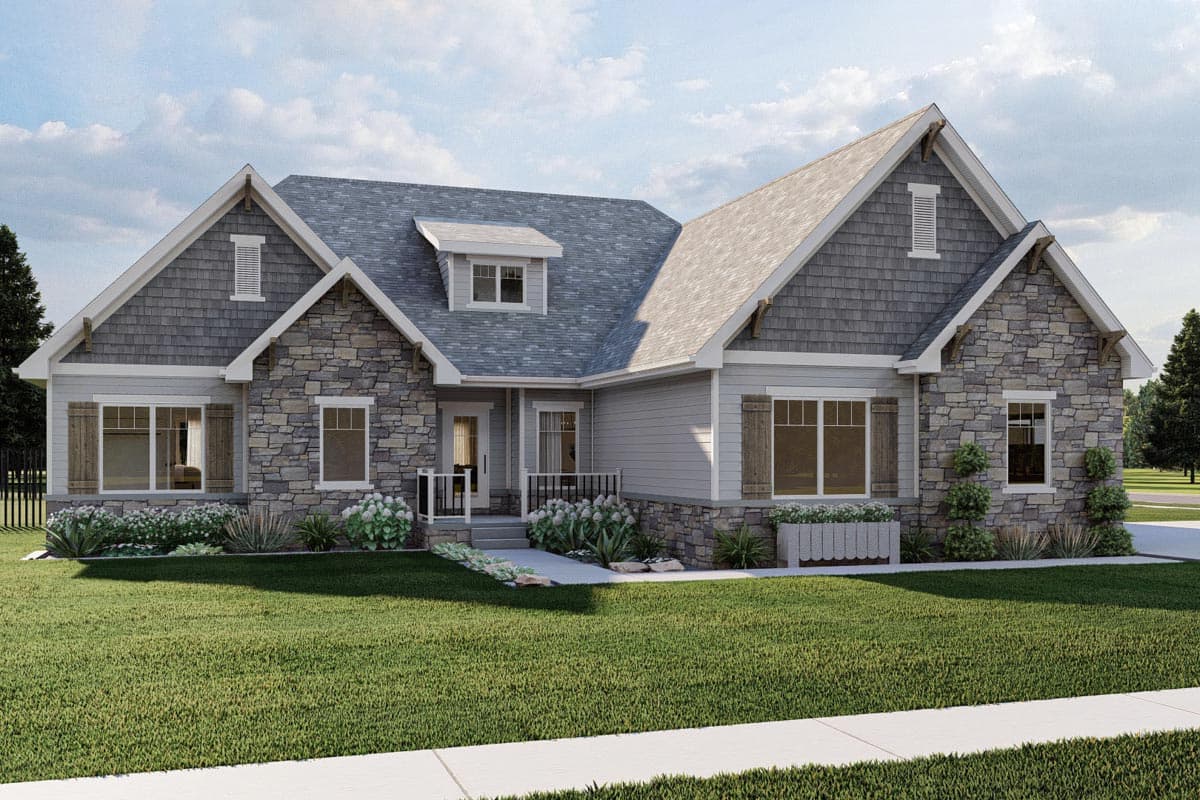

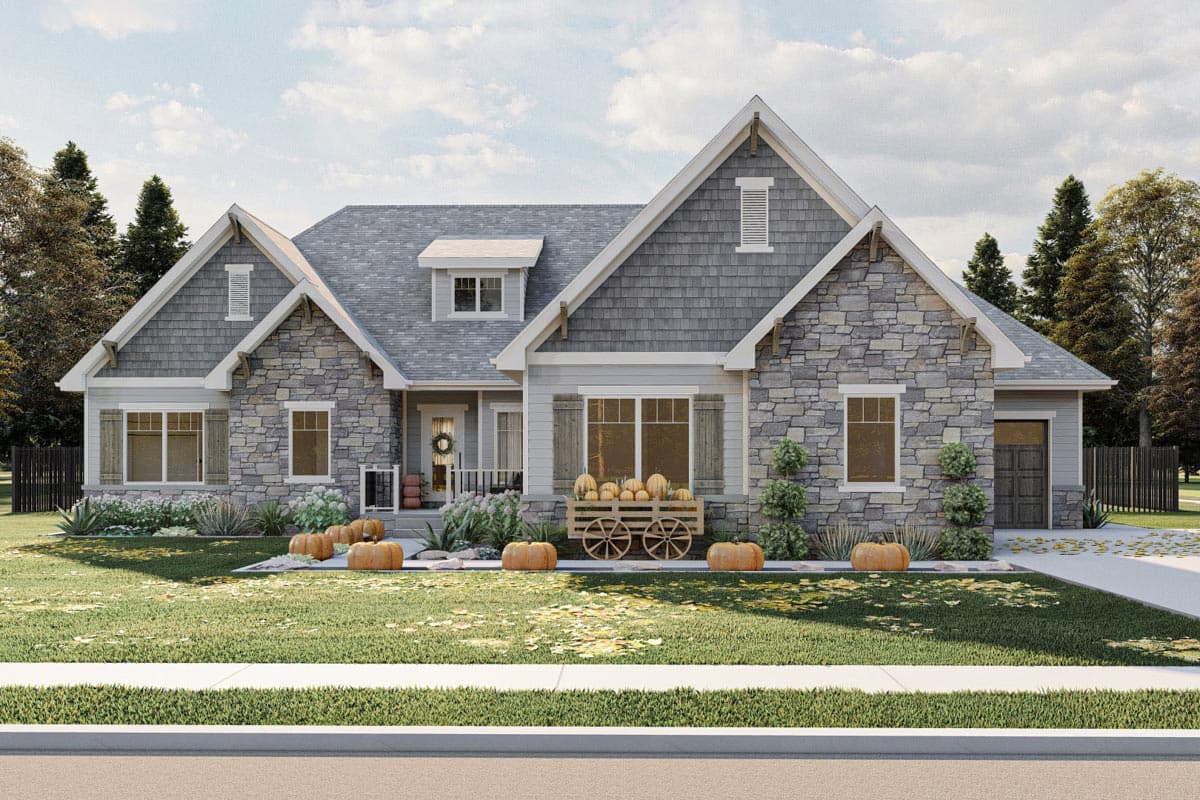

  • This is a beautiful traditional style ranch with many of appealing features. The open floor plan allows for an abundance of natural light and a spacious feel - perfect for entertaining.

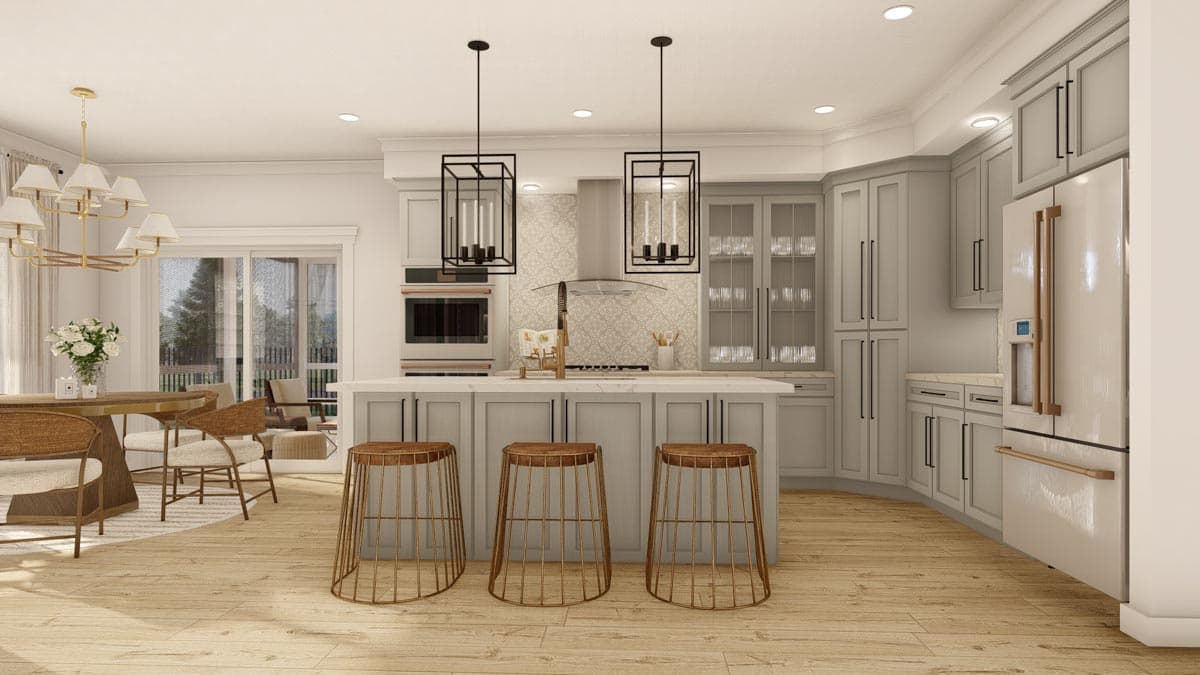

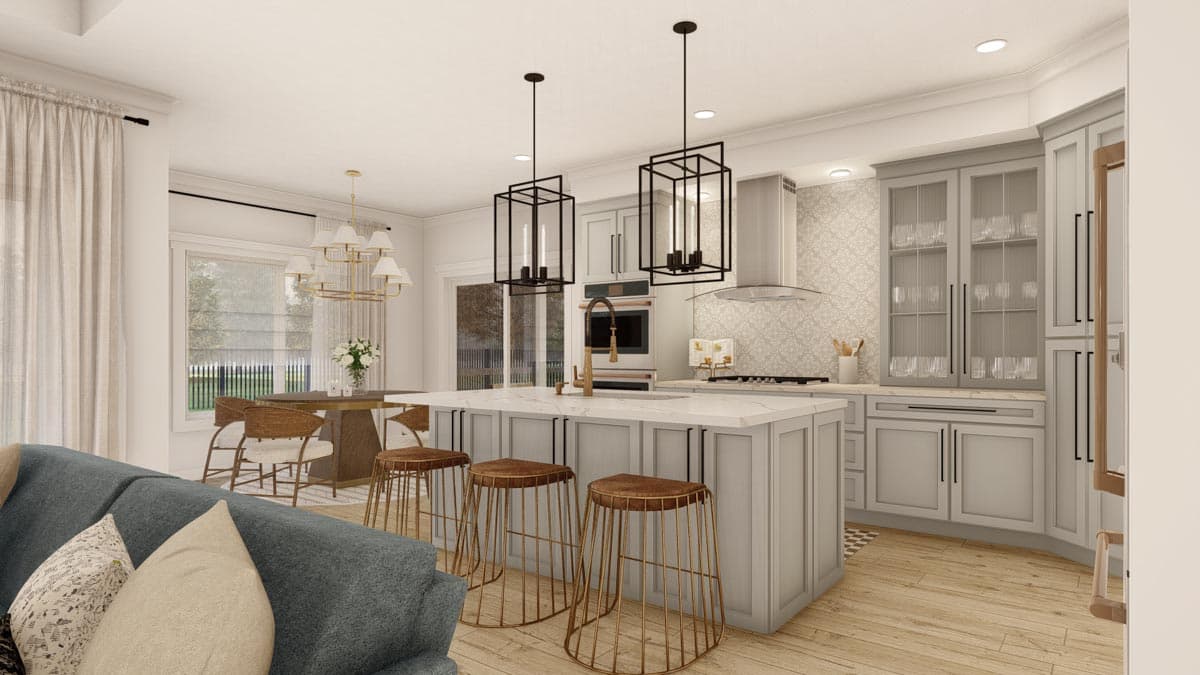

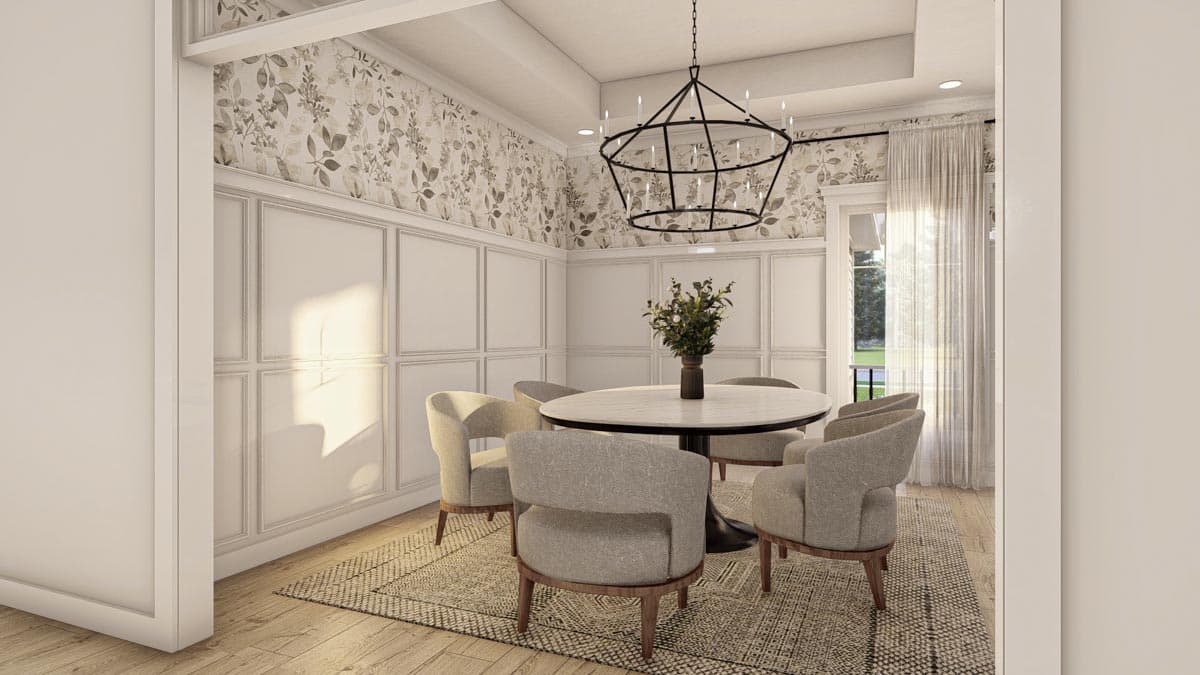

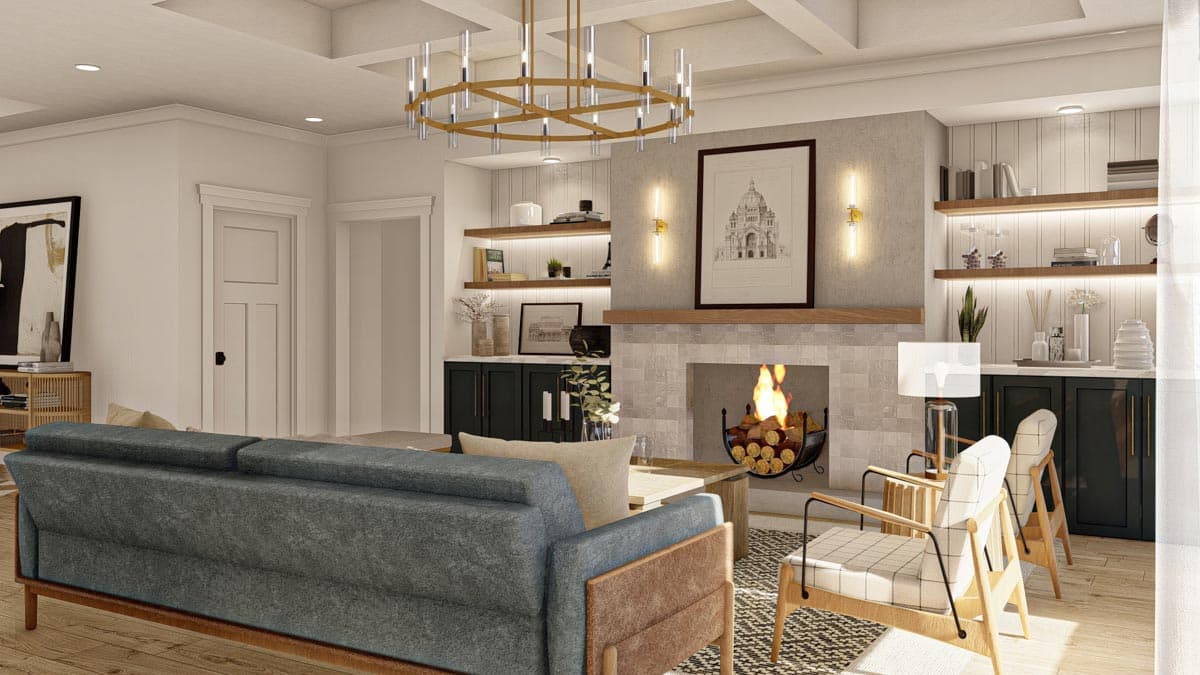

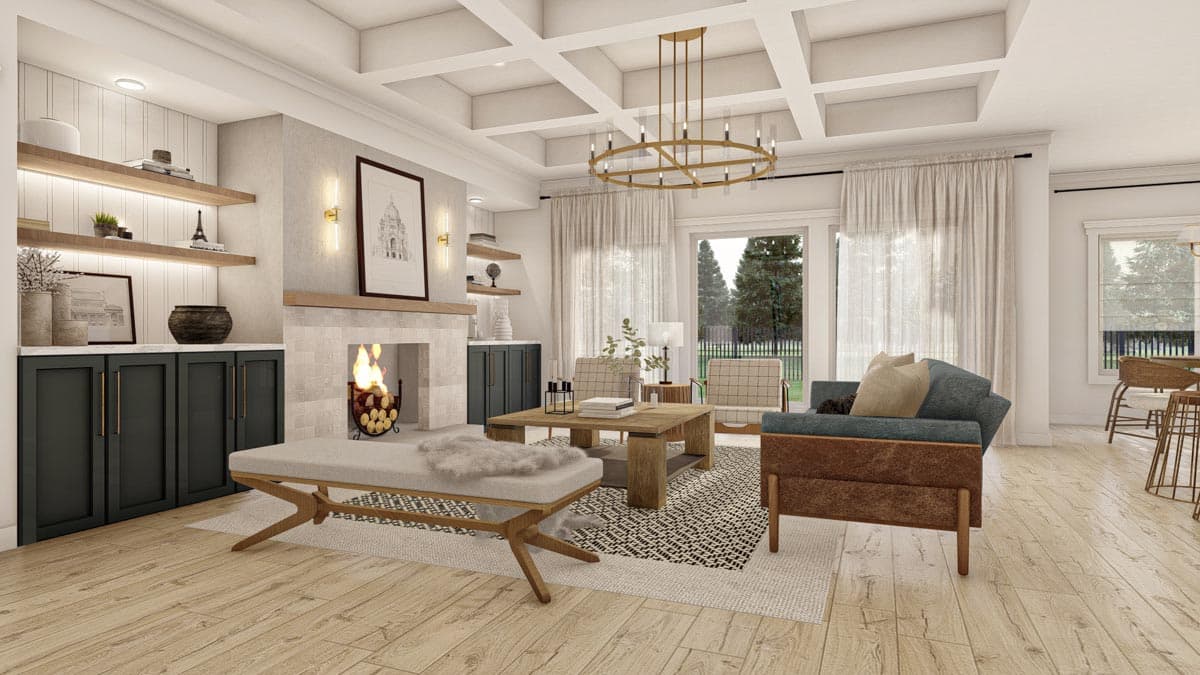

  • The great room has cathedral ceilings and the plan has a lovely breakfast area for casual meals and a generous dining room for formal affairs.

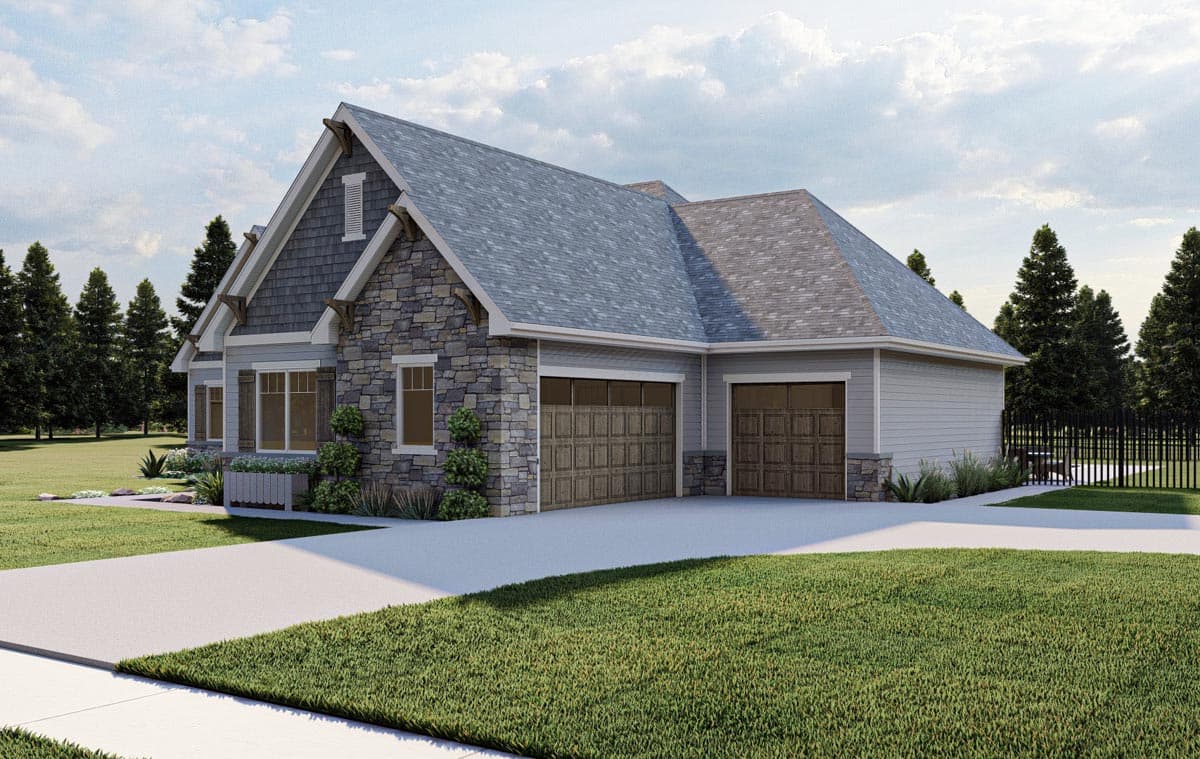

  • The guest bedroom has a private bathroom and the split garage allows for plenty of storage and fantastic curbside appeal.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.

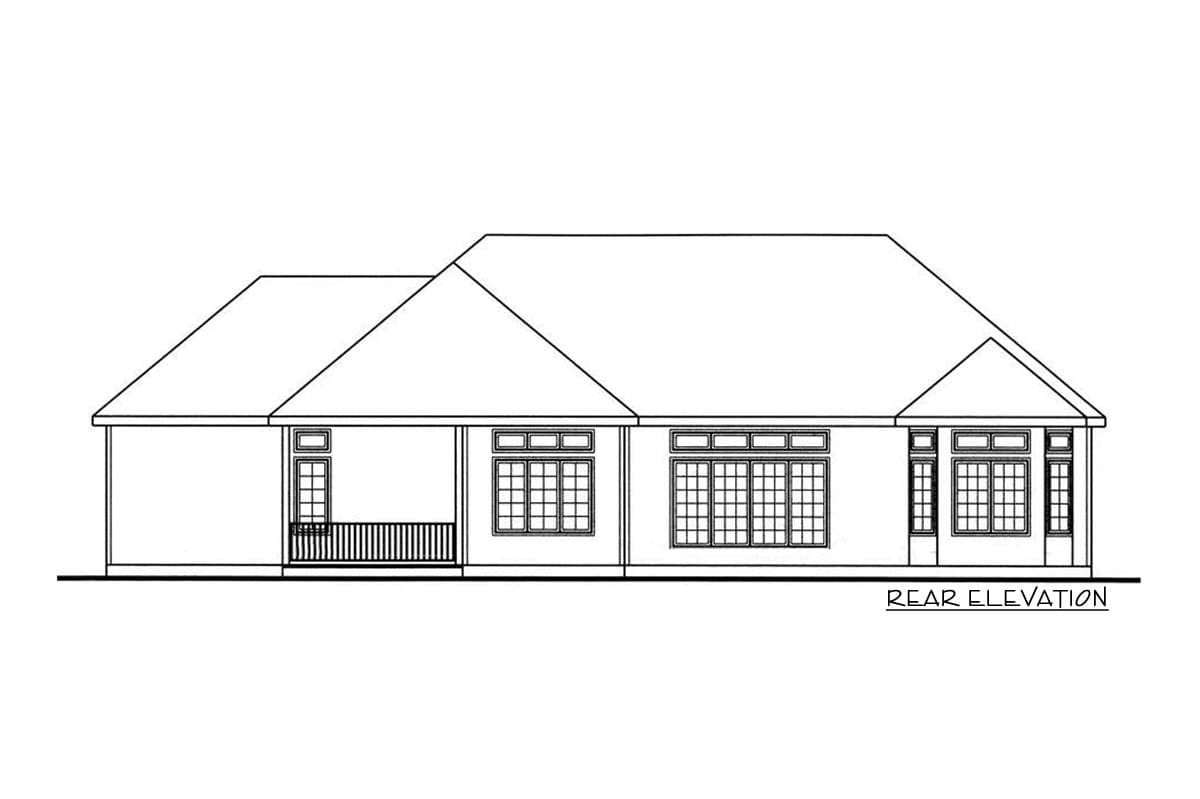

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,159 sq. ft.

1st Floor

2,159 sq. ft.

Porch, Front

88 sq. ft.

Deck

117 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

71' 0"

Depth

64' 4"

Max Ridge Height

25' 5"

Garage

Type

Attached

Area

885 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Craftsman

Special Features

Bedrooms - Split

Formal Dining

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
