Plan 64412SC
2 Bed Bungalow with Exterior Options - 1760 Sq Ft
Heated S.F.
1,760
Beds
2
Baths
2
Stories
1
Cars
2

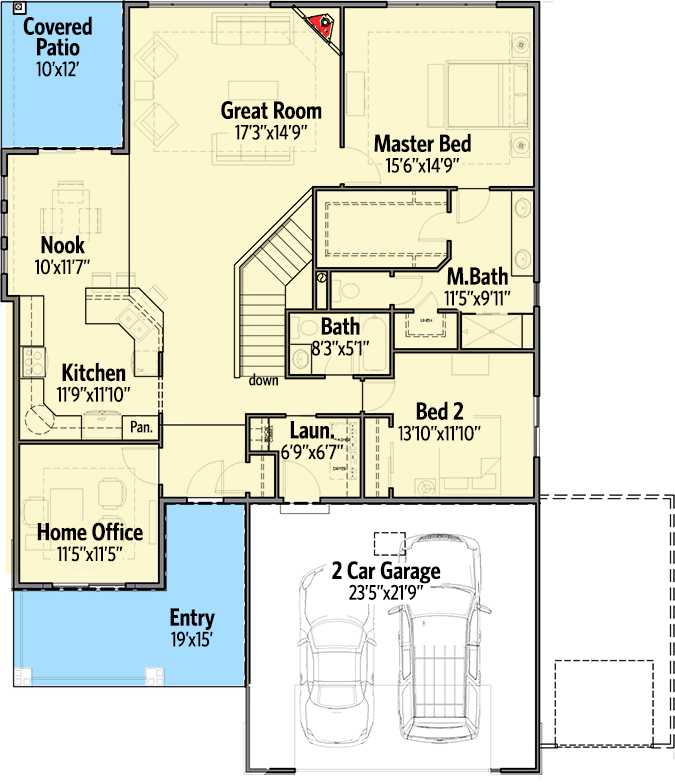

Floor Plan

Plan 64412SC

Main Level
slide image 0

Plan 64412SC

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

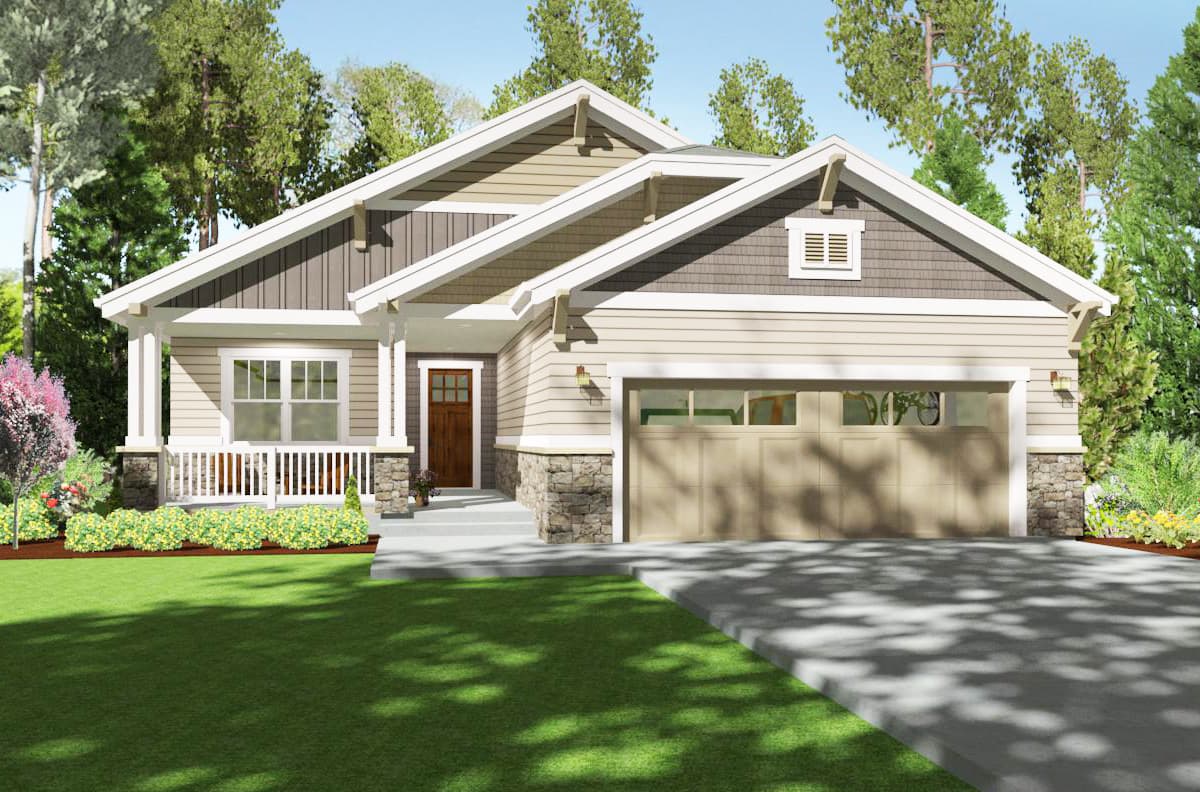

  • Sturdy columns with stone bases support the covered entry on this 2 bed bungalow house plan. A combination of clapboard and board and batten siding add up to a dynamic exterior.
  • Inside, a private study is off the foyer and the great room straight ahead. The great room has a fireplace in the corner and is open to the kitchen and nook.
  • There is casual seating for three at the kitchen island and room for a table in the nook. Sliding doors access the rear covered patio.
  • The master bedroom is in the back corner and has views to the back. There is a large walk-in closet for her, and a smaller one for him.
  • The plans come with a 2-car garage with an option for a third that, when built, extends the width to 55'-wide.
  • The roof is a truss design with a 5:12 pitch.
  • Related Plans: Get alternate exteriors with house plans 64410SC, 64439SC, 64440SC and 64441SC.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.
What's Included
  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,760 sq. ft.

1st Floor

1,760 sq. ft.

Basement Unfinished

1,650 sq. ft.

Porch, Front

196 sq. ft.

Covered Patio

119 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

62' 0"

Max Ridge Height

21' 4"

Garage

Type

Attached

Area

528 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Bungalow

Cottage

Craftsman

Northwest

Special Features

Bedrooms - Split

Breakfast Nook

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,760 sq. ft.

1st Floor

1,760 sq. ft.

Basement Unfinished

1,650 sq. ft.

Porch, Front

196 sq. ft.

Covered Patio

119 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

62' 0"

Max Ridge Height

21' 4"

Garage

Type

Attached

Area

528 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Bungalow

Cottage

Craftsman

Northwest

Special Features

Bedrooms - Split

Breakfast Nook

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor
