Plan 420183WNT

Exclusive

2-Bed Contemporary ADU House Plan with Open-Concept Living Space - 924 Sq Ft
Heated S.F.
924
Beds
2
Baths
1
Stories
1
Floor Plan

Plan 420183WNT

Main Level
slide image 0

Plan 420183WNT

https://www.architecturaldesigns.com

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This ADU house plan gives you 924 square feet of heated living space, 2 bed and 1 full bath.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get a larger version with house plans 420132WNT (980 sq. ft.)
  • NOTE: Please allow 3 to 5 business days for delivery.
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.

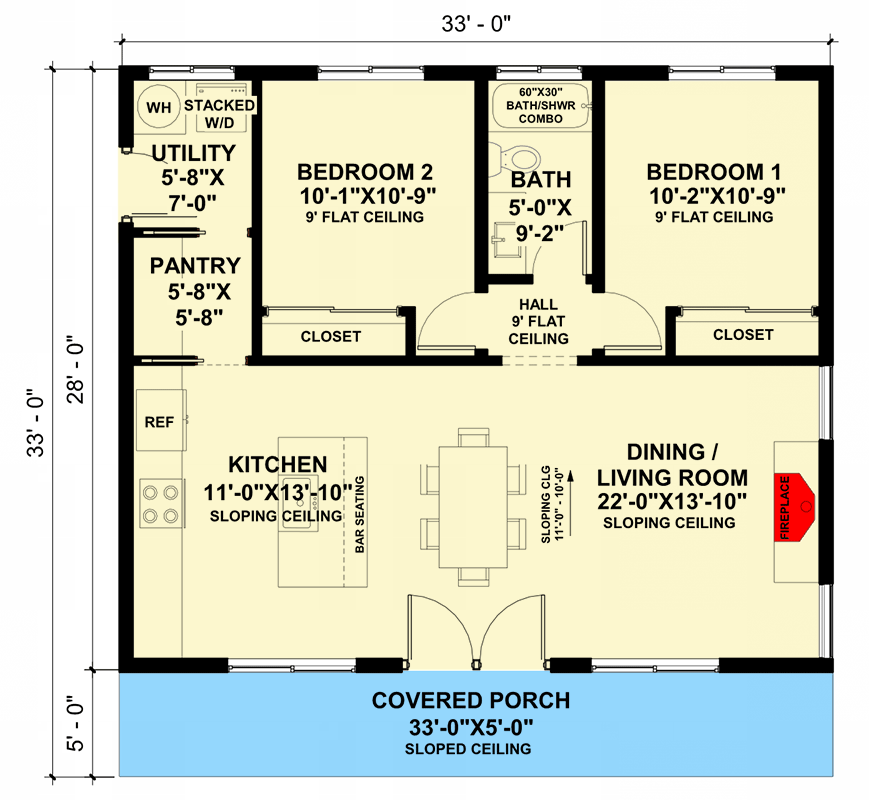

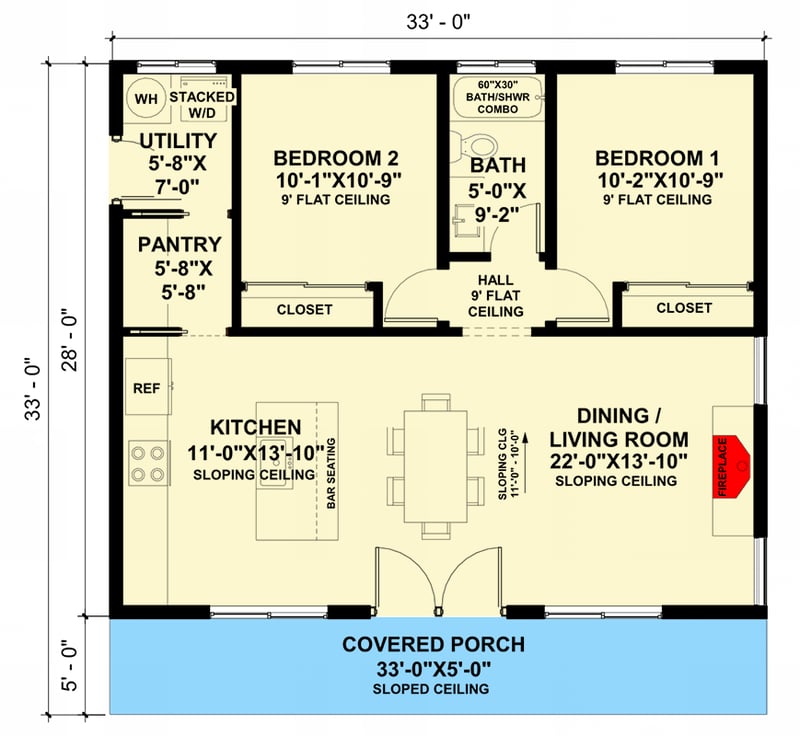

  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

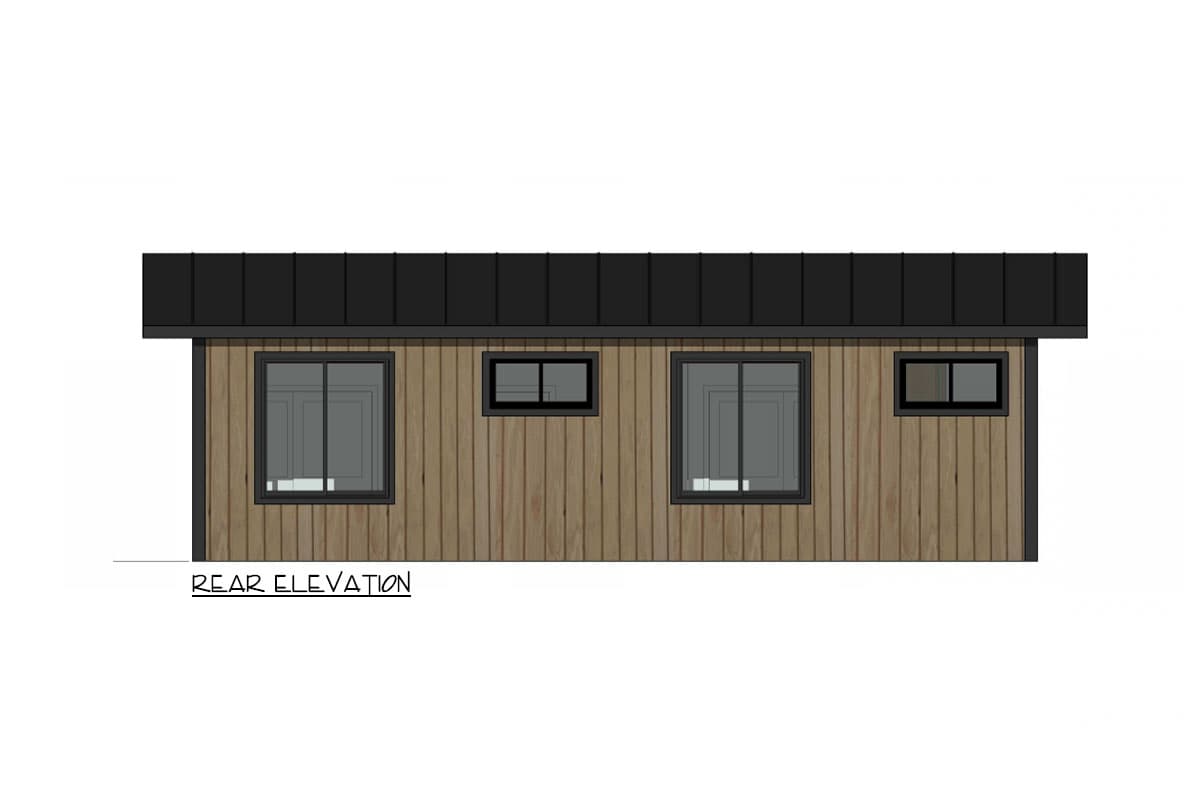

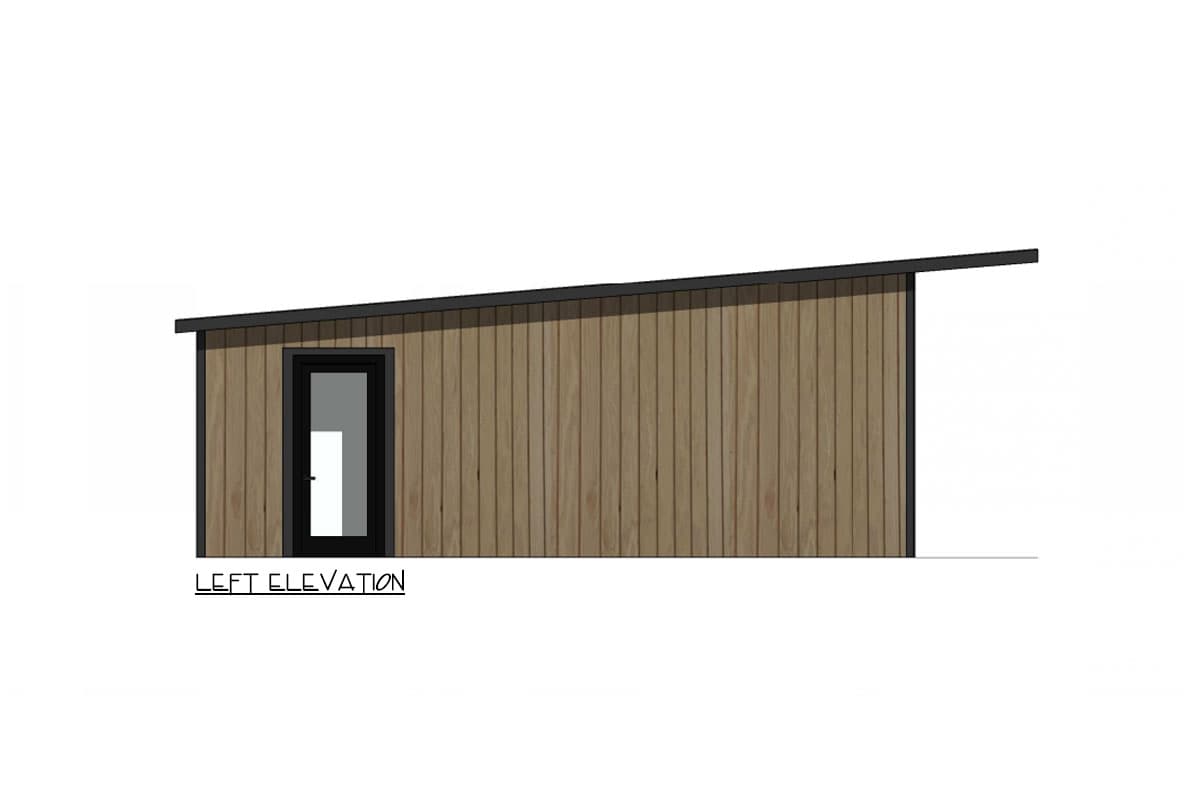

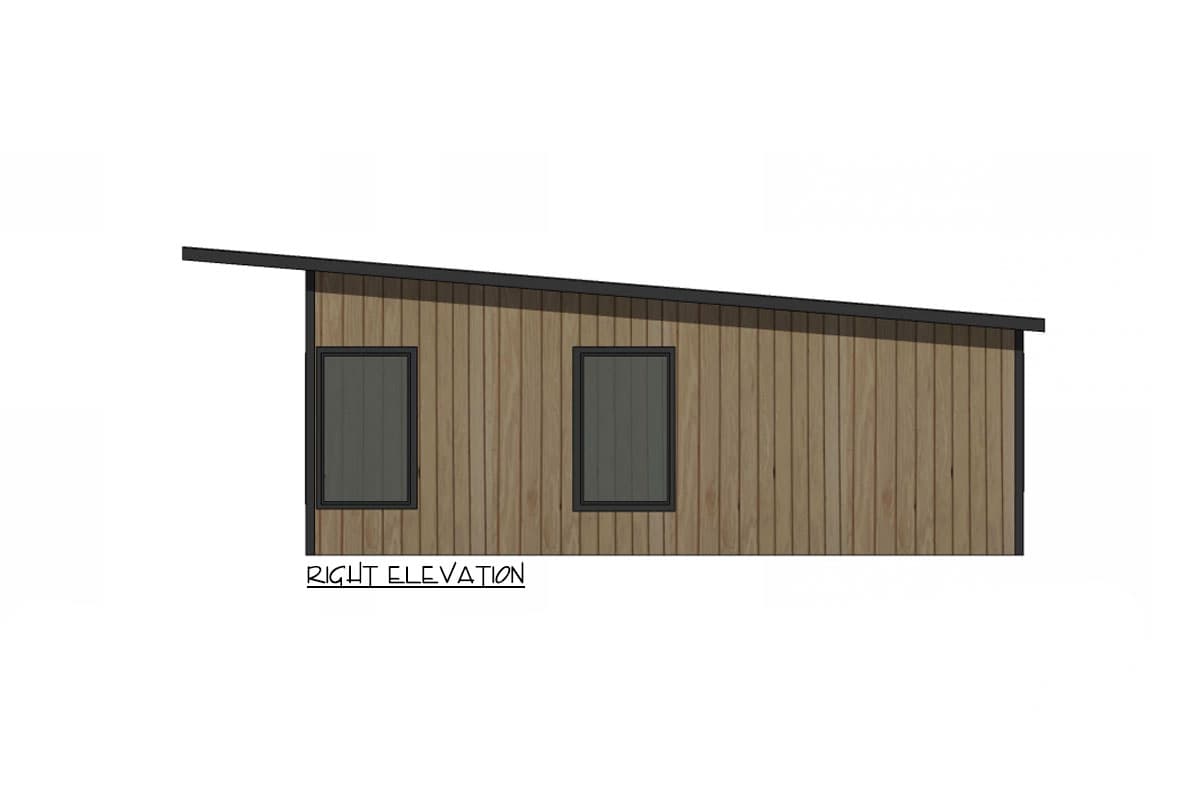

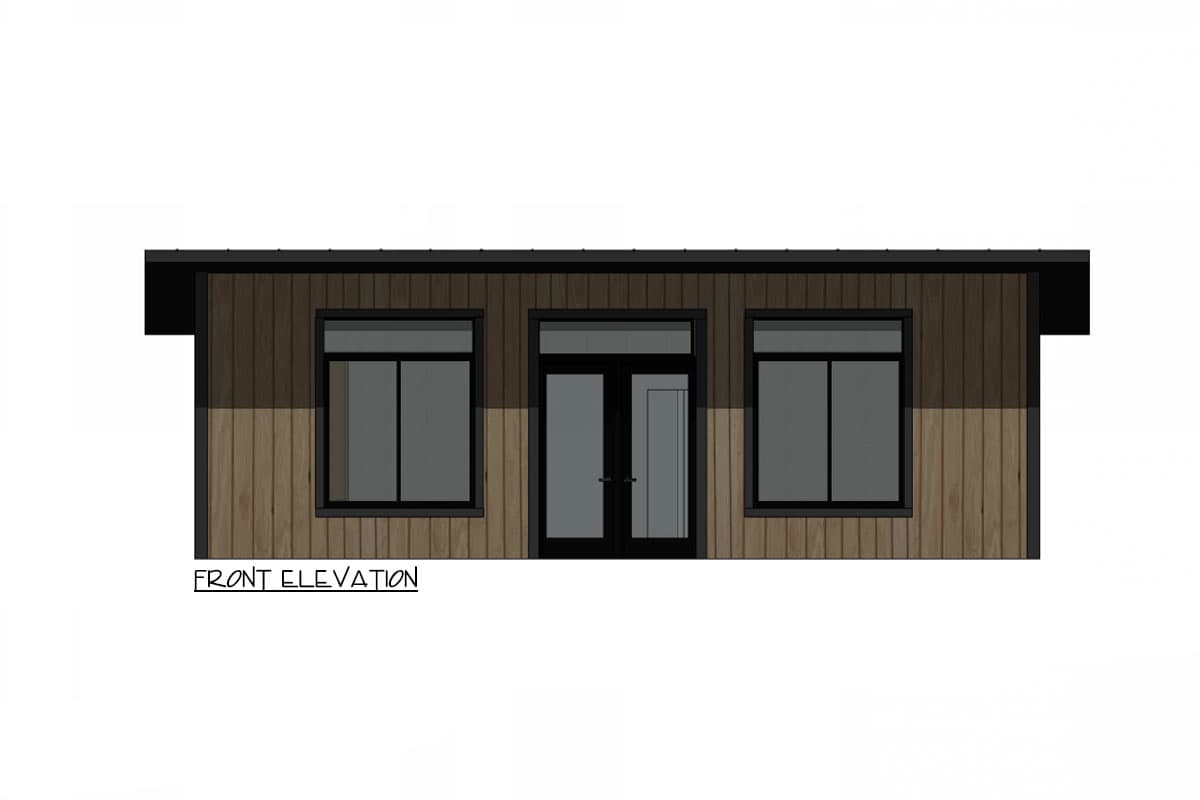

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

924 sq. ft.

1st Floor

924 sq. ft.

Porch, Front

165 sq. ft.

Porch, Combined

165 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

33' 0"

Depth

33' 0"

Max Ridge Height

12' 3"

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

Slope

11' 0''

Kitchen

Slope

11' 0''

Dining Room

Slope

11' 0''

Roof Details

Primary Pitch

1 on 12

Framing Type

Stick

Architectural Style

Plan Collections

Square Footage Breakdown

Total Heated Area

924 sq. ft.

1st Floor

924 sq. ft.

Porch, Front

165 sq. ft.

Porch, Combined

165 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

33' 0"

Depth

33' 0"

Max Ridge Height

12' 3"

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

Slope

11' 0''

Kitchen

Slope

11' 0''

Dining Room

Slope

11' 0''

Roof Details

Primary Pitch

1 on 12

Framing Type

Stick

Architectural Style

Plan Collections
