Plan 270062AF
2-Bed Contemporary Cottage with Open Patio - 967 Sq Ft
Heated S.F.
967
Beds
1 - 2
Baths
2
Stories
1

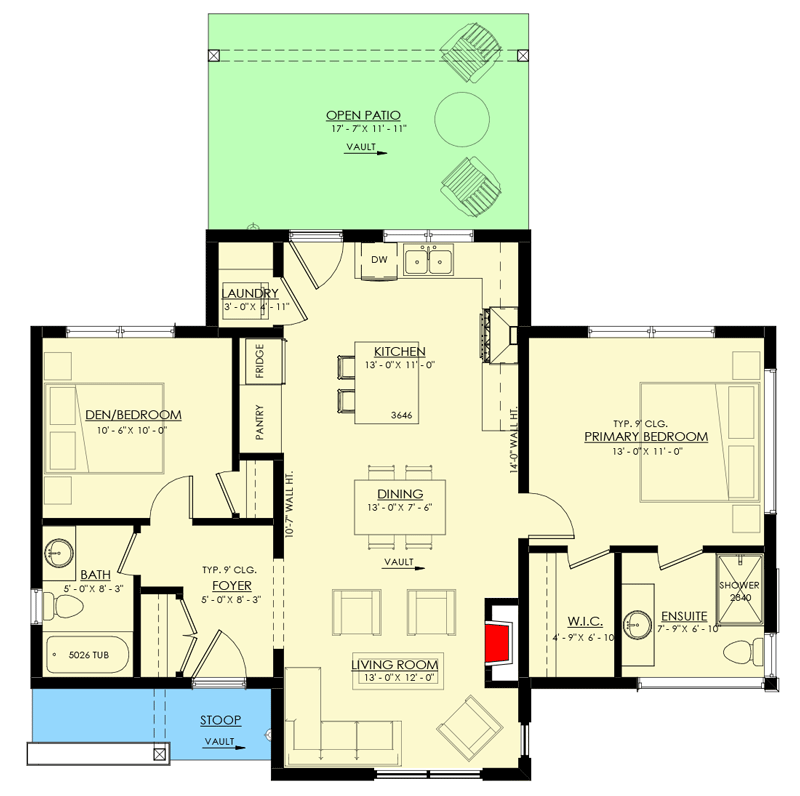

Floor Plan

Plan 270062AF

Main Level
slide image 0

Plan 270062AF

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This Contemporary Cottage plan presents a ribbed metal roof above a blend of siding materials and large windows ensuring a light and airy interior.
  • The open living space is centrally located in order to offer the bedrooms additional privacy.
  • A fireplace anchors the right wall of the living room and a vaulted ceiling lends a cohesive element throughout the living, dining, and kitchen areas.
  • The kitchen hosts an island with an eating bar and nearby french doors that reveal the laundry closet.
  • The primary bedroom occupies the right side of the design and features a large picture window, along with a 4-fixture bathroom and walk-in closet.
  • Related Plan: Get an alternate exterior with house plan 270061AF.
What's Included
  • Foundation Plan
  • Floor Plan(s) with Door and Window Opening Sizes
  • Roof Plan showing pitches, valleys, ridges

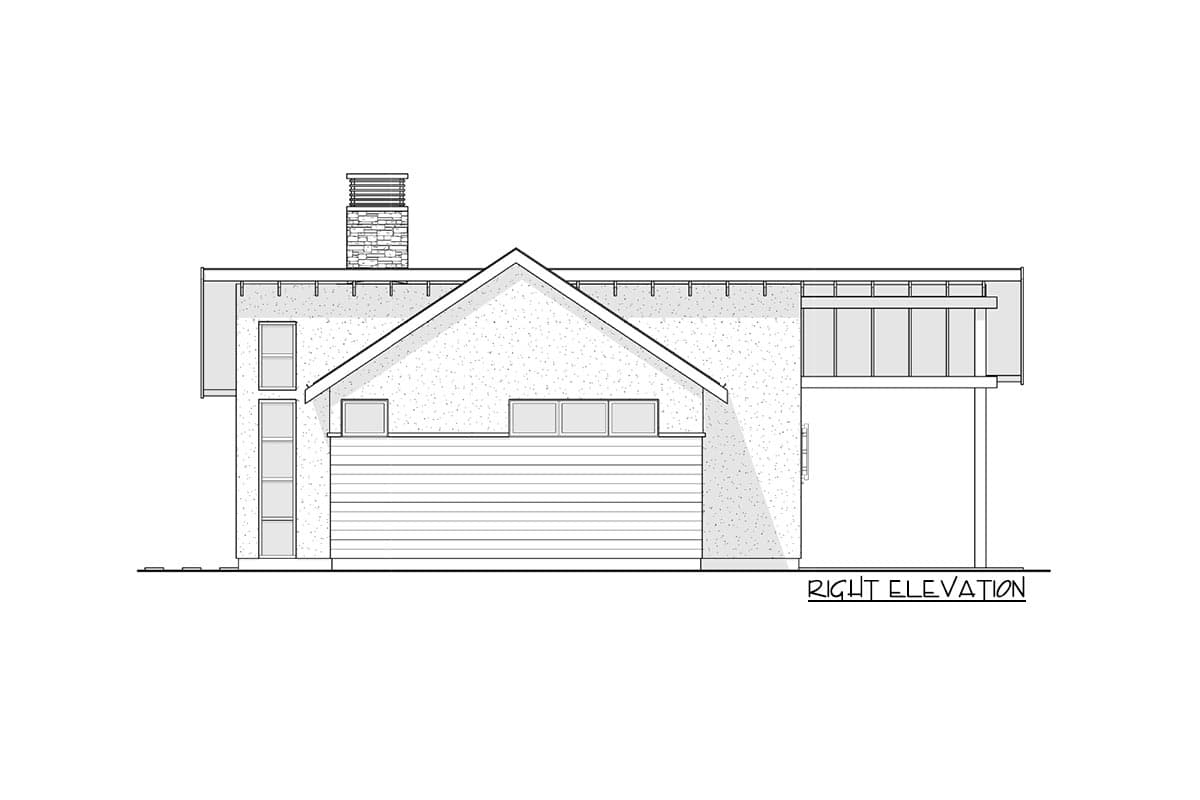

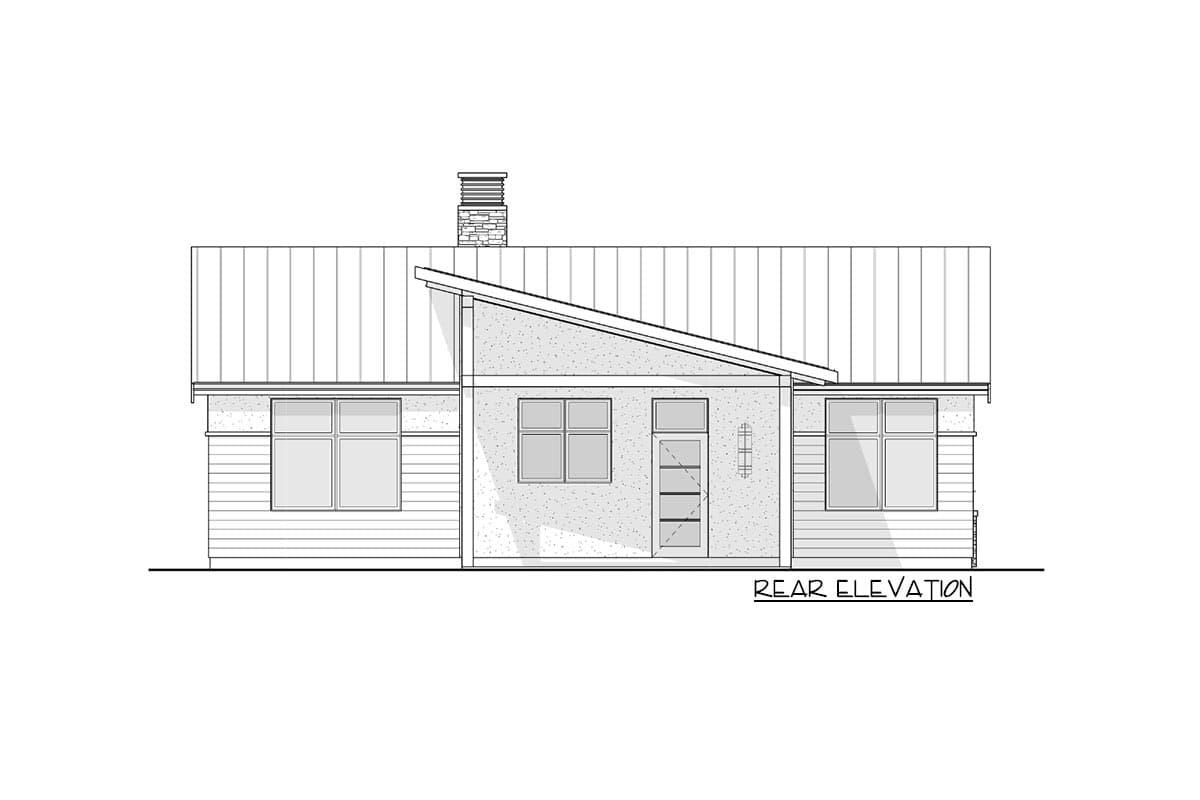

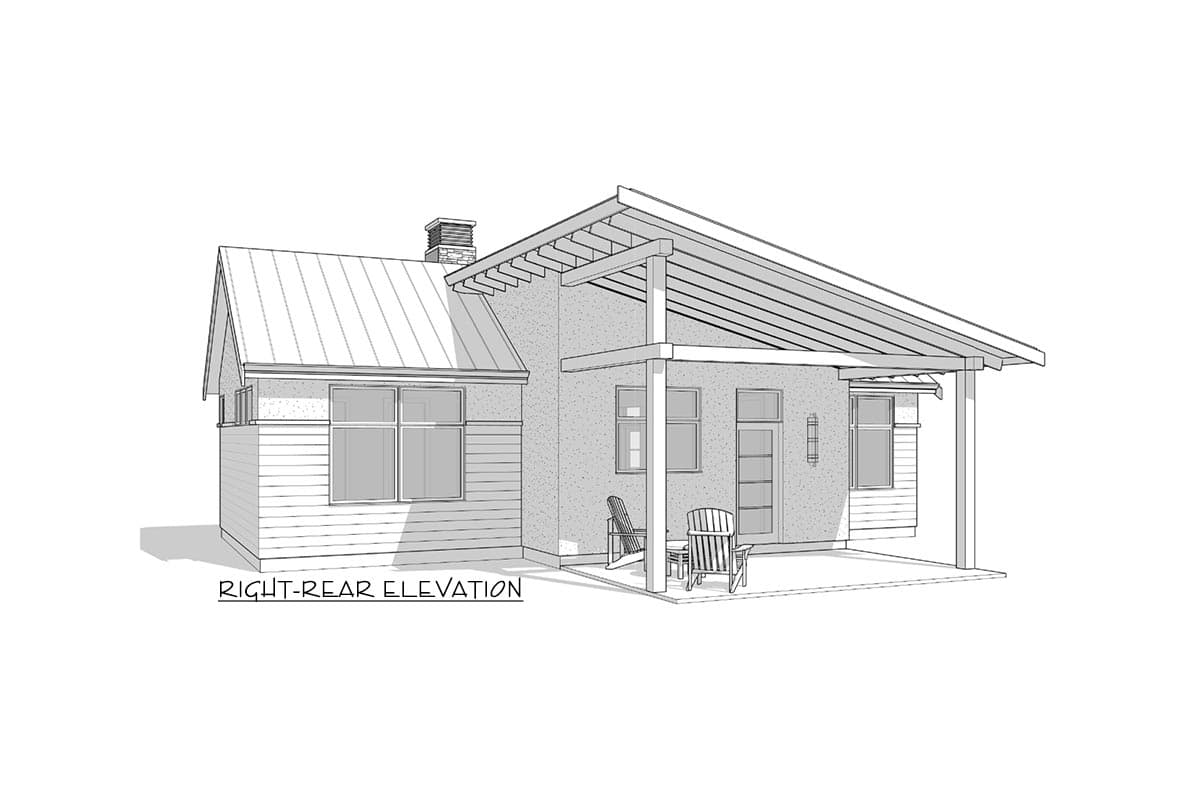

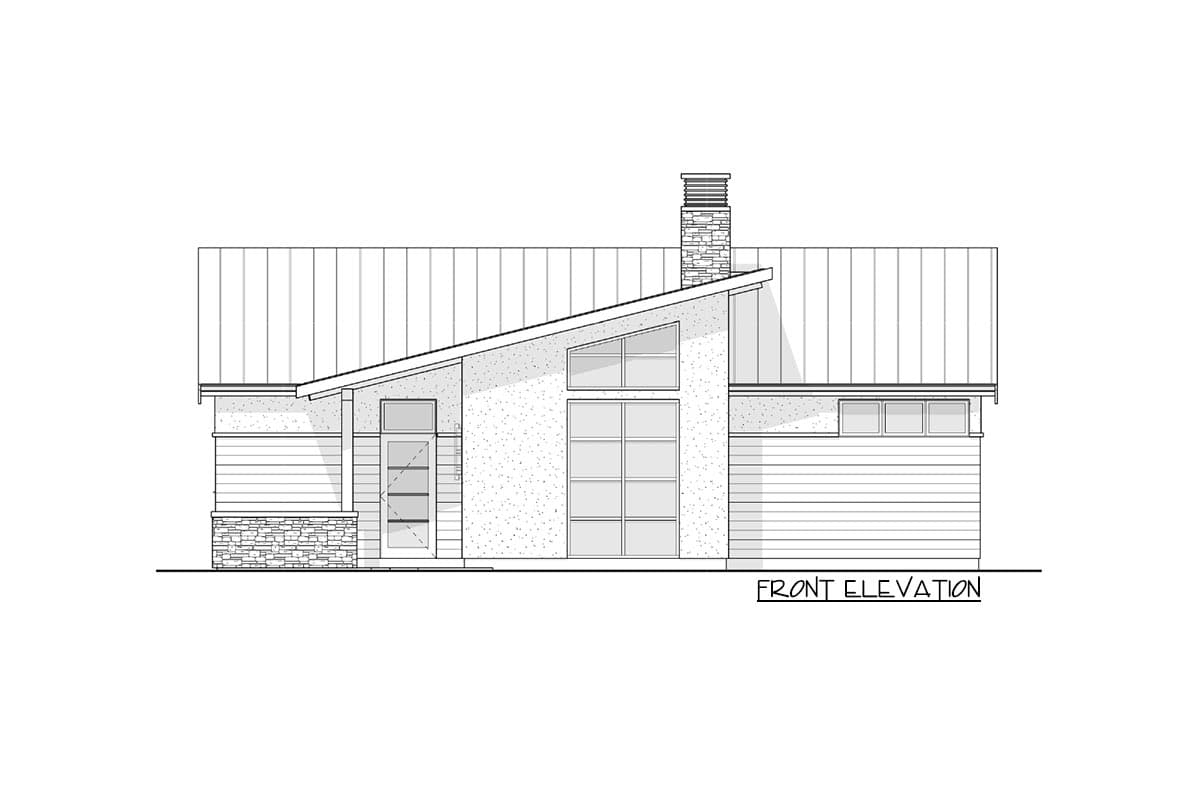

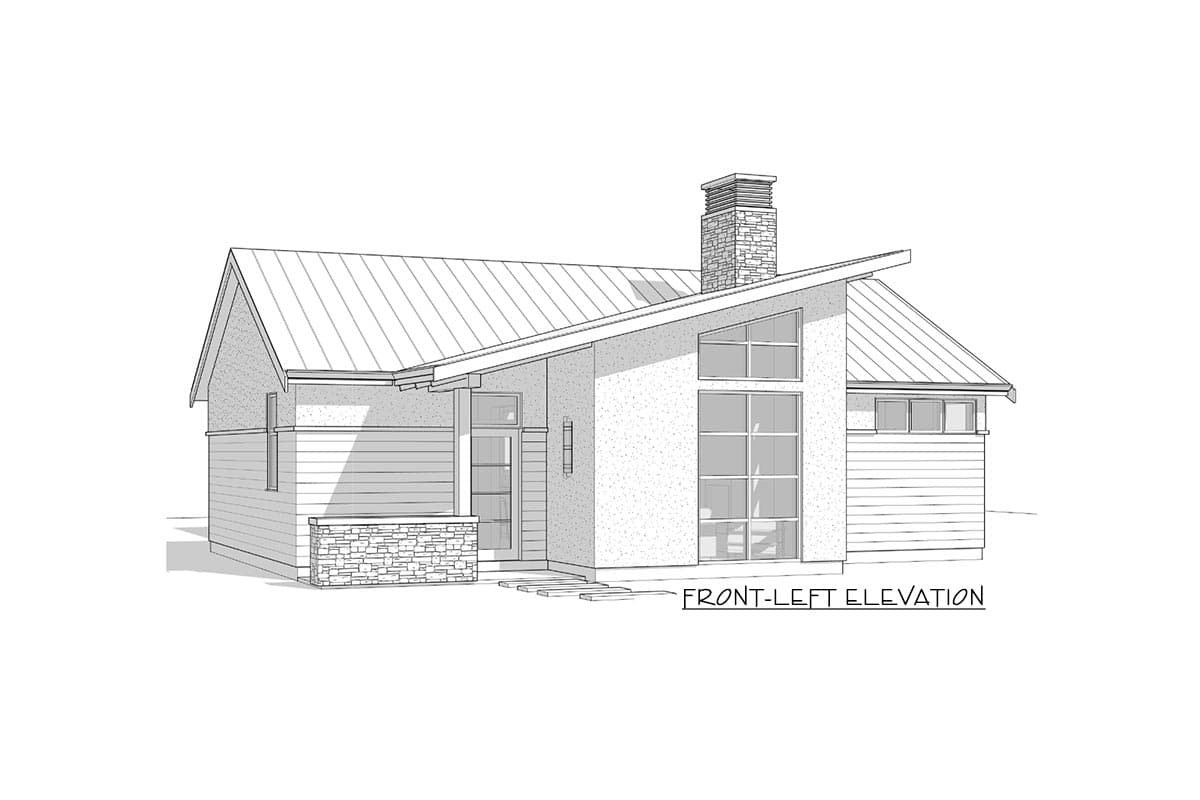

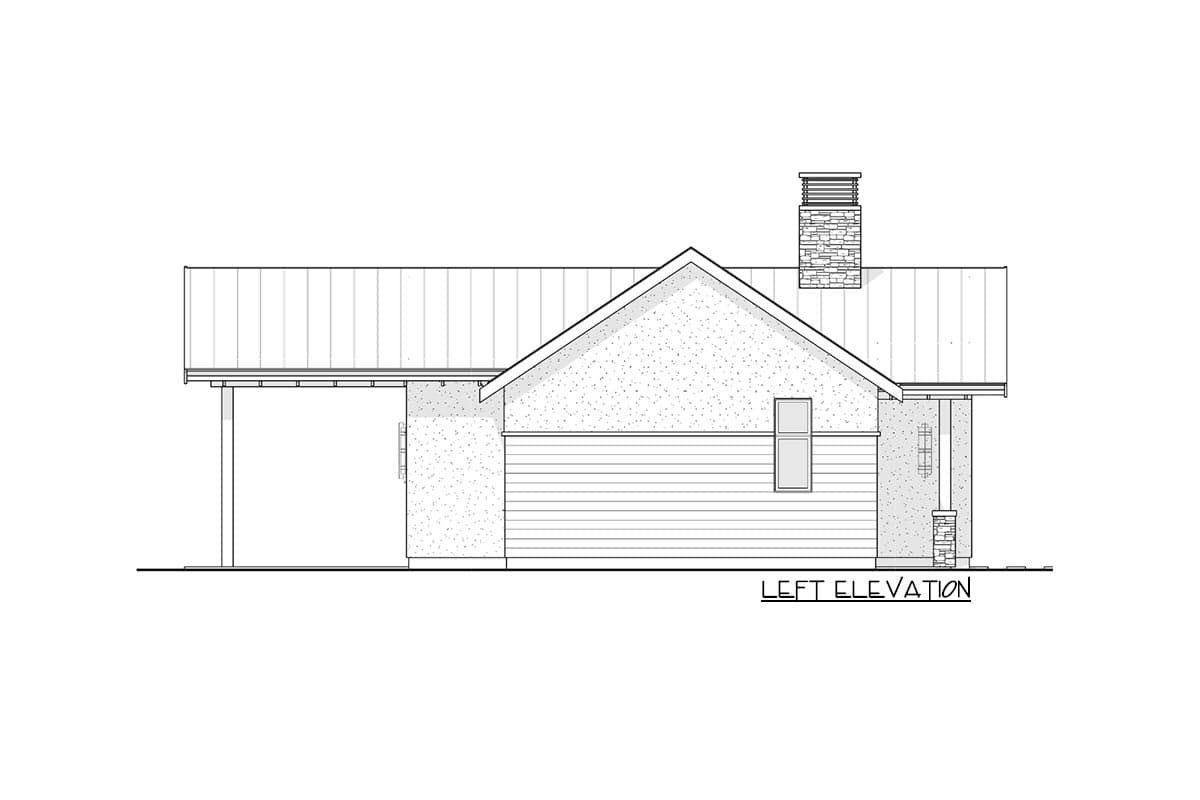

  • Exterior Elevations
  • Building Section
  • Typical Construction Details/Sections

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Framing - layouts with beam sizes and locations
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

967 sq. ft.

1st Floor

967 sq. ft.

Porch, Front

34 sq. ft.

Deck

196 sq. ft.

Deck & Porch

230 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 9"

Depth

44' 0"

Max Ridge Height

22' 6"

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Great Room

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Contemporary

Cottage

Mid Century Modern

Modern

Northwest

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Den

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Canadian House Plans
