Plan 890082AH
2-Bed Craftsman Home Plan with Open Concept Design
Heated S.F.
2,224
Beds
2
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 890082AH

Main Level
slide image 0

Plan 890082AH

1-800-854-7852

1-262-521-4596

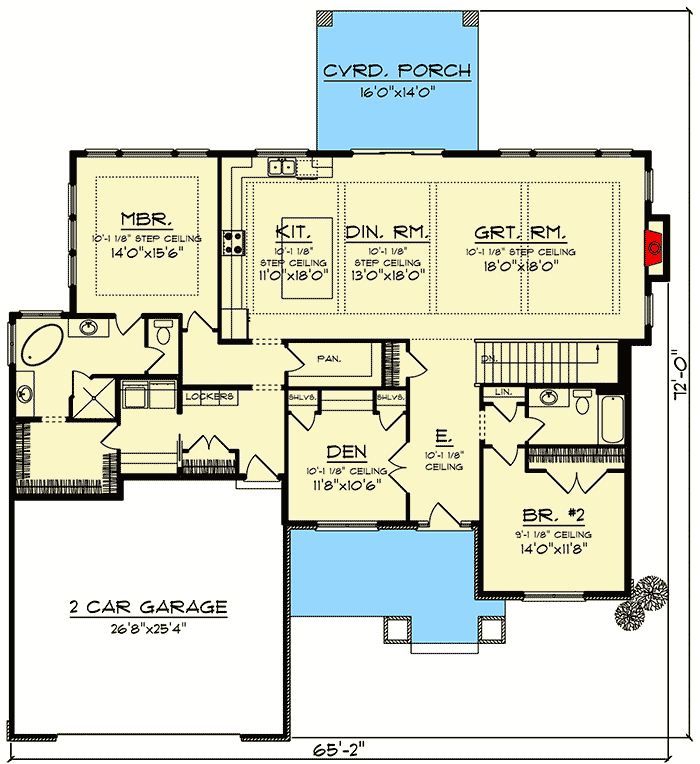

Main Level
floor plan image Main Level
Plan Details
  • Three gables and a covered entry porch greet you to this 3-bed Craftsman home plan.

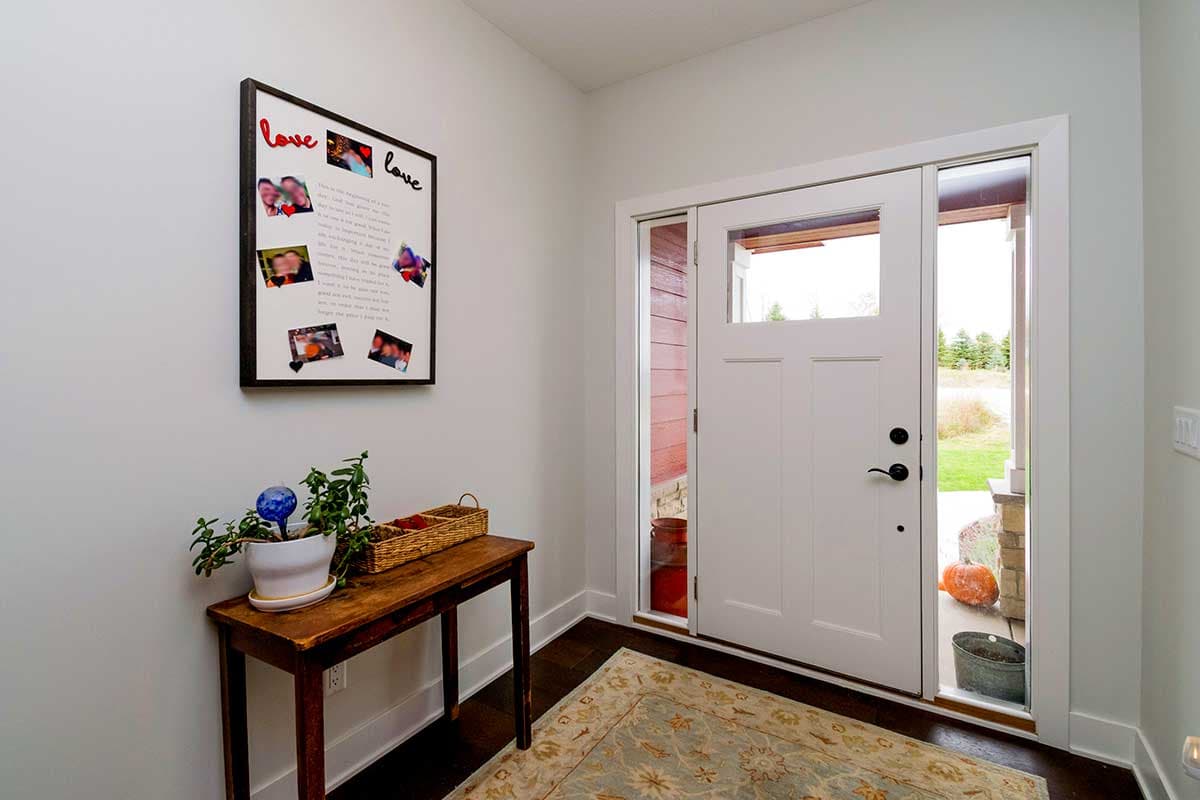

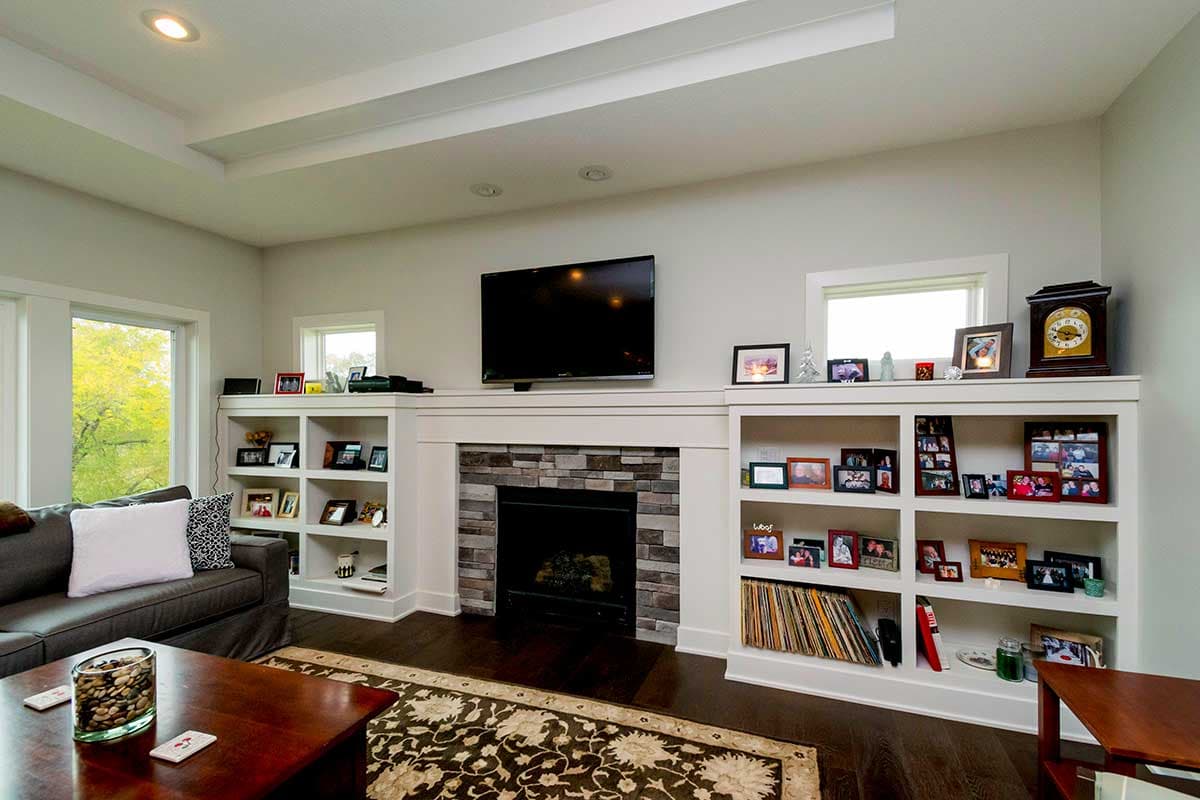

  • Inside, 10' ceilings greet you as you walk ahead to the great room where tall windows allow in plenty of natural light.

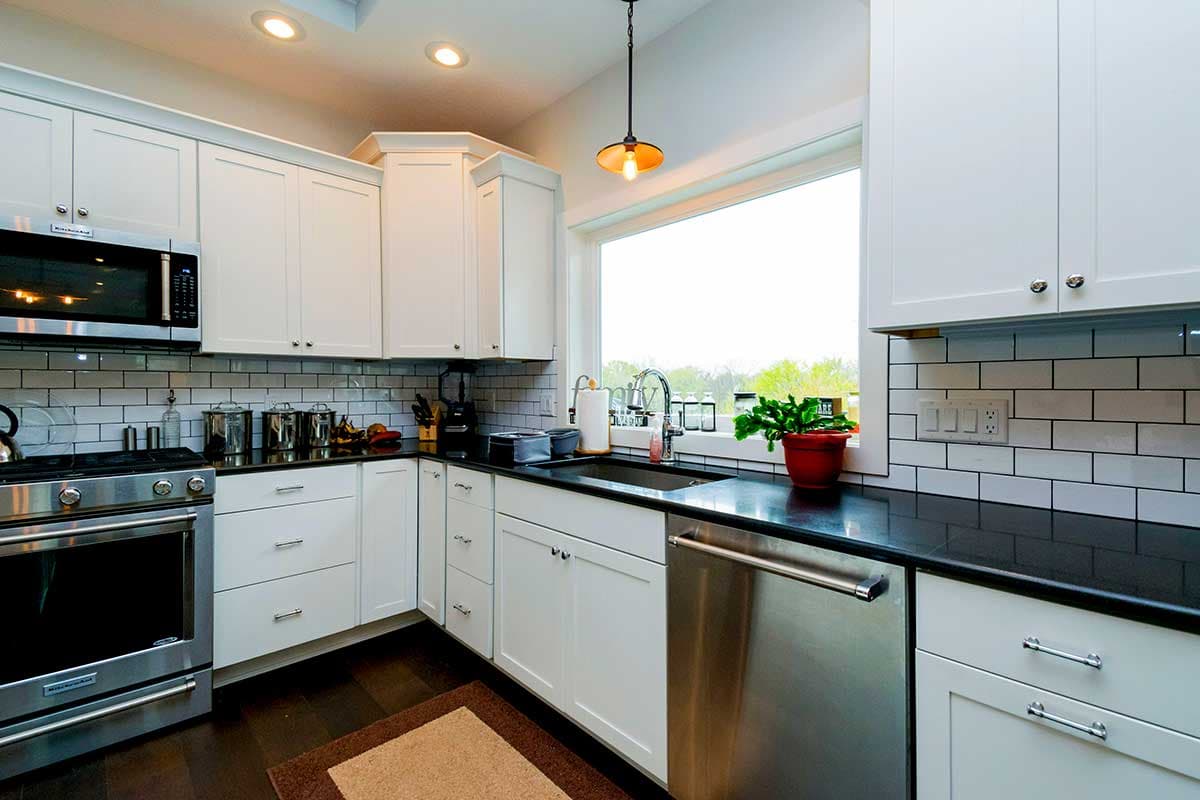

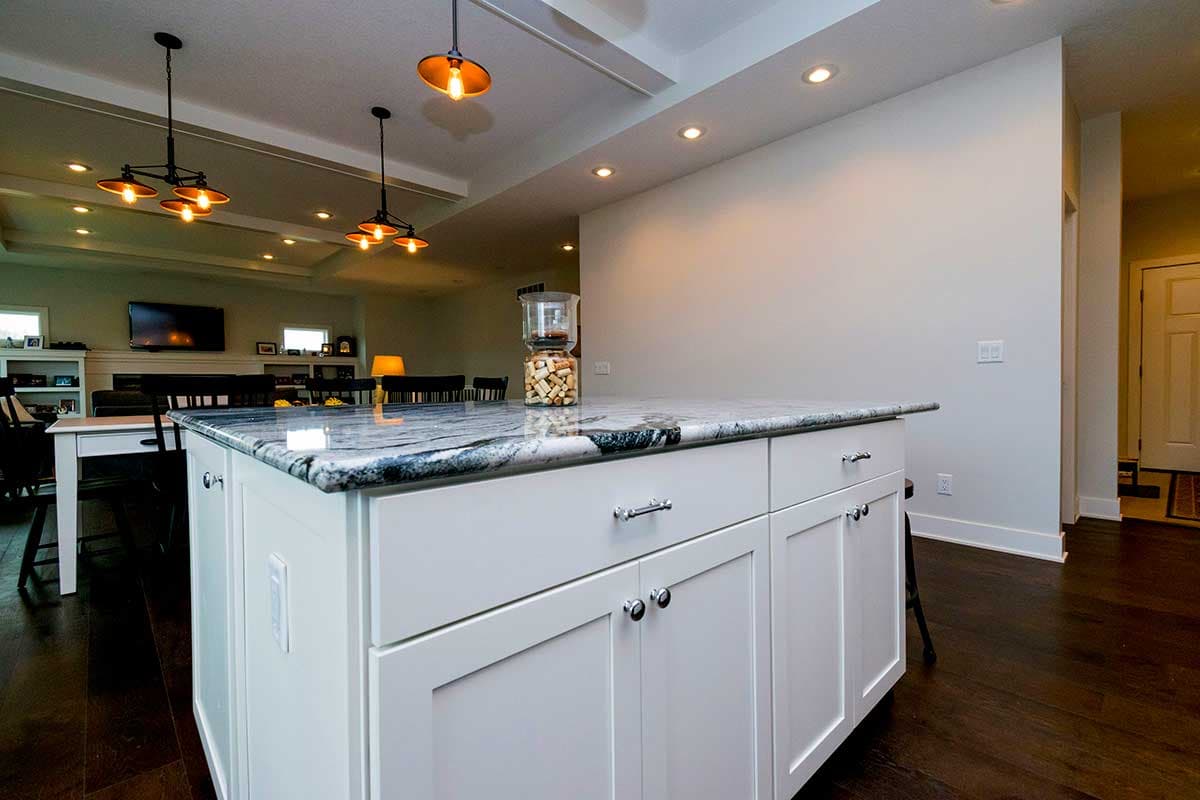

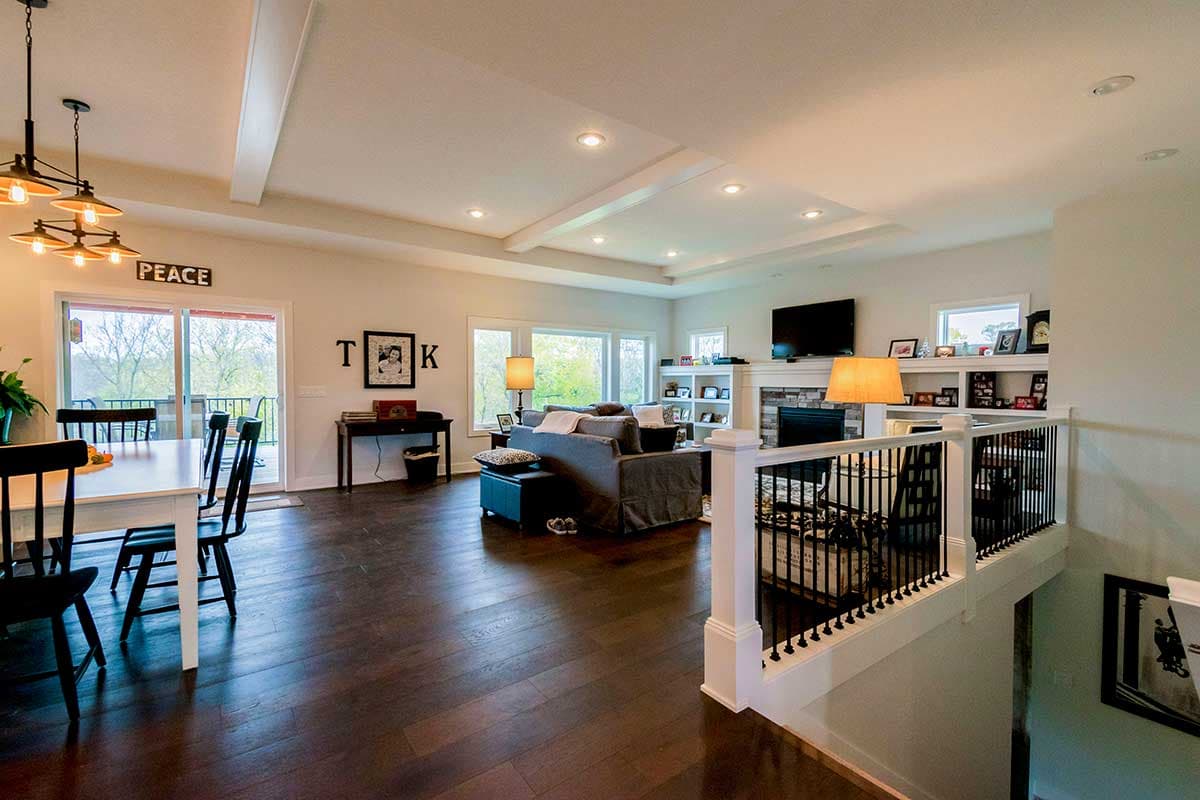

  • The kitchen, dining and great rooms flow together to create an open concept floor plan with a spacious feel.

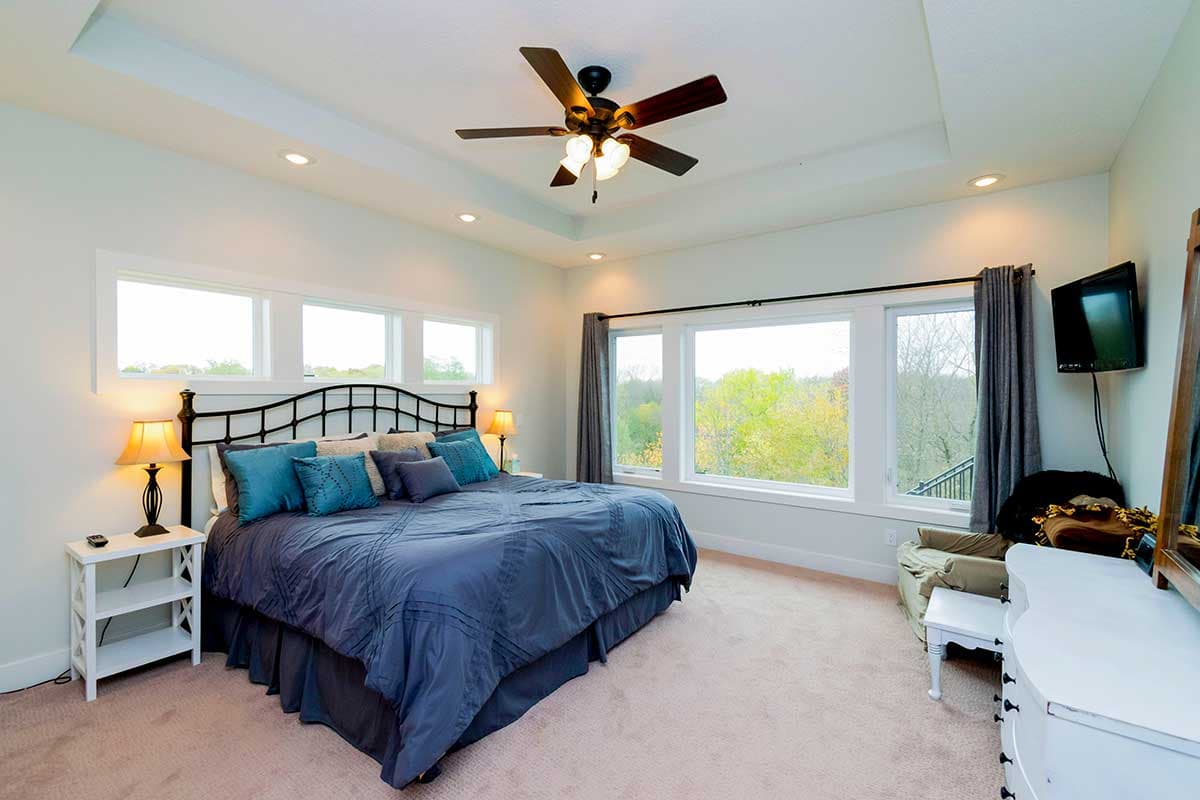

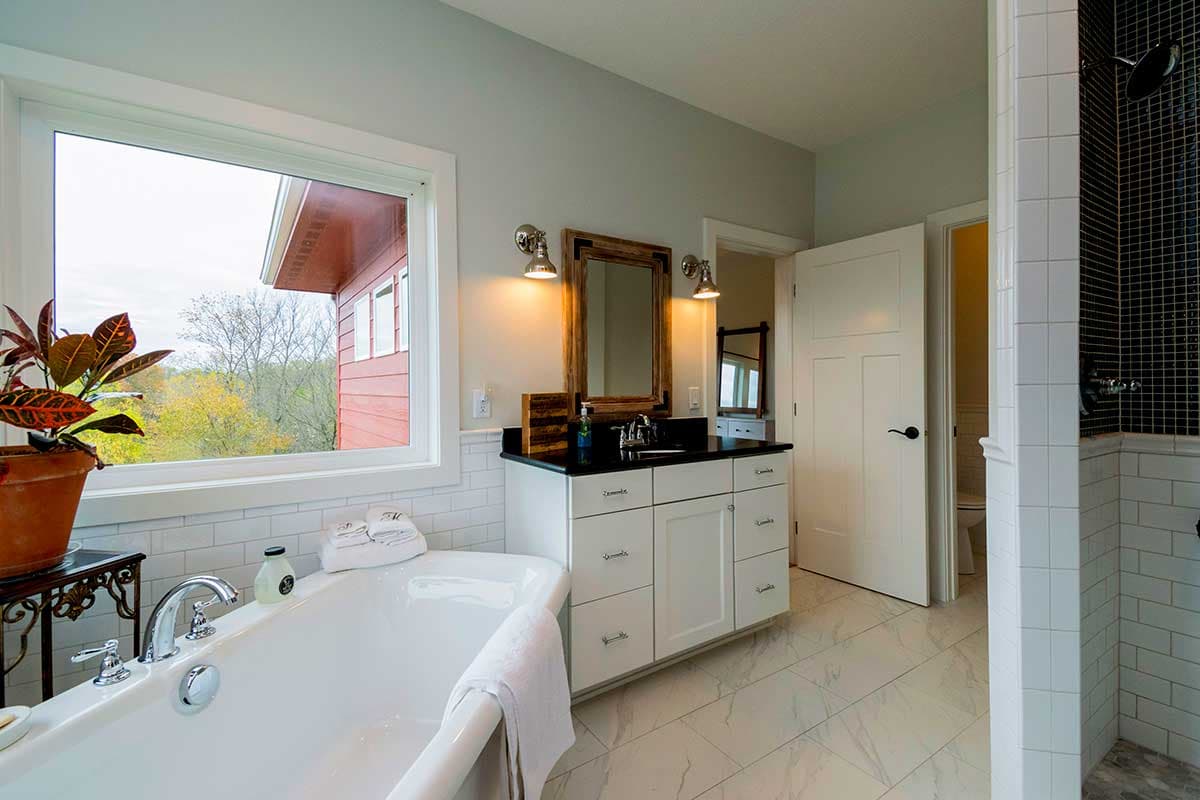

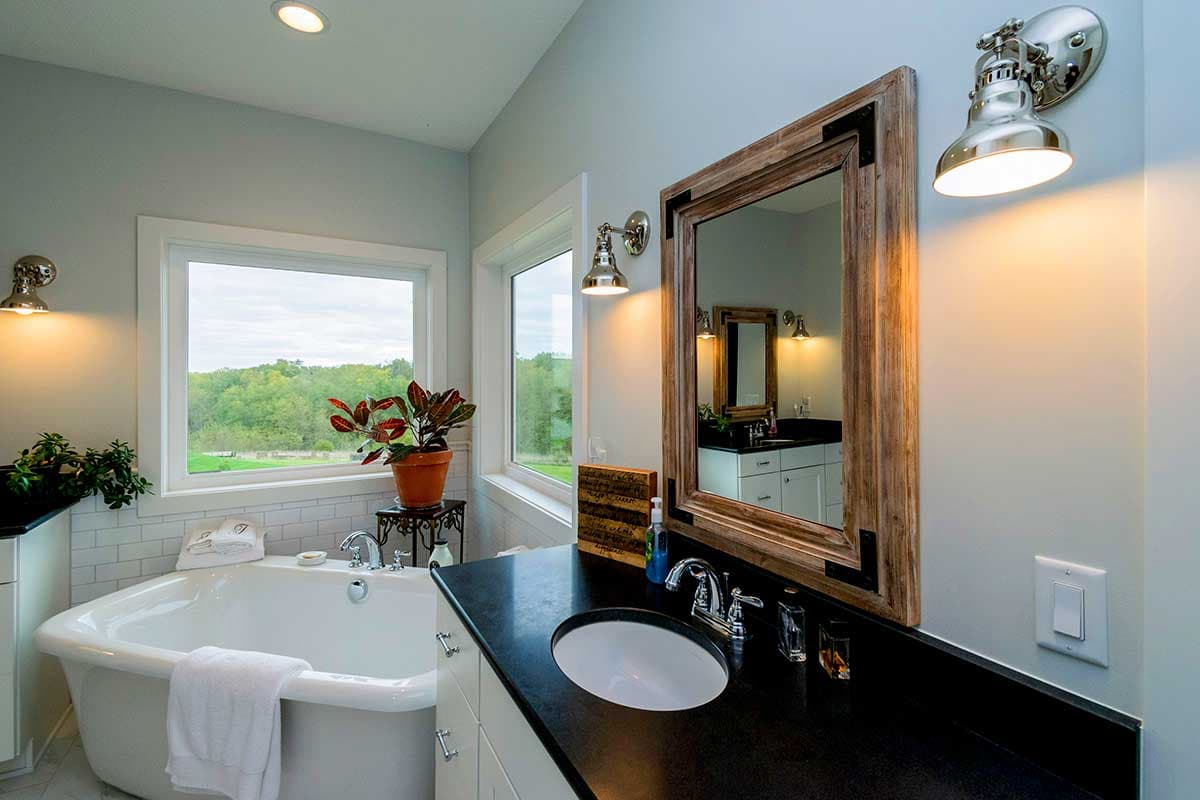

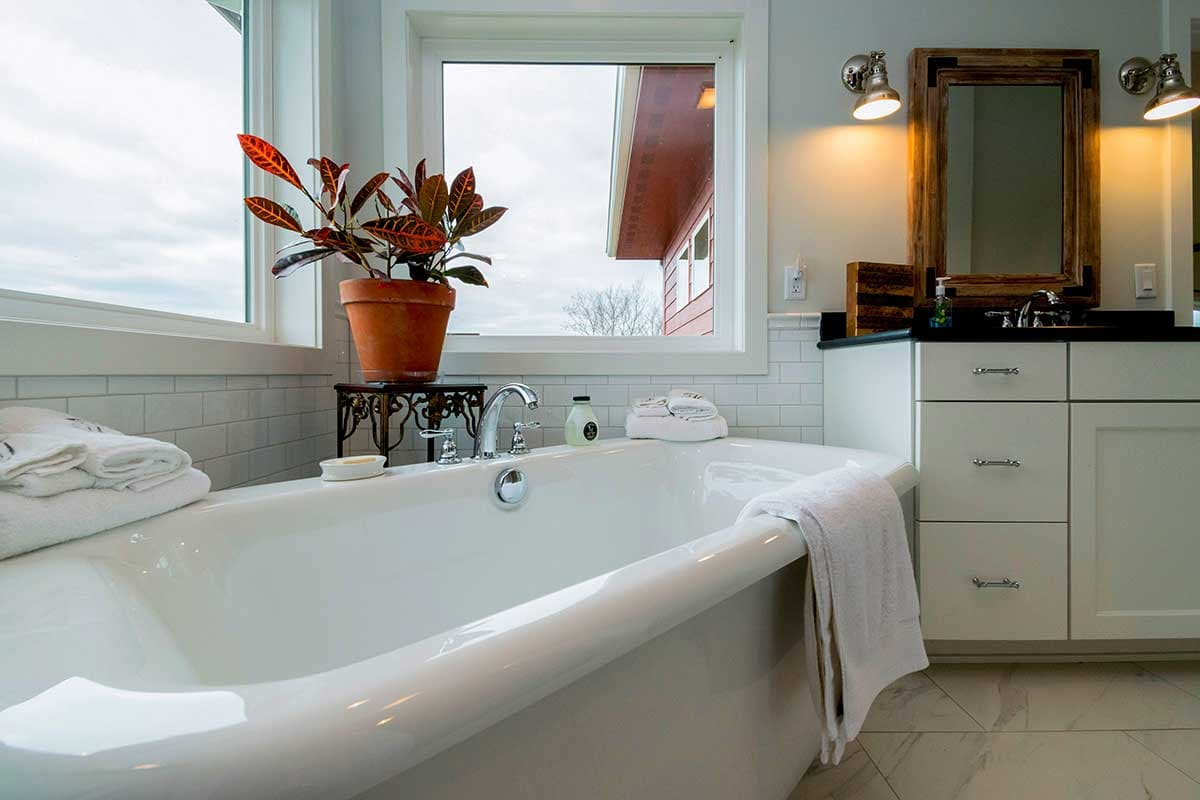

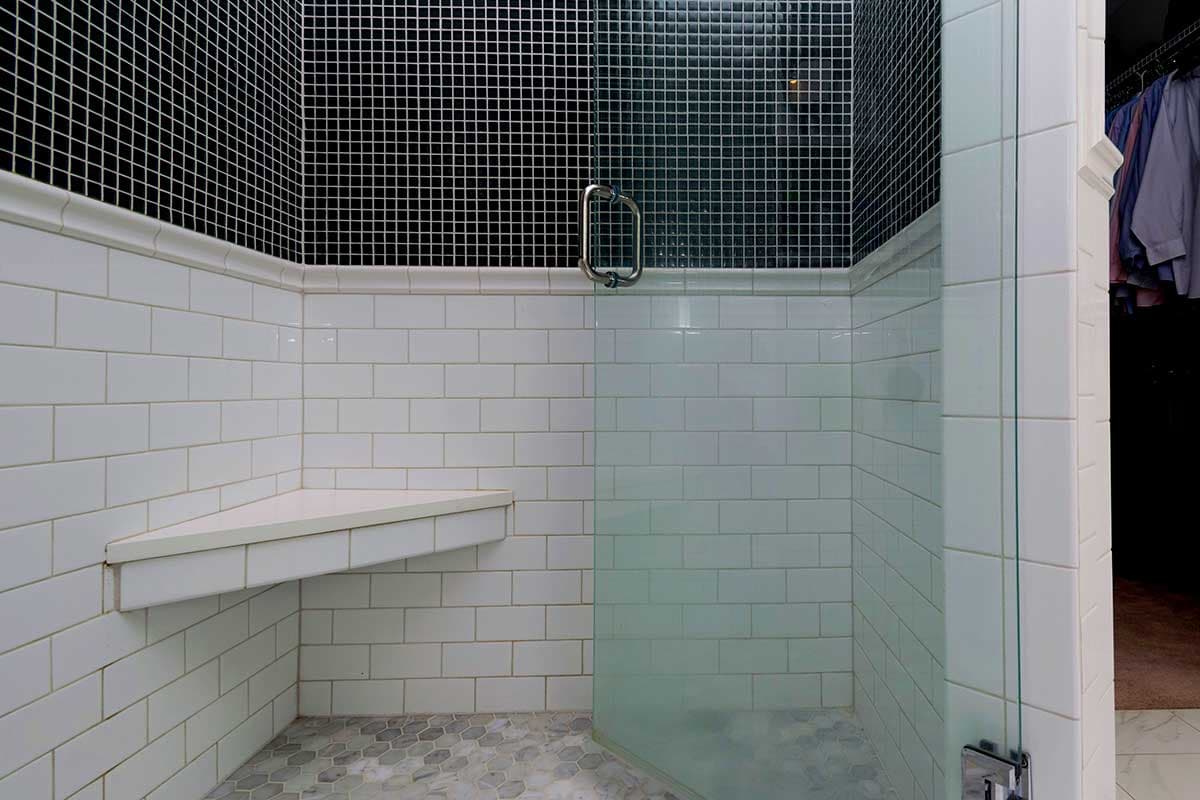

  • The master suite lies to the left of the entry and features a walk-in closet, dual sinks, and a Jacuzzi tub.

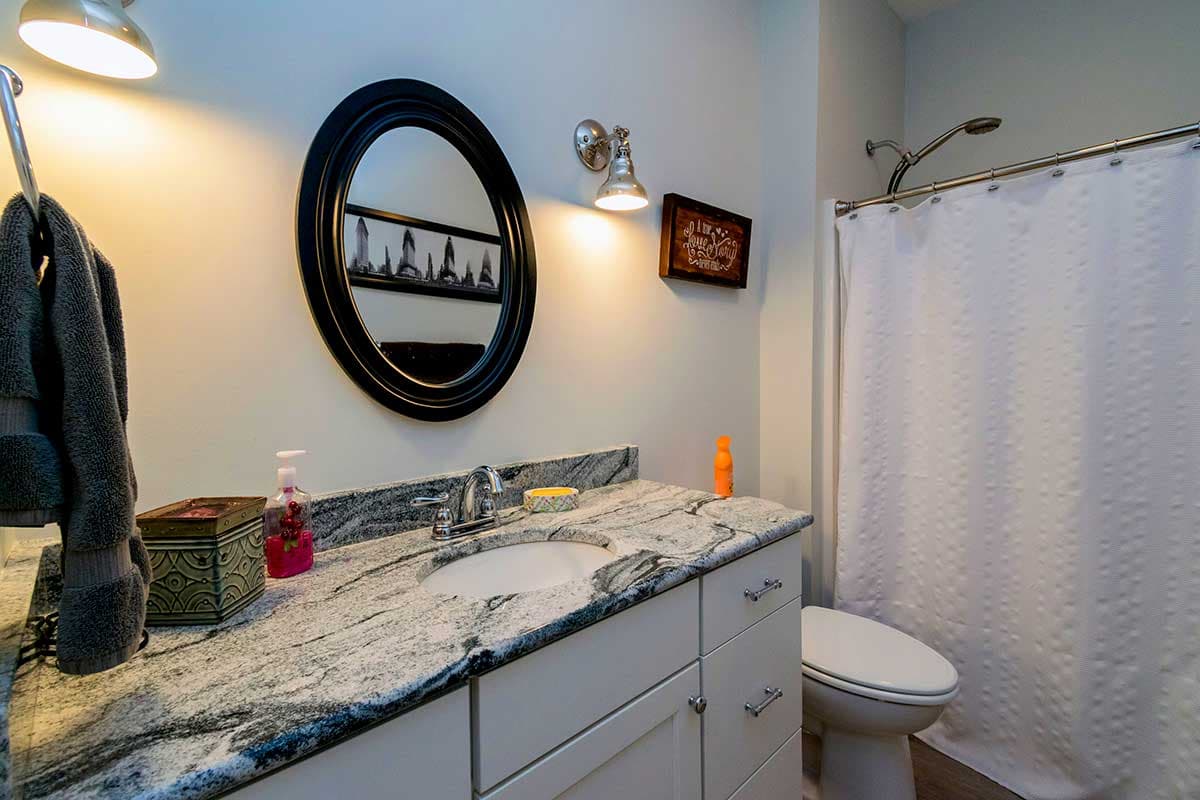

  • The second bedroom is located to the right of the house with an attached bathroom.

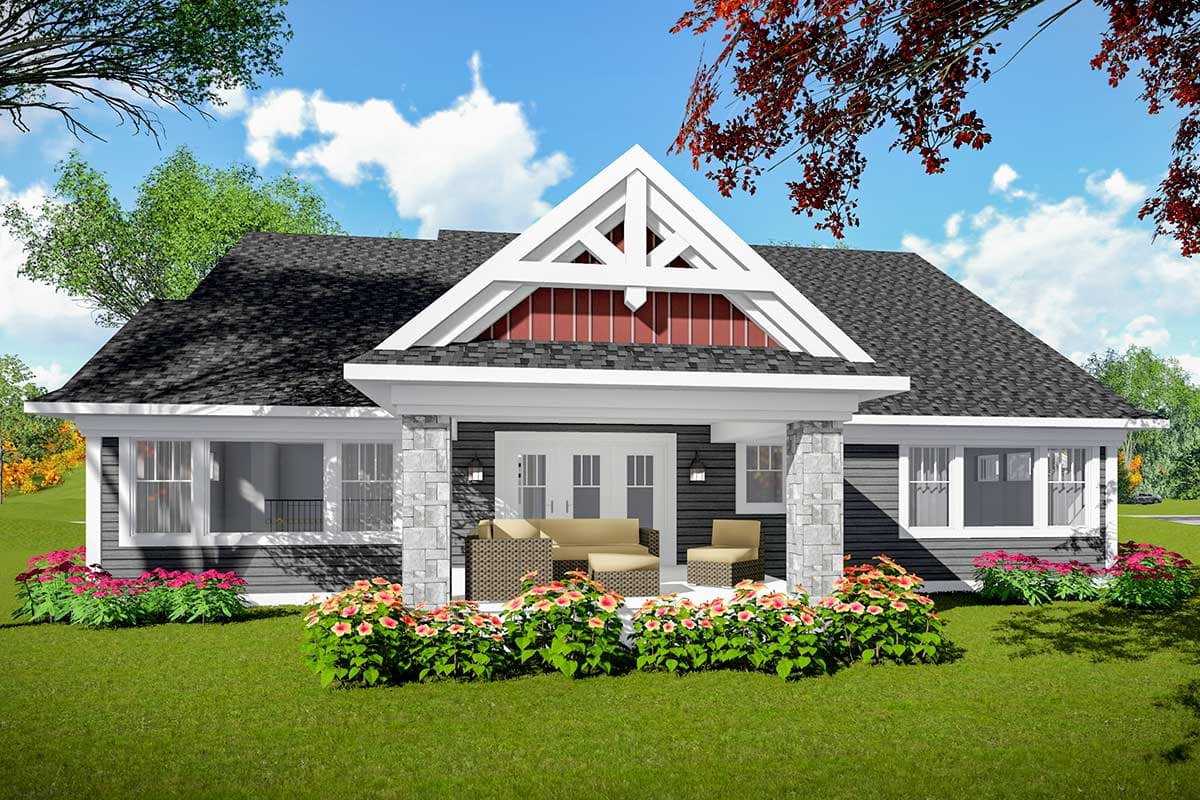

  • At the rear of the house you will find a covered porch. A two-stall garage completes the home.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,224 sq. ft.

1st Floor

2,224 sq. ft.

Porch, Combined

432 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

65' 2"

Depth

72' 0"

Max Ridge Height

26' 2"

Garage

Type

Attached

Area

678 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,224 sq. ft.

1st Floor

2,224 sq. ft.

Porch, Combined

432 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

65' 2"

Depth

72' 0"

Max Ridge Height

26' 2"

Garage

Type

Attached

Area

678 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Master Suite - 1st Floor
